| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Type | Measuring Type | Measuring Range | Display Type | Number of Characters Per Row | Display Characters - Height | Output Type | Voltage - Supply | Panel Cutout Dimensions | Mounting Type | Termination Style | Ingress Protection | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|


                 |

                    DMS-20PC-4/20S-CPROCESS METER 4-20MA LED PNL MT Murata Power Solutions Inc.  |
                1,123 |

                     |



                       Datasheet  |

                DMS-20PC-4/20 | Box | Active | Process Meter | Process | 4 ~ 20mA | LED - Red Characters | 3.5 | 0.370" (9.40mm) | - | Loop Power | Rectangular - 33.93mm x 21.29mm | Panel Mount | Screw Terminal | - | - |
|


                 |

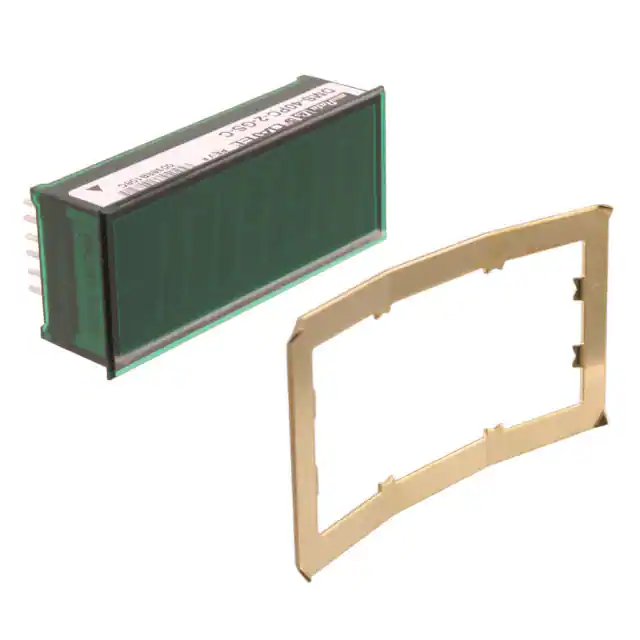

                    DMS-40PC-2-GS-CVOLTMETER 20VDC LED PANEL MOUNT Murata Power Solutions Inc.  |
                3,456 |

                     |



                       Datasheet  |

                DMS-40PC-4/20S | Box | Active | Voltmeter | Voltage | ±20VDC | LED - Green Characters | 4.5 | 0.520" (13.20mm) | - | 5VDC | Rectangular - 53.80mm x 22.30mm | Panel Mount | PC Pin | - | - |




                 |

                    DMS-40PC-1-RL-CVOLTMETER 2VDC LED PANEL MOUNT Murata Power Solutions Inc.  |
                4,912 |

                     |



                       Datasheet  |

                DMS-40PC-4/20S | Box | Active | Voltmeter | Voltage | ±2VDC | LED - Red Characters | 4.5 | 0.520" (13.20mm) | - | 5VDC | Rectangular - 53.80mm x 22.30mm | Panel Mount | PC Pin | - | - |




                 |

                    DMS-40PC-2-RL-CVOLTMETER 20VDC LED PANEL MOUNT Murata Power Solutions Inc.  |
                1,192 |

                     |



                       Datasheet  |

                DMS-40PC-4/20S | Box | Active | Voltmeter | Voltage | ±20VDC | LED - Red Characters | 4.5 | 0.520" (13.20mm) | - | 5VDC | Rectangular - 53.80mm x 22.30mm | Panel Mount | PC Pin | - | - |
|


                 |

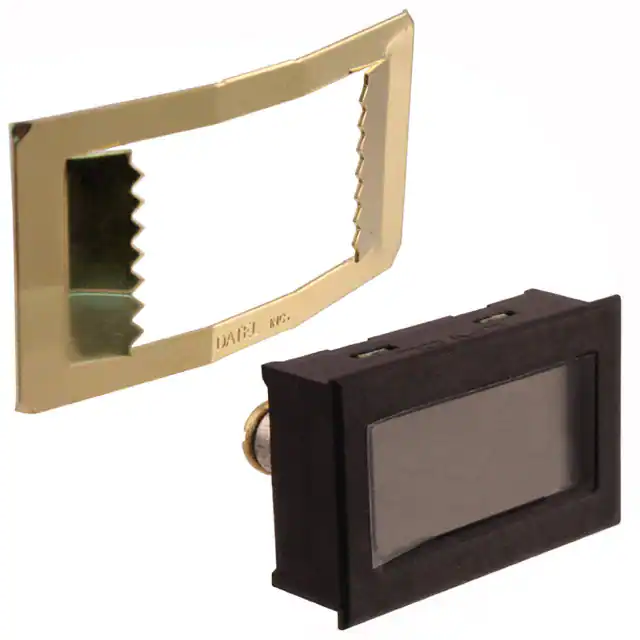

                    DMS-20LCD-1-DCM-CVOLTMETER 8-50VDC LCD PANEL MT Murata Power Solutions Inc.  |
                1,118 |

                     |



                       Datasheet  |

                DMS-20LCD-0/1 | Box | Active | Voltmeter | Voltage | 8 ~ 50VDC | LCD - Black Characters | 3 | 0.370" (9.40mm) | - | 24VDC | Rectangular - 33.93mm x 21.29mm | Panel Mount | Screw Terminal | - | Bezel Sold Separately |
|


                 |

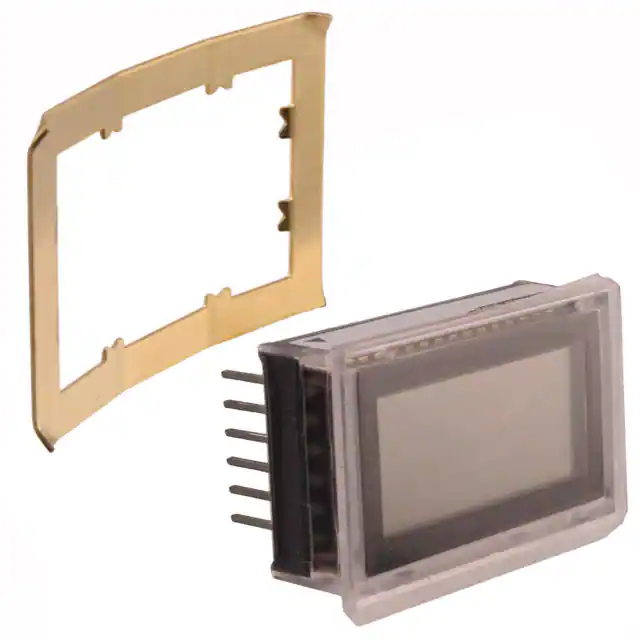

                    DMS-20LCD-0-5-CVOLTMETER 200MVDC LCD PANEL MT Murata Power Solutions Inc.  |
                3,456 |

                     |



                       Datasheet  |

                DMS-20LCD | Box | Active | Voltmeter | Voltage | ±200mVDC | LCD - Black Characters | 3.5 | 0.370" (9.40mm) | - | 5VDC | Rectangular - 33.93mm x 21.29mm | Panel Mount | PC Pin | - | - |
|


                 |

                    DMS-30PC-2-RS-CVOLTMETER 20VDC LED PANEL MOUNT Murata Power Solutions Inc.  |
                2,551 |

                     |



                       Datasheet  |

                DMS-30PC | Box | Active | Voltmeter | Voltage | ±20VDC | LED - Red Characters | 3.5 | 0.560" (14.20mm) | Reference | 5VDC | Rectangular - 53.80mm x 22.30mm | Panel Mount | PC Pin | - | - |




                 |

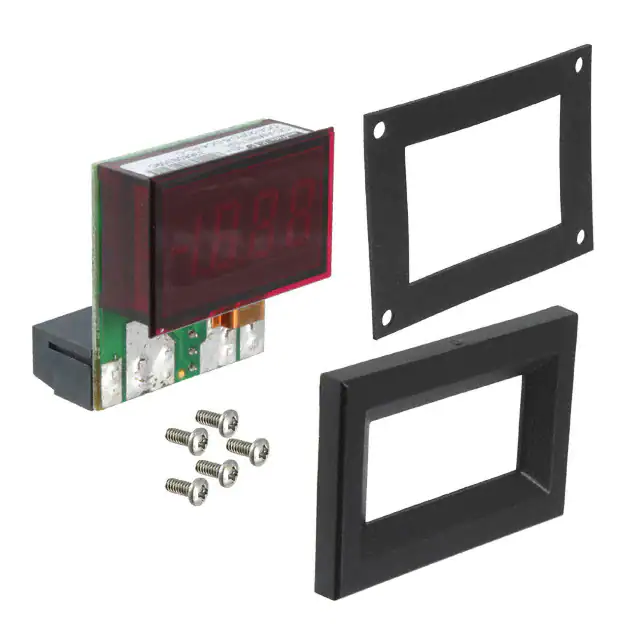

                    DCA-20PC-6-DC4-RL-CAMMETER 0-19.99A LED PANEL MOUNT Murata Power Solutions Inc.  |
                1,079 |

                     |



                       Datasheet  |

                DCA-20PC | Box | Active | Ammeter | Current | 0 ~ 19.99A | LED - Red Characters | 3.5 | 0.370" (9.40mm) | - | 8 ~ 36VDC | Rectangular - 33.93mm x 21.29mm | Panel Mount - Bezel | Screw Terminal | - | Built In Shunts |




                 |

                    DMR35-ACA2-AC1-RAMMETER PANEL 5-10A RED LED Murata Power Solutions Inc.  |
                4,741 |

                     |



                       Datasheet  |

                DMR35-ACA/mA | Box | Active | Ammeter | Current | 0 ~ 10A | LCD - Red Characters | 3.5 | - | Analog | 100 ~ 264VAC | - | Panel Mount | Screw Terminal | - | - |




                 |

                    DMR35-ACV2-AC1-RVOLTMETER PANEL 0-300VAC RED LED Murata Power Solutions Inc.  |
                3,468 |

                     |



                       Datasheet  |

                DMR35-ACV | Box | Active | Voltmeter | Voltage | 0 ~ 300VAC | LCD - Red Characters | 3.5 | - | Analog | 100 ~ 264VAC | - | Panel Mount | Screw Terminal | - | - |
