Counters, Hour Meters
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Type | Operating Mode | Count Rate | Time Format | Number of Characters Per Row | Display Type | Display Characters - Height | Input Type | Output Type | Voltage - Supply | Reset | Panel Cutout Dimensions | Mounting Type | Termination Style | Ingress Protection |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

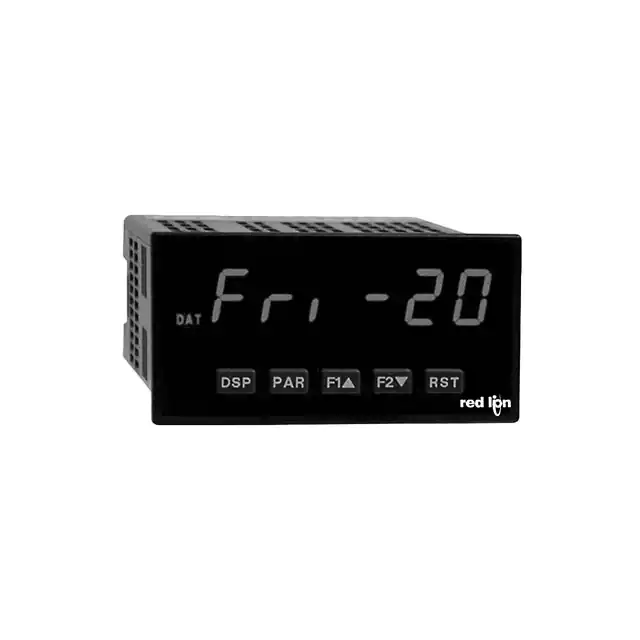

PAXCK010COUNTER LED 6 CHAR 24V PANEL MT Red Lion Controls |
2,577 |
|
Datasheet |
PAX | Box | Active | Time Counter, Timer | Up | 50Hz | - | 6 | LED - Red Characters | 0.560" (14.20mm) | No Voltage | Option Cards Available | 24VAC, 11 ~ 36VDC | External, Front Panel | Rectangular - 92.00mm x 45.00mm | Panel Mount | Screw Terminal | IP66 - Dust Tight, Water Resistant |
|

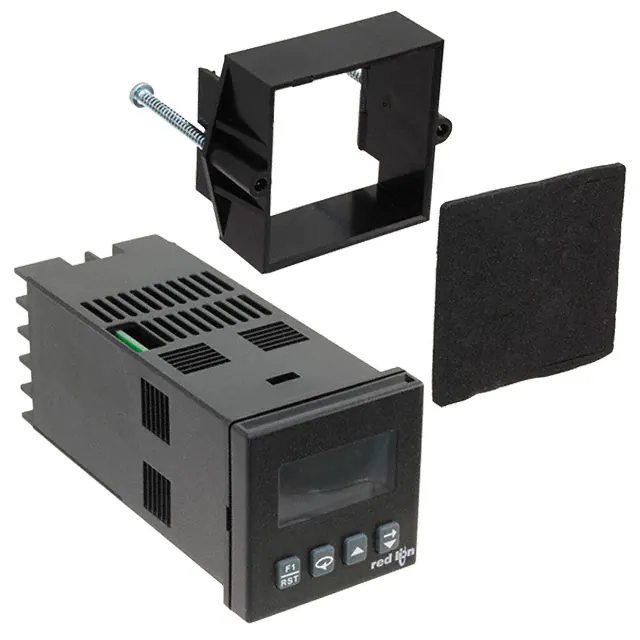

C48CS113COUNTER LCD 6 CHAR 24V PANEL MT Red Lion Controls |
2,287 |
|
Datasheet |
C48C | Box | Active | Preset | Up, Down, Quadrature | Multiple | - | 6, 6 | LCD - Dual Color Characters, Backlight | 0.300" (7.62mm), 0.200" (5.08mm) | No Voltage, Voltage | Relay, Solid State | 24VAC, 18 ~ 36VDC | External, Front Panel, Programmable | Square - 45.00mm x 45.00mm | Panel Mount | Screw Terminal | IP66 - Dust Tight, Water Resistant |
|

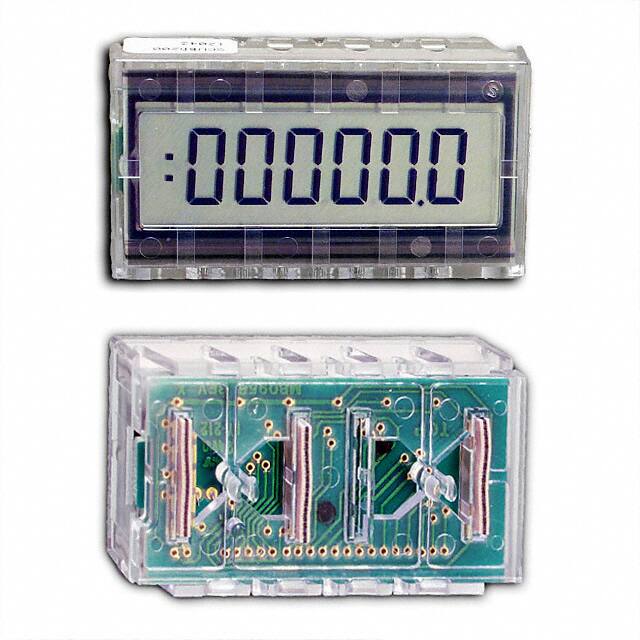

SCUBT-200/ACOUNTER LCD 5.5 CHAR 2.5-5.5V Red Lion Controls |
3,537 |
|
Datasheet |
SUB-CUB | - | Obsolete | Time Counter, Totalizer | Up | 500kHz | 199999; 19999.9hrs, min; 1999.99hrs | 5.5 | LCD - Black Characters | 0.354" (9.00mm) | Voltage | - | 2.5 ~ 5.5VDC | Non-Resettable | Rectangular - 47.75mm x 26.16mm | Board Mount, Snap-In | Pressure Contact | - |
|

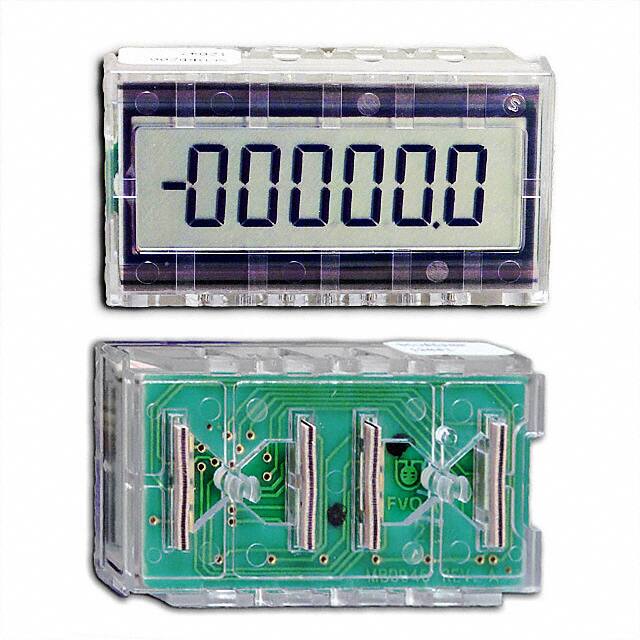

SCUBD-200/ACOUNTER LCD 8 CHAR 2.5-6V SNAP Red Lion Controls |
2,304 |
|
Datasheet |
SUB-CUB | - | Obsolete | Totalizer | Up, Down, Command, Quadrature | 500kHz | - | 8 | LCD - Black Characters | - | Voltage | - | 2.5 ~ 6VDC | External | Rectangular - 47.75mm x 26.16mm | Board Mount, Snap-In | Pressure Contact | - |
|
SCUB1LV0TACH LCD 6 CHAR 3.3V SNAP IN Red Lion Controls |
2,324 |
|
Datasheet |
SUB-CUB | Box | Obsolete | Tachometer, Totalizer | Up | 10kHz | - | 6 | LCD - Black Characters | 0.196" (5.00mm) | Voltage | - | 3.3VDC | External | Rectangular - 47.75mm x 26.16mm | Board Mount, Snap-In | Pressure Contact | - |
|

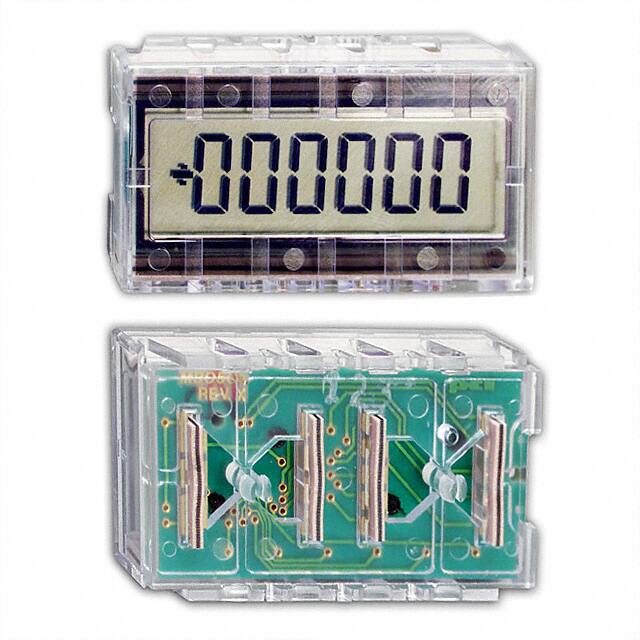

SSCUB-200/ACOUNTER LCD 6 CHAR 2.5-6V SNAP Red Lion Controls |
4,029 |
|
Datasheet |
SUPER SUB-CUB | - | Obsolete | Totalizer | Up, Down, Command, Individual, Quadrature | 400kHz | - | 6 | LCD - Black Characters | - | Voltage | - | 2.5 ~ 6VDC | External | Rectangular - 47.75mm x 26.16mm | Board Mount, Snap-In | Pressure Contact | - |
|

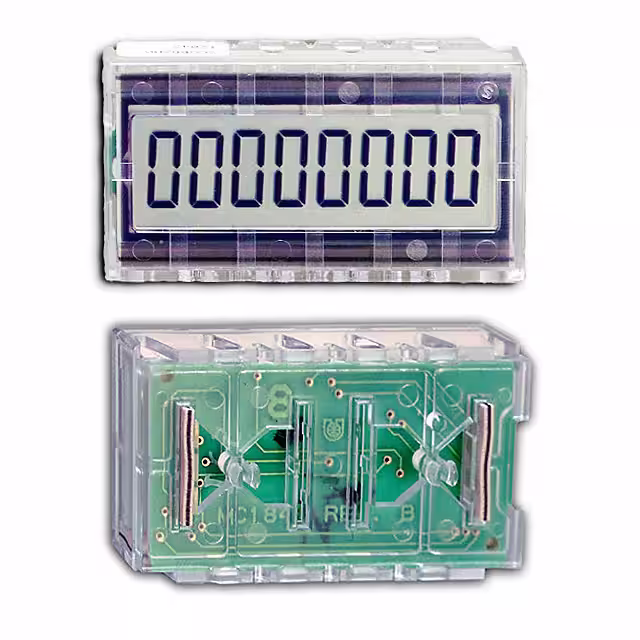

SCUB28A0COUNTER LCD 8 CHAR 5V SNAP IN Red Lion Controls |
2,575 |
|
Datasheet |
SUB-CUB | - | Obsolete | Time Counter, Totalizer | Up | 750kHz | - | 8 | LCD - Black Characters | 0.300" (7.62mm) | Voltage | - | 5VDC | External | Rectangular - 47.75mm x 26.16mm | Board Mount, Snap-In | Pressure Contact | - |
|

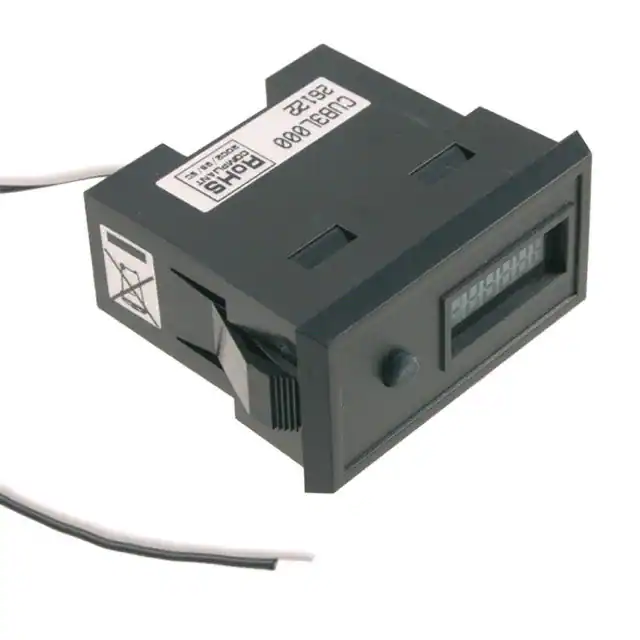

CUB3L000/ACOUNTER LCD 6 CHAR 3.6V PANEL MT Red Lion Controls |
2,786 |
|
Datasheet |
CUB3 | Bulk | Obsolete | Totalizer | Up | 100Hz | - | 6 | LCD - Black Characters | 0.200" (5.10mm) | No Voltage | - | Battery, 3.6VDC | Front Panel | Rectangular - 50.00mm x 25.00mm | Panel Mount | Wire Leads | - |
|

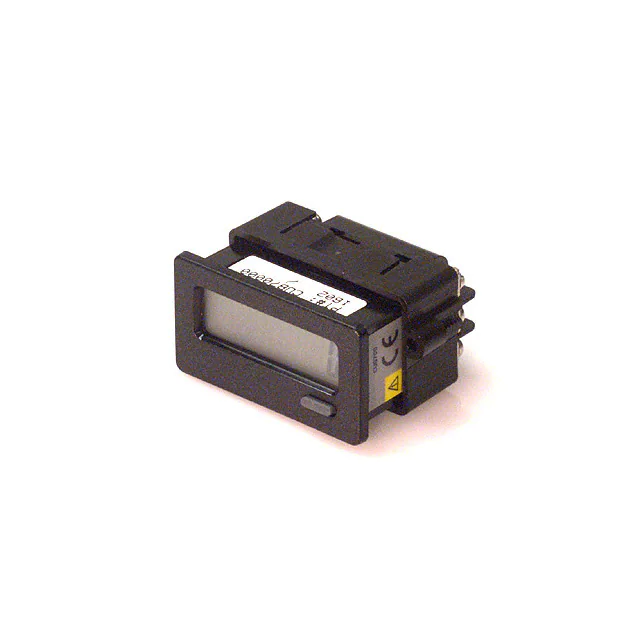

CUB70000COUNTER LCD 8 CHAR 3V PANEL MT Red Lion Controls |
3,957 |
|
Datasheet |
CUB7 | - | Obsolete | Totalizer | Up | 30Hz, 10kHz | - | 8 | LCD - Black Characters | 0.350" (8.90mm) | No Voltage, Voltage | - | Battery, 3VDC | External, Front Panel | Rectangular - 45.00mm x 22.20mm | Panel Mount | Screw Terminal | IP66 - Dust Tight, Water Resistant |
|
CUB7W000COUNTER LCD 8 CHAR 3V PANEL MT Red Lion Controls |
1,336 |
|
Datasheet |
CUB7 | - | Obsolete | Totalizer | Up | 30Hz | - | 8 | LCD - Black Characters | 0.350" (8.90mm) | Voltage | - | Battery, 3VDC | External, Front Panel | Rectangular - 45.00mm x 22.20mm | Panel Mount | Screw Terminal | IP66 - Dust Tight, Water Resistant |
