Counters, Hour Meters
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Type | Operating Mode | Count Rate | Time Format | Number of Characters Per Row | Display Type | Display Characters - Height | Input Type | Output Type | Voltage - Supply | Reset | Panel Cutout Dimensions | Mounting Type | Termination Style | Ingress Protection |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
LGM00001COUNTER LCD 8 CHAR 115/230V PNL Red Lion Controls |
2,169 |
|
- |
Legend | Box | Obsolete | Preset, Tachometer | Up, Down, Command, Individual, Quadrature | 15kHz | - | 8, 8 | LCD - Green Characters, Backlight | 0.300" (7.62mm) | No Voltage, Voltage | Relay, Solid State | 115/230VAC, ±12VDC | Front Panel, Programmable | Square - 68.00mm x 68.00mm | Panel Mount | Screw Terminal | IP66 - Dust Tight, Water Resistant |
|
|
LGPM0101COUNTER LCD 8 CHAR 115/230V PNL Red Lion Controls |
3,723 |
|
Datasheet |
Legend+ | Box | Obsolete | Preset, Tachometer | Up, Down, Command, Individual, Quadrature | 13kHz | - | 8, 8 | LCD - Red Characters, Backlight | 0.300" (7.62mm) | No Voltage, Voltage | Relay, Solid State | 115/230VAC, ±12VDC | Front Panel, Programmable | Square - 68.00mm x 68.00mm | Panel Mount | Screw Terminal | IP66 - Dust Tight, Water Resistant |
|
|
LGM00101COUNTER LCD 8 CHAR 115/230V PNL Red Lion Controls |
2,077 |
|
- |
Legend | Box | Obsolete | Preset, Tachometer | Up, Down, Command, Individual, Quadrature | 15kHz | - | 8, 8 | LCD - Red Characters, Backlight | 0.300" (7.62mm) | No Voltage, Voltage | Relay, Solid State | 115/230VAC, ±12VDC | Front Panel, Programmable | Square - 68.00mm x 68.00mm | Panel Mount | Screw Terminal | IP66 - Dust Tight, Water Resistant |
|
|
LGPB0000COUNTER LCD 8 CHAR 115/230V PNL Red Lion Controls |
3,546 |
|
Datasheet |
Legend+ | Box | Obsolete | Batch, Preset, Tachometer, Totalizer | Up, Down, Command, Individual, Quadrature | 15kHz | - | 8, 8 | LCD - Green Characters, Backlight | 0.300" (7.62mm) | No Voltage, Voltage | Relay, Solid State | 115/230VAC, ±12VDC | Front Panel, Programmable | Square - 68.00mm x 68.00mm | Panel Mount | Screw Terminal | IP66 - Dust Tight, Water Resistant |
|
|
LGPB0100COUNTER LCD 8 CHAR 115/230V PNL Red Lion Controls |
4,317 |
|
Datasheet |
Legend+ | Box | Obsolete | Batch, Preset, Tachometer, Totalizer | Up, Down, Command, Individual, Quadrature | 15kHz | - | 8, 8 | LCD - Red Characters, Backlight | 0.300" (7.62mm) | No Voltage, Voltage | Relay, Solid State | 115/230VAC, ±12VDC | Front Panel, Programmable | Square - 68.00mm x 68.00mm | Panel Mount | Screw Terminal | IP66 - Dust Tight, Water Resistant |
|
|
LGPM0201COUNTER LCD 8 CHAR 115/230V PNL Red Lion Controls |
1,946 |
|
Datasheet |
Legend+ | Box | Obsolete | Preset, Tachometer | Up, Down, Command, Individual, Quadrature | 13kHz | - | 8, 8 | LCD - Dual Color Characters, Backlight | 0.300" (7.62mm) | No Voltage, Voltage | Relay, Solid State | 115/230VAC, ±12VDC | Front Panel, Programmable | Square - 68.00mm x 68.00mm | Panel Mount | Screw Terminal | IP66 - Dust Tight, Water Resistant |
|
PAXDR010TACHOMETER LED 6 CHAR 24V PNL MT Red Lion Controls |
3,107 |
|
Datasheet |
PAXDR | Box | Obsolete | Tachometer, Totalizer | Up, Down, Command, Quadrature | 44kHz, 50Hz | - | 6 | LED - Red Characters | 0.560" (14.20mm) | No Voltage, Voltage | Option Cards Available | 24VAC, 11 ~ 36VDC | External, Front Panel | Rectangular - 92.00mm x 45.00mm | Panel Mount | Screw Terminal | IP66 - Dust Tight, Water Resistant |
|
|
LGPB0200COUNTER LCD 8 CHAR 115/230V PNL Red Lion Controls |
3,726 |
|
Datasheet |
Legend+ | Box | Obsolete | Batch, Preset, Tachometer, Totalizer | Up, Down, Command, Individual, Quadrature | 15kHz | - | 8, 8 | LCD - Dual Color Characters, Backlight | 0.300" (7.62mm) | No Voltage, Voltage | Relay, Solid State | 115/230VAC, ±12VDC | Front Panel, Programmable | Square - 68.00mm x 68.00mm | Panel Mount | Screw Terminal | IP66 - Dust Tight, Water Resistant |
|
LD200600COUNTER LED 6 CHAR 50-250V CHASS Red Lion Controls |
3,792 |
|
Datasheet |
LD | Bulk | Active | Totalizer | Up, Down, Command, Individual, Quadrature | 50Hz, 25kHz | - | 6 | LED - Red Characters | 2.250" (57.00mm) | Voltage | - | 50 ~ 250VAC | External | - | Chassis Mount | Screw Terminal | IP66 - Dust Tight, Water Resistant |
|

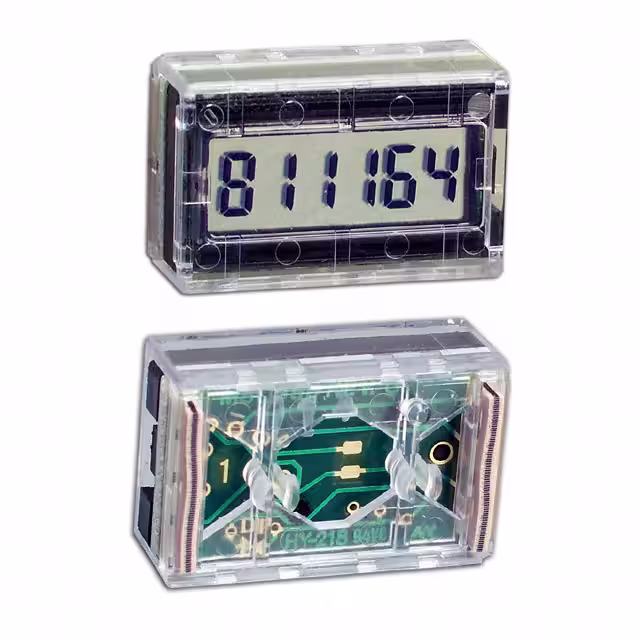

SCUB1000TACHOMETER LCD 6 CHAR 5V SNAP IN Red Lion Controls |
2,954 |
|
Datasheet |
SUB-CUB | Bulk | Obsolete | Tachometer, Totalizer | Up | 10kHz | - | 6 | LCD - Black Characters | 0.196" (5.00mm) | Voltage | - | 5VDC | External | Rectangular - 47.75mm x 26.16mm | Board Mount, Snap-In | Pressure Contact | - |
