Counters, Hour Meters
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Type | Operating Mode | Count Rate | Time Format | Number of Characters Per Row | Display Type | Display Characters - Height | Input Type | Output Type | Voltage - Supply | Reset | Panel Cutout Dimensions | Mounting Type | Termination Style | Ingress Protection |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
20037-17COUNTER 6 CHARACTER PANEL MT |
2,105 |
|
Datasheet |
20000 | Bulk | Obsolete | Time Counter (Hour Meter) | Up | - | 99999.9hrs | 6 | Decade Wheel | 0.120" (3.00mm) | - | - | - | - | - | Panel Mount | Quick Connect - 0.250" (6.3mm) | IP66 - Dust Tight, Water Resistant |
|
CT4S-2P4COUNTER TIMER 100-240VAC |
3,019 |
|
Datasheet |
CT | Box | Active | Batch, Preset, Tachometer, Timer, Totalizer | Up, Down | Multiple | Multiple | 4, 4 | LED - Green, Red Characters | 0.394" (10.00mm), 0.315" (8.00mm) | No Voltage, Voltage | Relay (2), Solid State | 100 ~ 240VAC | External, Front Panel | Square - 45.00mm x 45.00mm | Panel Mount | Screw Terminal | IP65 - Dust Tight, Water Resistant |
|
|
28006-01COUNTER HOUR METER |
1,834 |
|
- |
- | Bulk | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
22636-00COUNTER HOUR METER |
4,404 |
|
- |
- | Bulk | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
CT4S-1P4TCOUNTER TIMER 100-240VAC |
3,815 |
|
Datasheet |
CT | Box | Active | Batch, Preset, Tachometer, Timer, Totalizer | Up, Down | Multiple | Multiple | 4, 4 | LED - Green, Red Characters | 0.394" (10.00mm), 0.315" (8.00mm) | No Voltage, Voltage | Relay, Solid State | 100 ~ 240VAC | External, Front Panel | Square - 45.00mm x 45.00mm | Panel Mount | Screw Terminal | IP65 - Dust Tight, Water Resistant |
|
|
720-000710NL1 115vac 99999.9 wires 3-hol |
3,294 |
|
Datasheet |
- | Retail Package | Active | Time Counter (Hour Meter) | Up | - | 999999.99hrs | 6 | Decade Wheel | 0.190" (4.83mm) | Voltage | Analog | 115VAC | Non-Resettable | Circular - 54.86mm Dia | Panel Mount | Wire Leads | - |
|
|
520K.2CTR, 10-30VDC, INPUT 4-30VDC, CL |
3,800 |
|
Datasheet |
- | Retail Package | Active | Time Counter (Hour Meter) | Up | 10kHz | 999999hrs | 6 | LED - Red Characters | 0.315" (8.00mm) | Voltage | Relay | 10 ~ 30VDC | External | Rectangular - 47.75mm x 23.98mm | Panel Mount | Screw Terminal | IP65 - Dust Tight, Water Resistant, NEMA 4X |
|
CT6S-1P4TCOUNTER TIMER 100-240VAC |
1,855 |
|
Datasheet |
CT | Box | Active | Batch, Preset, Tachometer, Timer, Totalizer | Up, Down | Multiple | Multiple | 6, 6 | LED - Green, Red Characters | 0.394" (10.00mm), 0.275" (7.00mm) | No Voltage, Voltage | Relay, Solid State | 100 ~ 240VAC | External, Front Panel | Square - 45.00mm x 45.00mm | Panel Mount | Screw Terminal | IP65 - Dust Tight, Water Resistant |
|
|
521K.2CTR, POS IND, 10-30VDC, 2 INPUT |
4,120 |
|
Datasheet |
- | Retail Package | Active | Totalizer | Up | 10kHz | 999999hrs | 6 | LED - Red Characters | 0.315" (8.00mm) | Voltage | Relay | 10 ~ 30VDC | External | Rectangular - 47.75mm x 23.98mm | Panel Mount | Screw Terminal | IP65 - Dust Tight, Water Resistant, NEMA 4X |
|
|
CT4S-2P4TCOUNTER TIMER 100-240VAC |
3,518 |
|
Datasheet |
CT | Box | Active | Batch, Preset, Tachometer, Timer, Totalizer | Up, Down | Multiple | Multiple | 4, 4 | LED - Green, Red Characters | 0.394" (10.00mm), 0.315" (8.00mm) | No Voltage, Voltage | Relay (2), Solid State | 100 ~ 240VAC | External, Front Panel | Square - 45.00mm x 45.00mm | Panel Mount | Screw Terminal | IP65 - Dust Tight, Water Resistant |
|

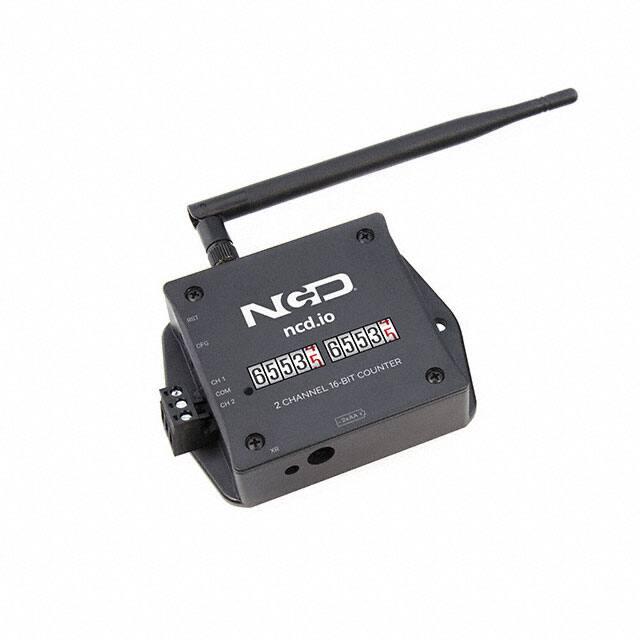

PR52-3CTWO CHANNEL COUNTER |
4,197 |
|
- |
PR52 | Box | Active | Tachometer | Up | - | - | 10 | Decade Wheel | - | - | - | None Required (Battery Included) | External | - | Panel Mount | Screw Terminal | - |
|
PR52-3BONE CHANNEL COUNTER |
3,628 |
|
- |
PR52 | Box | Active | Tachometer | Up | - | - | 10 | Decade Wheel | - | - | - | None Required (Battery Included) | External | - | Panel Mount | Screw Terminal | - |
|
DT800000TACHOMETER LCD 5 CHAR 3.6V PANEL |
3,098 |
|
Datasheet |
DITAK 8 | Box | Obsolete | Tachometer | Up | - | - | 5 | LCD - Black Characters | 0.600" (15.20mm) | Voltage | - | Battery, 3.6VDC | Non-Resettable | Rectangular - 68.00mm x 33.00mm | Panel Mount | Screw Terminal | IP66 - Dust Tight, Water Resistant |
|
|
9415-0036-240 VAC OR VDC, PANEL MOUNT PU |
4,548 |
|
Datasheet |
94 | Box | Active | Totalizer | Up, Down | 40Hz | - | 6 | LCD - Black Characters | 0.500" (12.70mm) | No Voltage | - | 6 ~ 240VAC/DC | Front Panel | - | Panel Mount | Wire Leads | - |
|
CT6S-2P4TCOUNTER TIMER 100-240VAC |
2,942 |
|
Datasheet |
CT | Box | Active | Batch, Preset, Tachometer, Timer, Totalizer | Up, Down | Multiple | Multiple | 6, 6 | LED - Green, Red Characters | 0.394" (10.00mm), 0.276" (7.00mm) | No Voltage, Voltage | Relay (2), Solid State (2) | 100 ~ 240VAC | External, Front Panel | Square - 45.00mm x 45.00mm | Panel Mount | Screw Terminal | IP65 - Dust Tight, Water Resistant |
|
CT6M-1P4TCOUNTER TIMER 100-240VAC |
3,122 |
|
Datasheet |
CT | Box | Active | Batch, Preset, Tachometer, Timer, Totalizer | Up, Down | Multiple | Multiple | 6, 6 | LED - Green, Red Characters | 0.512" (13.00mm), 0.354" (9.00mm) | No Voltage, Voltage | Relay, Solid State | 100 ~ 240VAC | External, Front Panel | Square - 68.00mm x 68.00mm | Panel Mount | Screw Terminal | IP65 - Dust Tight, Water Resistant |
|
|
9415-0056-240 VAC OR VDC, KEY RESET |
2,856 |
|
Datasheet |
94 | Box | Active | Totalizer | Up, Down | 40Hz | - | 6 | LCD - Black Characters | 0.500" (12.70mm) | No Voltage | - | 6 ~ 240VAC/DC | Front Panel | - | Panel Mount | Wire Leads | - |
|
CUB4L810COUNTER LCD 8 CHAR 3.6V PANEL MT |
1,763 |
|
Datasheet |
CUB4 | Box | Obsolete | Totalizer | Up | 50Hz, 5kHz | - | 8 | LCD - Green Characters, Backlight | 0.460" (11.70mm) | No Voltage, Voltage | - | Battery, 3.6VDC, 6 ~ 28VDC (Backlight) | External, Front Panel | Rectangular - 68.00mm x 33.00mm | Panel Mount | Screw Terminal | IP66 - Dust Tight, Water Resistant |
|
|
7922DUAL PRESET, LCD COUNTER |
3,380 |
|
Datasheet |
- | Retail Package | Active | Time Counter (Hour Meter) | Down, Up | 10kHz | - | 6, 6 | LCD - Dual Color Characters, Backlight | 0.280" (7.11mm) | Voltage | Relay (2) | 85 ~ 265VAC, 10 ~ 26VDC | External | Square - 44.96mm x 44.96mm | DIN Rail | Wire Leads | IP65 - Dust Tight, Water Resistant |
|
|
CT6M-2P4TCOUNTER TIMER 100-240VAC |
1,895 |
|
Datasheet |
CT | Box | Active | Batch, Preset, Tachometer, Timer, Totalizer | Up, Down | Multiple | Multiple | 6, 6 | LED - Green, Red Characters | 0.512" (13.00mm), 0.354" (9.00mm) | No Voltage, Voltage | Relay (2), Solid State (2) | 100 ~ 240VAC | External, Front Panel | Square - 68.00mm x 68.00mm | Panel Mount | Screw Terminal | IP65 - Dust Tight, Water Resistant |
