Oscillators
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Base Resonator | Type | Frequency | Function | Output | Voltage - Supply | Frequency Stability | Absolute Pull Range (APR) | Operating Temperature | Spread Spectrum Bandwidth | Current - Supply (Max) | Ratings | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ECS-3953M-480-AU-TRXTAL OSC XO 48.0000MHZ HCMOS SMD |
1,393 |
|
Datasheet |
ECS-3953M-AU | 4-SMD, No Lead | Tape & Reel (TR) | Active | Crystal | XO (Standard) | 48 MHz | Enable/Disable | HCMOS | 3.3V | ±100ppm | - | -55°C ~ 125°C | - | 25mA | - | Surface Mount | 4-VDFN (3.2x2.5) | 0.276" L x 0.197" W (7.00mm x 5.00mm) | 0.067" (1.70mm) |
|
ECS-TXO-2016MV-200-TRXTAL OSC TCXO 20 MHZ HCMOS SMD |
1,202 |
|
Datasheet |
ECS-TXO-2016MV MultiVolt™ | 4-SMD, No Lead | Tape & Reel (TR) | Active | Crystal | TCXO | 20 MHz | Enable/Disable | CMOS | 1.8V, 2.5V, 3.3V | ±2.5ppm | - | -40°C ~ 85°C | - | 4.8mA | - | Surface Mount | - | 0.079" L x 0.063" W (2.00mm x 1.60mm) | 0.031" (0.80mm) |
|
7X-50.000MBB-TXTAL OSC XO 50.0000MHZ CMOS SMD |
1,065 |
|
Datasheet |
7X | 4-SMD, No Lead | Tape & Reel (TR) | Active | Crystal | XO (Standard) | 50 MHz | Enable/Disable | CMOS | 3.3V | ±50ppm | - | -10°C ~ 70°C | - | 20mA | - | Surface Mount | - | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.043" (1.10mm) |
|
|
ECS-TXO-2016MV-500-TRXTAL OSC TCXO 50 MHZ HCMOS SMD |
976 |
|
Datasheet |
ECS-TXO-2016MV MultiVolt™ | 4-SMD, No Lead | Tape & Reel (TR) | Active | Crystal | TCXO | 50 MHz | Enable/Disable | CMOS | 1.8V, 2.5V, 3.3V | ±2.5ppm | - | -40°C ~ 85°C | - | 7mA | - | Surface Mount | - | 0.079" L x 0.063" W (2.00mm x 1.60mm) | 0.031" (0.80mm) |
|
ECS-2520S33-400-FN-TRXTAL OSC XO 40.0000MHZ HCMOS SMD |
678 |
|
Datasheet |
ECS-2520S | 4-SMD, No Lead | Tape & Reel (TR) | Active | Crystal | XO (Standard) | 40 MHz | Enable/Disable | HCMOS | 3.3V | ±10ppm | - | -40°C ~ 85°C | - | 7mA | - | Surface Mount | 4-VDFN (3.2x2.5) | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.039" (1.00mm) |
|
|
ECS-TXO-2016MV-400-TRXTAL OSC TCXO 40 MHZ HCMOS SMD |
471 |
|
Datasheet |
ECS-TXO-2016MV MultiVolt™ | 4-SMD, No Lead | Tape & Reel (TR) | Active | Crystal | TCXO | 40 MHz | Enable/Disable | CMOS | 1.8V, 2.5V, 3.3V | ±2.5ppm | - | -40°C ~ 85°C | - | 6mA | - | Surface Mount | - | 0.079" L x 0.063" W (2.00mm x 1.60mm) | 0.031" (0.80mm) |
|
MXO45HST-3C-16M000000XTAL OSC XO 16.0000MHZ HCMOS TH |
825 |
|
Datasheet |
MXO45HS | 8-DIP, 4 Leads (Half Size, Metal Can) | Tray | Active | Crystal | XO (Standard) | 16 MHz | Enable/Disable | HCMOS, TTL | 5V | ±50ppm | - | -20°C ~ 70°C | - | 26mA | - | Through Hole | - | 0.520" L x 0.520" W (13.20mm x 13.20mm) | 0.240" (6.10mm) |
|

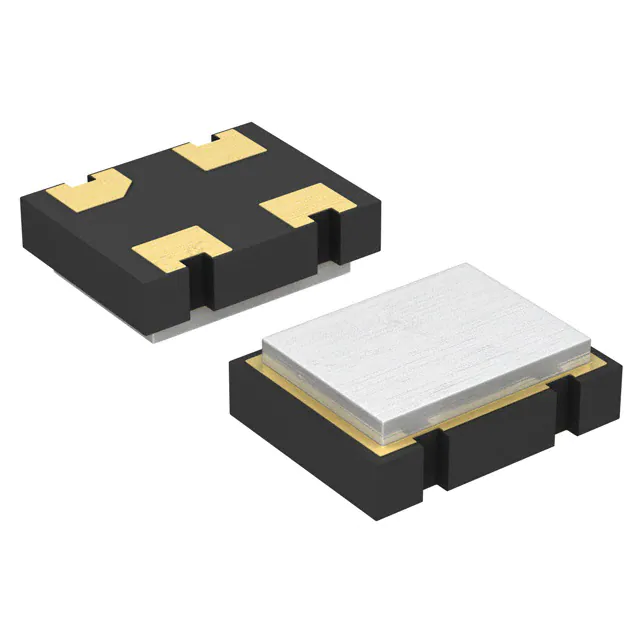

ASFLK-32.768KHZ-LJTXTAL OSC XO 32.7680KHZ TTL SMD |
974 |
|
Datasheet |
ASFLK | 4-SMD, No Lead | Tape & Reel (TR) | Active | Crystal | XO (Standard) | 32.768 kHz | Enable/Disable | TTL | 3.3V | ±20ppm | - | -40°C ~ 85°C | - | 1mA | - | Surface Mount | 4-VDFN (3.2x2.5) | 0.197" L x 0.126" W (5.00mm x 3.20mm) | 0.051" (1.30mm) |
|
XLH536033.333330IXTAL OSC XO 33.33333MHZ HCMOS |
14,601 |
|
Datasheet |
XPRESSO™ FXO-HC53 | 6-SMD, No Lead | Strip | Active | Crystal | XO (Standard) | 33.33333 MHz | Enable/Disable | HCMOS | 3.3V | ±25ppm | - | -40°C ~ 85°C | - | 35mA | - | Surface Mount | 4-VDFN (3.2x2.5) | 0.203" L x 0.132" W (5.15mm x 3.35mm) | 0.055" (1.40mm) |
|
SIT1630AE-S6-DCC-32.768EMEMS OSC XO 32.7680KHZ LVCMOS |
4,407 |
|
Datasheet |
SiT1630 | SC-74A, SOT-753 | Tape & Reel (TR) | Active | MEMS | XO (Standard) | 32.768 kHz | - | LVCMOS | 1.5V ~ 3.63V | ±150ppm | - | -40°C ~ 105°C | - | 2.8µA | - | Surface Mount | SOT-23-5 | 0.114" L x 0.063" W (2.90mm x 1.60mm) | 0.057" (1.45mm) |
|
ECS-2520SMV-250-FP-TRXTAL OSC XO 25.0000MHZ HCMOS SMD |
9,431 |
|
Datasheet |
ECS-2520SMV MultiVolt™ | 4-SMD, No Lead | Tape & Reel (TR) | Active | Crystal | XO (Standard) | 25 MHz | Enable/Disable | HCMOS | 1.62V ~ 3.63V | ±10ppm | - | -40°C ~ 105°C | - | 10mA | - | Surface Mount | 4-VDFN (3.2x2.5) | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.035" (0.90mm) |
|
ECS-TXO-2016-33-400-TRXTAL OSC TCXO 40MHZ 3.3V SMD |
3,040 |
|
Datasheet |
ECS-TXO-2016 | 4-SMD, No Lead | Tape & Reel (TR) | Active | Crystal | TCXO | 40 MHz | Enable/Disable | HCMOS | 3.3V | ±2.5ppm | - | -40°C ~ 85°C | - | 6mA | - | Surface Mount | 4-VDFN (3.2x2.5) | 0.079" L x 0.063" W (2.00mm x 1.60mm) | 0.031" (0.80mm) |
|
ECS-3963-666-BN-TRXTAL OSC XO 66.6660MHZ HCMOS SMD |
3,874 |
|
Datasheet |
ECS-3963-BN | 4-SMD, No Lead | Tape & Reel (TR) | Active | Crystal | XO (Standard) | 66.666 MHz | Enable/Disable | HCMOS | 3.3V | ±50ppm | - | -40°C ~ 85°C | - | 35mA | - | Surface Mount | 4-VDFN (3.2x2.5) | 0.197" L x 0.126" W (5.00mm x 3.20mm) | 0.051" (1.30mm) |
|
ECS-3951M-040-AU-TRXTAL OSC XO 4.0000MHZ HCMOS SMD |
1,758 |
|
Datasheet |
ECS-3951M-AU | 4-SMD, No Lead | Tape & Reel (TR) | Active | Crystal | XO (Standard) | 4 MHz | Enable/Disable | HCMOS | 5V | ±100ppm | - | -55°C ~ 125°C | - | 25mA | - | Surface Mount | 4-VDFN (3.2x2.5) | 0.276" L x 0.197" W (7.00mm x 5.00mm) | 0.067" (1.70mm) |
-0.035-Thick.jpg)
|
ECS-2033-250-AUXTAL OSC XO 25.0000MHZ CMOS SMD |
642 |
|
Datasheet |
ECS-2033 | 4-SMD, No Lead | Tape & Reel (TR) | Active | Crystal | XO (Standard) | 25 MHz | Enable/Disable | CMOS | 3.3V | ±100ppm | - | -55°C ~ 125°C | - | 13mA | - | Surface Mount | 4-VDFN (3.2x2.5) | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.035" (0.90mm) |
|
SG3225VAN 100.000000M-KEGA0XTAL OSC XO 100.0000MHZ LVDS SMD |
523 |
|
Datasheet |
SG3225VAN | 6-SMD, No Lead | Tape & Reel (TR) | Active | Crystal | XO (Standard) | 100 MHz | Enable/Disable | LVDS | 2.5V ~ 3.3V | ±30ppm | - | -40°C ~ 85°C | - | 30mA | - | Surface Mount | 4-VDFN (3.2x2.5) | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.047" (1.20mm) |
|
ASCO2-24.000MHZ-EK-T3XTAL OSC XO 24.0000MHZ CMOS SMD |
22,659 |
|
Datasheet |
ASCO | 4-SMD, No Lead | Tape & Reel (TR) | Active | Crystal | XO (Standard) | 24 MHz | Enable/Disable | CMOS | 1.8V | ±30ppm | - | -20°C ~ 70°C | - | 3.5mA | - | Surface Mount | 4-VDFN (3.2x2.5) | 0.063" L x 0.047" W (1.60mm x 1.20mm) | 0.028" (0.70mm) |
|
AU-25.000MBE-TXTAL OSC XO 25.0000MHZ CMOS SMD |
22,559 |
|
Datasheet |
AU | 4-SMD, No Lead | Tape & Reel (TR) | Active | Crystal | XO (Standard) | 25 MHz | Enable/Disable | CMOS | 3.3V | ±50ppm | - | -40°C ~ 85°C | - | 6mA | AEC-Q100 | Surface Mount | - | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.043" (1.10mm) |
|
|
ASCO-50.000MHZ-EK-T3XTAL OSC XO 50.0000MHZ CMOS SMD |
11,262 |
|
Datasheet |
ASCO | 4-SMD, No Lead | Tape & Reel (TR) | Active | Crystal | XO (Standard) | 50 MHz | Enable/Disable | CMOS | 3.3V | ±30ppm | - | -20°C ~ 70°C | - | 8.5mA | - | Surface Mount | 4-VDFN (3.2x2.5) | 0.063" L x 0.047" W (1.60mm x 1.20mm) | 0.028" (0.70mm) |
|
|
AU-50.000MBE-TXTAL OSC XO 50.0000MHZ CMOS SMD |
6,957 |
|
Datasheet |
AU | 4-SMD, No Lead | Tape & Reel (TR) | Active | Crystal | XO (Standard) | 50 MHz | Enable/Disable | CMOS | 3.3V | ±50ppm | - | -40°C ~ 85°C | - | 6mA | AEC-Q100 | Surface Mount | - | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.043" (1.10mm) |
