Oscillators
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Base Resonator | Type | Frequency | Function | Output | Voltage - Supply | Frequency Stability | Absolute Pull Range (APR) | Operating Temperature | Spread Spectrum Bandwidth | Current - Supply (Max) | Ratings | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
XFP336312.500000IXTAL OSC XO 312.500000MHZ LVPECL Renesas Electronics Corporation |
204 |
|
Datasheet |
XF | 8-SMD, No Lead | Strip | Active | Crystal | XO (Standard) | 312.5 MHz | Enable/Disable | LVPECL | 3.3V | ±25ppm | - | -40°C ~ 85°C | - | 110mA | - | Surface Mount | - | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.037" (0.95mm) |
|
|

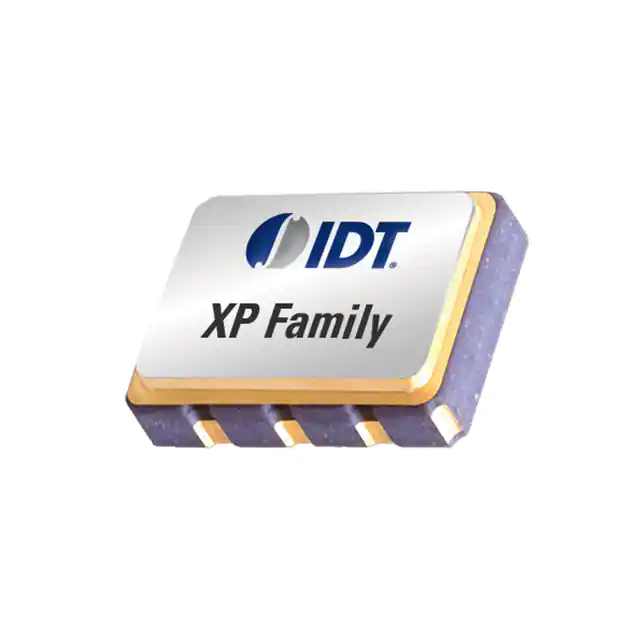

XPP736625.000000I0625.000000MHZ 3.3VDC LVPECL 705 Renesas Electronics Corporation |
993 |
|
Datasheet |
XPP | 8-SMD, No Lead | Strip | Active | Crystal | XO (Standard) | 625 MHz | Enable/Disable | LVPECL | 3.3V | ±25ppm | - | -40°C ~ 85°C | - | - | - | Surface Mount | 4-VDFN (3.2x2.5) | 0.276" L x 0.197" W (7.00mm x 5.00mm) | - |
|
XTN312100.000000I100.000000 MHZ 1.8VDC HCSL 3225 Renesas Electronics Corporation |
179 |
|
Datasheet |
XT | 8-SMD, No Lead | Strip | Active | Crystal | XO (Standard) | 100 MHz | Enable/Disable | HCSL | 1.8V | ±3ppm | - | -40°C ~ 85°C | - | 95mA | - | Surface Mount | - | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.037" (0.95mm) |
|
XLH735040.000000IXTAL OSC XO 40.0000MHZ HCMOS SMD Renesas Electronics Corporation |
3,900 |
|
Datasheet |
XPRESSO™ FXO-HC73 | 6-SMD, No Lead | Strip | Active | Crystal | XO (Standard) | 40 MHz | Enable/Disable | HCMOS | 3.3V | ±50ppm | - | -40°C ~ 85°C | - | 35mA | - | Surface Mount | 4-VDFN (3.2x2.5) | 0.295" L x 0.205" W (7.50mm x 5.20mm) | 0.055" (1.40mm) |
|
XLH530020.000000IXTAL OSC XO 20.0000MHZ HCMOS SMD Renesas Electronics Corporation |
3,474 |
|
Datasheet |
XPRESSO™ FXO-HC53 | 6-SMD, No Lead | Strip | Active | Crystal | XO (Standard) | 20 MHz | Enable/Disable | HCMOS | 3.3V | ±100ppm | - | -40°C ~ 85°C | - | 32mA | - | Surface Mount | 4-VDFN (3.2x2.5) | 0.203" L x 0.132" W (5.15mm x 3.35mm) | 0.055" (1.40mm) |
|

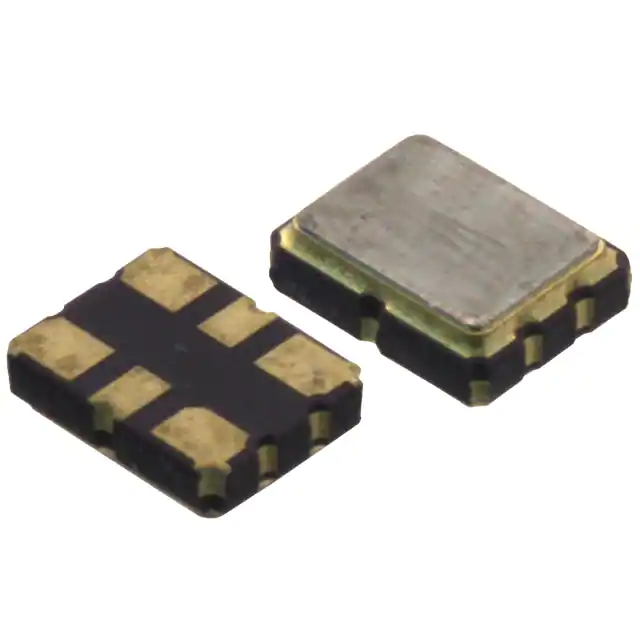

XLH335020.000000IXTAL OSC XO 20.0000MHZ HCMOS SMD Renesas Electronics Corporation |
2,000 |
|
Datasheet |
XPRESSO™ FXO-HC33 | 6-SMD, No Lead | Strip | Active | Crystal | XO (Standard) | 20 MHz | Enable/Disable | HCMOS | 3.3V | ±50ppm | - | -40°C ~ 85°C | - | 32mA | - | Surface Mount | 4-VDFN (3.2x2.5) | 0.130" L x 0.102" W (3.30mm x 2.60mm) | 0.039" (1.00mm) |
|
|
XLH730040.000000IXTAL OSC XO 40.0000MHZ HCMOS SMD Renesas Electronics Corporation |
819 |
|
Datasheet |
XPRESSO™ FXO-HC73 | 6-SMD, No Lead | Strip | Active | Crystal | XO (Standard) | 40 MHz | Enable/Disable | HCMOS | 3.3V | ±100ppm | - | -40°C ~ 85°C | - | 35mA | - | Surface Mount | 4-VDFN (3.2x2.5) | 0.295" L x 0.205" W (7.50mm x 5.20mm) | 0.055" (1.40mm) |
|
|
XLH330012.000000IXTAL OSC XO 12.0000MHZ HCMOS SMD Renesas Electronics Corporation |
2,000 |
|
Datasheet |
XL | 6-SMD, No Lead | Strip | Not For New Designs | Crystal | XO (Standard) | 12 MHz | Enable/Disable | HCMOS | 3.3V | ±100ppm | - | -40°C ~ 85°C | - | 32mA | - | Surface Mount | 4-VDFN (3.2x2.5) | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.039" (1.00mm) |
|
|
XLH735100.000000XXTAL OSC XO 100.0000MHZ HCMOS Renesas Electronics Corporation |
1,941 |
|
Datasheet |
XPRESSO™ FXO-HC73 | 6-SMD, No Lead | Strip | Active | Crystal | XO (Standard) | 100 MHz | Enable/Disable | HCMOS | 3.3V | ±50ppm | - | -20°C ~ 70°C | - | 47mA | - | Surface Mount | 4-VDFN (3.2x2.5) | 0.295" L x 0.205" W (7.50mm x 5.20mm) | 0.055" (1.40mm) |
|
|
XLH730033.000000IXTAL OSC XO 33.0000MHZ HCMOS SMD Renesas Electronics Corporation |
1,460 |
|
Datasheet |
XPRESSO™ FXO-HC73 | 6-SMD, No Lead | Strip | Active | Crystal | XO (Standard) | 33 MHz | Enable/Disable | HCMOS | 3.3V | ±100ppm | - | -40°C ~ 85°C | - | 35mA | - | Surface Mount | 4-VDFN (3.2x2.5) | 0.295" L x 0.205" W (7.50mm x 5.20mm) | 0.055" (1.40mm) |
