Oscillators
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Base Resonator | Type | Frequency | Function | Output | Voltage - Supply | Frequency Stability | Absolute Pull Range (APR) | Operating Temperature | Spread Spectrum Bandwidth | Current - Supply (Max) | Ratings | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ASE-25.000MHZ-L-C-TXTAL OSC XO 25.0000MHZ CMOS SMD Abracon LLC |
83,309 |
|
Datasheet |
ASE | 4-SMD, No Lead | Tape & Reel (TR) | Active | Crystal | XO (Standard) | 25 MHz | Enable/Disable | CMOS | 3.3V | ±50ppm | - | -40°C ~ 85°C | - | 13mA | - | Surface Mount | 4-VDFN (3.2x2.5) | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.047" (1.20mm) |
|
ASDDV-50.000MHZ-LR-TOSC XO 50.0000MHZ CMOS SMD Abracon LLC |
4,301 |
|
Datasheet |
ASDDV | 4-SMD, No Lead | Tape & Reel (TR) | Active | Crystal | XO (Standard) | 50 MHz | Enable/Disable | HCMOS, LVCMOS | 1.6V ~ 3.6V | ±25ppm | - | -40°C ~ 85°C | - | 6mA | - | Surface Mount | - | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.037" (0.95mm) |
|
|
ASDDV-25.000MHZ-LC-TOSC XO 25.0000MHZ CMOS SMD Abracon LLC |
1,172 |
|
Datasheet |
ASDDV | 4-SMD, No Lead | Tape & Reel (TR) | Active | Crystal | XO (Standard) | 25 MHz | Enable/Disable | HCMOS, LVCMOS | 1.6V ~ 3.6V | ±50ppm | - | -40°C ~ 85°C | - | 4mA | - | Surface Mount | - | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.037" (0.95mm) |
|
|
ASDDV-26.000MHZ-LC-TOSC XO 26.000MHZ CMOS SMD Abracon LLC |
498 |
|
Datasheet |
ASDDV | 4-SMD, No Lead | Tape & Reel (TR) | Active | Crystal | XO (Standard) | 26 MHz | Enable/Disable | HCMOS, LVCMOS | 1.6V ~ 3.6V | ±50ppm | - | -40°C ~ 85°C | - | 4mA | - | Surface Mount | - | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.037" (0.95mm) |
|
|
ASE-50.000MHZ-L-C-TXTAL OSC XO 50.0000MHZ CMOS SMD Abracon LLC |
17,732 |
|
Datasheet |
ASE | 4-SMD, No Lead | Tape & Reel (TR) | Active | Crystal | XO (Standard) | 50 MHz | Enable/Disable | CMOS | 3.3V | ±50ppm | - | -40°C ~ 85°C | - | 19mA | - | Surface Mount | 4-VDFN (3.2x2.5) | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.047" (1.20mm) |
|
ASFL1-20.000MHZ-EC-TXTAL OSC XO 20.0000MHZ HCMOS TTL Abracon LLC |
4,896 |
|
Datasheet |
ASFL1 | 4-SMD, No Lead | Tape & Reel (TR) | Active | Crystal | XO (Standard) | 20 MHz | Enable/Disable | HCMOS, TTL | 3.3V | ±50ppm | - | -20°C ~ 70°C | - | 15mA | - | Surface Mount | 4-VDFN (3.2x2.5) | 0.197" L x 0.126" W (5.00mm x 3.20mm) | 0.051" (1.30mm) |
|
|
ASFL1-24.000MHZ-L-TXTAL OSC XO 24.0000MHZ HCMOS TTL Abracon LLC |
2,303 |
|
Datasheet |
ASFL1 | 4-SMD, No Lead | Tape & Reel (TR) | Active | Crystal | XO (Standard) | 24 MHz | Enable/Disable | HCMOS, TTL | 3.3V | ±100ppm | - | -40°C ~ 85°C | - | 15mA | - | Surface Mount | 4-VDFN (3.2x2.5) | 0.197" L x 0.126" W (5.00mm x 3.20mm) | 0.051" (1.30mm) |
|
ASA-24.000MHZ-L-TXTAL OSC XO 24.0000MHZ HCMOS SMD Abracon LLC |
6,017 |
|
Datasheet |
ASA | 4-SMD, No Lead | Tape & Reel (TR) | Active | Crystal | XO (Standard) | 24 MHz | Enable/Disable | HCMOS | 3.3V | ±50ppm | - | -40°C ~ 85°C | - | 5mA | - | Surface Mount | 4-VDFN (3.2x2.5) | 0.079" L x 0.063" W (2.00mm x 1.60mm) | 0.031" (0.80mm) |
|
|
ASA-22.000MHZ-L-TXTAL OSC XO 22.0000MHZ HCMOS SMD Abracon LLC |
4,485 |
|
Datasheet |
ASA | 4-SMD, No Lead | Tape & Reel (TR) | Active | Crystal | XO (Standard) | 22 MHz | Enable/Disable | HCMOS | 3.3V | ±50ppm | - | -40°C ~ 85°C | - | 10mA | - | Surface Mount | 4-VDFN (3.2x2.5) | 0.079" L x 0.063" W (2.00mm x 1.60mm) | 0.031" (0.80mm) |
|

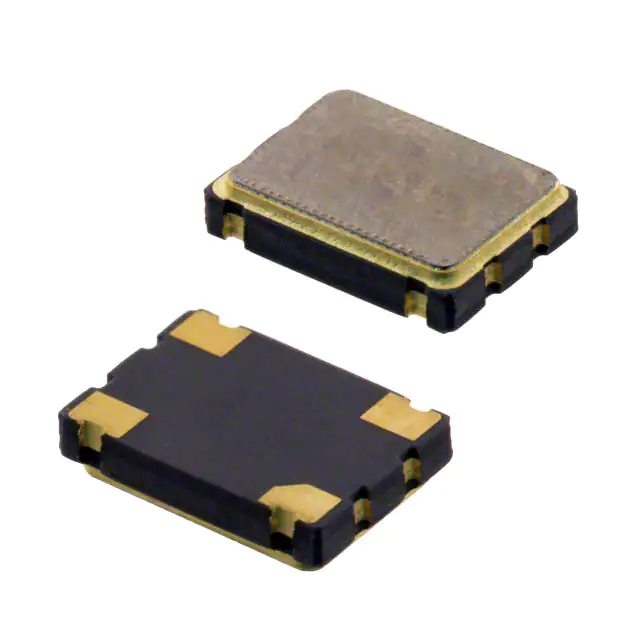

ASV-40.000MHZ-EJ-TXTAL OSC XO 40.0000MHZ HCMOS SMD Abracon LLC |
5,896 |
|
Datasheet |
ASV | 4-SMD, No Lead | Tape & Reel (TR) | Active | Crystal | XO (Standard) | 40 MHz | Enable/Disable | HCMOS | 3.3V | ±20ppm | - | -20°C ~ 70°C | - | 25mA | - | Surface Mount | 4-VDFN (3.2x2.5) | 0.276" L x 0.200" W (7.00mm x 5.08mm) | 0.071" (1.80mm) |
