Oscillators
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Base Resonator | Type | Frequency | Function | Output | Voltage - Supply | Frequency Stability | Absolute Pull Range (APR) | Operating Temperature | Spread Spectrum Bandwidth | Current - Supply (Max) | Ratings | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

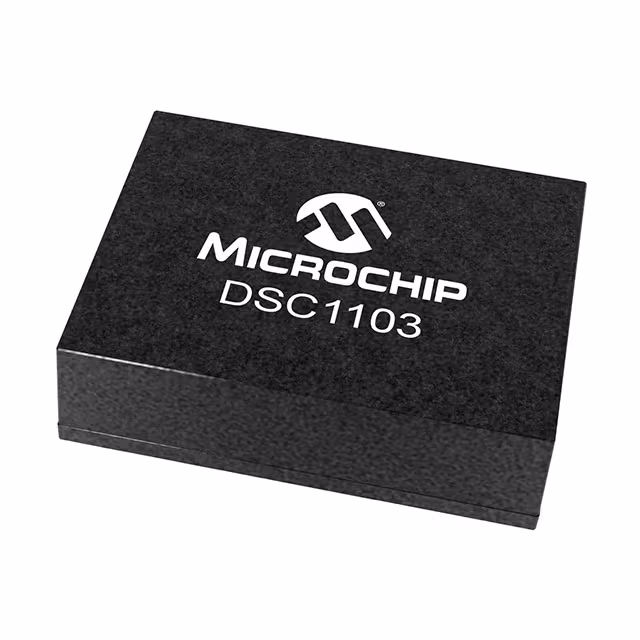

DSC1103DI1-080.0000MEMS OSC XO 80.0000MHZ LVDS SMD Microchip Technology |
9,928 |
|
Datasheet |
DSC1103 | 6-VDFN | Strip | Active | MEMS | XO (Standard) | 80 MHz | Standby (Power Down) | LVDS | 2.25V ~ 3.63V | ±50ppm | - | -40°C ~ 85°C | - | 32mA | - | Surface Mount | 6-VDFN (2.5x2) | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.035" (0.90mm) |
|
DSC1103CL5-135.0000MEMS OSC XO 135.0000MHZ LVDS SMD Microchip Technology |
4,495 |
|
Datasheet |
DSC1103 | 6-VDFN | Strip | Active | MEMS | XO (Standard) | 135 MHz | Standby (Power Down) | LVDS | 2.25V ~ 3.63V | ±10ppm | - | -40°C ~ 105°C | - | 32mA | - | Surface Mount | 6-VDFN (3.2x2.5) | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.035" (0.90mm) |
|
|
DSC1123DE1-156.2500MEMS OSC XO 156.2500MHZ LVDS SMD Microchip Technology |
6,689 |
|
Datasheet |
DSC1123 | 6-VDFN | Strip | Active | MEMS | XO (Standard) | 156.25 MHz | Enable/Disable | LVDS | 2.25V ~ 3.63V | ±50ppm | - | -20°C ~ 70°C | - | 32mA | - | Surface Mount | 6-VDFN (2.5x2) | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.035" (0.90mm) |
|
|
DSC1124CL5-100.0000MEMS OSC XO 100.0000MHZ HCSL SMD Microchip Technology |
9,964 |
|
Datasheet |
DSC1124 | 6-VDFN | Strip | Active | MEMS | XO (Standard) | 100 MHz | Enable/Disable | HCSL | 2.25V ~ 3.6V | ±10ppm | - | -40°C ~ 105°C | - | 42mA | - | Surface Mount | 6-VDFN (3.2x2.5) | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.035" (0.90mm) |
|
|
DSC1103CL5-200.0000MEMS OSC XO 200.0000MHZ LVDS SMD Microchip Technology |
3,753 |
|
Datasheet |
DSC1103 | 6-VDFN | Strip | Active | MEMS | XO (Standard) | 200 MHz | Standby (Power Down) | LVDS | 2.25V ~ 3.63V | ±10ppm | - | -40°C ~ 105°C | - | 32mA | - | Surface Mount | 6-VDFN (3.2x2.5) | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.035" (0.90mm) |
|
|
DSC1123DE1-125.0000MEMS OSC XO 125.0000MHZ LVDS SMD Microchip Technology |
2,875 |
|
Datasheet |
DSC1123 | 6-VDFN | Strip | Active | MEMS | XO (Standard) | 125 MHz | Enable/Disable | LVDS | 2.25V ~ 3.63V | ±50ppm | - | -20°C ~ 70°C | - | 32mA | - | Surface Mount | 6-VDFN (2.5x2) | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.035" (0.90mm) |
|
|
DSC1123DI5-125.0060MEMS OSC XO 125.0060MHZ LVDS SMD Microchip Technology |
9,114 |
|
Datasheet |
DSC1123 | 6-VDFN | Strip | Active | MEMS | XO (Standard) | 125.006 MHz | Enable/Disable | LVDS | 2.25V ~ 3.63V | ±10ppm | - | -40°C ~ 85°C | - | 32mA | - | Surface Mount | 6-VDFN (2.5x2) | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.035" (0.90mm) |
|
|
DSC1103DI1-156.2500MEMS OSC XO 156.2500MHZ LVDS SMD Microchip Technology |
2,945 |
|
Datasheet |
DSC1103 | 6-VDFN | Strip | Active | MEMS | XO (Standard) | 156.25 MHz | Standby (Power Down) | LVDS | 2.25V ~ 3.63V | ±50ppm | - | -40°C ~ 85°C | - | 32mA | - | Surface Mount | 6-VDFN (2.5x2) | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.035" (0.90mm) |
|
|
DSC1123CI5-066.6670MEMS OSC XO 66.6670MHZ LVDS SMD Microchip Technology |
9,384 |
|
Datasheet |
DSC1123 | 6-VDFN | Strip | Active | MEMS | XO (Standard) | 66.667 MHz | Enable/Disable | LVDS | 2.25V ~ 3.63V | ±10ppm | - | -40°C ~ 85°C | - | 32mA | - | Surface Mount | 6-VDFN (3.2x2.5) | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.035" (0.90mm) |
|
|
DSC1102DI1-212.5000MEMS OSC XO 212.5000MHZ LVPECL Microchip Technology |
4,086 |
|
Datasheet |
DSC1102 | 6-VDFN | Strip | Active | MEMS | XO (Standard) | 212.5 MHz | Standby (Power Down) | LVPECL | 2.25V ~ 3.63V | ±50ppm | - | -40°C ~ 85°C | - | 58mA | - | Surface Mount | 6-VDFN (2.5x2) | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.035" (0.90mm) |
