Oscillators
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Base Resonator | Type | Frequency | Function | Output | Voltage - Supply | Frequency Stability | Absolute Pull Range (APR) | Operating Temperature | Spread Spectrum Bandwidth | Current - Supply (Max) | Ratings | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
-3.20-mm-x-2.50-mm.jpg)
|
DSC1001CI5-050.0000MEMS OSC XO 50.0000MHZ CMOS SMD Microchip Technology |
6,836 |
|
Datasheet |
DSC1001 | 4-VDFN | Strip | Active | MEMS | XO (Standard) | 50 MHz | Standby (Power Down) | CMOS | 1.7V ~ 3.6V | ±10ppm | - | -40°C ~ 85°C | - | 10.5mA | AEC-Q100 | Surface Mount | 4-CDFN (3.2x2.5) | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.035" (0.90mm) |
|
|
DSC1001CL5-014.3181MEMS OSC XO 14.3181MHZ CMOS SMD Microchip Technology |
8,699 |
|
Datasheet |
DSC1001 | 4-VDFN | Strip | Active | MEMS | XO (Standard) | 14.3181 MHz | Standby (Power Down) | CMOS | 1.7V ~ 3.6V | ±10ppm | - | -40°C ~ 105°C | - | 8mA | AEC-Q100 | Surface Mount | 4-CDFN (3.2x2.5) | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.035" (0.90mm) |
|
DSC1001CI5-013.5000MEMS OSC XO 13.5000MHZ CMOS SMD Microchip Technology |
4,987 |
|
Datasheet |
DSC1001 | 4-VDFN | Strip | Active | MEMS | XO (Standard) | 13.5 MHz | Standby (Power Down) | CMOS | 1.7V ~ 3.6V | ±10ppm | - | -40°C ~ 85°C | - | 8mA | AEC-Q100 | Surface Mount | 4-CDFN (3.2x2.5) | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.035" (0.90mm) |
|
DSC1001CI5-099.9990MEMS OSC XO 99.9990MHZ CMOS SMD Microchip Technology |
4,838 |
|
Datasheet |
DSC1001 | 4-VDFN | Strip | Active | MEMS | XO (Standard) | 99.999 MHz | Standby (Power Down) | CMOS | 1.7V ~ 3.6V | ±10ppm | - | -40°C ~ 85°C | - | 16.6mA | AEC-Q100 | Surface Mount | 4-CDFN (3.2x2.5) | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.035" (0.90mm) |
|

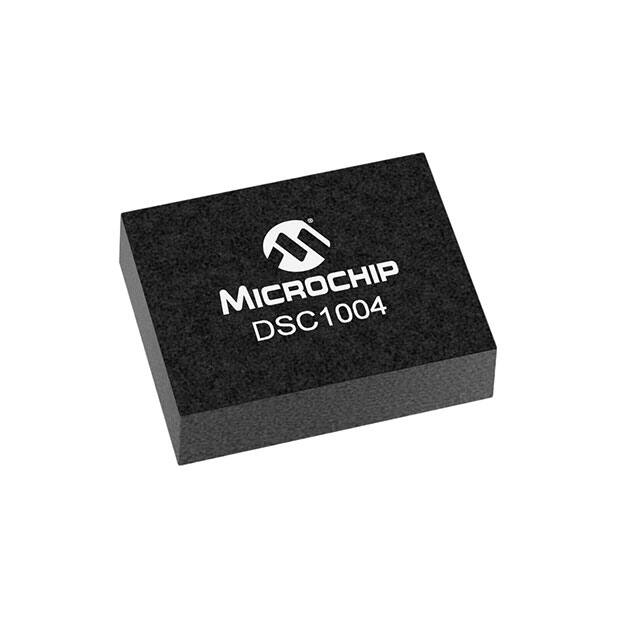

DSC1004CL2-030.0000MEMS OSC XO 30.0000MHZ CMOS SMD Microchip Technology |
7,230 |
|
Datasheet |
DSC1004 | 4-VDFN | Strip | Active | MEMS | XO (Standard) | 30 MHz | Standby (Power Down) | CMOS | 1.7V ~ 3.6V | ±25ppm | - | -40°C ~ 105°C | - | 10.5mA | AEC-Q100 | Surface Mount | 4-CDFN (3.2x2.5) | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.035" (0.90mm) |
|
DSC1001CI5-045.1854MEMS OSC XO 15.1854MHZ CMOS SMD Microchip Technology |
3,636 |
|
Datasheet |
DSC1001 | 4-VDFN | Strip | Active | MEMS | XO (Standard) | 15.1854 MHz | Standby (Power Down) | CMOS | 1.7V ~ 3.6V | ±10ppm | - | -40°C ~ 85°C | - | 10.5mA | AEC-Q100 | Surface Mount | 4-CDFN (3.2x2.5) | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.035" (0.90mm) |
|
|
DSC1004CI5-100.0000MEMS OSC XO 100.0000MHZ CMOS SMD Microchip Technology |
2,491 |
|
Datasheet |
DSC1004 | 4-VDFN | Strip | Active | MEMS | XO (Standard) | 100 MHz | Standby (Power Down) | CMOS | 1.7V ~ 3.6V | ±10ppm | - | -40°C ~ 85°C | - | 16.6mA | AEC-Q100 | Surface Mount | 4-CDFN (3.2x2.5) | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.035" (0.90mm) |
|
|
DSC1001CL5-064.0000MEMS OSC XO 64.0000MHZ CMOS SMD Microchip Technology |
7,546 |
|
Datasheet |
DSC1001 | 4-VDFN | Strip | Active | MEMS | XO (Standard) | 64 MHz | Standby (Power Down) | CMOS | 1.7V ~ 3.6V | ±10ppm | - | -40°C ~ 105°C | - | 10.5mA | AEC-Q100 | Surface Mount | 4-CDFN (3.2x2.5) | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.035" (0.90mm) |
|
|
DSC1001CI5-026.6000MEMS OSC XO 26.6000MHZ CMOS SMD Microchip Technology |
4,257 |
|
Datasheet |
DSC1001 | 4-VDFN | Strip | Active | MEMS | XO (Standard) | 26.6 MHz | Standby (Power Down) | CMOS | 1.7V ~ 3.6V | ±10ppm | - | -40°C ~ 85°C | - | 8mA | AEC-Q100 | Surface Mount | 4-CDFN (3.2x2.5) | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.035" (0.90mm) |
|
|
DSC1001CI5-049.1520MEMS OSC XO 49.1520MHZ CMOS SMD Microchip Technology |
4,647 |
|
Datasheet |
DSC1001 | 4-VDFN | Strip | Active | MEMS | XO (Standard) | 49.152 MHz | Standby (Power Down) | CMOS | 1.7V ~ 3.6V | ±10ppm | - | -40°C ~ 85°C | - | 10.5mA | AEC-Q100 | Surface Mount | 4-CDFN (3.2x2.5) | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.035" (0.90mm) |
