Oscillators
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Base Resonator | Type | Frequency | Function | Output | Voltage - Supply | Frequency Stability | Absolute Pull Range (APR) | Operating Temperature | Spread Spectrum Bandwidth | Current - Supply (Max) | Ratings | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

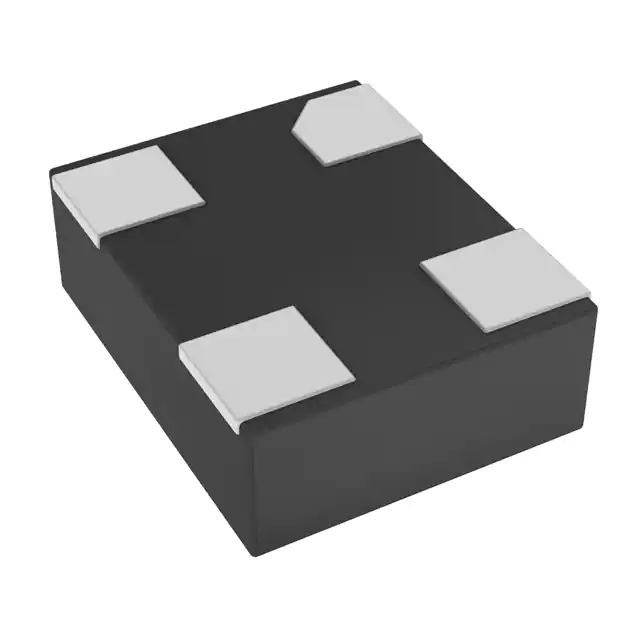

-3.20-mm-x-2.50-mm.jpg)
|
DSC1033CI1-033.3330TMEMS OSC XO 33.3330MHZ CMOS SMD Microchip Technology |
4,957 |
|
Datasheet |
DSC1033, PureSilicon™ | 4-SMD, No Lead | Tape & Reel (TR) | Obsolete | MEMS | XO (Standard) | 33.333 MHz | Standby (Power Down) | CMOS | 3.3V | ±50ppm | - | -40°C ~ 85°C | - | 3mA (Typ) | - | Surface Mount | 4-VDFN (3.2x2.5) | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.035" (0.90mm) |
|
|
DSC1001CI1-014.7456TMEMS OSC XO 14.7456MHZ CMOS SMD Microchip Technology |
1,985 |
|
- |
DSC1001 | 4-VDFN | Bulk | Active | MEMS | XO (Standard) | 14.7456 MHz | Standby (Power Down) | CMOS | 1.8V ~ 3.3V | ±50ppm | - | -40°C ~ 85°C | - | 6.3mA | AEC-Q100 | Surface Mount | 4-CDFN (3.2x2.5) | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.035" (0.90mm) |
-2.50-mm-x-2.00-mm.jpg)
|
DSC1028DI2-019.2000TMEMS OSC XO 19.2000MHZ CMOS SMD Microchip Technology |
2,079 |
|
Datasheet |
DSC1028 | 4-SMD, No Lead | Tape & Reel (TR) | Obsolete | MEMS | XO (Standard) | 19.2 MHz | Standby (Power Down) | CMOS | 2.8V | ±25ppm | - | -40°C ~ 85°C | - | 3mA (Typ) | - | Surface Mount | 4-VDFN (3.2x2.5) | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.035" (0.90mm) |
|
|
DSC1001DI4-010.0000TMEMS OSC XO 10.0000MHZ CMOS SMD Microchip Technology |
3,000 |
|
- |
DSC1001 | 4-VDFN | Bulk | Active | MEMS | XO (Standard) | 10 MHz | Standby (Power Down) | CMOS | 1.8V ~ 3.3V | - | - | -40°C ~ 85°C | - | 6.3mA | AEC-Q100 | Surface Mount | 4-CDFN (2.5x2) | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.035" (0.90mm) |
|
DSC6011HE1A-018.4320TMEMS OSC XO 18.4320MHZ CMOS SMD Microchip Technology |
1,000 |
|
Datasheet |
DSC60XX | 4-VFLGA | Tape & Reel (TR) | Obsolete | MEMS | XO (Standard) | 18.432 MHz | Standby (Power Down) | CMOS | 1.71V ~ 3.63V | ±50ppm | - | -20°C ~ 70°C | - | 1.3mA (Typ) | AEC-Q100 | Surface Mount | 4-VFLGA (1.6x1.2) | 0.063" L x 0.047" W (1.60mm x 1.20mm) | 0.035" (0.89mm) |
|
DSC6101CE1A-020.0000MEMS OSC XO 20.0000MHZ CMOS SMD Microchip Technology |
1,103 |
|
Datasheet |
DSC61XX | 4-VDFN | Tube | Obsolete | MEMS | XO (Standard) | 20 MHz | Enable/Disable | CMOS | 1.8V ~ 3.3V | ±50ppm | - | -20°C ~ 70°C | - | 3mA (Typ) | AEC-Q100 | Surface Mount | 4-VDFN (3.2x2.5) | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.035" (0.89mm) |
|
|
DSC6011JE1A-027.0000MEMS OSC XO 27.0000MHZ CMOS SMD Microchip Technology |
891 |
|
Datasheet |
DSC60XX | 4-VLGA | Tube | Obsolete | MEMS | XO (Standard) | 27 MHz | Standby (Power Down) | CMOS | 1.71V ~ 3.63V | ±50ppm | - | -20°C ~ 70°C | - | 1.3mA (Typ) | AEC-Q100 | Surface Mount | 4-VLGA (2.5x2) | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.035" (0.89mm) |
|
|
DSC6011JE1A-027.0000TMEMS OSC XO 27.0000MHZ CMOS SMD Microchip Technology |
282 |
|
Datasheet |
DSC60XX | 4-VLGA | Tape & Reel (TR) | Obsolete | MEMS | XO (Standard) | 27 MHz | Standby (Power Down) | CMOS | 1.71V ~ 3.63V | ±50ppm | - | -20°C ~ 70°C | - | 1.3mA (Typ) | AEC-Q100 | Surface Mount | 4-VLGA (2.5x2) | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.035" (0.89mm) |
|
|
DSC6331JI2FA-026.0000MEMS OSC XO 26.0000MHZ LVCMOS Microchip Technology |
194 |
|
Datasheet |
DSC63XX | 4-SMD, No Lead | Tube | Obsolete | MEMS | XO (Standard) | 26 MHz | - | LVCMOS | 1.8V ~ 3.3V | ±25ppm | - | -40°C ~ 85°C | ±2.50%, Center Spread | 3mA (Typ) | - | Surface Mount | 4-VDFN (3.2x2.5) | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.035" (0.89mm) |
|
DSC6001CI1A-016.3690TMEMS OSC XO 16.3690MHZ CMOS SMD Microchip Technology |
1,920 |
|
Datasheet |
DSC60XX | 4-VDFN | Tape & Reel (TR) | Obsolete | MEMS | XO (Standard) | 16.369 MHz | Standby (Power Down) | CMOS | 1.71V ~ 3.63V | ±50ppm | ±50ppm | -40°C ~ 85°C | - | 1.3mA (Typ) | AEC-Q100 | Surface Mount | 4-VDFN (3.2x2.5) | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.035" (0.90mm) |
