Oscillators
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Base Resonator | Type | Frequency | Function | Output | Voltage - Supply | Frequency Stability | Absolute Pull Range (APR) | Operating Temperature | Spread Spectrum Bandwidth | Current - Supply (Max) | Ratings | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
QMQF576D33-2.5B-10.00014XTAL OSC TCXO 10.00014MHZ LVDS Mercury Electronics Ind. Co. Ltd |
250 |
|
Datasheet |
QuikXO | 6-SMD, No Lead | Strip | Active | Crystal | TCXO | 10.00014 MHz | - | LVDS | 3.3V | ±2.5ppm | - | -30°C ~ 85°C | - | 22mA (Typ) | - | Surface Mount | 4-VDFN (3.2x2.5) | 0.276" L x 0.197" W (7.00mm x 5.00mm) | 0.102" (2.60mm) |
|
QVMQF574T25-2.5B-35.328XTAL OSC VCTCXO 35.3280MHZ CMOS Mercury Electronics Ind. Co. Ltd |
250 |
|
Datasheet |
QuikXO | 4-SMD, No Lead | Strip | Active | Crystal | VCTCXO | 35.328 MHz | Enable/Disable | CMOS | 2.5V | ±2.5ppm | ±8ppm | -30°C ~ 85°C | - | 20mA (Typ) | - | Surface Mount | 4-VDFN (3.2x2.5) | 0.276" L x 0.197" W (7.00mm x 5.00mm) | 0.102" (2.60mm) |
|

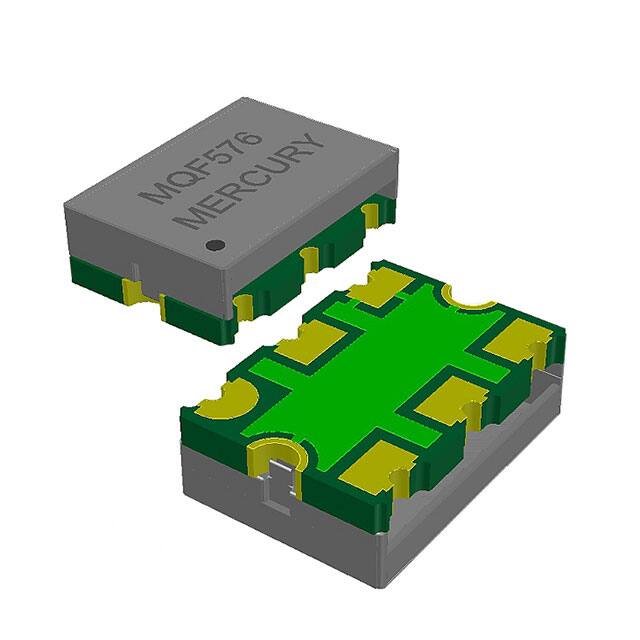

QMQF576P25-2.5B-196.608XTAL OSC TCXO 196.6080MHZ LVPECL Mercury Electronics Ind. Co. Ltd |
250 |
|
Datasheet |
QuikXO | 6-SMD, No Lead | Strip | Active | Crystal | TCXO | 196.608 MHz | - | LVPECL | 2.5V | ±2.5ppm | - | -30°C ~ 85°C | - | 33mA (Typ) | - | Surface Mount | 4-VDFN (3.2x2.5) | 0.276" L x 0.197" W (7.00mm x 5.00mm) | 0.102" (2.60mm) |
|
|
QVMQF576P25-2.5B-180.000XO VCTCXO 180.0000MHZ LVPECL Mercury Electronics Ind. Co. Ltd |
250 |
|
Datasheet |
QuikXO | 6-SMD, No Lead | Strip | Active | Crystal | VCTCXO | 180 MHz | Enable/Disable | LVPECL | 2.5V | ±2.5ppm | ±8ppm | -30°C ~ 85°C | - | 33mA (Typ) | - | Surface Mount | 4-VDFN (3.2x2.5) | 0.276" L x 0.197" W (7.00mm x 5.00mm) | 0.102" (2.60mm) |
|
|
QMQF574T33-2.5B-20.736XTAL OSC TCXO 20.7360MHZ CMOS Mercury Electronics Ind. Co. Ltd |
250 |
|
Datasheet |
QuikXO | 4-SMD, No Lead | Strip | Active | Crystal | TCXO | 20.736 MHz | - | CMOS | 3.3V | ±2.5ppm | - | -30°C ~ 85°C | - | 24mA (Typ) | - | Surface Mount | 4-VDFN (3.2x2.5) | 0.276" L x 0.197" W (7.00mm x 5.00mm) | 0.102" (2.60mm) |
|
|
QMQF576D33-2.5B-240.000XTAL OSC TCXO 240.0000MHZ LVDS Mercury Electronics Ind. Co. Ltd |
250 |
|
Datasheet |
QuikXO | 6-SMD, No Lead | Strip | Active | Crystal | TCXO | 240 MHz | - | LVDS | 3.3V | ±2.5ppm | - | -30°C ~ 85°C | - | 28mA (Typ) | - | Surface Mount | 4-VDFN (3.2x2.5) | 0.276" L x 0.197" W (7.00mm x 5.00mm) | 0.102" (2.60mm) |
|
|
QVMQF576P25-2.5B-16.384XO VCTCXO 16.3840MHZ LVPECL Mercury Electronics Ind. Co. Ltd |
250 |
|
Datasheet |
QuikXO | 6-SMD, No Lead | Strip | Active | Crystal | VCTCXO | 16.384 MHz | Enable/Disable | LVPECL | 2.5V | ±2.5ppm | ±8ppm | -30°C ~ 85°C | - | 28mA (Typ) | - | Surface Mount | 4-VDFN (3.2x2.5) | 0.276" L x 0.197" W (7.00mm x 5.00mm) | 0.102" (2.60mm) |
|
|
QMQF574T33-2.5B-12.688375XTAL OSC TCXO 12.688375MHZ CMOS Mercury Electronics Ind. Co. Ltd |
250 |
|
Datasheet |
QuikXO | 4-SMD, No Lead | Strip | Active | Crystal | TCXO | 12.688375 MHz | - | CMOS | 3.3V | ±2.5ppm | - | -30°C ~ 85°C | - | 24mA (Typ) | - | Surface Mount | 4-VDFN (3.2x2.5) | 0.276" L x 0.197" W (7.00mm x 5.00mm) | 0.102" (2.60mm) |
|
|
QMQF574T25-2.5B-10.00135XTAL OSC TCXO 10.00135MHZ CMOS Mercury Electronics Ind. Co. Ltd |
250 |
|
Datasheet |
QuikXO | 4-SMD, No Lead | Strip | Active | Crystal | TCXO | 10.00135 MHz | - | CMOS | 2.5V | ±2.5ppm | - | -30°C ~ 85°C | - | 17mA (Typ) | - | Surface Mount | 4-VDFN (3.2x2.5) | 0.276" L x 0.197" W (7.00mm x 5.00mm) | 0.102" (2.60mm) |
|
|
QMQF576D33-2.5B-14.000XTAL OSC TCXO 14.0000MHZ LVDS Mercury Electronics Ind. Co. Ltd |
250 |
|
Datasheet |
QuikXO | 6-SMD, No Lead | Strip | Active | Crystal | TCXO | 14 MHz | - | LVDS | 3.3V | ±2.5ppm | - | -30°C ~ 85°C | - | 26mA (Typ) | - | Surface Mount | 4-VDFN (3.2x2.5) | 0.276" L x 0.197" W (7.00mm x 5.00mm) | 0.102" (2.60mm) |
