Oscillators
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Base Resonator | Type | Frequency | Function | Output | Voltage - Supply | Frequency Stability | Absolute Pull Range (APR) | Operating Temperature | Spread Spectrum Bandwidth | Current - Supply (Max) | Ratings | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
QMQF326P25-2.0A-15.050XTAL OSC TCXO 15.0500MHZ LVPECL Mercury Electronics Ind. Co. Ltd |
250 |
|
Datasheet |
QuikXO | 6-SMD, No Lead | Strip | Active | Crystal | TCXO | 15.05 MHz | - | LVPECL | 2.5V | ±2ppm | - | -40°C ~ 85°C | - | 28mA (Typ) | - | Surface Mount | 4-VDFN (3.2x2.5) | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.067" (1.70mm) |
|
QMQF326D25-2.0A-25.000XTAL OSC TCXO 25.0000MHZ LVDS Mercury Electronics Ind. Co. Ltd |
250 |
|
Datasheet |
QuikXO | 6-SMD, No Lead | Strip | Active | Crystal | TCXO | 25 MHz | - | LVDS | 2.5V | ±2ppm | - | -40°C ~ 85°C | - | 23mA (Typ) | - | Surface Mount | 4-VDFN (3.2x2.5) | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.067" (1.70mm) |
|

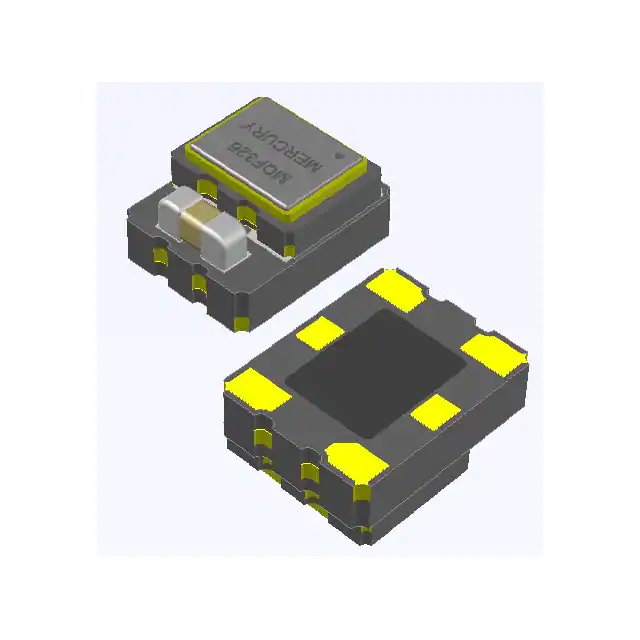

QVMQF326T33-2.0A-37.000XTAL OSC VCTCXO 37.0000MHZ CMOS Mercury Electronics Ind. Co. Ltd |
250 |
|
Datasheet |
QuikXO | 6-SMD, No Lead | Strip | Active | Crystal | VCTCXO | 37 MHz | Enable/Disable | CMOS | 3.3V | ±2ppm | ±8ppm | -40°C ~ 85°C | - | 24mA (Typ) | - | Surface Mount | 4-VDFN (3.2x2.5) | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.067" (1.70mm) |
|
|
QMQF326T25-2.0A-10.245XTAL OSC TCXO 10.2450MHZ CMOS Mercury Electronics Ind. Co. Ltd |
250 |
|
Datasheet |
QuikXO | 6-SMD, No Lead | Strip | Active | Crystal | TCXO | 10.245 MHz | - | CMOS | 2.5V | ±2ppm | - | -40°C ~ 85°C | - | 17mA (Typ) | - | Surface Mount | 4-VDFN (3.2x2.5) | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.067" (1.70mm) |
|
|
QMQF326T33-2.0A-23.104XTAL OSC TCXO 23.1040MHZ CMOS Mercury Electronics Ind. Co. Ltd |
250 |
|
Datasheet |
QuikXO | 6-SMD, No Lead | Strip | Active | Crystal | TCXO | 23.104 MHz | - | CMOS | 3.3V | ±2ppm | - | -40°C ~ 85°C | - | 24mA (Typ) | - | Surface Mount | 4-VDFN (3.2x2.5) | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.067" (1.70mm) |
|
|
QVMQF326T33-2.0A-16.367673XO VCTCXO 16.367673MHZ CMOS Mercury Electronics Ind. Co. Ltd |
250 |
|
Datasheet |
QuikXO | 6-SMD, No Lead | Strip | Active | Crystal | VCTCXO | 16.367673 MHz | Enable/Disable | CMOS | 3.3V | ±2ppm | ±8ppm | -40°C ~ 85°C | - | 24mA (Typ) | - | Surface Mount | 4-VDFN (3.2x2.5) | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.067" (1.70mm) |
|
|
QVMQF326T33-2.0A-31.796759XO VCTCXO 31.796759MHZ CMOS Mercury Electronics Ind. Co. Ltd |
250 |
|
Datasheet |
QuikXO | 6-SMD, No Lead | Strip | Active | Crystal | VCTCXO | 31.796759 MHz | Enable/Disable | CMOS | 3.3V | ±2ppm | ±8ppm | -40°C ~ 85°C | - | 24mA (Typ) | - | Surface Mount | 4-VDFN (3.2x2.5) | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.067" (1.70mm) |
|
|
QVMQF326P25-2.0A-40.000XO VCTCXO 40.0000MHZ LVPECL Mercury Electronics Ind. Co. Ltd |
250 |
|
Datasheet |
QuikXO | 6-SMD, No Lead | Strip | Active | Crystal | VCTCXO | 40 MHz | Enable/Disable | LVPECL | 2.5V | ±2ppm | ±8ppm | -40°C ~ 85°C | - | 30mA (Typ) | - | Surface Mount | 4-VDFN (3.2x2.5) | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.067" (1.70mm) |
|
|
QVMQF326P33-2.0A-16.367673XO VCTCXO 16.367673MHZ LVPECL Mercury Electronics Ind. Co. Ltd |
250 |
|
Datasheet |
QuikXO | 6-SMD, No Lead | Strip | Active | Crystal | VCTCXO | 16.367673 MHz | Enable/Disable | LVPECL | 3.3V | ±2ppm | ±8ppm | -40°C ~ 85°C | - | 35mA (Typ) | - | Surface Mount | 4-VDFN (3.2x2.5) | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.067" (1.70mm) |
|
|
QMQF326P33-2.0A-180.000XTAL OSC TCXO 180.0000MHZ LVPECL Mercury Electronics Ind. Co. Ltd |
250 |
|
Datasheet |
QuikXO | 6-SMD, No Lead | Strip | Active | Crystal | TCXO | 180 MHz | - | LVPECL | 3.3V | ±2ppm | - | -40°C ~ 85°C | - | 43mA (Typ) | - | Surface Mount | 4-VDFN (3.2x2.5) | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.067" (1.70mm) |
