Triac, SCR Output Optoisolators
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Output Type | Zero Crossing Circuit | Number of Channels | Voltage - Isolation | Voltage - Off State | Static dV/dt (Min) | Current - LED Trigger (Ift) (Max) | Current - On State (It (RMS)) (Max) | Current - Hold (Ih) | Turn On Time | Voltage - Forward (Vf) (Typ) | Current - DC Forward (If) (Max) | Operating Temperature | Mounting Type | Supplier Device Package | Approval Agency |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
QTM3033T1MINI-FLAT PACKAGE ZERO CROSSING QT Brightek (QTB) |
11,360 |
|
Datasheet |
QTM303X | 4-SMD, Gull Wing | Tape & Reel (TR) | Active | Triac | Yes | 1 | 3750Vrms | 250 V | 1kV/µs | 5mA | - | 250µA | - | 1.5V (Max) | 60 mA | -55°C ~ 100°C | Surface Mount | 4-Mini-Flat | UL, VDE |
|
|
QTM3023T1MINI-FLAT PACKAGE RANDOM-PHASE T QT Brightek (QTB) |
5,950 |
|
Datasheet |
QTM302X | 4-SMD, Gull Wing | Tape & Reel (TR) | Active | Triac | No | 1 | 3750Vrms | 400 V | 100V/µs (Typ) | 5mA | - | 250µA | - | 1.5V (Max) | 60 mA | -55°C ~ 100°C | Surface Mount | 4-Mini-Flat | UL, VDE |
|
|
QTM3083T1MINI-FLAT PACKAGE ZERO CROSSING QT Brightek (QTB) |
986 |
|
Datasheet |
QTM308X | 4-SMD, Gull Wing | Tape & Reel (TR) | Active | Triac | Yes | 1 | 3750Vrms | 800 V | 600V/µs | 5mA | - | 250µA | - | 1.5V (Max) | 60 mA | -55°C ~ 100°C | Surface Mount | 4-Mini-Flat | UL, VDE |
|

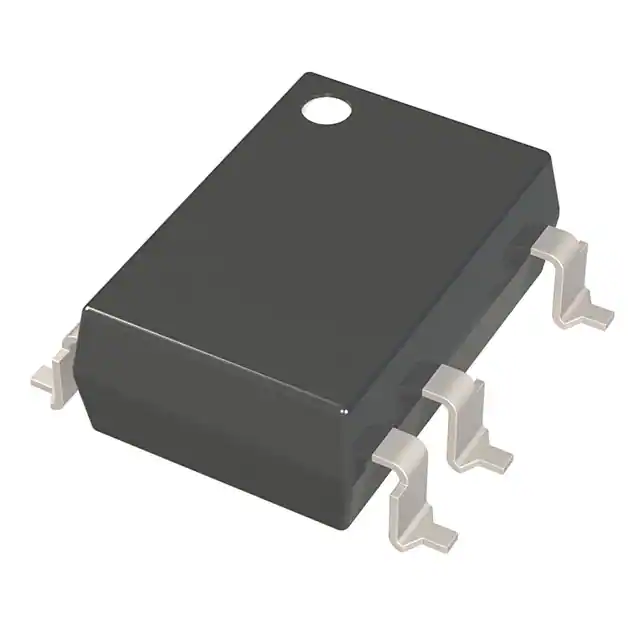

QTT3223ST17 PIN RANDOM-PHASEHIGH POWER TRI QT Brightek (QTB) |
1,901 |
|
Datasheet |
QTX223 | 8-SMD (7 Leads), Gull Wing | Tape & Reel (TR) | Active | Triac, Power | No | 1 | 5000Vrms | 600 V | 200V/µs | 10mA | 1.2 A | 25mA | - | 1.3V (Max) | 50 mA | -55°C ~ 85°C | Surface Mount | 7-SMD | UL, VDE |
|
|
QTT3213ST17 PIN ZERO-CROSSING HIGH POWER T QT Brightek (QTB) |
3,422 |
|
Datasheet |
QTX213 | 8-SMD (7 Leads), Gull Wing | Tape & Reel (TR) | Active | Triac, Power | Yes | 1 | 5000Vrms | 600 V | 200V/µs | 10mA | 1.2 A | 25mA | - | 1.3V (Max) | 50 mA | -55°C ~ 85°C | Surface Mount | 7-SMD | UL, VDE |
|
|
QTM3043T1MINI-FLAT PACKAGE ZERO CROSSING QT Brightek (QTB) |
5,501 |
|
Datasheet |
QTM304X | 4-SMD, Gull Wing | Tape & Reel (TR) | Active | Triac | Yes | 1 | 3750Vrms | 400 V | 1kV/µs | 5mA | - | 250µA | - | 1.5V (Max) | 60 mA | -55°C ~ 100°C | Surface Mount | 4-Mini-Flat | UL, VDE |
|
|
QTM3063T1MINI-FLAT PACKAGE ZERO CROSSING QT Brightek (QTB) |
29,306 |
|
Datasheet |
QTM306X | 4-SMD, Gull Wing | Tape & Reel (TR) | Active | Triac | Yes | 1 | 3750Vrms | 600 V | 1kV/µs | 5mA | - | 250µA | - | 1.5V (Max) | 60 mA | -55°C ~ 100°C | Surface Mount | 4-Mini-Flat | UL, VDE |
|
|
QTM3053T1MINI-FLAT PACKAGE RANDOM-PHASE T QT Brightek (QTB) |
1,321 |
|
Datasheet |
QTM305X | 4-SMD, Gull Wing | Tape & Reel (TR) | Active | Triac | No | 1 | 3750Vrms | 600 V | 1kV/µs | 5mA | - | 250µA | - | 1.5V (Max) | 60 mA | -55°C ~ 100°C | Surface Mount | 4-Mini-Flat | UL, VDE |
|
|
QTT0223ST17 PIN RANDOM-PHASE HIGH POWER TR QT Brightek (QTB) |
1,422 |
|
Datasheet |
QTX223 | 8-SMD (7 Leads), Gull Wing | Tape & Reel (TR) | Active | Triac, Power | No | 1 | 5000Vrms | 600 V | 200V/µs | 10mA | 300 mA | 25mA | - | 1.3V (Max) | 50 mA | -55°C ~ 85°C | Surface Mount | 7-SMD | UL, VDE |
|
|
QTT0213ST17 PIN ZERO-CROSSING HIGH POWER T QT Brightek (QTB) |
2,775 |
|
Datasheet |
QTTX213 | 8-SMD (7 Leads), Gull Wing | Tape & Reel (TR) | Active | Triac, Power | Yes | 1 | 5000Vrms | 600 V | 200V/µs | 10mA | 300 mA | 25mA | - | 1.3V (Max) | 50 mA | -55°C ~ 85°C | Surface Mount | 7-SMD | UL, VDE |
