Photointerrupters - Slot Type - Transistor Output
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Sensing Distance | Sensing Method | Output Configuration | Current - DC Forward (If) (Max) | Current - Collector (Ic) (Max) | Voltage - Collector Emitter Breakdown (Max) | Response Time | Operating Temperature | Grade | Qualification | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
QVB11234SENSOR OPT SLOT PHOTOTRANS MODUL |
2,961 |
|
Datasheet |
QVB | Module, PC Pins, Slot Type | Tube | Obsolete | 0.125" (3.18mm) | Through-Beam | Phototransistor | 50 mA | 40 mA | 30 V | - | -40°C ~ 85°C | - | - | Through Hole, Flange |
|
|
QVB11334SENSOR OPT SLOT PHOTOTRANS MODUL |
1,171 |
|
Datasheet |
QVB | Module, PC Pins, Slot Type | Tube | Obsolete | 0.125" (3.18mm) | Through-Beam | Phototransistor | 50 mA | 40 mA | 30 V | - | -40°C ~ 85°C | - | - | Through Hole, Flange |
|
|
TCUT1600X01_ASENSOR OPT SLOT PHOTOTRANS MODUL |
3,975 |
|
- |
- | - | Tape & Reel (TR) | Active | - | - | - | - | - | - | - | - | - | - | - |
|
OPS690SENSOR OPT SLOT PHOTOTRANS RAD |
3,363 |
|
Datasheet |
- | Radial | Bulk | Obsolete | - | Through-Beam | Phototransistor | 50 mA | - | 30 V | - | -40°C ~ 100°C | - | - | Through Hole |
|

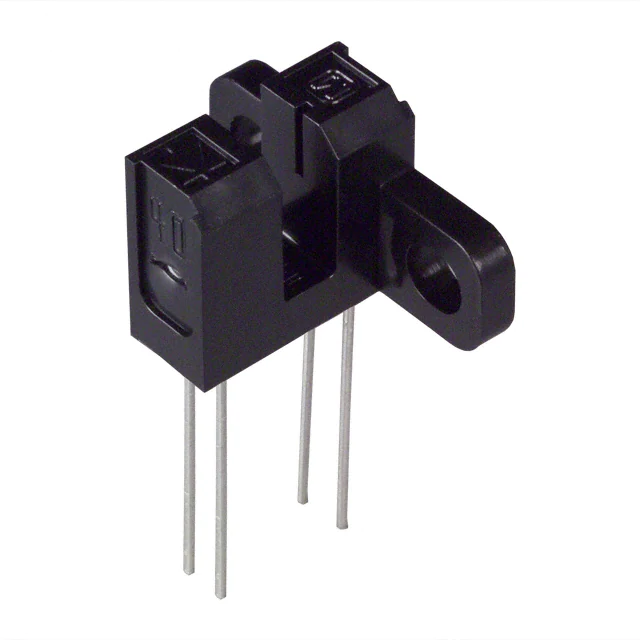

CNZ1023SENSOR OPT SLOT PHOTOTRAN PCB MT |
3,887 |
|
Datasheet |
- | PCB Mount | Bulk | Obsolete | 0.118" (3mm) | Through-Beam | Phototransistor | 50 mA | 20 mA | 30 V | 5µs, 5µs | -25°C ~ 85°C | - | - | Through Hole |
|
H21B1SENSOR OPT SLOT DARL PC PINS |
4,349 |
|
Datasheet |
- | Slotted, PC Pins | Tube | Obsolete | 0.118" (3mm) | Through-Beam | Photodarlington | 50 mA | 40 mA | 30 V | 7µs, 45µs | -55°C ~ 100°C | - | - | Through Hole, Flange |
|

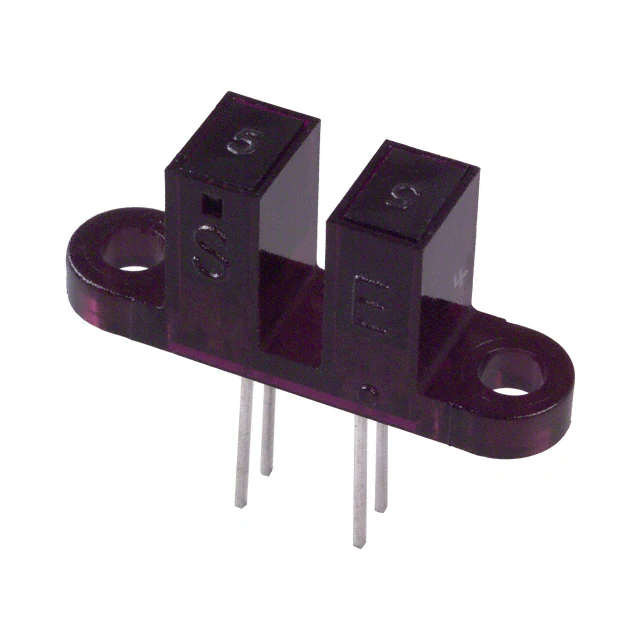

QVB11134SENSOR OPT SLOT PHOTOTRANS MODUL |
1,085 |
|
Datasheet |
QVB | Module, PC Pins, Slot Type | Tube | Obsolete | 0.125" (3.18mm) | Through-Beam | Phototransistor | 50 mA | 40 mA | 30 V | - | -40°C ~ 85°C | - | - | Through Hole, Flange |
|

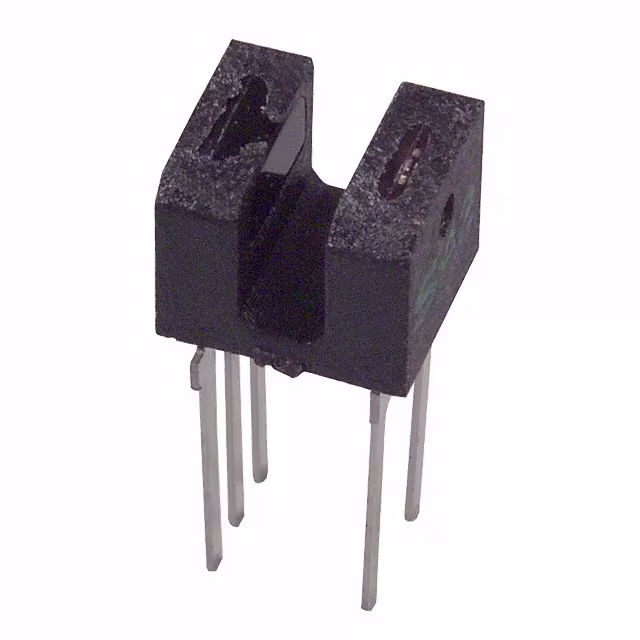

GP1S39SENSOR OPT SLOT PHOTOTRAN PCB MT |
3,376 |
|
Datasheet |
- | PCB Mount | Bulk | Obsolete | 0.059" (1.5mm) | Through-Beam | Phototransistor | 50 mA | 20 mA | 35 V | 50µs, 50µs | -25°C ~ 85°C | - | - | Through Hole |
|
|
GP1S39J0000FSENSOR OPT SLOT PHOTOTRAN PCB MT |
4,627 |
|
Datasheet |
- | PCB Mount | Bulk | Obsolete | 0.059" (1.5mm) | Through-Beam | Phototransistor | 50 mA | 20 mA | 35 V | 50µs, 50µs | -25°C ~ 85°C | - | - | Through Hole |
|
|
QVL21653SENSOR OPT SLOT PHOTOTRANS MODUL |
4,009 |
|
Datasheet |
- | Module, PC Pins, Slot Type | Tube | Obsolete | 0.787" (20mm) | Through-Beam | Phototransistor | 50 mA | 20 mA | 30 V | - | -40°C ~ 85°C | - | - | Through Hole |
|
|
QVL25335SENSOR OPT SLOT DARL MODULE |
1,165 |
|
Datasheet |
- | Module, PC Pins, Slot Type | Tube | Obsolete | 0.787" (20mm) | Through-Beam | Photodarlington | 50 mA | 40 mA | 30 V | - | -40°C ~ 85°C | - | - | Through Hole |
|
H22A1SENSOR OPT SLOT PHOTOTRAN PC PIN |
4,796 |
|
Datasheet |
- | Slotted, PC Pins | Tube | Obsolete | 0.118" (3mm) | Through-Beam | Phototransistor | 60 mA | 3 mA | 30 V | 8µs, 50µs | -55°C ~ 100°C | - | - | Through Hole, Flange |
|
|
H22A2SENSOR OPT SLOT PHOTOTRAN PC PIN |
3,487 |
|
Datasheet |
- | Slotted, PC Pins | Tube | Obsolete | 0.118" (3mm) | Through-Beam | Phototransistor | 60 mA | - | 30 V | 8µs, 50µs | -55°C ~ 100°C | - | - | Through Hole, Flange |
|
H22A3SENSOR OPT SLOT PHOTOTRAN PC PIN |
2,049 |
|
Datasheet |
- | Slotted, PC Pins | Tube | Obsolete | 0.118" (3mm) | Through-Beam | Phototransistor | 60 mA | 5.5 mA | 30 V | 8µs, 50µs | -55°C ~ 100°C | - | - | Through Hole, Flange |
|
MOC70P1SENSOR OPT SLOT PHOTOTRAN PC PIN |
2,783 |
|
Datasheet |
- | Slotted, PC Pins | Tube | Obsolete | 0.200" (5.08mm) | Through-Beam | Phototransistor | 50 mA | 20 mA | 30 V | 20µs, 80µs | -55°C ~ 100°C | - | - | Through Hole, Flange |
|
MOC70P2SENSOR OPT SLOT PHOTOTRAN PC PIN |
2,770 |
|
Datasheet |
- | Slotted, PC Pins | Tube | Obsolete | 0.200" (5.08mm) | Through-Beam | Phototransistor | 50 mA | 20 mA | 30 V | 20µs, 80µs | -55°C ~ 100°C | - | - | Through Hole, Flange |
|
MOC70P3SENSOR OPT SLOT PHOTOTRAN PC PIN |
4,500 |
|
Datasheet |
- | Slotted, PC Pins | Tube | Obsolete | 0.200" (5.08mm) | Through-Beam | Phototransistor | 50 mA | 20 mA | 30 V | 20µs, 80µs | -55°C ~ 100°C | - | - | Through Hole, Flange |
|
|
H22B3SENSOR OPT SLOT DARL PC PINS |
1,189 |
|
Datasheet |
- | Slotted, PC Pins | Tube | Obsolete | 0.118" (3mm) | Through-Beam | Photodarlington | 50 mA | 40 mA | 30 V | 7µs, 45µs | -55°C ~ 100°C | - | - | Through Hole, Flange |
|
|
QCK4SENSOR OPT SLOT DARL 4SMD GW |
3,449 |
|
Datasheet |
- | 4-SMD, Gull Wing | Tube | Obsolete | 0.157" (4mm) | Through-Beam | Photodarlington | 50 mA | 40 mA | 30 V | - | -40°C ~ 100°C | - | - | Surface Mount |
|
H21A1SENSOR OPT SLOT PHOTOTRAN PC PIN |
4,677 |
|
Datasheet |
- | Slotted, PC Pins | Tube | Obsolete | 0.118" (3mm) | Through-Beam | Phototransistor | 50 mA | 20 mA | 30 V | 8µs, 150µs | -55°C ~ 100°C | - | - | Through Hole, Flange |
