Navigation Switches, Joystick
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Type | Actuator Type | Switch Function | Functions, Extra | Output | Voltage - Supply | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Contact Material | Contact Finish | Resistance | Mounting Type | Termination Style | Operating Temperature | Panel Cutout Dimensions | Ingress Protection | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
XD4PA14SWITCH JOYSTICK HARMONY XB4 Schneider Electric |
2,280 |
|
Datasheet |
Harmony XDA | Box | Active | Joystick, 2 - Axis | Joystick | 4-Way Directional | - | - | - | - | - | - | - | - | - | Panel Mount | Screw Terminal | -25°C ~ 70°C | - | IP66 - Dust Tight, Water Resistant | - |
|

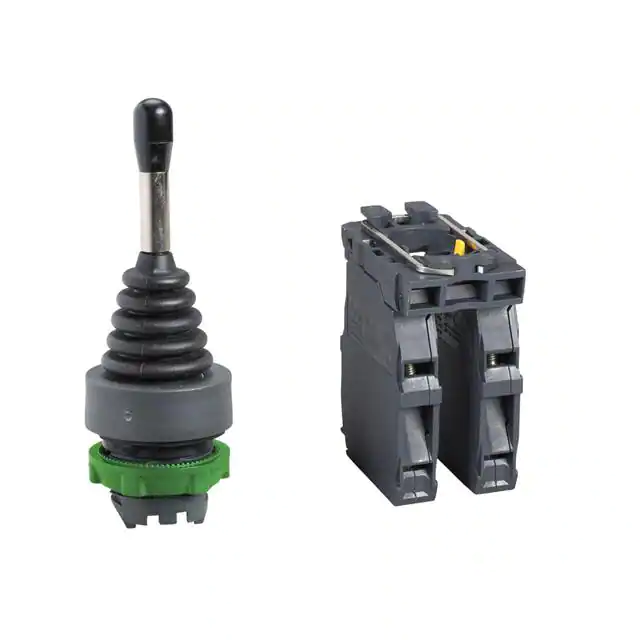

XD5PA24SWITCH JOYSTICK HARMONY XB5 Schneider Electric |
4,843 |
|
Datasheet |
Harmony XB5 | Box | Active | Joystick, 2 - Axis | Joystick | 4-Way Directional | - | - | - | - | - | - | - | - | - | Panel Mount | Screw Terminal | -25°C ~ 70°C | - | IP66 - Dust Tight, Water Resistant | - |
|
XD2EC1111SWITCH JOYSTICK 30MM Schneider Electric |
4,374 |
|
Datasheet |
Harmony XD2 | Box | Active | Joystick, 2 - Axis | Joystick | 8-Way Directional | - | - | - | - | - | - | - | - | - | Panel Mount | Screw Terminal | -25°C ~ 70°C | Circular - 30.00mm Dia | IP65 - Dust Tight, Water Resistant | - |
|
XD5PA12SWITCH JOYSTICK HARMONY XB5 Schneider Electric |
3,719 |
|
Datasheet |
Harmony XB5 | Box | Active | Joystick, 2 - Axis | Joystick | 2-Way Directional | - | - | - | - | - | - | - | - | - | Panel Mount | Screw Terminal | -25°C ~ 70°C | - | IP66 - Dust Tight, Water Resistant | - |
|
|
9001K71H7SWITCH JOYSTICK BALL TIP 3A 240V Schneider Electric |
4,758 |
|
Datasheet |
Harmony 9001K | Box | Active | Joystick, 2 - Axis | Ball Tip | 2-Way Directional | - | - | - | 3A (AC), 550mA (DC) | 240 V | 125 V | - | - | - | Panel Mount | Screw Terminal | -25°C ~ 70°C | Circular - 30.00mm Dia | IP66 - Dust Tight, Water Resistant | - |
|

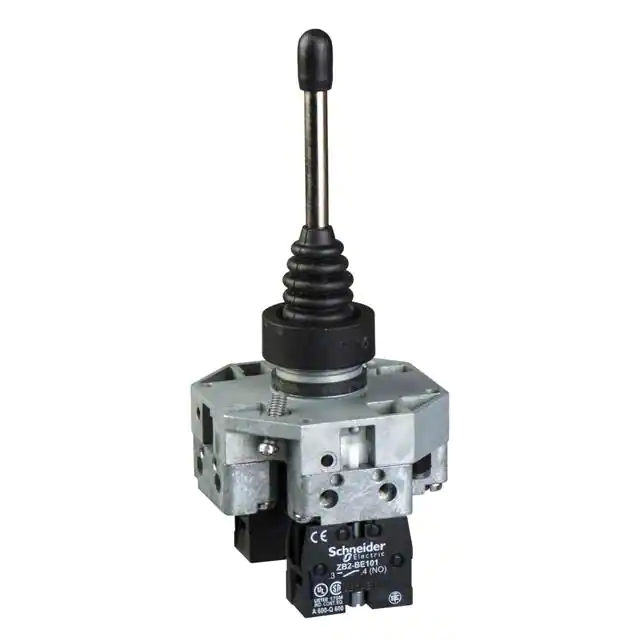

XDPC1111C1SWITCH JOYSTICK COMPLETE Schneider Electric |
1,592 |
|
Datasheet |
Harmony XDP | Box | Obsolete | Joystick, 2 - Axis | Joystick | 4-Way Directional | - | - | - | - | - | - | - | - | - | Panel Mount | Screw Terminal | -40°C ~ 60°C | - | IP65 - Dust Tight, Water Resistant | - |
|

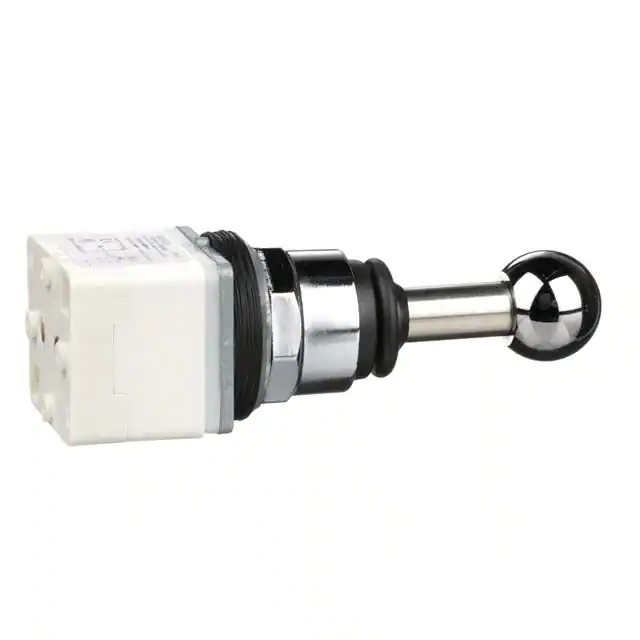

9001K35SWITCH JOYSTICK BALL TIP Schneider Electric |
3,390 |
|
Datasheet |
Harmony 9001K | Box | Active | Joystick, 2 - Axis | Ball Tip | - | - | - | - | - | - | - | - | - | - | Panel Mount | Screw Terminal | -25°C ~ 70°C | - | IP66 - Dust Tight, Water Resistant | - |
|
|
XD4PA24SWITCH JOYSTICK HARMONY XB4 Schneider Electric |
1,689 |
|
Datasheet |
Harmony XDA | Box | Active | Joystick, 2 - Axis | Joystick | 4-Way Directional | - | - | - | - | - | - | - | - | - | Panel Mount | Screw Terminal | -25°C ~ 70°C | - | IP66 - Dust Tight, Water Resistant | - |
|

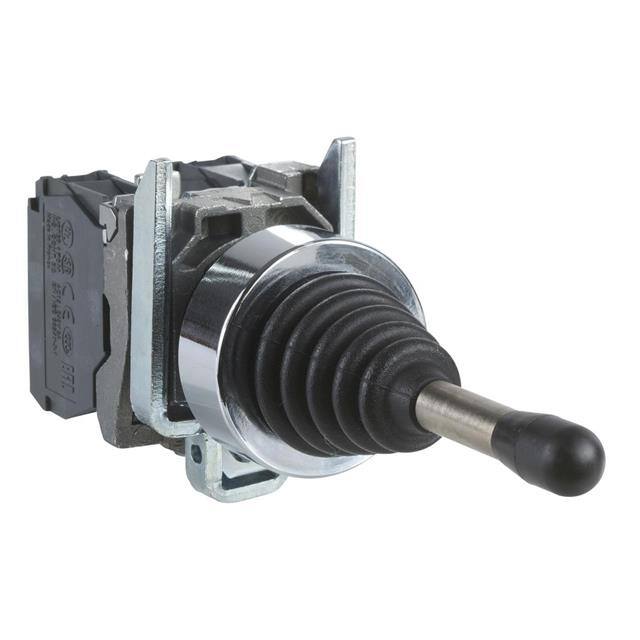

XD4PA12SWITCH JOYSTICK HARMONY XB4 Schneider Electric |
3,899 |
|
Datasheet |
Harmony XDA | Box | Active | Joystick, 2 - Axis | Joystick | 2-Way Directional | - | - | - | - | - | - | - | - | - | Panel Mount | Screw Terminal | -25°C ~ 70°C | - | IP66 - Dust Tight, Water Resistant | - |
|
|
XD4PA22SWITCH JOYSTICK HARMONY XB4 Schneider Electric |
3,438 |
|
Datasheet |
Harmony XDA | Box | Active | Joystick, 2 - Axis | Joystick | 4-Way Directional | - | - | - | - | - | - | - | - | - | Panel Mount | Screw Terminal | -25°C ~ 70°C | - | IP66 - Dust Tight, Water Resistant | - |
