Magnetic Wire
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Wire Gauge | Conductor Material | Jacket (Insulation) Material | Jacket (Insulation) Diameter | Length - Approximate | Ratings | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

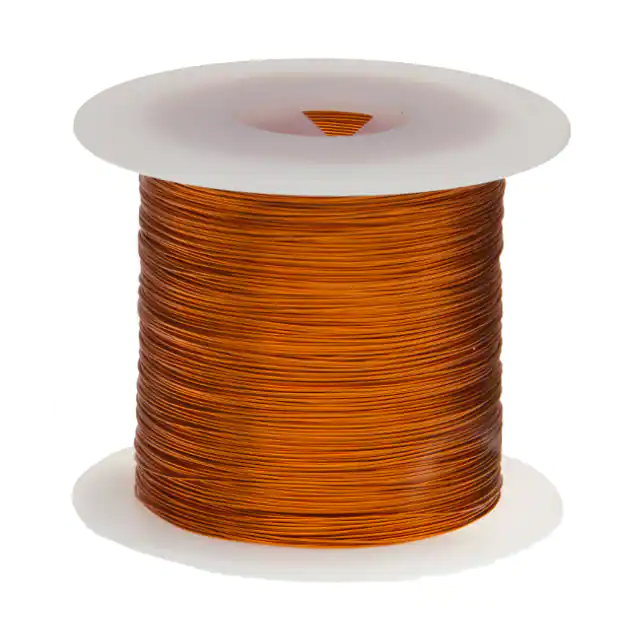

14H2002.5MAGNET WIRE, 200C, 14 AWG, 2.5 L |
4,173 |
|
Datasheet |
- | Bag | Active | 14 AWG | Copper, Annealed Bare | Polyester | - | 198.0' (60m) | MW 35-C | 2.5 lbs (1.1 kg) |
|

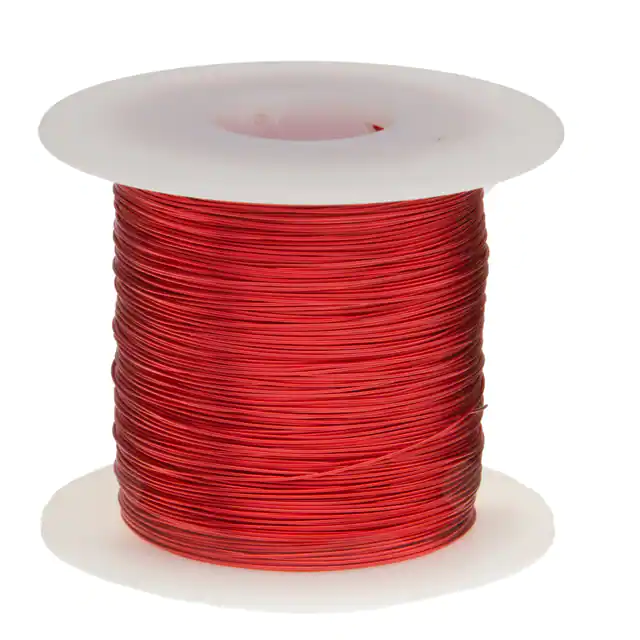

21SNS2.5MAGNET WIRE, ENAMELED COPPER WIR |
2,215 |
|
Datasheet |
- | Bag | Active | 21 AWG | Copper, Annealed Bare | Polyurethane (PU) | - | 1002.0' (305m) | MW 80-C | 2.5 lbs (1.1 kg) |
|
29HNS2.5#29 HVY MAG WIRE, 155C RED 2.5LB |
1,293 |
|
Datasheet |
- | Box | Active | 29 AWG | Copper, Annealed Bare | Polyurethane (PU) | 0.013" (0.33mm) | 6158.0' (1877m) | MW 80-C | 2.5 lbs (1.1 kg) |
|

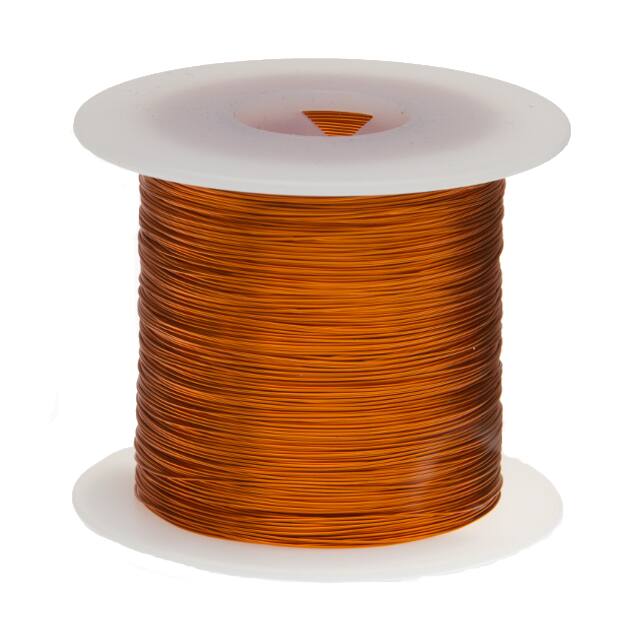

16H2002.5MAGNET WIRE, 200C, 16 AWG, 2.5 L |
3,343 |
|
Datasheet |
- | Bag | Active | 16 AWG | Copper, Annealed Bare | Polyester | - | 313.3' (95m) | MW 35-C | 2.5 lbs (1.1 kg) |
|

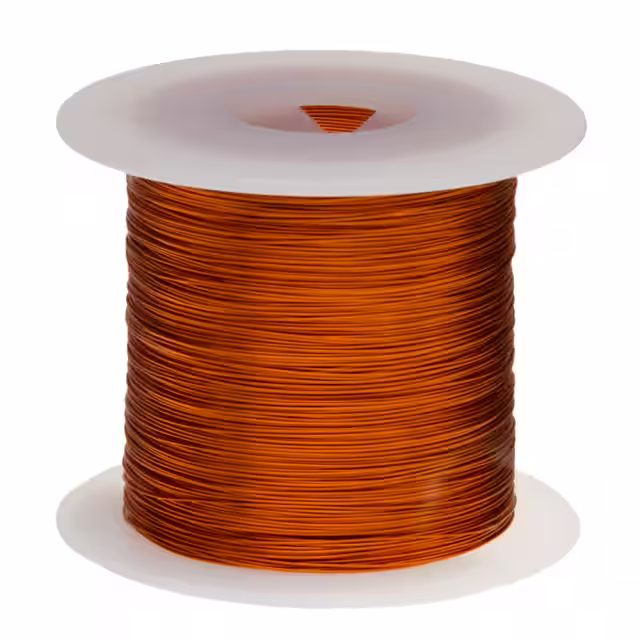

20H240P#20 HVY MAG WIRE, 240C NAT 1LB |
1,771 |
|
Datasheet |
- | Box | Active | 20 AWG | Copper, Annealed Bare | Polyimide | 0.035" (0.89mm) | 79.0' (24.1m) | MW 16-C | 1.0 lbs (453.6 g) |
|

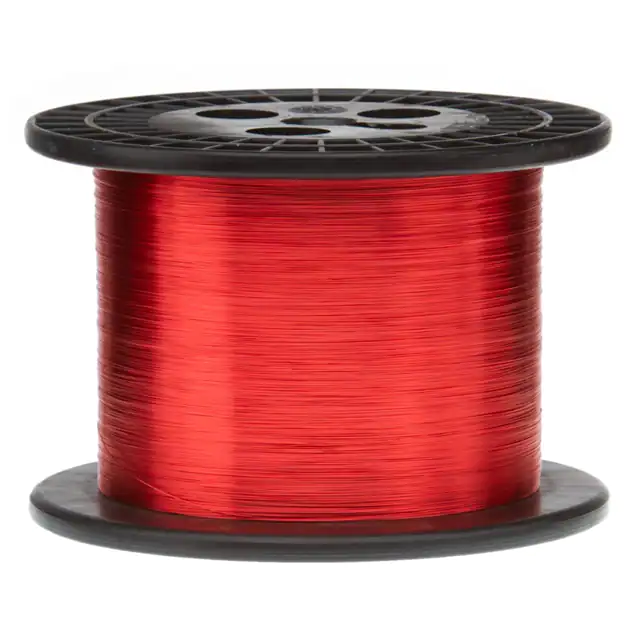

31HNS2.5#31 HVY MAG WIRE, 155C RED 2.5LB |
2,072 |
|
Datasheet |
- | Box | Active | 31 AWG | Copper, Annealed Bare | Polyurethane (PU) | 0.010" (0.25mm) | 9870.0' (3008m) | MW 80-C | 2.5 lbs (1.1 kg) |
|

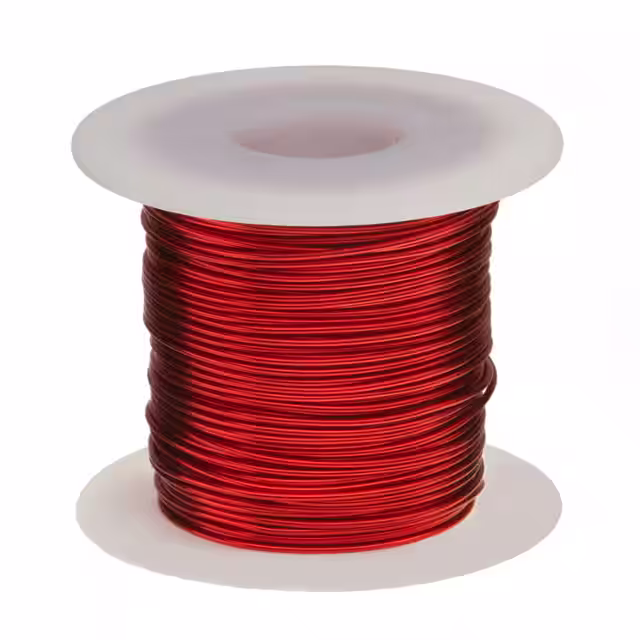

19SNS2.5MAGNET WIRE, ENAMELED COPPER WIR |
4,590 |
|
Datasheet |
- | Bag | Active | 19 AWG | Copper, Annealed Bare | Polyurethane (PU) | - | 633.0' (193m) | MW 80-C | 2.5 lbs (1.1 kg) |
|

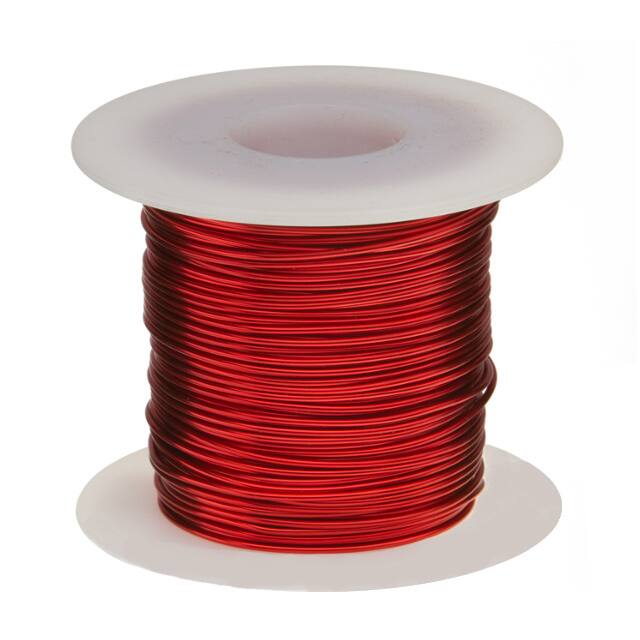

20HNS2.5MAGNET WIRE, HEAVY BUILD ENAMELE |
2,096 |
|
Datasheet |
- | Bag | Active | 20 AWG | Copper, Annealed Bare | Polyurethane (PU) | - | 785.0' (239m) | MW 80-C | 2.5 lbs (1.1 kg) |
|
23SNS2.5MAGNET WIRE, ENAMELED COPPER WIR |
1,294 |
|
Datasheet |
- | Bag | Active | 23 AWG | Copper, Annealed Bare | Polyurethane (PU) | - | - | MW 80-C | 2.5 lbs (1.1 kg) |
|
18H2002.5MAGNET WIRE, 200C, 18 AWG, 2.5 L |
1,460 |
|
Datasheet |
- | Bag | Active | 18 AWG | Copper, Annealed Bare | Polyester | - | 498.0' (152m) | MW 35-C | 2.5 lbs (1.1 kg) |
|
22HNS2.5MAGNET WIRE, HEAVY BUILD ENAMELE |
4,704 |
|
Datasheet |
- | Bag | Active | 22 AWG | Copper, Annealed Bare | Polyurethane (PU) | - | 1252.0' (382m) | MW 80-C | 2.5 lbs (1.1 kg) |
|
20H2002.5MAGNET WIRE, 200C, 20 AWG, 2.5 L |
3,436 |
|
Datasheet |
- | Bag | Active | 20 AWG | Copper, Annealed Bare | Polyester | - | 785.0' (239m) | MW 35-C | 2.5 lbs (1.1 kg) |
|

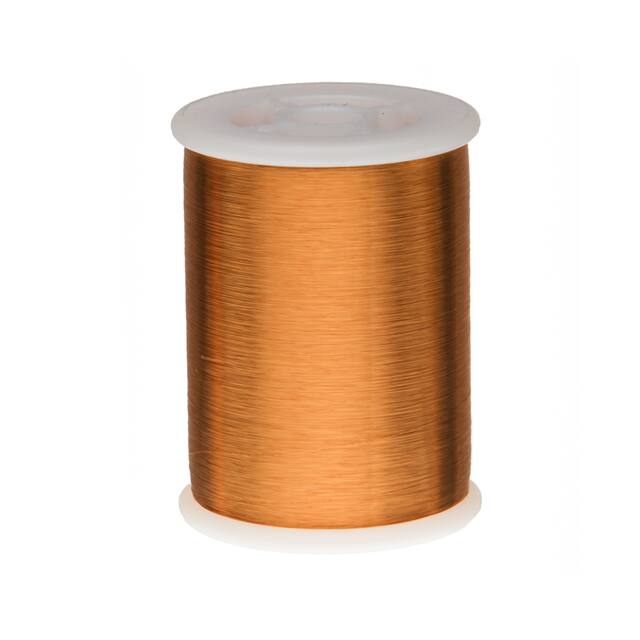

42HFVP42HFVP 42 AWG HEAVY BUILD MAGNET |
3,700 |
|
Datasheet |
- | Bag | Active | 42 AWG | Copper, Annealed Bare | Enamel | - | 49600.0' (15118m) | MW 15-C | 1.0 lbs (453.6 g) |
|

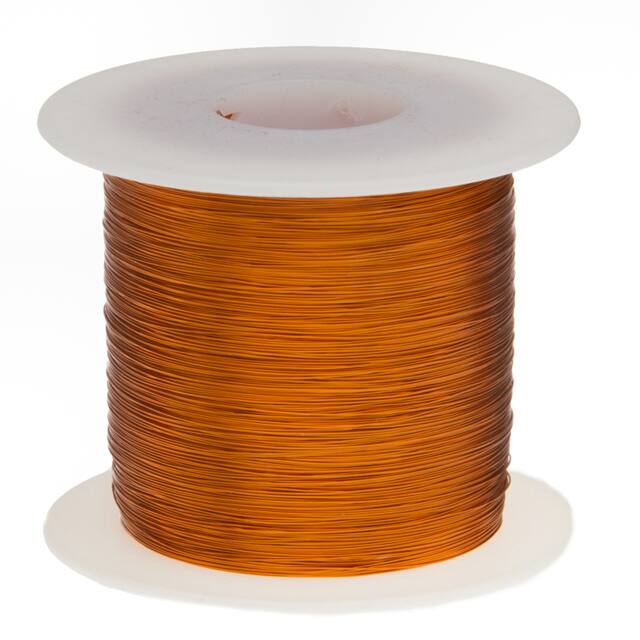

22H2002.5MAGNET WIRE, 200C, 22 AWG, 2.5 L |
2,971 |
|
Datasheet |
- | Bag | Active | 22 AWG | Copper, Annealed Bare | Polyester | - | 1255.0' (383m) | MW 35-C | 2.5 lbs (1.1 kg) |
|

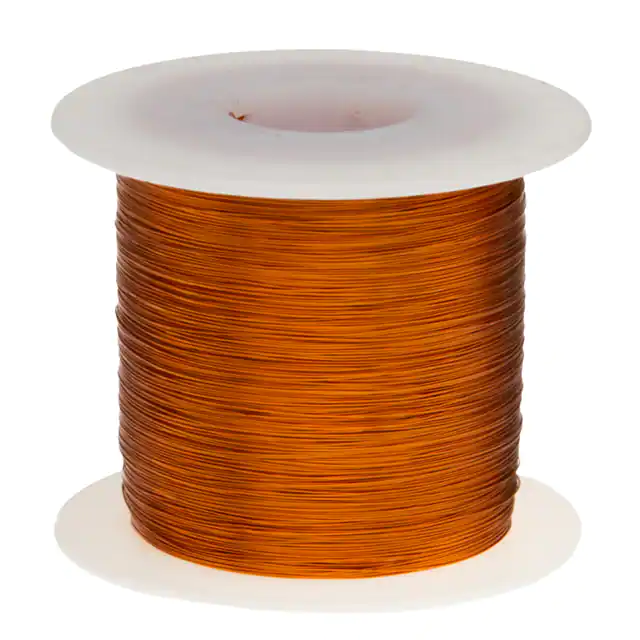

22H240P#22 HVY MAG WIRE, 240C NAT 1LB |
2,960 |
|
Datasheet |
- | Box | Active | 22 AWG | Copper, Annealed Bare | Polyimide | 0.028" (0.71mm) | 79.0' (24.1m) | MW 16-C | 1.0 lbs (453.6 g) |
|
25HNS2.5#25 HVY MAG WIRE, 155C RED 2.5LB |
4,080 |
|
Datasheet |
- | Box | Active | 25 AWG | Copper, Annealed Bare | Polyurethane (PU) | 0.020" (0.51mm) | 2480.0' (756m) | MW 80-C | 2.5 lbs (1.1 kg) |
|
34S2002.5MAGNET WIRE, 200C, 34 AWG, 2.5 L |
4,776 |
|
Datasheet |
- | Bag | Active | 34 AWG | Copper, Annealed Bare | Polyester | - | 20215.0' (6162m) | MW 35-C | 2.5 lbs (1.1 kg) |
|
24H2002.5MAGNET WIRE, 200C, 24 AWG, 2.5 L |
2,792 |
|
Datasheet |
- | Bag | Active | 24 AWG | Copper, Annealed Bare | Polyester | - | 1975.0' (602m) | MW 35-C | 2.5 lbs (1.1 kg) |
|
26H2002.5MAGNET WIRE, 200C, 26 AWG, 2.5 L |
4,549 |
|
Datasheet |
- | Bag | Active | 26 AWG | Copper, Annealed Bare | Polyester | - | 3135.0' (956m) | MW 35-C | 2.5 lbs (1.1 kg) |
|

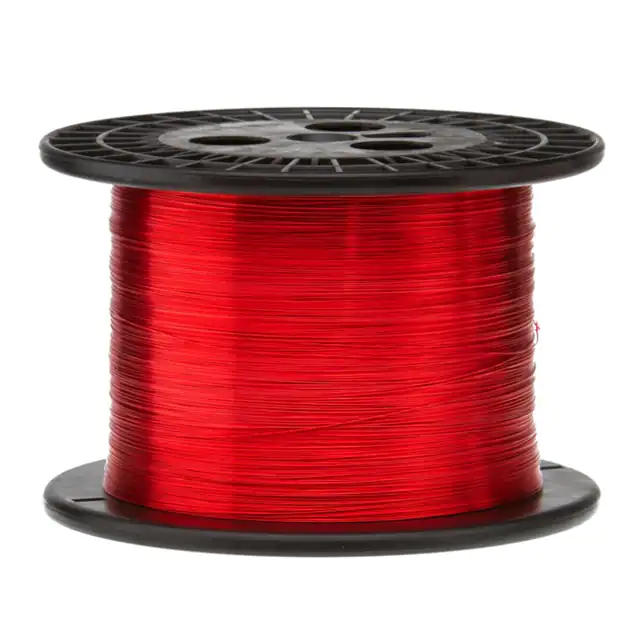

23HNS2.5#23 HVY MAG WIRE, 155C RED 2.5LB |
1,618 |
|
Datasheet |
- | Box | Active | 23 AWG | Copper, Annealed Bare | Polyurethane (PU) | 0.025" (0.63mm) | 1563.0' (476m) | MW 80-C | 2.5 lbs (1.1 kg) |
