Buffers, Drivers, Receivers, Transceivers
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Logic Type | Number of Elements | Number of Bits per Element | Input Type | Output Type | Current - Output High, Low | Voltage - Supply | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
74LVTH162245GXIC TXRX NON-INVERT 3.6V 54FBGA Fairchild Semiconductor |
850 |
|
Datasheet |
74LVTH | 54-LFBGA | Bulk | Obsolete | Transceiver, Non-Inverting | 2 | 8 | - | 3-State | 12mA, 12mA; 32mA, 64mA | 2.7V ~ 3.6V | -40°C ~ 85°C (TA) | - | - | Surface Mount | 54-FBGA (8x5.5) |
|
74F543SPCIC TXRX NON-INVERT 5.5V 24DIP Fairchild Semiconductor |
767 |
|
Datasheet |
74F | 24-DIP (0.300", 7.62mm) | Tube | Obsolete | Transceiver, Non-Inverting | 1 | 8 | - | 3-State | 3mA, 24mA; 3mA, 64mA | 4.5V ~ 5.5V | 0°C ~ 70°C (TA) | - | - | Through Hole | 24-PDIP |
|
74ACT18825SSCXIC BUFFER NON-INVERT 5.5V 56SSOP Fairchild Semiconductor |
673 |
|
Datasheet |
74ACT | 56-BSSOP (0.295", 7.50mm Width) | Bulk | Obsolete | Buffer, Non-Inverting | 2 | 9 | - | 3-State | 24mA, 24mA | 4.5V ~ 5.5V | -40°C ~ 85°C (TA) | - | - | Surface Mount | 56-SSOP |
|
|
74ABT16652CSSCXIC TXRX NON-INVERT 5.5V 56SSOP Fairchild Semiconductor |
955 |
|
Datasheet |
74ABT | 56-BSSOP (0.295", 7.50mm Width) | Bulk | Obsolete | Transceiver, Non-Inverting | 2 | 8 | - | 3-State | 32mA, 64mA | 4.5V ~ 5.5V | -40°C ~ 85°C (TA) | - | - | Surface Mount | 56-SSOP |
|
74VHC245MXBUS TRANSCEIVER, AHC/VHC SERIES, Fairchild Semiconductor |
930 |
|
Datasheet |
74VHC | 20-SOIC (0.295", 7.50mm Width) | Bulk | Active | Transceiver, Non-Inverting | 1 | 8 | - | 3-State | 8mA, 8mA | 2V ~ 5.5V | -40°C ~ 85°C (TA) | - | - | Surface Mount | 20-SOIC |
|

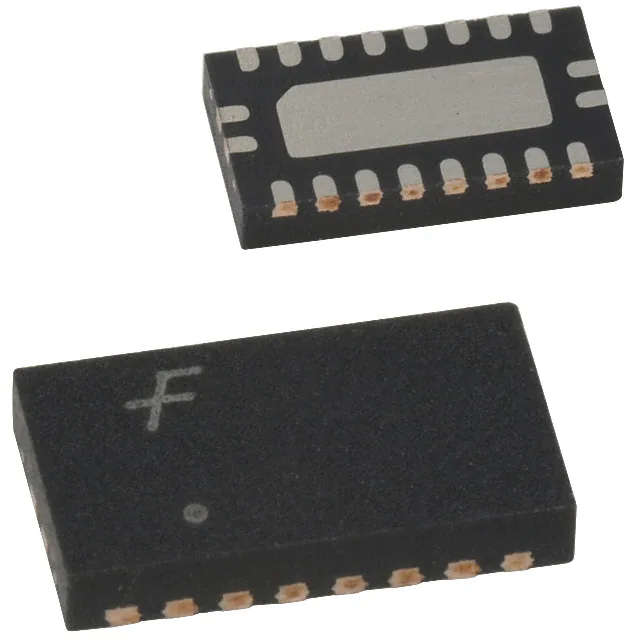

74VCX245BQXBUS TRANSCEIVER, ALVC/VCX/A SERI Fairchild Semiconductor |
671 |
|
Datasheet |
74VCX | 20-WFQFN Exposed Pad | Bulk | Active | Transceiver, Non-Inverting | 1 | 8 | - | 3-State | 24mA, 24mA | 1.4V ~ 3.6V | -40°C ~ 85°C (TA) | - | - | Surface Mount | 20-DQFN (2.5x4.5) |
|

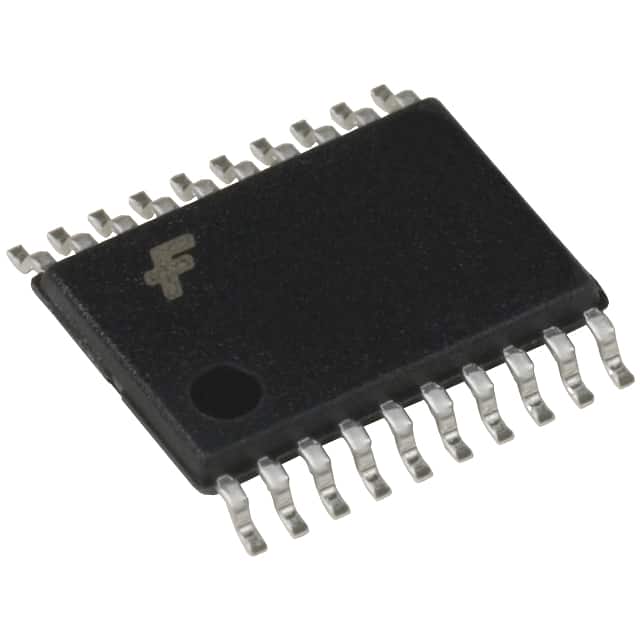

74LVT244MTCXBUS DRIVER, LVT SERIES, 2-FUNC, Fairchild Semiconductor |
688 |
|
Datasheet |
74LVT | 20-TSSOP (0.173", 4.40mm Width) | Bulk | Active | Buffer, Non-Inverting | 2 | 4 | - | 3-State | 32mA, 64mA | 2.7V ~ 3.6V | -40°C ~ 85°C (TA) | - | - | Surface Mount | 20-TSSOP |
|
74LCX244MSAIC BUFFER NON-INVERT 3.6V 20SSOP Fairchild Semiconductor |
1,784 |
|
Datasheet |
74LCX | 20-SSOP (0.209", 5.30mm Width) | Tube | Obsolete | Buffer, Non-Inverting | 2 | 4 | - | 3-State | 24mA, 24mA | 2V ~ 3.6V | -40°C ~ 85°C (TA) | - | - | Surface Mount | 20-SSOP |
|
NC7SZ125P5IC BUFFER NON-INVERT 5.5V SC70-5 Fairchild Semiconductor |
3,851 |
|
Datasheet |
- | 5-TSSOP, SC-70-5, SOT-353 | Bulk | Active | Buffer, Non-Inverting | 1 | 1 | - | 3-State | 32mA, 32mA | 1.65V ~ 5.5V | -40°C ~ 85°C (TA) | - | - | Surface Mount | SC-70-5 |
