LED Drivers
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Programmable | Type | Topology | Number of Outputs | Voltage - Input (Min) | Voltage - Input (Max) | Voltage - Output | Current - Output (Max) | Power (Watts) | Voltage - Isolation | Dimming | Features | Ratings | Operating Temperature | Efficiency | Termination Style | Size / Dimension | Approval Agency |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

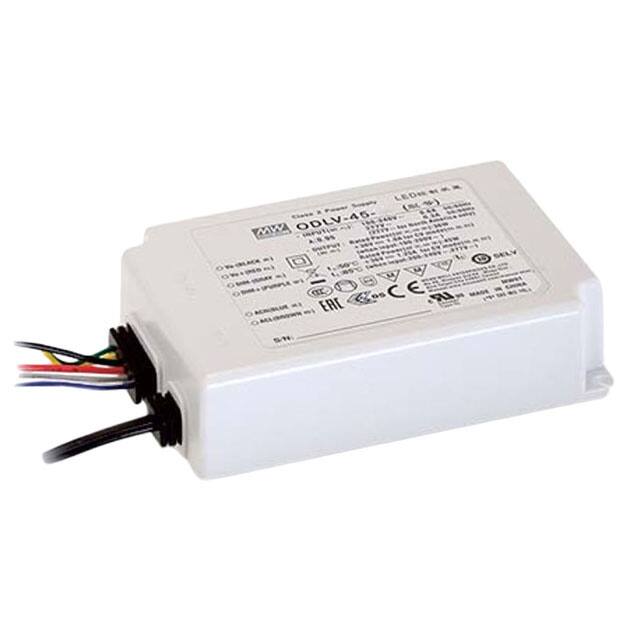

ODLV-45-12O/P 12V3.0A |
3,004 |
|
Datasheet |
ODLV-45 (45W) | Box | Obsolete | Not Verified | Constant Voltage | AC DC Converter | 1 | 90VAC | 295VAC | 12V | 3A | 36 W | 3.75 kV | Analog, PWM | OCP, SCP | IP67 | -20°C ~ 85°C | 84% | Wire Leads | 4.37" L x 3.03" W x 1.12" H (111.0mm x 77.0mm x 28.5mm) | CB, CCC, CE, cURus, EAC, ENEC |
|
02008B-1000POWERPUCK 1000 LED DRIVER |
4,843 |
|
- |
PowerPuck; 2008B | Bag | Active | - | Constant Current | Buck | 1 | - | 32V | 32V | 1A | - | - | - | SCP | - | -40°C ~ 85°C | 95% | Wire Leads | 1.50" Dia x 0.50" H (38.1mm x 12.7mm) | - |
|
|
02008B-700POWERPUCK 700 LED DRIVER |
2,203 |
|
- |
- | Bag | Active | - | Constant Current | Buck | 1 | 5V | 32V | 32V | 700mA | 22 W | - | - | SCP | - | -40°C ~ 85°C | 95% | Wire Leads | 1.50" Dia x 0.50" H (38.1mm x 12.7mm) | - |
|
|
02008B-350POWERPUCK 350 LED DRIVER |
3,489 |
|
- |
PowerPuck; 2008B | Bag | Active | - | Constant Current | Buck | 1 | 5V | 32V | 32V | 350mA | - | - | - | SCP | - | -40°C ~ 85°C | 95% | Wire Leads | 1.50" Dia x 0.50" H (38.1mm x 12.7mm) | - |
|
PCD-60-2400BLED DRIVER CC AC/DC 15-25V 2.4A |
1,837 |
|
Datasheet |
PCD-60 (60W) | Box | Active | Not Verified | Constant Current | AC DC Converter | 1 | 180VAC | 295VAC | 15 ~ 25V | 2.4A | 60 W | 3.75 kV | Triac | OTP, SCP | IP42 | -30°C ~ 45°C | 84% | Wire Leads | 5.04" L x 2.36" W x 1.24" H (128.0mm x 60.0mm x 31.5mm) | CB, CE, ENEC |
|
|
LD12W120-16-C0800-TL10~16V@800mA, Phase Dimming |
3,773 |
|
Datasheet |
LD12W-TL | Bulk | Active | - | Constant Current | AC DC Converter | 1 | 108VAC | 132VAC | 10 ~ 16V | 800mA | 12.8 W | 3750 V | ELV, Triac | OCP, OVP, SCP | IP66 | -30°C ~ 60°C | 82% | Wire Leads | 3.35" L x 1.42" W x 0.91" H (85.1mm x 36.1mm x 23.1mm) | CE, cURus, FCC |
|

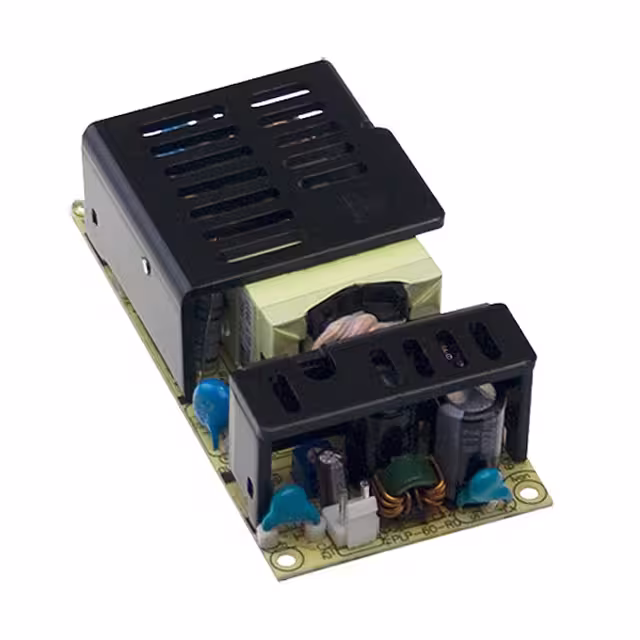

PLP-45-48LED DRVR CC AC/DC 36-48V 950MA |
2,008 |
|
Datasheet |
PLP-45 (45W) | Box | Obsolete | Not Verified | Constant Current | AC DC Converter | 1 | 90VAC | 264VAC | 36 ~ 48V | 950mA | 46 W | 3.75 kV | - | OCP, OVP, SCP | - | -30°C ~ 70°C | 89% | Rectangular, 2 Position | 4.00" L x 2.00" W x 1.17" H (101.6mm x 50.8mm x 29.6mm) | CB, CCC, CE, TUV, UR |
|
|
SI-EPD006580EULED DRIVER CC AC/DC 15-54V 1A |
1,716 |
|
- |
- | Tray | Not For New Designs | Not Verified | Constant Current | AC DC Converter | 1 | 198VAC | 264VAC | 15 ~ 54V | 1A | 35 W | - | DALI | OCP, OTP, OVP, SCP | IP20 | -20°C ~ 50°C | 86% | Terminal Block | 4.06" L x 2.64" W x 1.16" H (103.0mm x 67.0mm x 29.5mm) | CE, VDE |
|
AMER50N-42120ZLED DRIVER CC AC/DC 30-42V 1.2A |
2,646 |
|
Datasheet |
AMER50N-Z | Box | Active | Not Verified | Constant Current | AC DC Converter | 1 | 90V | 305V | 30 ~ 42V | 1.2A | 50.4 W | 3.75 kV | - | SCP | IP65, IP67 | -40°C ~ 60°C | 88% | Wire Leads | 1.91" L x 7.36" W x 1.31" H (48.6mm x 187.0mm x 33.3mm) | CE |
|
IDLC-45-700LED DRVR CC AC/DC 38-64V 700MA |
2,069 |
|
Datasheet |
IDLC-45 (45W) | Box | Obsolete | Not Verified | Constant Current | AC DC Converter | 1 | 90VAC | 295VAC | 38 ~ 64V | 700mA | 45 W | 3.75 kV | Analog, PWM | SCP | - | -20°C ~ 85°C | 85% | Terminal Block | 4.72" L x 2.95" W x 0.98" H (120.0mm x 75.0mm x 25.0mm) | CB, CCC, CE, cURus, ENEC |
|
ODLC-45A-1050LED DRVR CC AC/DC 26-43V 1.05A |
4,197 |
|
Datasheet |
OLDC-45 (45W) | Box | Obsolete | Not Verified | Constant Current | AC DC Converter | 1 | 90VAC | 295VAC | 26 ~ 43V | 1.05A | 45 W | 3.75 kV | Analog, PWM | SCP | IP67 | -20°C ~ 85°C | 84% | Wire Leads | 4.37" L x 3.03" W x 1.12" H (111.0mm x 77.0mm x 28.5mm) | CB, CCC, CE, cURus, ENEC |
|
|
ODLC-45A-350LED DRVR CC AC/DC 57-95V 350MA |
1,782 |
|
Datasheet |
OLDC-45 (45W) | Box | Obsolete | Not Verified | Constant Current | AC DC Converter | 1 | 90VAC | 295VAC | 57 ~ 95V | 350mA | 33 W | 3.75 kV | Analog, PWM | SCP | IP67 | -20°C ~ 85°C | 86% | Wire Leads | 4.37" L x 3.03" W x 1.12" H (111.0mm x 77.0mm x 28.5mm) | CB, CCC, CE, cURus, ENEC |
|
|
ODLC-45A-500LED DRVR CC AC/DC 54-90V 500MA |
3,316 |
|
Datasheet |
OLDC-45 (45W) | Box | Obsolete | Not Verified | Constant Current | AC DC Converter | 1 | 90VAC | 295VAC | 54 ~ 90V | 500mA | 45 W | 3.75 kV | Analog, PWM | SCP | IP67 | -20°C ~ 85°C | 85% | Wire Leads | 4.37" L x 3.03" W x 1.12" H (111.0mm x 77.0mm x 28.5mm) | CB, CCC, CE, cURus, ENEC |
|
|
USVI-100024FR1LED DRIVER |
2,235 |
|
Datasheet |
USVI RDL | Box | Active | Not Verified | Constant Voltage | AC DC Converter | 1 | 108VAC | 305VAC | 24V | 4A | 100 W | 3 kV | - | OCP, OTP, OVP, SCP | - | -40°C ~ 55°C | 90% | Wire Leads | 9.50" L x 1.70" W x 1.18" H (241.3mm x 43.2mm x 30.0mm) | cCSAus, CE, cULus, ENEC, UKCA |
|
|
0A011-D-V-350FLEXBLOCK LED DRIVER ANALOG |
4,230 |
|
- |
FlexBlock™ A011 | Bag | Active | - | Constant Current | Buck-Boost | 1 | 10V | 32V | 48V | 350mA | - | - | Analog, PWM | SCP | - | -40°C ~ 80°C | 90% | Wire Leads | 0.45" L x 0.30" W x 0.26" H (11.5mm x 7.6mm x 6.6mm) | - |
|
|
0A009-D-V-1400BUCKBLOCK LED DRIVER ANALOG |
1,444 |
|
- |
BuckBlock™ A009 | Bag | Active | - | Constant Current | Buck | 1 | 10V | 32V | - | 1.4A | - | - | Analog, PWM | SCP | - | -40°C ~ 80°C | 90% | Wire Leads | 0.45" L x 0.30" W x 0.26" H (11.5mm x 7.6mm x 6.6mm) | - |
|
|
0A009-D-V-2100BUCKBLOCK LED DRIVER ANALOG |
1,530 |
|
- |
BuckBlock™ A009 | Bag | Active | - | Constant Current | Buck | 1 | 10V | 32V | - | 2.1A | - | - | Analog, PWM | SCP | - | -40°C ~ 80°C | 90% | Wire Leads | 0.45" L x 0.30" W x 0.26" H (11.5mm x 7.6mm x 6.6mm) | - |
|
|
0A011-D-V-700FLEXBLOCK LED DRIVER ANALOG |
2,318 |
|
- |
FlexBlock™ A011 | Bag | Active | - | Constant Current | Buck-Boost | 1 | 10V | 32V | 48V | 700mA | - | - | Analog, PWM | SCP | - | -40°C ~ 80°C | 90% | Wire Leads | 2.00" L x 1.20" W x 0.38" H (50.8mm x 30.5mm x 9.5mm) | - |
|
|
0A009-D-V-1000BUCKBLOCK LED DRIVER ANALOG |
2,000 |
|
- |
BuckBlock™ A009 | Bag | Active | - | Constant Current | Buck | 1 | 10V | 32V | - | 1A | - | - | Analog, PWM | SCP | - | -40°C ~ 80°C | 90% | Wire Leads | 0.45" L x 0.30" W x 0.26" H (11.5mm x 7.6mm x 6.6mm) | - |
|
|
0A011-D-V-500FLEXBLOCK LED DRIVER ANALOG |
2,049 |
|
- |
FlexBlock™ A011 | Bag | Active | - | Constant Current | Buck-Boost | 1 | 10V | 32V | 48V | 500mA | - | - | Analog, PWM | SCP | - | -40°C ~ 80°C | 90% | Wire Leads | 0.45" L x 0.30" W x 0.26" H (11.5mm x 7.6mm x 6.6mm) | - |
