LED Dot Matrix and Cluster
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Millicandela Rating | Internal Connection | Size / Dimension | Color | Configuration | Voltage - Forward (Vf) (Typ) | Interface |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

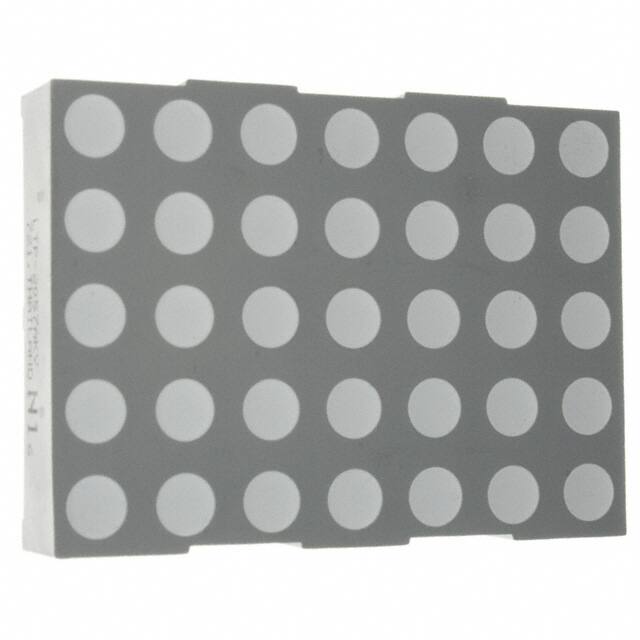

LTP-2057AKYLED MATRIX 5X7 2.0" AMBER-YELLOW Lite-On Inc. |
2,483 |
|
Datasheet |
- | Tube | Active | 3.6mcd | Common Cathode Row, Common Anode Column | 1.50" L x 2.09" W x 0.34" H (38.10mm x 53.10mm x 8.60mm) | Amber-Yellow | 5 x 7 | 2.05V | - |
|

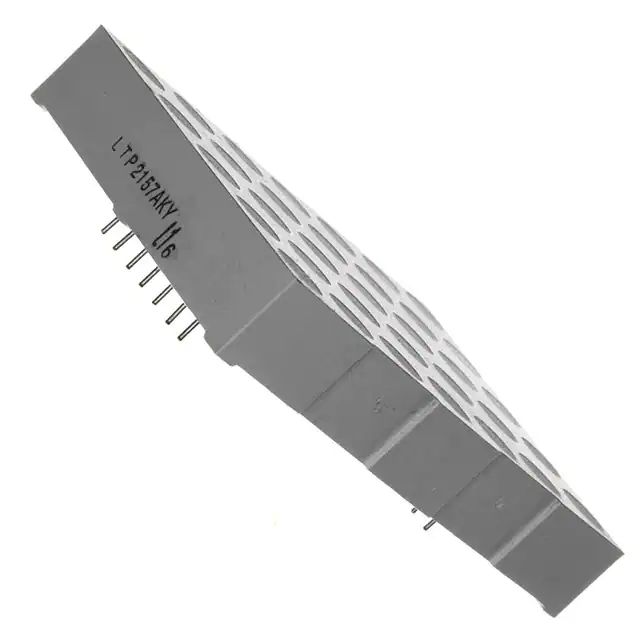

LTP-2157AKYLED MATRIX 5X7 2.0" YELLOW Lite-On Inc. |
1,836 |
|
Datasheet |
LTP-2157A | Tube | Active | 4.6mcd | Common Anode Row, Common Cathode Column | 1.50" L x 2.09" W x 0.34" H (38.10mm x 53.10mm x 8.60mm) | Yellow | 5 x 7 | 2.05V | - |
|
LTP-1557AKALED MATRIX 5X7 1.2" RED-ORANGE Lite-On Inc. |
4,730 |
|
Datasheet |
- | Tube | Active | 3.8mcd | Common Anode Row, Common Cathode Column | 0.90" L x 1.25" W x 0.32" H (22.90mm x 31.80mm x 8.00mm) | Orange-Red | 5 x 7 | 2.05V | - |
|
LTP-1557AKRLED MATRIX 5X7 1.2" SUPER RED Lite-On Inc. |
1,145 |
|
Datasheet |
- | Tube | Active | 3.8mcd | Common Anode Row, Common Cathode Column | 0.90" L x 1.25" W x 0.32" H (22.90mm x 31.80mm x 8.00mm) | Red | 5 x 7 | 2V | - |
|
|
LTP-1457AKYLED MATRIX 5X7 1.2" AMBER-YELLOW Lite-On Inc. |
2,533 |
|
Datasheet |
- | Tube | Active | 3.8mcd | Common Cathode Row, Common Anode Column | 0.90" L x 1.25" W x 0.32" H (22.90mm x 31.80mm x 8.00mm) | Amber-Yellow | 5 x 7 | 2.05V | - |
|

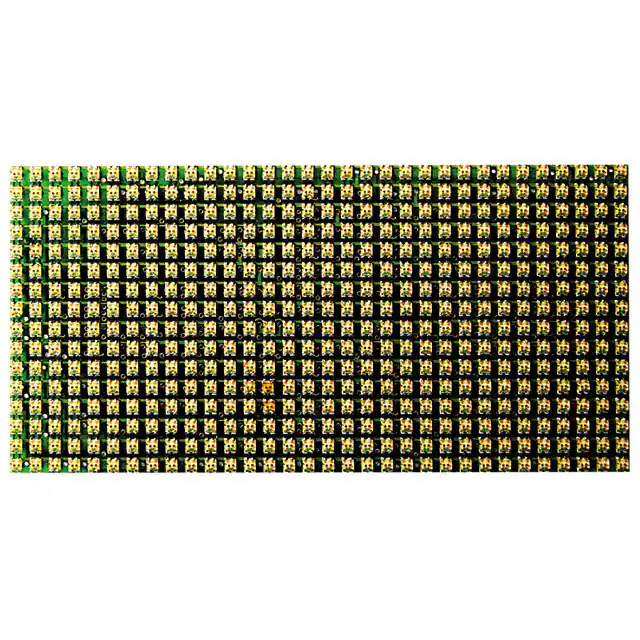

LTM-0124M-01LED DOT MATRIX G/R 16X32 3.14" Lite-On Inc. |
4,564 |
|
Datasheet |
- | Bulk | Active | 6.4mcd Green, 10mcd Red | Common Anode Row, Common Cathode Column | 3.14" L x 1.56" W x 0.63" H (79.80mm x 39.80mm x 16.00mm) | Green, Red | 16 x 32 | 2V Green, 2V Red | Serial |
|
LTP-3057ACDISPLAY DOT MATRX RED LC 3.0"5X7 Lite-On Inc. |
1,545 |
|
- |
- | Tray | Active | 20mcd | Common Cathode Row, Common Anode Column | 2.24" L x 3.15" W x 0.35" H (56.90mm x 79.90mm x 8.90mm) | Red | 5 x 7 | 3.6V | - |
|
|
LTP-1157AEDISPLAY DOT MATRX ORN-RD 1.2"5X7 Lite-On Inc. |
1,931 |
|
- |
- | Tube | Obsolete | 4mcd | Common Anode Row, Common Cathode Column | 0.89" L x 1.54" W x 0.32" H (22.60mm x 39.10mm x 8.00mm) | Orange-Red | 5 x 7 | 2V | - |
|
|
LTP-1157AHRDISPLAY DOT MATRX HER 1.2" 5X7 Lite-On Inc. |
4,019 |
|
- |
- | Tube | Obsolete | 4mcd | Common Anode Row, Common Cathode Column | 0.89" L x 1.54" W x 0.32" H (22.60mm x 39.10mm x 8.00mm) | Red | 5 x 7 | 2V | - |
|
|
LTP-14058AKYDISPLAY DOT MTRX AMB-YWL 1.4"5X8 Lite-On Inc. |
1,302 |
|
Datasheet |
- | Tube | Active | 3.8mcd | Common Cathode Row, Common Anode Column | 0.92" L x 1.47" W x 0.32" H (23.40mm x 37.40mm x 8.00mm) | Amber-Yellow | 5 x 8 | 2.05V | - |
