Keypad Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Switch Type | Number of Keys | Matrix (Columns x Rows) | Illumination | Legend Type | Key Type | Output Type | Legend | Legend Color | Key Color | Mounting Type | Termination Style | Panel Cutout Dimensions | Operating Temperature | Ingress Protection | Illumination Voltage (Nominal) | Contact Rating @ Voltage | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

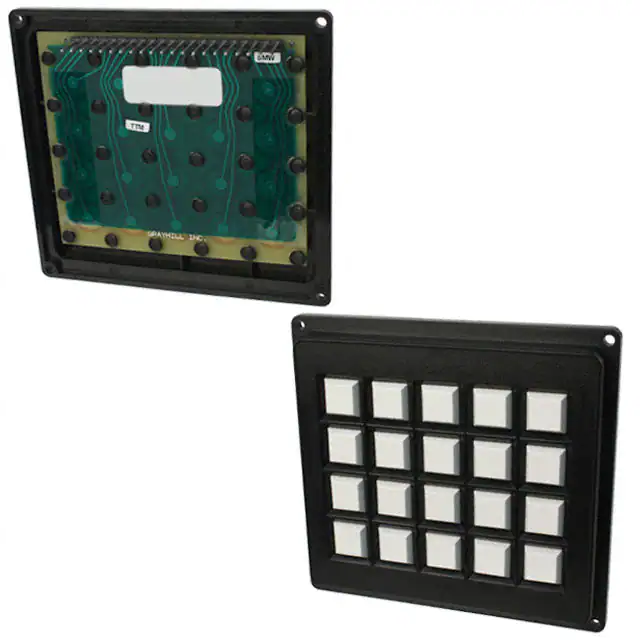

88JC2SWITCH KEYPAD 20KEY 0.01A 24V Grayhill Inc. |
3,093 |
|
Datasheet |
88 | Bulk | Active | Snap Dome | 20 | 5 x 4 | Non-Illuminated | Interchangeable | Polyester Overlay | Common Bus | Customizable (Sold Separate) | - | White | Panel Mount, Front or Rear | Pin Header | - | -40°C ~ 80°C | IP42 | - | 0.01A @ 24VDC | - |
|
84S-BB1-000-NSWITCH KEYPAD 16KEY 0.01A 24V Grayhill Inc. |
4,059 |
|
Datasheet |
84S | Bulk | Active | Snap Dome | 16 | 4 x 4 | Non-Illuminated | - | Rubber Overlay | Matrix | No Buttons | - | - | Panel Mount, Front | Pin Header | - | -55°C ~ 85°C | IP67 - Dust Tight, Waterproof | - | 0.01A @ 24VDC | Shielded |
|
|
84S-BB2-000-NSWITCH KEYPAD 16KEY 0.01A 24V Grayhill Inc. |
2,016 |
|
Datasheet |
84S | Bulk | Active | Snap Dome | 16 | 4 x 4 | Non-Illuminated | - | Rubber Overlay | Matrix | No Buttons | - | - | Panel Mount, Front | Pin Header | - | -55°C ~ 85°C | IP67 - Dust Tight, Waterproof | - | 0.01A @ 24VDC | Shielded |
|
|
84LSN-AB2-112SWITCH KEYPAD 12KEY 0.01A 24V Grayhill Inc. |
4,901 |
|
Datasheet |
84LS | Bulk | Active | Snap Dome | 12 | 3 x 4 | Non-Illuminated | Fixed | Rubber Overlay | Matrix | Telephone Format | White | Black | Panel Mount, Front | Pin Header | - | -55°C ~ 85°C | IP67 - Dust Tight, Waterproof | - | 0.01A @ 24VDC | - |
|
|
84LSN-AB2-112-NSWITCH KEYPAD 12KEY 0.01A 24V Grayhill Inc. |
1,459 |
|
Datasheet |
84LS | Bulk | Active | Snap Dome | 12 | 3 x 4 | Non-Illuminated | Fixed | Rubber Overlay | Matrix | Telephone Format | White | Black | Panel Mount, Front | Pin Header | - | -55°C ~ 85°C | IP67 - Dust Tight, Waterproof | - | 0.01A @ 24VDC | - |
|
|
84BB1-002SWITCH KEYPAD 16KEY 0.01A 24V Grayhill Inc. |
3,591 |
|
Datasheet |
84 | Bulk | Active | Snap Dome | 16 | 4 x 4 | Non-Illuminated | Interchangeable | Transparent Key Cap | Common Bus | Customizable (Sold Separate) | White | - | Panel Mount, Front | Pin Header | - | -40°C ~ 85°C | - | - | 0.01A @ 24VDC | - |
|
|
84BB1-004SWITCH KEYPAD 16KEY 0.01A 24V Grayhill Inc. |
4,581 |
|
Datasheet |
84 | Bulk | Active | Snap Dome | 16 | 4 x 4 | Non-Illuminated | Interchangeable | Transparent Key Cap | Common Bus | Customizable (Sold Separate) | White | - | Panel Mount, Front | Pin Header | - | -40°C ~ 85°C | - | - | 0.01A @ 24VDC | - |
|
|
84LS-AB2-113SWITCH KEYPAD 12KEY 0.01A 24V Grayhill Inc. |
3,130 |
|
Datasheet |
84LS | Bulk | Active | Snap Dome | 12 | 3 x 4 | Non-Illuminated | Fixed | Rubber Overlay | Matrix | Telephone Format | White | Black | Panel Mount, Front | Pin Header | - | -55°C ~ 85°C | IP67 - Dust Tight, Waterproof | - | 0.01A @ 24VDC | Shielded |
|

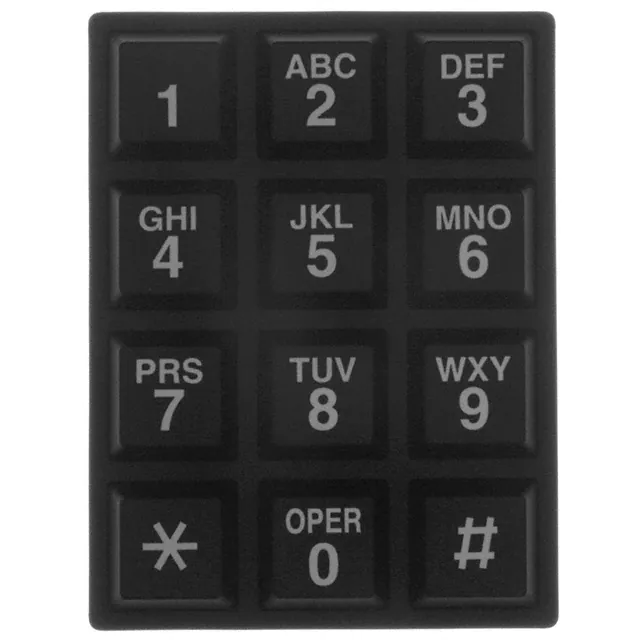

84LS-AB2-113-NSWITCH KEYPAD 12KEY 0.01A 24V Grayhill Inc. |
4,911 |
|
Datasheet |
84LS | Bulk | Active | Snap Dome | 12 | 3 x 4 | Non-Illuminated | Fixed | Rubber Overlay | Matrix | Telephone Format | White | Black | Panel Mount, Front | Pin Header | - | -55°C ~ 85°C | IP67 - Dust Tight, Waterproof | - | 0.01A @ 24VDC | Shielded |
|
|
84S-AC1-000SWITCH KEYPAD 12KEY 0.01A 24V Grayhill Inc. |
2,162 |
|
Datasheet |
84S | Bulk | Active | Snap Dome | 12 | 3 x 4 | Non-Illuminated | - | Rubber Overlay | Common Bus | No Buttons | - | - | Panel Mount, Front | Pin Header | - | -55°C ~ 85°C | IP67 - Dust Tight, Waterproof | - | 0.01A @ 24VDC | Shielded |
