Keylock Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Circuit | Number of Positions | Switch Function | Contact Timing | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Key Removable Positions | Angle of Throw | Contact Material | Contact Finish | Mounting Type | Termination Style | Panel Cutout Dimensions | Features | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
51-296.025DSWITCH KEYLOCK 2POS 4PST 5A 250V EAO |
4,570 |
|
Datasheet |
51 | Bulk | Active | 4PST-2NO/2NC | 2 | On-Off, Off-On | Not Specified | 5A (AC) | 250 V | - | Flat Key | 1 only | 90° | - | - | Panel Mount | Solder Lug | Circular - 16.00mm Dia | IP65 | -25°C ~ 55°C |
|

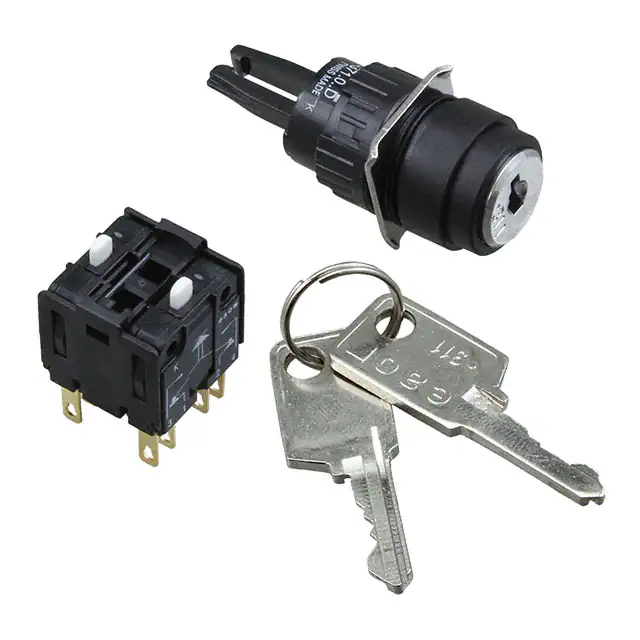

51-371.F22DSWITCH KEYLOCK 3POS 4PST 5A 250V EAO |
2,117 |
|
Datasheet |
51 | Bulk | Active | 4PST-2NO/2NC | 3 | On-Off-On | Not Specified | 5A (AC) | 250 V | - | Flat Key | Center | 90° | Silver (Ag) | Gold | Panel Mount | Solder, Quick Connect - 0.110" (2.8mm) | Circular - 16.20mm Dia | IP65 | -25°C ~ 55°C |
|
14-236.025KSWITCH KEYLOCK 2POS 4PST 5A 250V EAO |
2,440 |
|
Datasheet |
14 | Bulk | Active | 4PST-2NO/2NC | 2 | On-Off, Off-On | Not Specified | 5A (AC) | 250 V | - | Flat Key | 1 only | 90° | - | - | Panel Mount | Solder Lug | Circular - 22.30mm Dia | IP65 | -25°C ~ 55°C |
|
45-190F.1000.113.108SWITCH KEYLCK 3POS DPST 10A 500V EAO |
4,851 |
|
Datasheet |
45 | Bulk | Active | DPST-NO | 3 | On-Off-On | Not Specified | 10A (AC/DC) | 500 V | 500 V | Flat Key | All | 45° | Silver (Ag) | - | Panel Mount | Screw Terminal | Circular - 22.30mm Dia | IP66, IP67, IP69K | -25°C ~ 70°C |
|

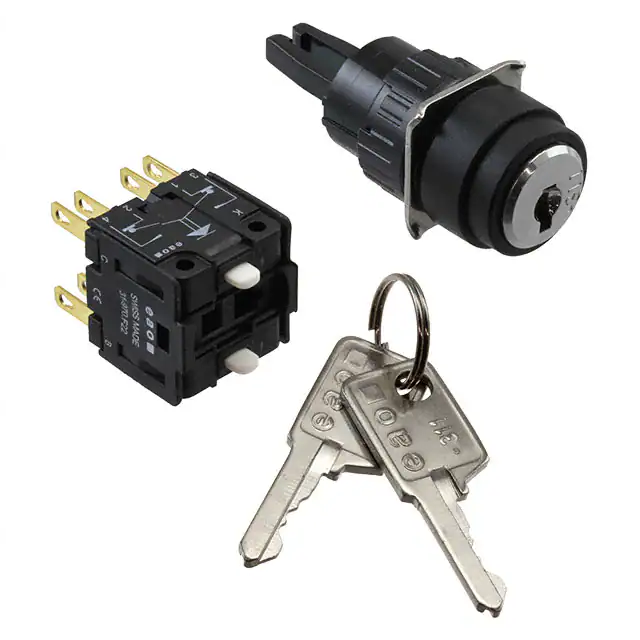

51-372.F22DSWITCH KEYLOCK 3POS 4PST 5A 250V EAO |
2,125 |
|
Datasheet |
51 | Bulk | Active | 4PST-2NO/2NC | 3 | On-Off-Off, On-On-Off | Not Specified | 5A (AC) | 250 V | - | Flat Key | All | 90° | - | - | Panel Mount | Solder, Quick Connect - 0.110" (2.8mm) | Circular - 16.00mm Dia | IP65 | -25°C ~ 55°C |
|

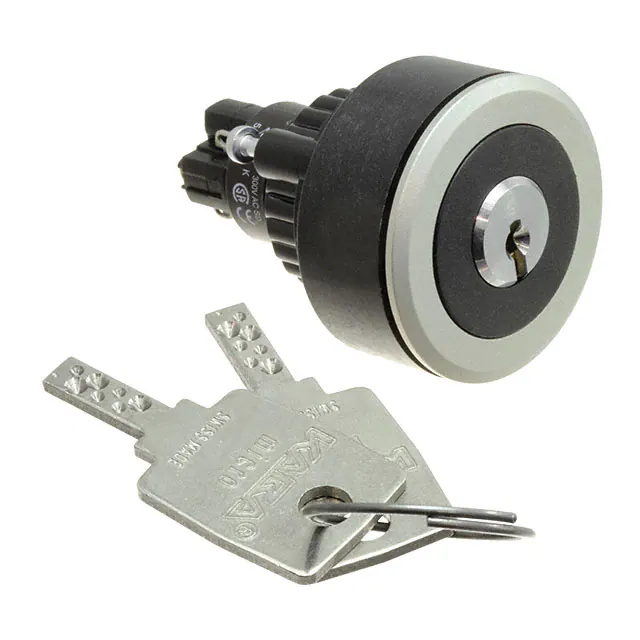

K14-135.22200SWITCH KEYLOCK 2POS DPST 5A 250V EAO |
3,935 |
|
Datasheet |
14 | Box | Active | DPST-NO/NC | 2 | Off-On | Not Specified | 5A (AC) | 250 V | - | Flat Key | 1 only | 90° | Silver (Ag) | Gold | Panel Mount | Solder Lug | Circular - 30.50mm Dia | IP65 | -25°C ~ 55°C |
|

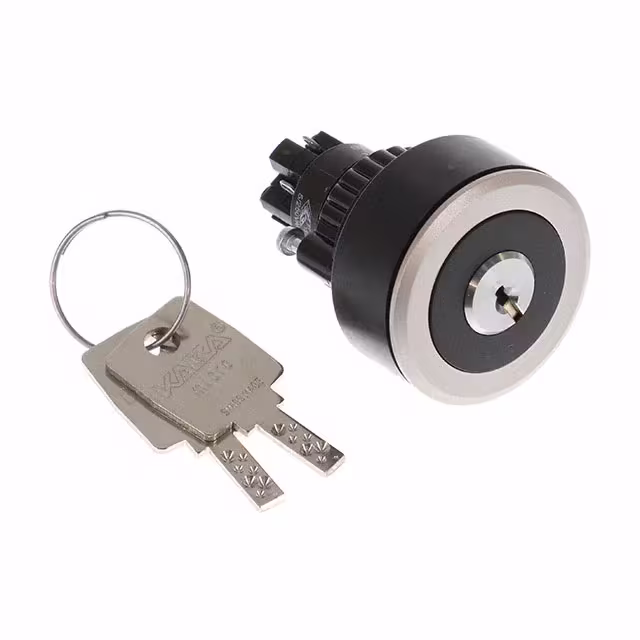

K14-141.22100SWITCH KEYLOCK 2POS DPST 5A 250V EAO |
4,122 |
|
Datasheet |
14 | Box | Active | DPST-NO/NC | 2 | Off-Mom | Not Specified | 5A (AC) | 250 V | - | Flat Key | 1 only | 42° | Silver (Ag) | Gold | Panel Mount | Solder Lug | Circular - 30.50mm Dia | IP65 | -25°C ~ 55°C |
|
51-438.036DSWITCH KEYLK 2POS DPST 100MA 42V EAO |
2,362 |
|
Datasheet |
51 | Bulk | Active | DPST-NO/NC | 2 | On-Mom, Off-Mom | Not Specified | 100mA (AC/DC) | 42 V | 42 V | Flat Key | 1 only | 42° | - | - | Panel Mount | PC Pin, Solder Lug | Circular - 16.00mm Dia | IP65 | -25°C ~ 55°C |
|
51-388.F22DSWITCH KEYLOCK 3POS 4PST 5A 250V EAO |
1,478 |
|
Datasheet |
51 | Bulk | Active | 4PST-2NO/2NC | 3 | On-Off-Mom | Not Specified | 5A (AC) | 250 V | - | Flat Key | Left and Center | 42°, 90° | Silver (Ag) | Gold | Panel Mount | Solder, Quick Connect - 0.110" (2.8mm) | Circular - 16.20mm Dia | IP65 | -25°C ~ 55°C |
|
51-445.036DSWITCH KEYLK 2POS DPST 100MA 42V EAO |
1,667 |
|
Datasheet |
51 | Bulk | Active | DPST-NO/NC | 2 | On-Off, Off-On | Not Specified | 100mA (AC/DC) | 42 V | 42 V | Flat Key | 1 only | 90° | - | - | Panel Mount | PC Pin, Solder Lug | Circular - 16.00mm Dia | IP65 | -25°C ~ 55°C |
