Keylock Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Circuit | Number of Positions | Switch Function | Contact Timing | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Key Removable Positions | Angle of Throw | Contact Material | Contact Finish | Mounting Type | Termination Style | Panel Cutout Dimensions | Features | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CKL12AFW01-009SWITCH KEYLOCK 2POS SPDT 3A 250V |
2,524 |
|
Datasheet |
CK | Bulk | Active | SPDT | 2 | On-On | Non-Shorting (BBM) | 3A (AC) | 250 V | - | Flat Key | All | 90° | Silver (Ag) | Silver | Panel Mount | Solder Lug | Circular - 19.00mm Dia | Epoxy Sealed Terminals | -25°C ~ 70°C |
|
|
CKL12AFW01-020SWITCH KEYLOCK 2POS SPDT 3A 250V |
1,586 |
|
Datasheet |
CK | Bulk | Active | SPDT | 2 | On-On | Non-Shorting (BBM) | 3A (AC) | 250 V | - | Flat Key | All | 90° | Silver (Ag) | Silver | Panel Mount | Solder Lug | Circular - 19.00mm Dia | Epoxy Sealed Terminals | -25°C ~ 70°C |
|
|
K1-201S1S1N2 01SWITCH KEYLOCK 3POS DP3T 8A 125V |
3,357 |
|
Datasheet |
K | Tray | Active | DP3T | 3 | On-On-On | Not Specified | 8A (AC/DC) | 125 V | 28 V | Flat Key | 1 only | 90° | Copper | Silver | Panel Mount | Solder Lug | Circular - 19.18mm Dia | - | - |
|
|
K1-200S1S1N1 01SWITCH KEYLOCK 3POS DP3T 8A 125V |
3,028 |
|
Datasheet |
K | Tray | Active | DP3T | 3 | On-On-On | Not Specified | 8A (AC/DC) | 125 V | 28 V | Flat Key | 1 and 3 | 90° | Copper | Silver | Panel Mount | Solder Lug | Circular - 19.18mm Dia | - | - |
|
|
A216132Y2NCNQSWITCH KEYLK 4POS DP4T 2.5A 125V |
4,068 |
|
Datasheet |
A | Bulk | Active | DP4T | 4 | On-On-On-On | Non-Shorting (BBM) | 2.5A (AC), 350mA (DC) | 125 V | 125 V | Flat Key | 1 only | 30° | Silver (Ag) | Silver | Panel Mount | PC Pin | Circular - 19.30mm Dia | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
SK12AAW01/USWITCH KEYLOCK 2POS SPDT 3A 125V |
2,260 |
|
Datasheet |
SK | Bulk | Active | SPDT | 2 | On-On | Non-Shorting (BBM) | 3A (AC) | 125 V | - | Flat Key | All | 90° | Silver (Ag) | - | Panel Mount | Solder Lug | Circular - 12.00mm Dia | Epoxy Sealed Terminals | -25°C ~ 70°C |
|
|
K1101S1S4N2SWITCH KEYLOCK 3POS SP3T 4A 125V |
2,093 |
|
Datasheet |
K | Tray | Active | SP3T | 3 | On-On-On | Not Specified | 4A (AC/DC) | 125 V | 28 V | Flat Key | 1 only | 90° | Copper | Silver | Panel Mount | Wire Leads | Circular - 19.18mm Dia | - | - |
|
|
Y1011U2C403LQSWITCH KEYLOCK 2POS SPDT 4A 125V |
2,688 |
|
Datasheet |
Y | Tray | Active | SPDT | 2 | On-On | Not Specified | 4A (AC/DC) | 125 V | 28 V | Flat Key | All | 90° | Copper | Silver | Panel Mount | Solder Lug | Circular - 19.30mm Dia | Latch Pawl | - |
|
|
K1101S1S1C2SC10SWITCH KEYLOCK 3POS SP3T 4A 125V |
2,162 |
|
Datasheet |
K | Tray | Active | SP3T | 3 | On-On-On | Not Specified | 4A (AC/DC) | 125 V | 28 V | Flat Key | 1 only | 90° | Copper | Silver | Panel Mount | Solder Lug | Circular - 19.18mm Dia | - | - |
|

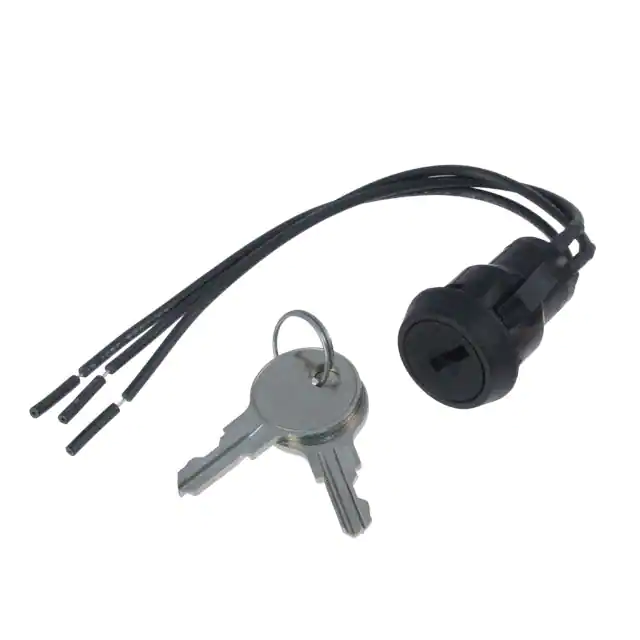

P101132CMWCG2SWITCH KEYLOCK 2POS SPDT 4A 125V |
1,746 |
|
Datasheet |
P | Bulk | Active | SPDT | 2 | On-On | Not Specified | 4A (AC) | 125 V | - | Flat Key | 1 only | 90° | Copper | Gold | Panel Mount, Snap-In | Wire Leads | Circular - 20.30mm Dia | - | - |
|
|
95060-02SWITCH KEYLOCKPOS 5A 24V |
1,245 |
|
Datasheet |
95060 | Bulk | Active | - | - | - | Not Specified | 5A (DC) | - | 24 V | Flat Key | - | 30° | - | - | Panel Mount | Connector | Circular - 21.84mm Dia | - | - |
|
|
95060-06SWITCH KEYLOCK 3POS |
3,987 |
|
Datasheet |
* | Bulk | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
YM06132C2WCNBSWITCH KEYLK 2POS SPST 0.4VA 20V |
3,200 |
|
Datasheet |
YM | Tray | Active | SPST | 2 | Off-On | Not Specified | 0.4VA (AC/DC) | 20 V | 20 V | Flat Key | 1 only | 90° | Copper | Gold | Panel Mount | Wire Leads | Circular - 11.99mm Dia | - | - |
|
|
LK5GGB126M3KEYLOCK SWITCH LK 19MM |
3,040 |
|
- |
LK | Bulk | Active | SP3T | 3 | Mom-On-Mom | Not Specified | 4A (AC/DC) | 125 V | 28 V | Flat Key | 1 only | 45° | Copper Alloy | Gold | Panel Mount | Solder Lug | Circular - 19.00mm Dia | - | -30°C ~ 85°C |
|
|
LK5BGB126M3KEYLOCK SWITCH LK 19MM |
4,599 |
|
- |
LK | Bulk | Active | DP3T | 3 | Mom-On-Mom | Not Specified | 4A (AC/DC) | 125 V | 28 V | Flat Key | 1 only | 45° | Copper Alloy | Gold | Panel Mount | Solder Lug | Circular - 19.00mm Dia | - | -30°C ~ 85°C |
|
|
K1-101S1S1N3SWITCH KEYLK 3POS SP3T 0.4VA 20V |
4,875 |
|
Datasheet |
K | Tray | Active | SP3T | 3 | On-On-On | Not Specified | 0.4VA (AC/DC) | 20 V | 20 V | Flat Key | 1 only | 90° | Copper | Gold | Panel Mount | Solder Lug | Circular - 19.18mm Dia | - | - |
|
Y1011U2C203NGSWITCH KEYLOCK 2POS SPDT 4A 125V |
1,578 |
|
Datasheet |
Y | Tray | Active | SPDT | 2 | On-On | Not Specified | 4A (AC/DC) | 125 V | 28 V | Flat Key | All | 90° | Copper | Gold | Panel Mount | Solder Lug | Circular - 19.30mm Dia | - | - |
|
|
Y200AA2CF03NQESWITCH KEYLOCK |
4,269 |
|
Datasheet |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
9578SWITCH KEYLOCK 3POS 5A 12V |
3,608 |
|
Datasheet |
95 | Bulk | Active | - | 3 | On-Off-On | Not Specified | 5A (DC) | - | 12 V | Flat Key | 2 only | - | Bronze | - | Panel Mount | Screw Terminal | - | - | - |
|
|
Y1900S2CF07NBSWITCH KEYLOCK |
4,235 |
|
Datasheet |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
