Keylock Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Circuit | Number of Positions | Switch Function | Contact Timing | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Key Removable Positions | Angle of Throw | Contact Material | Contact Finish | Mounting Type | Termination Style | Panel Cutout Dimensions | Features | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
XB4BG03SWITCH KEYLOCK 3POS DPST 6A 120V |
1,529 |
|
Datasheet |
Harmony XB4 | Box | Active | DPST-NO | 3 | Off-On | Not Specified | 6A (AC), 550mA (DC) | 120 V | 125 V | Flat Key | Left and Right | 45° | Silver Alloy | - | Panel Mount | Screw Terminal | Circular - 22.00mm Dia | - | -40°C ~ 70°C |
|
|
XB4BG33SWITCH KEYLOCK 3POS DPST 6A 120V |
3,033 |
|
Datasheet |
Harmony XB4 | Box | Active | DPST-NO | 3 | Off-On | Not Specified | 6A (AC), 550mA (DC) | 120 V | 125 V | Flat Key | Center | 45° | Silver Alloy | - | Panel Mount | Screw Terminal | Circular - 22.00mm Dia | - | -40°C ~ 70°C |
|
XB5AG33SWITCH KEYLOCK 3POS DPST 6A 120V |
1,580 |
|
Datasheet |
Harmony XB5 | Box | Active | DPST-NO | 3 | Off-On | Not Specified | 6A (AC), 550mA (DC) | 120 V | 125 V | Flat Key | Left and Right | 45° | Silver Alloy | - | Panel Mount | Screw Terminal | Circular - 22.00mm Dia | - | -40°C ~ 70°C |
|
KO126ARODSWITCH KEYLOCK |
3,290 |
|
- |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
KO128KEYCODE2001SWITCH KEYLOCK |
3,284 |
|
- |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
Y1132-3505A LFTKEYLOCK SWITCHES |
1,551 |
|
Datasheet |
- | Tape & Reel (TR) | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|

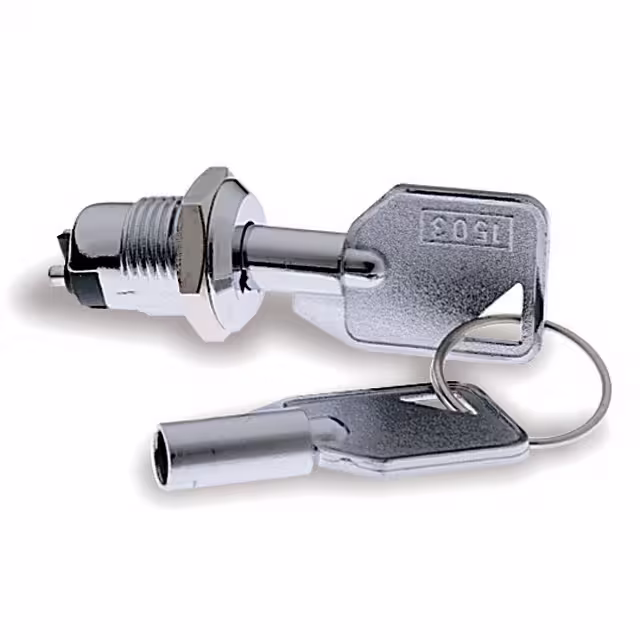

KO132D1506SWITCH KEYLOCK 3POS SPDT 1A 125V |
4,902 |
|
Datasheet |
KO | Bulk | Active | SPDT | 3 | On-Off-On | Not Specified | 1A (AC) | 125 V | - | Tubular Key | 2 only | 45° | Copper Alloy | Silver | Panel Mount | PC Pin | Circular - 12.00mm Dia | - | - |
|
|
85717-04SWITCH KEYLOCK |
2,856 |
|
- |
* | Bulk | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
KO132A1097SWITCH KEYLOCK 2POS SPST 1A 125V |
2,578 |
|
Datasheet |
KO | Bulk | Active | SPST | 2 | Off-On | Not Specified | 1A (AC) | 125 V | - | Tubular Key | All | 90° | Copper Alloy | Silver | Panel Mount | Solder Lug | Circular - 12.00mm Dia | - | - |
|
|
KO132A1501SWITCH KEYLOCK 2POS SPST 1A 125V |
3,319 |
|
Datasheet |
KO | Bulk | Active | SPST | 2 | Off-On | Not Specified | 1A (AC) | 125 V | - | Tubular Key | All | 90° | Copper Alloy | Silver | Panel Mount | Solder Lug | Circular - 12.00mm Dia | - | - |
|
|
MDGSGLFSSWITCH KEYLOCK |
3,863 |
|
- |
* | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
KO132B1501SWITCH KEYLOCK 2POS SPDT 1A 125V |
4,359 |
|
Datasheet |
KO | Bulk | Active | SPDT | 2 | On-On | Not Specified | 1A (AC) | 125 V | - | Tubular Key | All | 90° | Copper Alloy | Silver | Panel Mount | Solder Lug | Circular - 12.00mm Dia | - | - |
|
|
KO132D1506HTSWITCH KEYLOCK 3POS SPDT 1A 125V |
1,206 |
|
Datasheet |
KO | Bulk | Active | SPDT | 3 | On-Off-On | Not Specified | 1A (AC) | 125 V | - | Tubular Key | 2 only | 45° | Copper Alloy | Silver | Panel Mount | PC Pin | Circular - 12.00mm Dia | - | - |
|
|
KO132C1501SWITCH KEYLOCK 3POS SPDT 1A 125V |
3,953 |
|
Datasheet |
KO | Bulk | Active | SPDT | 3 | Off-On-On | Not Specified | 1A (AC) | 125 V | - | Tubular Key | All | 45° | Copper Alloy | Silver | Panel Mount | Solder Lug | Circular - 12.00mm Dia | - | - |
|
|
86945-05SWITCH KEYLOCK |
3,146 |
|
- |
* | Bulk | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
KO133B755SWITCH KEYLOCK 2POS SPST 1A 125V |
2,873 |
|
Datasheet |
KO | Bulk | Active | SPST | 2 | Off-On | Not Specified | 1A (AC) | 125 V | - | Tubular Key | All | 90° | Copper Alloy | Silver | Panel Mount | Solder Lug | Circular - 12.00mm Dia | - | - |
|
|
84824-05SWITCH KEYLOCK |
3,926 |
|
- |
* | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
84824-03SWITCH KEYLOCK |
2,013 |
|
- |
* | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|

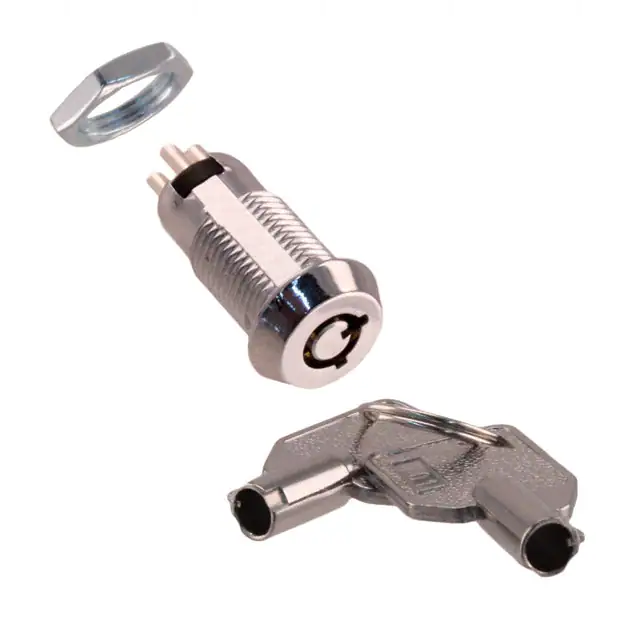

KO103A1001SWITCH KEYLOCK 2POS SPST 1A 125V |
1,287 |
|
- |
KO | Bulk | Active | SPST | 2 | Off-On | Not Specified | 1A (AC) | 125 V | - | Tubular Key | 1 only | 90° | Copper Alloy | Silver | Panel Mount | Solder Cup | Circular - 12.00mm Dia | - | - |
|

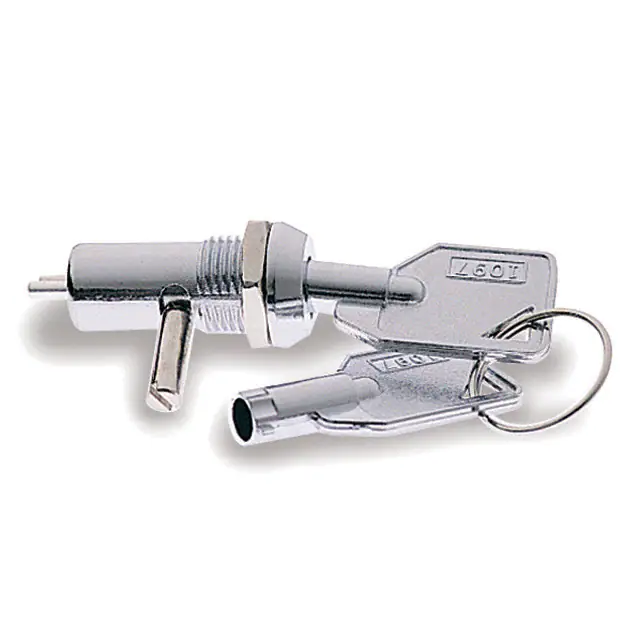

KO107A1097SWITCH KEYLOCK 2POS SPST 1A 125V |
3,395 |
|
Datasheet |
KO | Bulk | Active | SPST | 2 | Off-On | Not Specified | 1A (AC) | 125 V | - | Tubular Key | All | 90° | Copper Alloy | Silver | Panel Mount | Solder Lug | Circular - 12.00mm Dia | - | - |
