Isolators - Gate Drivers
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Technology | Number of Channels | Voltage - Isolation | Common Mode Transient Immunity (Min) | Propagation Delay tpLH / tpHL (Max) | Pulse Width Distortion (Max) | Rise / Fall Time (Typ) | Current - Output High, Low | Current - Peak Output | Voltage - Forward (Vf) (Typ) | Current - DC Forward (If) (Max) | Voltage - Output Supply | Grade | Qualification | Operating Temperature | Mounting Type | Supplier Device Package | Approval Agency |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SI8236BB-D-IMDIGITAL ISO 2CH GATE DVR 14LGA Skyworks Solutions Inc. |
1,030 |
|
Datasheet |
- | 14-VFLGA | Tape & Reel (TR) | Obsolete | Capacitive Coupling | 2 | - | - | - | - | - | - | 4A | - | - | 6.5V ~ 24V | Automotive | AEC-Q100 | -40°C ~ 125°C | Surface Mount | 14-LGA (5x5) | CQC, CSA, UR, VDE |
|
SI8233AB-D-IM1RDGTL ISO 2.5KV 2CH GT DVR 14QFN Skyworks Solutions Inc. |
2,840 |
|
Datasheet |
- | 14-VDFN | Tape & Reel (TR) | Obsolete | Capacitive Coupling | 2 | 2500Vrms | 45kV/µs | 60ns, 60ns | 5.6ns | 12ns, 12ns | 2A, 4A | 4A | - | - | 6.5V ~ 24V | Automotive | AEC-Q100 | -40°C ~ 125°C | Surface Mount | 14-QFN (5x5) | CQC, CSA, UR, VDE |
|
|
SI8233BB-D-IM1RDGTL ISO 2.5KV 2CH GT DVR 14QFN Skyworks Solutions Inc. |
2,110 |
|
Datasheet |
- | 14-VDFN | Tape & Reel (TR) | Obsolete | Capacitive Coupling | 2 | 2500Vrms | 45kV/µs | 60ns, 60ns | 5.6ns | 12ns, 12ns | 2A, 4A | 4A | - | - | 6.5V ~ 24V | Automotive | AEC-Q100 | -40°C ~ 125°C | Surface Mount | 14-QFN (5x5) | CQC, CSA, UR, VDE |
|
|

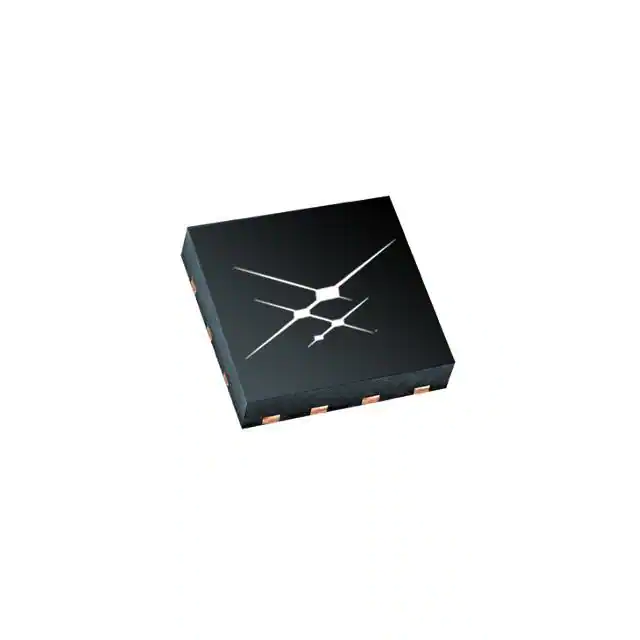

SI8234AB-D-IM1RDGTL ISO 2.5KV 2CH GT DVR 14QFN Skyworks Solutions Inc. |
1,032 |
|
Datasheet |
- | 14-VDFN | Tape & Reel (TR) | Obsolete | Capacitive Coupling | 2 | 2500Vrms | 45kV/µs | 60ns, 60ns | 5.6ns | 12ns, 12ns | 2A, 4A | 4A | - | - | 6.5V ~ 24V | Automotive | AEC-Q100 | -40°C ~ 125°C | Surface Mount | 14-QFN (5x5) | CQC, CSA, UR, VDE |
|
|
SI8234BB-D-IM1RDGTL ISO 2.5KV 2CH GT DVR 14QFN Skyworks Solutions Inc. |
1,830 |
|
Datasheet |
- | 14-VDFN | Tape & Reel (TR) | Obsolete | Capacitive Coupling | 2 | 2500Vrms | 45kV/µs | 60ns, 60ns | 5.6ns | 12ns, 12ns | 2A, 4A | 4A | - | - | 6.5V ~ 24V | Automotive | AEC-Q100 | -40°C ~ 125°C | Surface Mount | 14-QFN (5x5) | CQC, CSA, UR, VDE |
|
|
SI8235AB-D-IM1RDGTL ISO 2.5KV 2CH GT DVR 14QFN Skyworks Solutions Inc. |
1,054 |
|
Datasheet |
- | 14-VDFN | Tape & Reel (TR) | Obsolete | Capacitive Coupling | 2 | 2500Vrms | 45kV/µs | 60ns, 60ns | 5.6ns | 12ns, 12ns | 2A, 4A | 4A | - | - | 6.5V ~ 24V | Automotive | AEC-Q100 | -40°C ~ 125°C | Surface Mount | 14-QFN (5x5) | CQC, CSA, UR, VDE |
|
|
SI8235BB-D-IM1RDGTL ISO 2.5KV 2CH GT DVR 14QFN Skyworks Solutions Inc. |
2,779 |
|
Datasheet |
- | 14-VDFN | Tape & Reel (TR) | Obsolete | Capacitive Coupling | 2 | 2500Vrms | 45kV/µs | 60ns, 60ns | 5.6ns | 12ns, 12ns | 2A, 4A | 4A | - | - | 6.5V ~ 24V | Automotive | AEC-Q100 | -40°C ~ 125°C | Surface Mount | 14-QFN (5x5) | CQC, CSA, UR, VDE |
|
SI8273ABD-IM1RDGTL ISO 2.5KV 2CH GT DVR 14QFN Skyworks Solutions Inc. |
2,007 |
|
Datasheet |
Si827x | 14-VDFN | Tape & Reel (TR) | Obsolete | RF Coupling | 2 | 2500Vrms | 200kV/µs | 75ns, 75ns | 8ns | 10.5ns, 13.3ns | 1.8A, 4A | 4A | - | - | 4.2V ~ 30V | - | - | -40°C ~ 125°C | Surface Mount | 14-QFN (5x5) | CQC, CSA, UR, VDE |
|
|
SI8273AB-IM1RDGTL ISO 2.5KV 2CH GT DVR 14QFN Skyworks Solutions Inc. |
1,218 |
|
Datasheet |
Si827x | 14-VDFN | Tape & Reel (TR) | Obsolete | RF Coupling | 2 | 2500Vrms | 200kV/µs | 75ns, 75ns | 8ns | 10.5ns, 13.3ns | 1.8A, 4A | 4A | - | - | 4.2V ~ 30V | - | - | -40°C ~ 125°C | Surface Mount | 14-QFN (5x5) | CQC, CSA, UR, VDE |
|
|
SI8274AB1-IM1RDGTL ISO 2.5KV 2CH GT DVR 14QFN Skyworks Solutions Inc. |
3,071 |
|
Datasheet |
Si827x | 14-VDFN | Tape & Reel (TR) | Obsolete | RF Coupling | 2 | 2500Vrms | 200kV/µs | 75ns, 60ns | 19ns | 10.5ns, 13.3ns | 1.8A, 4A | 4A | - | - | 4.2V ~ 30V | - | - | -40°C ~ 125°C | Surface Mount | 14-QFN (5x5) | CQC, CSA, UR, VDE |
