Interlock Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Type | Circuit | Current Rating (Amps) | Voltage Rating | Voltage - Supply | Holding Force | Actuator Type | Termination Style | Features | Must Operate | Must Release | Conduit Thread Size | Operating Temperature | Ingress Protection | Approval Agency |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
XCSDMC5902INTERLOCK MAGNETIC DPST Telemecanique Sensors |
4,186 |
|
Datasheet |
XCSDMC | Box | Active | Magnetic | DPST-NO/NC | 100mA (DC) | 24VDC | - | - | Non-Contact | Connector (M8) | - | - | - | - | -25°C ~ 85°C | IP66/IP67 - Dust Tight, Water Resistant, Waterproof | CSA, UL |
|

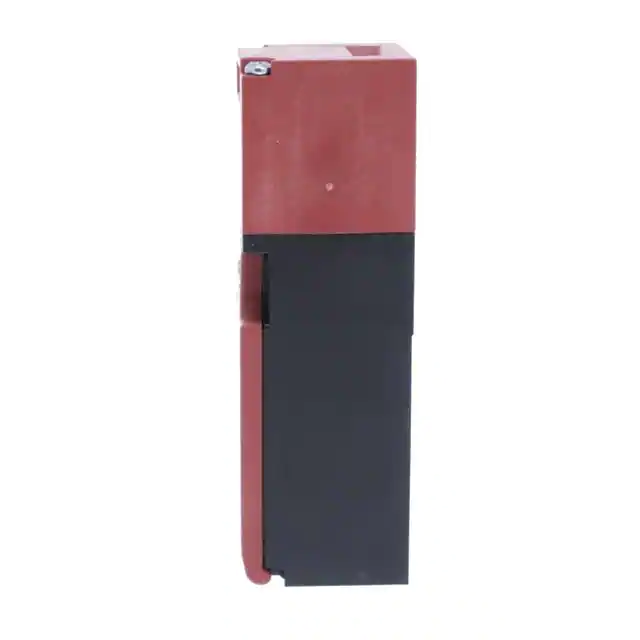

XCSPA793INTERLOCK NON-LOCKING DPST Telemecanique Sensors |
1,010 |
|
Datasheet |
XCSPA | Box | Active | Non-Locking | DPST-NC | 6A (AC), 550mA (DC) | 120VAC, 125VDC | - | 1kgf | Panel Disconnect | Screw Terminal | - | - | - | 1/2" NPT | -25°C ~ 70°C | IP67 - Dust Tight, Waterproof | CSA, UL |
|

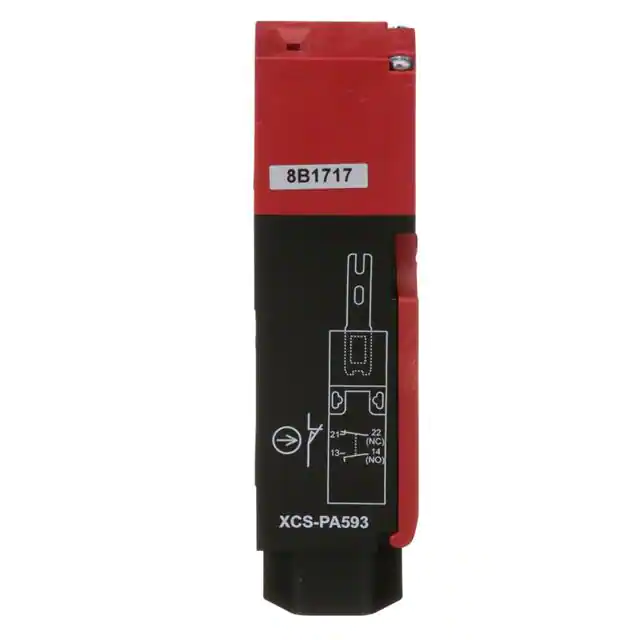

XCSPA593INTERLOCK NON-LOCKING DPST Telemecanique Sensors |
3,344 |
|
Datasheet |
XCSPA | Box | Active | Non-Locking | DPST-NO/NC | 6A (AC), 550mA (DC) | 120VAC, 125VDC | - | 1kgf | Panel Disconnect | Screw Terminal | - | - | - | 1/2" NPT | -25°C ~ 70°C | IP67 - Dust Tight, Waterproof | CSA, UL |
|
XCSDMC7902INTERLOCK MAGNETIC DPST Telemecanique Sensors |
1,070 |
|
Datasheet |
XCSD | Box | Active | Magnetic | DPST-NC | 100mA (DC) | 24VDC | - | - | Non-Contact | Cable Leads | - | 5mm | 15mm | - | -25°C ~ 85°C | IP66/IP67 - Dust Tight, Water Resistant, Waterproof | CSA, UL |
|
XCSDMP700L01M12INTERLOCK MAGNETIC 3PST Telemecanique Sensors |
1,933 |
|
Datasheet |
XCSDMP | Box | Active | Magnetic | 3PST-2NC/1NO | 100mA (DC) | 24VDC | - | - | Non-Contact | Connector (M12) | - | - | - | - | -25°C ~ 85°C | IP67 - Dust Tight, Waterproof | CSA, UL |
|
XCSA701INTERLOCK NON-LOCKING 3PST Telemecanique Sensors |
3,138 |
|
Datasheet |
XCSA | Box | Active | Non-Locking | 3PST-2NC/1NO | 6A (AC), 550mA (DC) | 120VAC, 125VDC | - | - | Panel Disconnect | Screw Terminal | - | - | - | - | -25°C ~ 70°C | IP67 - Dust Tight, Waterproof | CSA, UL |
|
XCSA703INTERLOCK NON-LOCKING 3PST Telemecanique Sensors |
1,962 |
|
Datasheet |
XCSA | Box | Active | Non-Locking | 3PST-2NC/1NO | 6A (AC), 550mA (DC) | 120VAC, 125VDC | - | - | Panel Disconnect | Screw Terminal | - | - | - | - | -25°C ~ 70°C | IP67 - Dust Tight, Waterproof | CSA, UL |
|
XCSTE7313INTERLOCK SOLENOID LOCKING DPST Telemecanique Sensors |
3,776 |
|
Datasheet |
XCSTE | Box | Active | Solenoid Locking | DPST-NC | 3A (AC) | 120VAC, 125VDC | - | 51kgf | Panel Disconnect | Screw Terminal | - | - | - | 1/2" NPT | -25°C ~ 60°C | IP67 - Dust Tight, Waterproof | CSA, UL |
|
XCSTE7311INTERLOCK SOLENOID LOCKING DPST Telemecanique Sensors |
2,686 |
|
Datasheet |
XCSTE | Box | Active | Solenoid Locking | DPST-NO/NC | 3A (AC) | 120VAC, 125VDC | - | 1.5kgf | Panel Disconnect | Screw Terminal | - | - | - | PG11 | -25°C ~ 60°C | IP67 - Dust Tight, Waterproof | CSA, UL |
|
XCSTA893INTERLOCK NON-LOCKING 3PST Telemecanique Sensors |
3,411 |
|
Datasheet |
XCST | Box | Active | Non-Locking | 3PST-NC | 6A (AC), 550mA (DC) | 120VAC, 125VDC | - | - | Panel Disconnect | Screw Terminal | - | - | - | 1/2" NPT | -25°C ~ 70°C | IP67 - Dust Tight, Waterproof | CSA, UL |
