Interlock Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Type | Circuit | Current Rating (Amps) | Voltage Rating | Voltage - Supply | Holding Force | Actuator Type | Termination Style | Features | Must Operate | Must Release | Conduit Thread Size | Operating Temperature | Ingress Protection | Approval Agency |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
HS5L-VA7Y4M-GINTERLOCK SOLENOID LOCKING DPST IDEC |
3,655 |
|
Datasheet |
HS5L | Bulk | Active | Solenoid Locking | DPST-NO/NC x 2 | 2.5A (AC/DC) | 125VAC, 30VDC | 24VDC | 143kgf | Panel Disconnect | Spring Terminal | - | - | - | M20 | -25°C ~ 55°C | IP67 - Dust Tight, Waterproof | CCC, CE, TUV, UL |
|
HS6B-12B01INTERLOCK NON-LOCKING 3PST IDEC |
1,707 |
|
Datasheet |
HS6B | Bulk | Active | Non-Locking | 3PST-2NC/1NO | 2.5A (AC/DC) | 125VAC, 30VDC | - | 6kgf | Panel Disconnect | Cable Leads | Cable Length 1m | - | - | - | -25°C ~ 70°C | IP67 - Dust Tight, Waterproof | CCC, CE, cULus, TUV |
|
|
HS5L-VD44M-GINTERLOCK SOLENOID RELEASE DPST IDEC |
128 |
|
Datasheet |
HS5L | Bulk | Active | Solenoid Release | DPST-NC x 2 | 2.5A (AC/DC) | 125VAC, 30VDC | 24VDC | 143kgf | Panel Disconnect | Spring Terminal | - | - | - | M20 | -25°C ~ 55°C | IP67 - Dust Tight, Waterproof | CCC, CE, TUV, UL |
|
HS6E-M7Y4B03-GINTERLOCK SOLENOID LOCKING 3PST IDEC |
2,700 |
|
Datasheet |
HS6E | Bulk | Active | Solenoid Locking | 3PST-NC + DPST-NC | 2.5A (AC/DC) | 125VAC, 30VDC | 24VDC | 51kgf | Panel Disconnect | Cable Leads | Cable Length 3m | - | - | - | -25°C ~ 50°C | IP67 - Dust Tight, Waterproof | CE, cULus, TUV |
|
HS5L-VA44M-GINTERLOCK SOLENOID RELEASE DPST IDEC |
2,591 |
|
Datasheet |
HS5L | Bulk | Active | Solenoid Release | DPST-NO/NC x 2 | 2.5A (AC/DC) | 125VAC, 30VDC | 24VDC | 143kgf | Panel Disconnect | Spring Terminal | - | - | - | M20 | -25°C ~ 55°C | IP67 - Dust Tight, Waterproof | CCC, CE, TUV, UL |
|
HS5L-VD44LM-GINTERLOCK SOLENOID RELEASE DPST IDEC |
4,282 |
|
Datasheet |
HS5L | Bulk | Active | Solenoid Release | DPST-NC x 2 | 2.5A (AC/DC) | 125VAC, 30VDC | 24VDC | 143kgf | Panel Disconnect | Spring Terminal | - | - | - | M20 | -25°C ~ 55°C | IP67 - Dust Tight, Waterproof | CCC, CE, TUV, UL |
|

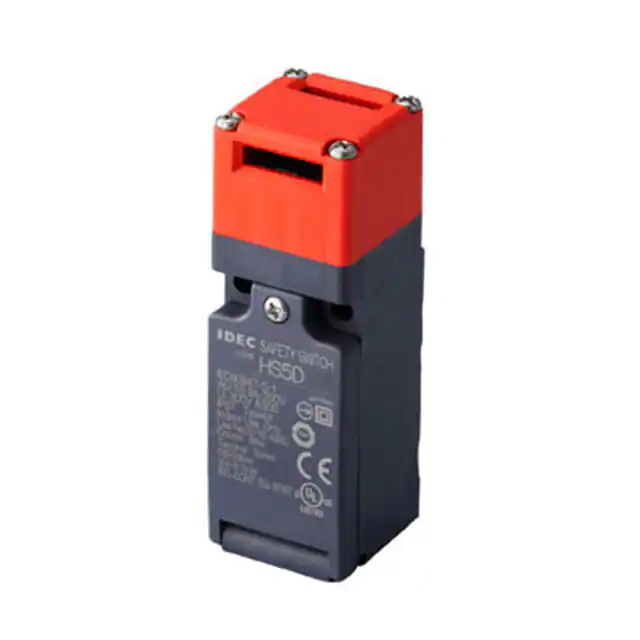

HS5D-11RNINTERLOCK NON-LOCKING DPST IDEC |
2,009 |
|
Datasheet |
HS5D | Bulk | Active | Non-Locking | DPST-NO/NC | 2.5A (AC/DC) | 125VAC, 30VDC | - | 6kgf | Panel Disconnect | Screw Terminal | - | - | - | G1/2 | -30°C ~ 70°C | IP67 - Dust Tight, Waterproof | CCC, CE, cULus, TUV |
|

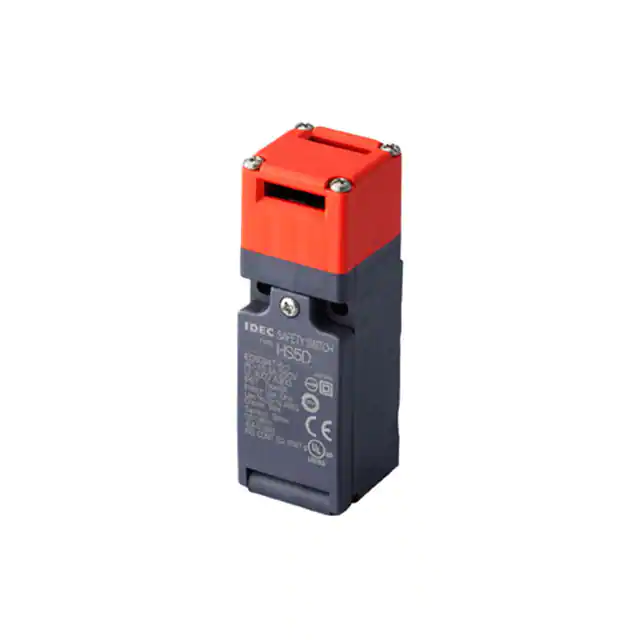

HS5D-02RNINTERLOCK NON-LOCKING DPST IDEC |
2,611 |
|
Datasheet |
HS5D | Bulk | Active | Non-Locking | DPST-NC | 2.5A (AC/DC) | 125VAC, 30VDC | - | 5kgf | Panel Disconnect | Screw Terminal | - | - | - | G1/2 | -30°C ~ 70°C | IP67 - Dust Tight, Waterproof | CCC, CE, cULus, TUV |
|
|
HS5L-VC44M-GINTERLOCK SOLENOID RELEASE DPST IDEC |
1,774 |
|
Datasheet |
HS5L | Bulk | Active | Solenoid Release | DPST-NO/NC + DPST-NC | 2.5A (AC/DC) | 125VAC, 30VDC | 24VDC | 143kgf | Panel Disconnect | Spring Terminal | - | - | - | M20 | -25°C ~ 55°C | IP67 - Dust Tight, Waterproof | CCC, CE, TUV, UL |
|
|
HS5L-VD7Y4M-GINTERLOCK SOLENOID LOCKING DPST IDEC |
4,716 |
|
Datasheet |
HS5L | Bulk | Active | Solenoid Locking | DPST-NC x 2 | 2.5A (AC/DC) | 125VAC, 30VDC | 24VDC | 143kgf | Panel Disconnect | Spring Terminal | - | - | - | M20 | -25°C ~ 55°C | IP67 - Dust Tight, Waterproof | CCC, CE, TUV, UL |
