UARTs (Universal Asynchronous Receiver Transmitter)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Features | Number of Channels | FIFO's | Protocol | Data Rate (Max) | Voltage - Supply | With Auto Flow Control | With IrDA Encoder/Decoder | With False Start Bit Detection | With Modem Control | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SC28L194A1BE,528IC UART QUAD W/FIFO 80-LQFP NXP USA Inc. |
2,552 |
|
Datasheet |
80-LQFP | - | Tape & Reel (TR) | Obsolete | Internal Oscillator, Timer/Counter | 4, QUART | 16 Byte | - | - | 3.3V, 5V | Yes | - | Yes | Yes | - | - | Surface Mount | 80-LQFP (12x12) |
|
SC28L198A1A,529IC UART OCTAL SOT189-3 NXP USA Inc. |
1,563 |
|
Datasheet |
84-LCC (J-Lead) | - | Tube | Obsolete | Internal Oscillator, Timer/Counter | 8 | 16 Byte | - | - | 3.3V, 5V | Yes | - | Yes | Yes | - | - | Surface Mount | 84-PLCC (29.26x29.26) |
|
|
SC28L198A1A,518IC UART OCTAL SOT189-3 NXP USA Inc. |
3,163 |
|
Datasheet |
84-LCC (J-Lead) | - | Tape & Reel (TR) | Obsolete | Internal Oscillator, Timer/Counter | 8 | 16 Byte | - | - | 3.3V, 5V | Yes | - | Yes | Yes | - | - | Surface Mount | 84-PLCC (29.26x29.26) |
|
SC28L198A1BE,551IC UART OCTAL 100LQFP NXP USA Inc. |
2,125 |
|
Datasheet |
100-LQFP | - | Tray | Obsolete | Internal Oscillator, Timer/Counter | 8 | 16 Byte | - | - | 3.3V, 5V | Yes | - | Yes | Yes | - | - | Surface Mount | 100-LQFP (14x14) |
|
|
SC28L198A1BE,528IC UART OCTAL 100LQFP NXP USA Inc. |
4,136 |
|
Datasheet |
100-LQFP | - | Tape & Reel (TR) | Obsolete | Internal Oscillator, Timer/Counter | 8 | 16 Byte | - | - | 3.3V, 5V | Yes | - | Yes | Yes | - | - | Surface Mount | 100-LQFP (14x14) |
|
SC28L202A1DGG,112IC UART DUAL W/FIFO 56-TSSOP NXP USA Inc. |
1,307 |
|
Datasheet |
56-TFSOP (0.240", 6.10mm Width) | Impact | Tube | Obsolete | Configurable GPIO, Internal Oscillator, Timer/Counter | 1, UART | 256 Byte | RS485 | 3.125Mbps | 3.3V, 5V | Yes | - | Yes | Yes | - | - | Surface Mount | 56-TSSOP |
|
SC28L202A1DGG/G:11IC UART DUAL W/FIFO 56-TSSOP NXP USA Inc. |
1,128 |
|
Datasheet |
56-TFSOP (0.240", 6.10mm Width) | Impact | Tube | Obsolete | Configurable GPIO, Internal Oscillator, Timer/Counter | 1, UART | 256 Byte | RS485 | 3.125Mbps | 3.3V, 5V | Yes | - | Yes | Yes | - | - | Surface Mount | 56-TSSOP |
|
|
SC28L202A1DGG/G,11IC UART DUAL W/FIFO 56-TSSOP NXP USA Inc. |
4,720 |
|
Datasheet |
56-TFSOP (0.240", 6.10mm Width) | Impact | Tape & Reel (TR) | Obsolete | Configurable GPIO, Internal Oscillator, Timer/Counter | 1, UART | 256 Byte | RS485 | 3.125Mbps | 3.3V, 5V | Yes | - | Yes | Yes | - | - | Surface Mount | 56-TSSOP |
|
SC28L91A1B,528IC UART SINGLE W/FIFO 44QFP NXP USA Inc. |
3,215 |
|
Datasheet |
44-QFP | Impact | Tape & Reel (TR) | Obsolete | Configurable GPIO, Internal Oscillator, Timer/Counter | 1, UART | 16 Byte | - | 1Mbps | 3.3V, 5V | Yes | - | Yes | Yes | - | - | Surface Mount | 44-PQFP (10x10) |
|

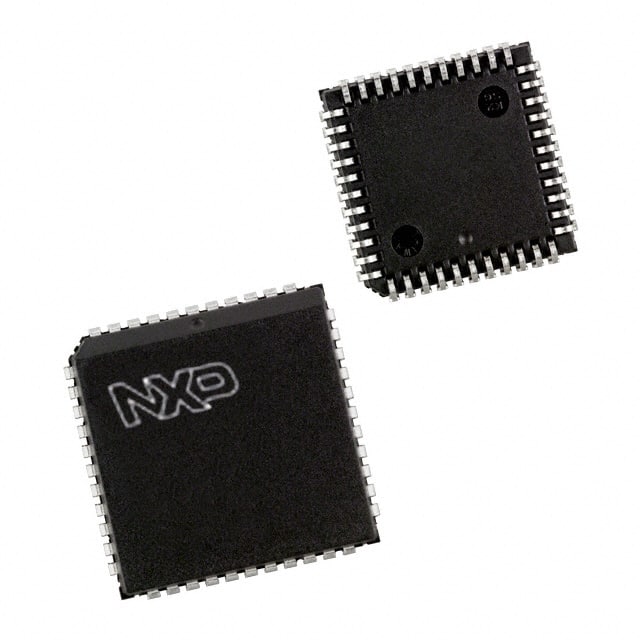

SC28L92A1A,518IC UART DUAL W/FIFO 44-PLCC NXP USA Inc. |
4,918 |
|
Datasheet |
44-LCC (J-Lead) | Impact | Tape & Reel (TR) | Obsolete | Configurable GPIO, Internal Oscillator, Timer/Counter | 2, DUART | 16 Byte | - | 1Mbps | 3.3V, 5V | Yes | - | Yes | Yes | - | - | Surface Mount | 44-PLCC (16.59x16.59) |
