Force Sensors, Load Cells - Industrial
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Operating Force | Output | Sensor Type | Accuracy | Voltage - Supply | Actuator Type | Actuator Style/Size | Includes | Operating Temperature | Compensated Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

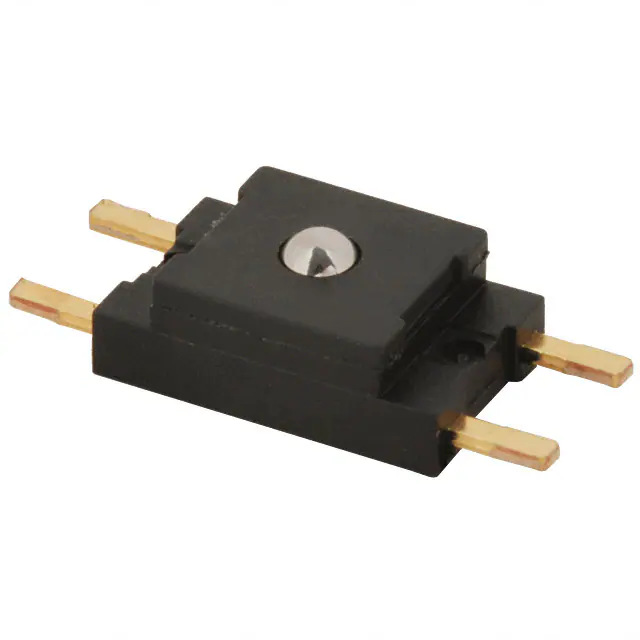

FSS1500NSRSENSOR FORCE SURF MOUNT 3.3LBS |
1,399 |
|
- |
1.5kgf (3.3lbs) | 180mV | Resistive | ±0.5% | - | 3.3V ~ 12.5V | Ball | Round, 1.98mm | Sensor | -40°C ~ 85°C | |
|

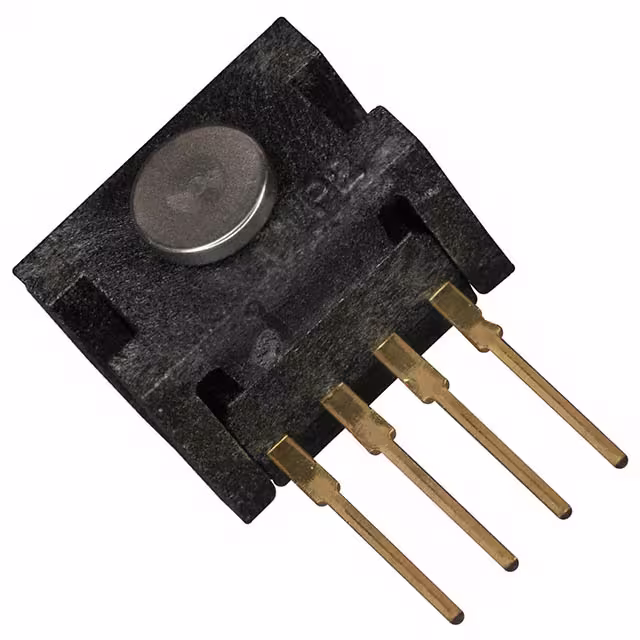

FSG15N1ASENSOR FORCE SURF MOUNT 3.3LBS |
1,484 |
|
- |
1.5kgf (3.3lbs) | 360mV | Resistive | ±0.5% | - | 10V | Plunger | Round, 5.08mm | Sensor | -40°C ~ 85°C | |
|
FC2331-0000-2000-LFC23 AMPLIFIED 2FT CABLE 2000L |
2,892 |
|
- |
907.18kgf (2000lbs) | 0.5 V ~ 4.5 V | Load Cell | ±1% | - | 5V | Pushbutton | - | Sensor | -40°C ~ 85°C | |
|
|
FX29K0-040B-0100-LFORCE SENSOR |
1,104 |
|
- |
50.00kgf (110lbs) | Digital | Load Cell | ±1% | 0°C ~ 50°C | 5.5V | Pushbutton | - | Sensor | 0°C ~ 85°C | |
|

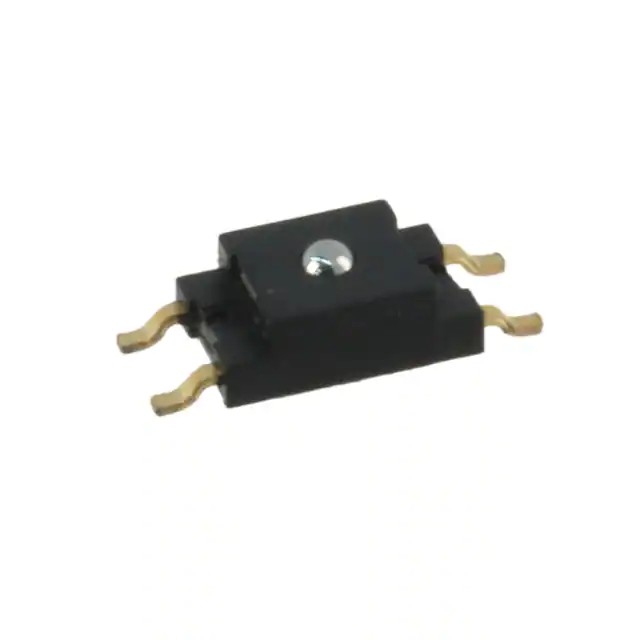

FSS1500NGTSENSOR FORCE SURF MOUNT 3.3LBS |
283 |
|
- |
1.5kgf (3.3lbs) | 180mV | Resistive | ±0.5% | - | 3.3V ~ 12.5V | Ball | Round, 1.98mm | Sensor | -40°C ~ 85°C | |
|
|
FX292X-040A-0200-LCOMPACT COMPRESSION LOAD CELL |
252 |
|
- |
90.72kgf (200lbs) | Analog Voltage | Load Cell | - | 50°C | 1V ~ 6V | Pushbutton | - | Sensor | 0°C ~ 50°C | |
|
|
FX292X-040B-0200-LCOMPACT COMPRESSION LOAD CELL |
4,034 |
|
- |
90.72kgf (200lbs) | Analog Voltage | Load Cell | - | 50°C | 1V ~ 6V | Pushbutton | - | Sensor | 0°C ~ 50°C | |
|
FX29K0-040B-0050-LFORCE SENSOR |
4,878 |
|
- |
25.00kgf (55lbs) | Digital | Load Cell | ±1% | 0°C ~ 50°C | 5.5V | Pushbutton | - | Sensor | 0°C ~ 85°C | |
|
FS2050-000X-1500-GSENSOR FORCE LOAD CELL 3.3LBS |
2,714 |
|
- |
1.5kgf (3.3lbs) | 1 V ~ 4 V | Load Cell | ±1% | 0°C ~ 50°C | 3.3V ~ 12V | Plunger | Round, 12.2mm | Sensor | 0°C ~ 70°C | |
|

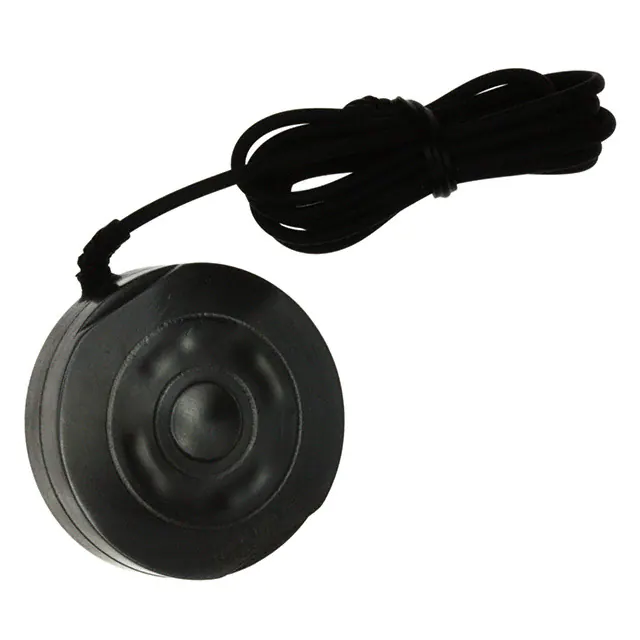

FC2311-0000-1000-LSENSOR FORCE LOAD CELL 1000LBS |
3,583 |
|
- |
453.59kgf (1000lbs) | 100mV | Load Cell | ±1% | 0°C ~ 50°C | 2V ~ 10V | Pushbutton | Round, 8mm | - | -40°C ~ 85°C | |
|
RAS1-01KS-S1K LB S-BEAM LOAD CELL |
3,318 |
|
- |
453.59kgf (1000lbs) | Analog Voltage mV/V (millivolts) | Load Cell | ±0.02% | -10°C ~ 40°C | 5V ~ 10V | S-Beam | - | Sensor | -20°C ~ 60°C | |
|
RAS1-01KS-A1K-C1K LB S-BEAM ANALOG KIT COMPRESN |
3,746 |
|
- |
453.59kgf (1000lbs) | Analog Voltage (0.5V ~ 4.5V) | Load Cell | ±0.02% | -10°C ~ 40°C | 5V ~ 10V | S-Beam | - | Sensor, Analog Interface, Power Supply, Calibration w/Certificate | -20°C ~ 60°C | |
|
|
RAS1-01KS-A1K-T1K LB S-BEAM ANALOG KIT TENSION |
2,732 |
|
- |
453.59kgf (1000lbs) | Analog Voltage (0.5V ~ 4.5V) | Load Cell | ±0.02% | -10°C ~ 40°C | 5V ~ 10V | S-Beam | - | Sensor, Analog Interface, Power Supply, Calibration w/Certificate | -20°C ~ 60°C | |
|
|
RAS1-050S-A1K-C50 LB S-BEAM ANALOG KIT COMPRESN |
1,065 |
|
- |
22.68kgf (50lbs) | Analog Voltage (0.5V ~ 4.5V) | Load Cell | ±0.02% | -10°C ~ 40°C | 5V ~ 10V | S-Beam | - | Sensor, Analog Interface, Power Supply, Calibration w/Certificate | -20°C ~ 60°C | |
|
RAS1-01KS-D1MU-LP-C1K LB S-BEAM USB KIT COMPRESSION |
2,242 |
|
- |
453.59kgf (1000lbs) | USB | Load Cell | ±0.02% | -10°C ~ 40°C | 5V ~ 10V | S-Beam | - | Sensor, USB Interface, Software, Calibration w/Certificate | -20°C ~ 60°C | |
|
RAS1-01KS-D1MU-LP-T1K LB S-BEAM USB KIT TENSION |
3,972 |
|
- |
453.59kgf (1000lbs) | USB | Load Cell | ±0.02% | -10°C ~ 40°C | 5V ~ 10V | S-Beam | - | Sensor, USB Interface, Software, Calibration w/Certificate | -20°C ~ 60°C | |
|
|
RAS1-01KS-A1K-U1K LB S-BEAM ANALOG KIT UNIVERSL |
2,974 |
|
- |
453.59kgf (1000lbs) | Analog Voltage (0.5V ~ 4.5V) | Load Cell | ±0.02% | -10°C ~ 40°C | 5V ~ 10V | S-Beam | - | Sensor, Analog Interface, Power Supply, Calibration w/Certificate | -20°C ~ 60°C | |
|
|
RAS1-01KS-D1MU-LP-U1K LB S-BEAM USB KIT UNIVERSAL |
2,662 |
|
- |
453.59kgf (1000lbs) | USB | Load Cell | ±0.02% | -10°C ~ 40°C | 5V ~ 10V | S-Beam | - | Sensor, USB Interface, Software, Calibration w/Certificate | -20°C ~ 60°C | |
|
FX29K0-100A-0010-L10LBF COMPRESSION LOAD CELL, I2C |
4,257 |
|
- |
5.00kgf (11lbs) | Digital | Load Cell | ±1% | 0°C ~ 50°C | 5.5V | Pushbutton | - | Sensor | 0°C ~ 85°C | |
|
|
FX292X-100A-0200-LCOMPACT COMPRESSION LOAD CELL |
3,574 |
|
- |
90.72kgf (200lbs) | Analog Voltage | Load Cell | - | 50°C | 1V ~ 6V | Pushbutton | - | Sensor | 0°C ~ 50°C |
