Encoders - Industrial
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Encoder Type | Output Type | Pulses per Revolution | Voltage - Supply | Actuator Type | Detent | Built in Switch | Mounting Type | Orientation | Termination Style | Rotational Life (Cycles Min) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

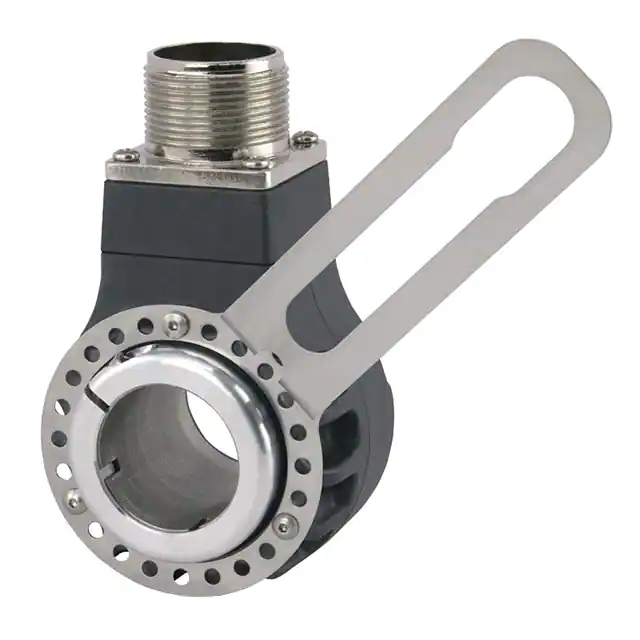

25T-34SJ-1024NV1RHV-SMX-S32.5" DIA. 3/4" DIA. BORE 1.75" |
1,299 |
|
Datasheet |
25T | Box | Active | Incremental | Quadrature Line Driver with Index (Incremental) | 1024 | 5V ~ 28V | 34mm Open Center | No | No | Chassis Mount, Motors | User Selectable | PC Pin | - |
|
|
25T-11SJ-1024NV1RHV-SMX-S32.5" DIA. 5/8" DIA. BORE 1.75" |
4,935 |
|
Datasheet |
25T | Box | Active | Incremental | Quadrature Line Driver with Index (Incremental) | 1024 | 5V ~ 28V | 11mm Open Center | No | No | Chassis Mount, Motors | User Selectable | PC Pin | - |
|
01072-260ROTARY ENCODER OPTICAL 1024PPR |
1,837 |
|
Datasheet |
HS25 | Bulk | Active | Optical | Quadrature (Incremental) | 1024 | 5V ~ 15V | Hole for Shaft | No | No | Chassis Mount, Motors | User Selectable | Cable | 7.5B |
|
|
01029-279ROTARY ENCODER OPTICAL 50PPR |
4,944 |
|
- |
E25 | Bulk | Active | Optical | Quadrature with Index (Incremental) | 50 | 5V ~ 28V | Hole for Shaft | No | No | Chassis Mount | User Selectable | Cable | 1B |
|
|
25T-40SJ-4096NV1RHV-SMX-S32.5" DIA. 1" DIA. BORE 1.75" TO |
1,920 |
|
Datasheet |
25T | Box | Active | Incremental | Quadrature Line Driver with Index (Incremental) | 4096 | 5V ~ 28V | 1" Dia Thru-Bore | No | No | Chassis Mount, Motors | User Selectable | PC Pin | - |
|
|
25T-40SJ-3600NV1RHV-SMX-S32.5" DIA. 1" DIA. BORE 1.75" TO |
3,336 |
|
Datasheet |
25T | Box | Active | Incremental | Quadrature Line Driver with Index (Incremental) | 3600 | 5V ~ 28V | 1" Dia Thru-Bore | No | No | Chassis Mount, Motors | User Selectable | PC Pin | - |
|
|
25T-34SJ-3600NV1ROC-SMY-S32.5" DIA. 3/4" DIA. BORE 1.75" |
1,918 |
|
Datasheet |
25T | Box | Active | Incremental | Open Collector | 3600 | 5V ~ 28V | 34mm Open Center | No | No | Chassis Mount, Motors | User Selectable | PC Pin | - |
|
|
25T-34SJ-4096NV1RHV-SMX-S32.5" DIA. 3/4" DIA. BORE 1.75" |
2,581 |
|
Datasheet |
25T | Box | Active | Incremental | Quadrature Line Driver with Index (Incremental) | 4096 | 5V ~ 28V | 34mm Open Center | No | No | Chassis Mount, Motors | User Selectable | PC Pin | - |
|
|
25T-40SJ-3600NV1ROC-SMY-S32.5" DIA. 1" DIA. BORE 1.75" TO |
2,155 |
|
Datasheet |
25T | Box | Active | Incremental | Open Collector | 3600 | 5V ~ 28V | 1" Dia Thru-Bore | No | No | Chassis Mount, Motors | User Selectable | PC Pin | - |
|
|
25T-11SJ-4096NV1ROC-SMY-S32.5" DIA. 5/8" DIA. BORE 1.75" |
2,029 |
|
Datasheet |
25T | Box | Active | Incremental | Open Collector | 4096 | 5V ~ 28V | 11mm Open Center | No | No | Chassis Mount, Motors | User Selectable | PC Pin | - |
|
|
25T-11SJ-4096NV1RHV-SMX-S32.5" DIA. 5/8" DIA. BORE 1.75" |
2,682 |
|
Datasheet |
25T | Box | Active | Incremental | Quadrature Line Driver with Index (Incremental) | 4096 | 5V ~ 28V | 11mm Open Center | No | No | Chassis Mount, Motors | User Selectable | PC Pin | - |
|
|
25T-11SJ-3600NV1RHV-SMX-S32.5" DIA. 5/8" DIA. BORE 1.75" |
2,324 |
|
Datasheet |
25T | Box | Active | Incremental | Quadrature Line Driver with Index (Incremental) | 3600 | 5V ~ 28V | 11mm Open Center | No | No | Chassis Mount, Motors | User Selectable | PC Pin | - |
|
|
25T-34SJ-4096NV1ROC-SMY-S32.5" DIA. 3/4" DIA. BORE 1.75" |
2,573 |
|
Datasheet |
25T | Box | Active | Incremental | Open Collector | 4096 | 5V ~ 28V | 34mm Open Center | No | No | Chassis Mount, Motors | User Selectable | PC Pin | - |
|
|
25T-40SJ-4096NV1ROC-SMY-S32.5" DIA. 1" DIA. BORE 1.75" TO |
4,896 |
|
Datasheet |
25T | Box | Active | Incremental | Open Collector | 4096 | 5V ~ 28V | 1" Dia Thru-Bore | No | No | Chassis Mount, Motors | User Selectable | PC Pin | - |
|
|
25T-11SJ-3600NV1ROC-SMY-S32.5" DIA. 5/8" DIA. BORE 1.75" |
3,759 |
|
Datasheet |
25T | Box | Active | Incremental | Open Collector | 3600 | 5V ~ 28V | 11mm Open Center | No | No | Chassis Mount, Motors | User Selectable | PC Pin | - |
|
|
25T-40SJ-2048NV1ROC-SMY-S32.5" DIA. 1" DIA. BORE 1.75" TO |
3,109 |
|
Datasheet |
25T | Box | Active | Incremental | Open Collector | 2048 | 5V ~ 28V | 1" Dia Thru-Bore | No | No | Chassis Mount, Motors | User Selectable | PC Pin | - |
|
|
25T-11SJ-2048NV1ROC-SMY-S32.5" DIA. 5/8" DIA. BORE 1.75" |
3,268 |
|
Datasheet |
25T | Box | Active | Incremental | Open Collector | 2048 | 5V ~ 28V | 11mm Open Center | No | No | Chassis Mount, Motors | User Selectable | PC Pin | - |
|
|
25T-11SJ-2048NV1RHV-SMX-S32.5" DIA. 5/8" DIA. BORE 1.75" |
2,013 |
|
Datasheet |
25T | Box | Active | Incremental | Quadrature Line Driver with Index (Incremental) | 2048 | 5V ~ 28V | 11mm Open Center | No | No | Chassis Mount, Motors | User Selectable | PC Pin | - |
|
|
25T-34SJ-3600NV1RHV-SMX-S32.5" DIA. 3/4" DIA. BORE 1.75" |
3,261 |
|
Datasheet |
25T | Box | Active | Incremental | Quadrature Line Driver with Index (Incremental) | 3600 | 5V ~ 28V | 34mm Open Center | No | No | Chassis Mount, Motors | User Selectable | PC Pin | - |
|
|
25T-34SJ-2048NV1RHV-SMX-S32.5" DIA. 3/4" DIA. BORE 1.75" |
3,558 |
|
Datasheet |
25T | Box | Active | Incremental | Quadrature Line Driver with Index (Incremental) | 2048 | 5V ~ 28V | 34mm Open Center | No | No | Chassis Mount, Motors | User Selectable | PC Pin | - |
