Industrial, DIN Rail Power Supplies
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Input Type | Number of Outputs | AC Voltage - Input | DC Voltage - Input (Min) | DC Voltage - Input (Max) | Voltage - Output 1 | Voltage - Output 2 | Voltage - Output 3 | Voltage - Output 4 | Voltage - Output 5 | Voltage - Output 6 | Current - Output (Max) | Power (Watts) | Voltage - Isolation | Applications | Efficiency | Operating Temperature | Features | Approval Agency | Standard Number |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
2904614AC/DC DIN RAIL SUPPLY 24V 60W |
3,039 |
|
Datasheet |
- | Box | Active | AC or DC | 1 | 85 ~ 264 VAC | 88V | 350V | 24V | - | - | - | - | - | 2.5A | 60W | 4 kV | Laboratory | 94% | -25°C ~ 70°C (With Derating) | IP20, Universal Input | CB, cULus | 61010-1 |
|
2904620AC/DC DIN RAIL SUPPLY 24V 120W |
1,361 |
|
Datasheet |
Quint | Box | Active | AC | 1 | 400 ~ 500 VAC (3 Phase) | - | - | 24V | - | - | - | - | - | 5A | 120W | 4 kV | ITE (Commercial) | 89% | -25°C ~ 70°C (With Derating) | Adjustable Output, Load Sharing, IP20 | CSA, cUL, cURus | - |
|
ABLS1A24050AC/DC DIN RAIL SUPPLY 24V 120W |
1,885 |
|
Datasheet |
- | Box | Active | AC or DC | 1 | 100 ~ 240 VAC | 140V | 340V | 24V | - | - | - | - | - | 5A | 120W | 3 kV | ITE (Commercial) | 88% | -20°C ~ 70°C (With Derating) | IP20, Universal Input | CB, CE, CSA, CuL, EAC, EN, IEC, KC, NEC Class 2, UL | 60950-1; 62368-1 |
|
787-732AC/DC DIN RAIL SUPPLY 24V 240W |
2,158 |
|
Datasheet |
- | Box | Active | AC or DC | 1 | 85 ~ 264 VAC | 90V | 373V | 24V | - | - | - | - | - | 10A | 240W | 4.242 kV | Hazardous Locations, ITE (Commercial) | 86% | -10°C ~ 70°C | Adjustable Output, IP20, PFC, Universal Input | CCC, CE, cURus, UL | 62368-1; ATEX; IECEx |
|
DRS-480-48AC/DC DIN RAIL SUPPLY 48V 480W |
4,094 |
|
Datasheet |
DRS-480 (480W) | Box | Active | AC or DC | 1 | 90 ~ 305 VAC | 127V | 431V | 48V | - | - | - | - | - | 10A | 480W | 4 kV | ITE (Commercial) | 93.5% | -30°C ~ 70°C (With Derating) | Adjustable Output, PFC, PMBus™ | CB, CE, cURus, EAC, UKCA | 62368-1 |
|
|
DRS-480-24AC/DC DIN RAIL SUPPLY 24V 480W |
2,524 |
|
Datasheet |
DRS-480 (480W) | Box | Active | AC or DC | 1 | 90 ~ 305 VAC | 127V | 431V | 24V | - | - | - | - | - | 20A | 480W | 4 kV | ITE (Commercial) | 92.5% | -30°C ~ 70°C (With Derating) | Adjustable Output, PFC, PMBus™ | CB, CE, cURus, EAC, UKCA | 62368-1 |
|
CS5.241AC/DC DIN RAIL SUPPLY 24V 120W |
2,706 |
|
Datasheet |
DIMENSION C (120W) | Box | Active | AC | 1 | 90 ~ 132 VAC, 180 ~ 264 VAC | - | - | 24V | - | - | - | - | - | 5A | 120W | 500 V | ITE (Commercial) | 90.2% | 0°C ~ 70°C (With Derating) | Adjustable Output, Load Sharing | ABS, CSA, DNV GL, EAC, IEC, UL | Class I Div 2; 508; 60950-1; 61010-2-201 |
|
CS5.243AC/DC DIN RAIL SUPPLY 24V 120W |
1,754 |
|
Datasheet |
DIMENSION C (120W) | Box | Active | AC | 1 | 100 ~ 120 VAC | - | - | 24V | - | - | - | - | - | 5A | 120W | 500 V | ITE (Commercial) | 90% | -25°C ~ 70°C (With Derating) | Adjustable Output, Load Sharing | ABS, CSA, DNV GL, EAC, IEC, UL | Class I Div 2; 508; 60950-1; 61010-2-201 |
|
2910125QUINT4-PS/48DC/24DC/5/PT |
4,410 |
|
Datasheet |
- | Bulk | Active | DC | 1 | - | 28.8V | 57.6V | 24V | - | - | - | - | - | 5A | 120W | 2 kV | Laboratory | 94% | -25°C ~ 70°C (With Derating) | Adjustable Output, Remote On/Off | cUL, UL | 61010-1 |
|
TIB 480-124AC/DC DIN RAIL SUPPLY 24V 480W |
4,604 |
|
Datasheet |
TIB 480 (480W) | Box | Active | AC | 1 | 85 ~ 264 VAC | - | - | 24V | - | - | - | - | - | 20A | 480W | 4.25 kV | Industrial, ITE (Commercial) | 94.7% | -40°C ~ 70°C (With Derating) | Adjustable Output, PFC, Universal Input | CB, CE, cULus, cURus, SIQ | - |
|

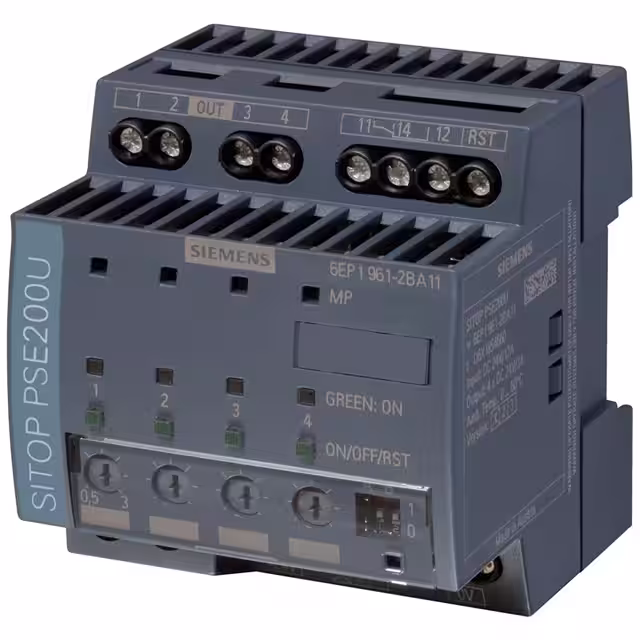

6EP19612BA11DC/DC DIN RAIL SUPPLY 24V |
3,971 |
|
Datasheet |
6EP1 | Bulk | Active | DC | 1 | - | 22V | 30V | 24V | - | - | - | - | - | 3A | - | - | Hazardous Locations, Industrial, ITE (Commercial) | 97% | -25°C ~ 60°C | Adjustable Output, IP20 | CE, CSA, cULus, UL | 60950-1; UL 508 |
|
|
1159044PRIMARY-SWITCHED POWER SUPPLY UN |
2,088 |
|
Datasheet |
- | Box | Active | AC | 1 | 320 ~ 550 VAC (3 Phase) | - | - | 24V | - | - | - | - | - | 20A | 480W | 4 kV | Laboratory | 94.58% | -25°C ~ 70°C (With Derating) | PFC | CB, cULus | 61010-1 |
|
1478130000AC/DC DIN RAIL SUPPLY 24V 240W |
2,982 |
|
Datasheet |
PRO MAX (240W) | Bulk | Active | AC or DC | 1 | 85 ~ 277 VAC | 80V | 370V | 24V | - | - | - | - | - | 10A | 240W | 4 kV | ITE (Commercial) | 91.5% | -25°C ~ 70°C | Adjustable Output, IP20 | CE, cULus, cuRus, EAC, TUV | - |
|
|
2910122QUINT4-PS/24DC/12DC/8/PT |
2,700 |
|
Datasheet |
Quint | Bulk | Active | DC | 1 | - | 12V | 15V | 24V | - | - | - | - | - | 5A | 120W | 4 kV | Laboratory | 94% | -25°C ~ 70°C (With Derating) | Adjustable Output, PFC | CB, CSA, cULus, SIQ, UL | 61010-1 |
|
DDA325N-D2PN-1212-001DC/DC DIN RAIL SUP +/-12V 325W |
1,727 |
|
Datasheet |
DDA (325W) | Box | Active | DC | 2 | - | 9V | 40V | 12V | -12V | - | - | - | - | 14A, 8A | 325W | - | ITE (Commercial) | 94% | -40°C ~ 100°C | Adjustable Output, Remote On/Off, Remote Sense | CE | - |
|
TIB 480-124EXAC/DC DIN RAIL SUPPLY 24V 480W |
2,566 |
|
Datasheet |
TIB 480EX (480W) | Box | Active | AC | 1 | 85 ~ 264 VAC | - | - | 24V | - | - | - | - | - | 20A | 480W | 4.25 kV | Hazardous Locations, Industrial, ITE (Commercial) | 95% | -40°C ~ 70°C (With Derating) | Adjustable Output, PFC, Remote On/Off, Universal Input | CB, CE, cULus, cURus, SIQ | - |
|
2866462AC/DC DIN RAIL SUPPLY 24V 120W |
4,563 |
|
Datasheet |
TRIO | Box | Active | AC | 1 | 320 ~ 575 VAC (3 Phase), 360 ~ 575 VAC (2 Phase) | - | - | 24V | - | - | - | - | - | 5A | 120W | 4 kV | ITE (Commercial) | 89% | -25°C ~ 70°C | IP20, Universal Input | cULus, cURus, UL | - |
|
|
1252696PRIMARY-SWITCHED POWER SUPPLY UN |
4,722 |
|
Datasheet |
- | Box | Active | AC or DC | 1 | 85 ~ 264 VAC | 90V | 264V | 24V | - | - | - | - | - | 10A | 240W | 3 kV | Laboratory | 95.5% | -25°C ~ 70°C (With Derating) | PFC, Universal Input | cULus | 61010-1 |
|
2902646AC/DC DIN RAIL SUPPLY 5V 50W |
4,114 |
|
Datasheet |
TRIO | Bulk | Last Time Buy | AC | 1 | 85 ~ 264 VAC | - | - | 5V | - | - | - | - | - | 10A | 50W | 4 kV | ITE (Commercial) | 80% | -25°C ~ 70°C (With Derating) | IP20, Universal Input | cULus, cURus | - |
|
ML95.100AC/DC DIN RAIL SUPPLY 24V 95W |
1,005 |
|
Datasheet |
MiniLine (95W) | Box | Active | AC | 1 | 85 ~ 132 VAC, 184 ~ 264 VAC | - | - | 24V | - | - | - | - | - | 3.95A | 95W | - | ITE (Commercial) | 90% | 0°C ~ 70°C (With Derating) | Adjustable Output, IP20 | CSA, EAC, IEC, NEC, UL | Class I Div 2; Class 2; 508; 60950-1; 61010-2-201 |
