Flat Ribbon Cables
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Cable Type | Number of Conductors | Pitch | Length | Wire Gauge | Conductor Strand | Shielding | Jacket Color | Ribbon Thickness | Ribbon Width | Jacket (Insulation) Material | Voltage | Operating Temperature | Ratings | Features | Ratings | Termination |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
1785/50CBL RIBN 50COND TWIST PAIR 200' |
1,869 |
|
Datasheet |
1785 | Spool | Active | Flat Twisted Pair, Flat Jacket | 50 (25 Pair Twisted) | 0.050" (1.27mm) | 200.0' (60.96m) | 28 AWG | 7 Strands / 36 AWG | Shielded | Black | 0.120" (3.05mm) | 2.630" (66.80mm) | Poly-Vinyl Chloride (PVC) | 150 V | - | - | -20°C ~ 80°C | UL Style 2912 | - |
|
3319/04CBL RIBN 4COND 0.05 BLACK 100' |
4,772 |
|
Datasheet |
3319 | Spool | Active | Flat Cable | 4 | 0.050" (1.27mm) | 100.0' (30.48m) | 28 AWG | 19 Strands / 40 AWG | Unshielded | Black | 0.035" (0.89mm) | - | Poly-Vinyl Chloride (PVC) | 300 V | - | - | -20°C ~ 105°C | UL Style 2651 | Zippable |
|
3319/20SFCBL RIBN 20COND 0.05 BLACK 300' |
1,252 |
|
Datasheet |
3319 | Bulk | Active | Flat Cable | 20 | 0.050" (1.27mm) | 300.0' (91.44m) | 28 AWG | 19 Strands / 40 AWG | Unshielded | Black | 0.035" (0.89mm) | 1.000" (25.40mm) | Poly-Vinyl Chloride (PVC) | 300 V | - | - | -20°C ~ 105°C | UL Style 2651 | Splice Free, Zippable |
|
3365/15SFCBL RIBN 15COND 0.05 GRAY 500' |
2,945 |
|
Datasheet |
3365 | Spool | Active | Flat Cable | 15 | 0.050" (1.27mm) | 500.0' (152.40m) | 28 AWG | 7 Strands / 36 AWG | Unshielded | Gray | 0.035" (0.89mm) | 0.750" (19.05mm) | Poly-Vinyl Chloride (PVC) | 300 V | - | - | -20°C ~ 105°C | UL Style 2651 | Splice Free, Zippable |
|
3365/18SFCBL RIBN 18COND 0.05 GRAY 500' |
1,970 |
|
Datasheet |
3365 | Spool | Active | Flat Cable | 18 | 0.050" (1.27mm) | 500.0' (152.40m) | 28 AWG | 7 Strands / 36 AWG | Unshielded | Gray | 0.035" (0.89mm) | 0.900" (22.86mm) | Poly-Vinyl Chloride (PVC) | 300 V | - | - | -20°C ~ 105°C | UL Style 2651 | Splice Free, Zippable |
|
3365/25CBL RIBN 25COND 0.05 GRAY 500' |
4,017 |
|
Datasheet |
3365 | Spool | Discontinued at Digi-Key | Flat Cable | 25 | 0.050" (1.27mm) | 500.0' (152.40m) | 28 AWG | 7 Strands / 36 AWG | Unshielded | Gray | 0.035" (0.89mm) | 1.250" (31.75mm) | Poly-Vinyl Chloride (PVC) | 300 V | - | - | -20°C ~ 105°C | UL Style 2651 | Zippable |
|
3365/36CBL RIBN 36COND 0.05 GRAY 500' |
1,173 |
|
Datasheet |
3365 | Spool | Discontinued at Digi-Key | Flat Cable | 36 | 0.050" (1.27mm) | 500.0' (152.40m) | 28 AWG | 7 Strands / 36 AWG | Unshielded | Gray | 0.035" (0.89mm) | 1.800" (45.72mm) | Poly-Vinyl Chloride (PVC) | 300 V | - | - | -20°C ~ 105°C | UL Style 2651 | Zippable |
|
3365/37SFCBL RIBN 37COND 0.05 GRAY 500' |
4,817 |
|
Datasheet |
3365 | Spool | Active | Flat Cable | 37 | 0.050" (1.27mm) | 500.0' (152.40m) | 28 AWG | 7 Strands / 36 AWG | Unshielded | Gray | 0.035" (0.89mm) | 1.850" (46.99mm) | Poly-Vinyl Chloride (PVC) | 300 V | - | - | -20°C ~ 105°C | UL Style 2651 | Splice Free, Zippable |
|
3365/40SFCBL RIBN 40COND 0.05 GRAY 500' |
3,564 |
|
Datasheet |
3365 | Spool | Active | Flat Cable | 40 | 0.050" (1.27mm) | 500.0' (152.40m) | 28 AWG | 7 Strands / 36 AWG | Unshielded | Gray | 0.035" (0.89mm) | 2.000" (50.80mm) | Poly-Vinyl Chloride (PVC) | 300 V | - | - | -20°C ~ 105°C | UL Style 2651 | Splice Free, Zippable |
|
3365/44CBL RIBN 44COND 0.05 GRAY 500' |
2,370 |
|
Datasheet |
3365 | Spool | Active | Flat Cable | 44 | 0.050" (1.27mm) | 500.0' (152.40m) | 28 AWG | 7 Strands / 36 AWG | Unshielded | Gray | 0.035" (0.89mm) | 2.200" (55.88mm) | Poly-Vinyl Chloride (PVC) | 300 V | - | - | -20°C ~ 105°C | UL Style 2651 | Zippable |
|
3391/22CBL RIBN 22COND 0.156 MULTI 100' |
4,157 |
|
- |
3391 | Bulk | Discontinued at Digi-Key | Flat Cable | 22 | 0.156" (3.96mm) | 100.0' (30.48m) | 22 AWG | 7 Strands / 36 AWG | Unshielded | Multiple | 0.069" (1.75mm) | 3.354" (85.19mm) | Poly-Vinyl Chloride (PVC) | 600 V | - | - | -20°C ~ 80°C | UL Style 20122 | Zippable |
|
|
3469/18CBL RIBN 18COND 0.05 GRAY 100' |
4,677 |
|
Datasheet |
3469 | Box | Obsolete | Flat Cable, Ground Plane | 18 | 0.050" (1.27mm) | 100.0' (30.48m) | 28 AWG | 7 Strands / 36 AWG | Unshielded | Gray | 0.047" (1.19mm) | - | Poly-Vinyl Chloride (PVC) | 300 V | - | - | -20°C ~ 105°C | UL Style 2682 | - |
|
|
3476/10 300SFCBL RIBN 10COND 0.05 GRAY 300' |
1,913 |
|
Datasheet |
3476 | Box | Obsolete | Flat Cable, Ground Plane | 10 | 0.050" (1.27mm) | 300.0' (91.44m) | 28 AWG | 7 Strands / 36 AWG | Unshielded | Gray | 0.047" (1.19mm) | 0.750" (19.05mm) | Poly-Vinyl Chloride (PVC) | 300 V | - | - | -20°C ~ 105°C | UL Style 2682 | Splice Free |
|
3539/10SFCBL RIBN 10COND 0.05 GRAY 300' |
2,536 |
|
Datasheet |
3539 | Spool | Active | Flat Cable | 10 | 0.050" (1.27mm) | 300.0' (91.44m) | 28 AWG | 19 Strands / 40 AWG | Unshielded | Gray | 0.035" (0.89mm) | 0.500" (12.70mm) | Poly-Vinyl Chloride (PVC) | 300 V | - | - | -20°C ~ 105°C | UL Style 2651 | Splice Free, Zippable |
|
|
3539/15CBL RIBN 15COND 0.05 GRAY 100' |
1,942 |
|
Datasheet |
3539 | Spool | Active | Flat Cable | 15 | 0.050" (1.27mm) | 100.0' (30.48m) | 28 AWG | 19 Strands / 40 AWG | Unshielded | Gray | 0.035" (0.89mm) | 0.750" (19.05mm) | Poly-Vinyl Chloride (PVC) | 300 V | - | - | -20°C ~ 105°C | UL Style 2651 | Zippable |
|
3539/50CBL RIBN 50COND 0.05 GRAY 300' |
1,100 |
|
Datasheet |
3539 | Spool | Active | Flat Cable | 50 | 0.050" (1.27mm) | 300.0' (91.44m) | 28 AWG | 19 Strands / 40 AWG | Unshielded | Gray | 0.035" (0.89mm) | 2.500" (63.50mm) | Poly-Vinyl Chloride (PVC) | 300 V | - | - | -20°C ~ 105°C | UL Style 2651 | Zippable |
|
3601/40SFCBL RIBN 40COND 0.05 BLUE 300' |
2,675 |
|
Datasheet |
3601 | Spool | Active | Flat Cable | 40 | 0.050" (1.27mm) | 300.0' (91.44m) | 28 AWG | 7 Strands / 36 AWG | Unshielded | Blue | 0.029" (0.74mm) | 2.000" (50.80mm) | Fluorinated Ethylene-Propylene (FEP) | 300 V | - | - | -55°C ~ 200°C | UL Style 20424 | Splice Free |
|
|
3601/64CBL RIBN 64COND 0.05 BLUE 100' |
1,078 |
|
Datasheet |
3601 | Spool | Discontinued at Digi-Key | Flat Cable | 64 | 0.050" (1.27mm) | 100.0' (30.48m) | 28 AWG | 7 Strands / 36 AWG | Unshielded | Blue | 0.029" (0.74mm) | - | Fluorinated Ethylene-Propylene (FEP) | 300 V | - | - | -55°C ~ 200°C | UL Style 20424 | - |
|
3602/50CBL RIBN 50COND 100' |
4,364 |
|
- |
3602 | Spool | Active | Flat Cable, Flat Jacket | 50 | - | 100.0' (30.48m) | - | - | - | - | - | - | - | - | - | - | - | - | - |
|

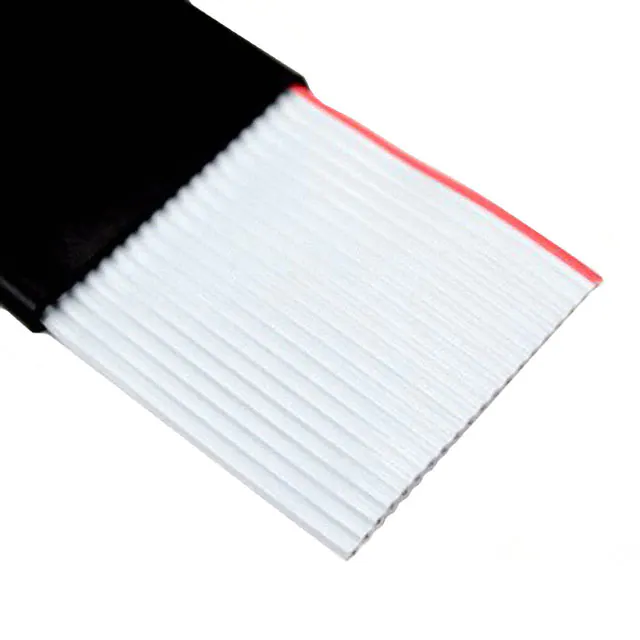

3603/37SFCBL RIBN 37COND 0.05 GRAY 100' |
1,588 |
|
Datasheet |
3603 | Spool | Active | Flat Cable, Flat Jacket | 37 | 0.050" (1.27mm) | 100.0' (30.48m) | 28 AWG | 7 Strands / 36 AWG | Unshielded | Gray | 0.100" (2.54mm) | 1.930" (49.02mm) | Poly-Vinyl Chloride (PVC) | 300 V | - | - | -20°C ~ 80°C | UL Style 2912 | Splice Free |
