Flat Flex Cables (FFC, FPC)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Number of Conductors | Pitch | Cable Length | Cable Width | Jacket (Insulation) Material | Jacket (Insulation) Thickness | Conductor Material | Conductor Plating | Ratings | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PSR1636-10CABLE FLAT FLEX 10COND 0.050" |
4,361 |
|
Datasheet |
PSR1636 | Spool | Active | 10 | 0.050" (1.27mm) | 500' (152.4m) | 0.55" (13.97mm) | Polyester | 0.002" (0.05mm) | Copper, Bare | - | UL Style 2643 | Conductor 1 Tinned |
|
PSR1636-08CABLE FLAT FLEX 8COND 0.050" |
3,975 |
|
Datasheet |
PSR1636 | Spool | Active | 8 | 0.050" (1.27mm) | 500' (152.4m) | 0.45" (11.43mm) | Polyester | 0.002" (0.05mm) | Copper, Bare | - | UL Style 2643 | Conductor 1 Tinned |
|
PSR1635-02CABLE FLAT FLEX 2COND 0.100" |
2,301 |
|
Datasheet |
PSR1635 | Spool | Active | 2 | 0.100" (2.54mm) | 500' (152.4m) | 0.30" (7.57mm) | Polyester | 0.002" (0.05mm) | Copper, Bare | - | UL Style 2643 | Conductor 1 Tinned |
|
PSR1636-04CABLE FLAT FLEX 4COND 0.050" |
3,025 |
|
Datasheet |
PSR1636 | Spool | Active | 4 | 0.050" (1.27mm) | 500' (152.4m) | 0.25" (6.35mm) | Polyester | 0.002" (0.05mm) | Copper, Bare | - | UL Style 2643 | Conductor 1 Tinned |
|
PSR1636-06CABLE FLAT FLEX 6COND 0.050" |
2,751 |
|
Datasheet |
PSR1636 | Spool | Active | 6 | 0.050" (1.27mm) | 500' (152.4m) | 0.35" (9.00mm) | Polyester | 0.002" (0.05mm) | Copper, Bare | - | UL Style 2643 | Conductor 1 Tinned |
|
PSR1635-08CABLE FLAT FLEX 8COND 0.100" |
4,884 |
|
Datasheet |
PSR1635 | Spool | Active | 8 | 0.100" (2.54mm) | 500' (152.4m) | 0.90" (22.86mm) | Polyester | 0.002" (0.05mm) | Copper, Bare | - | UL Style 2643 | Conductor 1 Tinned |
|
PSR1636-12CABLE FLAT FLEX 12COND 0.050" |
1,918 |
|
Datasheet |
PSR1636 | Spool | Active | 12 | 0.050" (1.27mm) | 500' (152.4m) | 0.65" (16.51mm) | Polyester | 0.002" (0.05mm) | Copper, Bare | - | UL Style 2643 | Conductor 1 Tinned |
|
PSR1635-09CABLE FLAT FLEX 9COND 0.100" |
4,587 |
|
Datasheet |
PSR1635 | Spool | Active | 9 | 0.100" (2.54mm) | 500' (152.4m) | 1.00" (25.40mm) | Polyester | 0.002" (0.05mm) | Copper, Bare | - | UL Style 2643 | Conductor 1 Tinned |
|
PSR1635-12CABLE FLAT FLEX 12COND 0.100" |
1,002 |
|
Datasheet |
PSR1635 | Spool | Active | 12 | 0.100" (2.54mm) | 500' (152.4m) | 1.30" (33.02mm) | Polyester | 0.002" (0.05mm) | Copper, Bare | - | UL Style 2643 | Conductor 1 Tinned |
|
PSR1635-10CABLE FLAT FLEX 10COND 0.100" |
1,252 |
|
Datasheet |
PSR1635 | Spool | Active | 10 | 0.100" (2.54mm) | 500' (152.4m) | 1.10" (27.94mm) | Polyester | 0.002" (0.05mm) | Copper, Bare | - | UL Style 2643 | Conductor 1 Tinned |
|

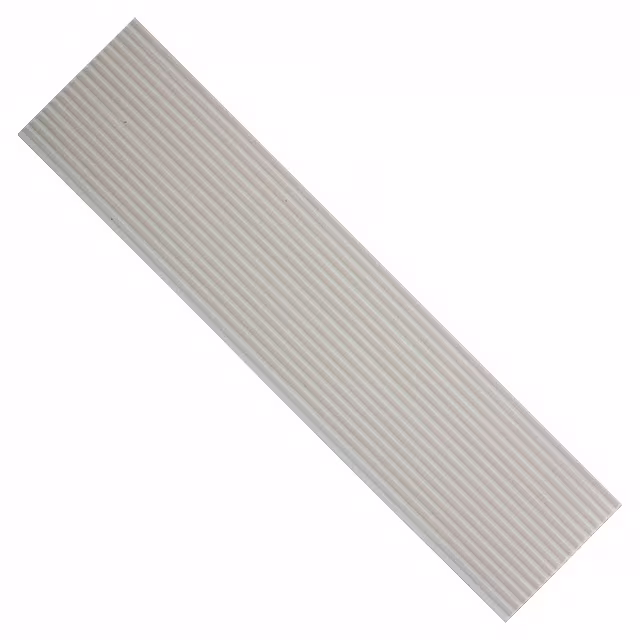

PSR1636-17CABLE FLAT FLEX 17COND 0.050" |
1,717 |
|
Datasheet |
PSR1636 | Spool | Active | 17 | 0.050" (1.27mm) | 500' (152.4m) | 0.90" (22.86mm) | Polyester | 0.002" (0.05mm) | Copper, Bare | - | UL Style 2643 | Conductor 1 Tinned |
|

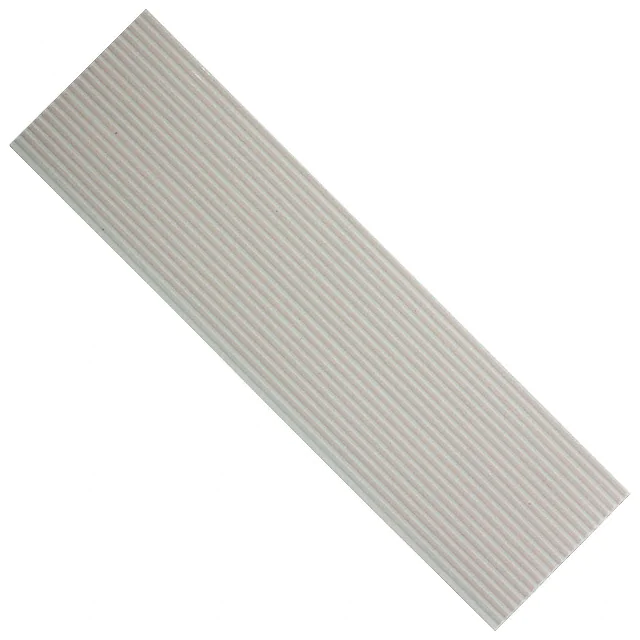

PSR1636-20CABLE FLAT FLEX 20COND 0.050" |
4,511 |
|
Datasheet |
PSR1636 | Spool | Active | 20 | 0.050" (1.27mm) | 500' (152.4m) | 1.05" (26.67mm) | Polyester | 0.002" (0.05mm) | Copper, Bare | - | UL Style 2643 | Conductor 1 Tinned |
|

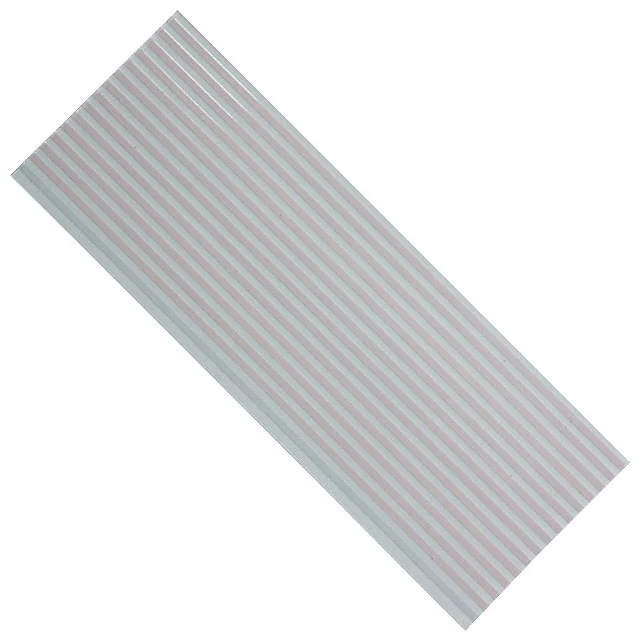

PSR1635-15CABLE FLAT FLEX 15COND 0.100" |
1,824 |
|
Datasheet |
PSR1635 | Spool | Active | 15 | 0.100" (2.54mm) | 500' (152.4m) | 1.60" (40.64mm) | Polyester | 0.002" (0.05mm) | Copper, Bare | - | UL Style 2643 | Conductor 1 Tinned |
|

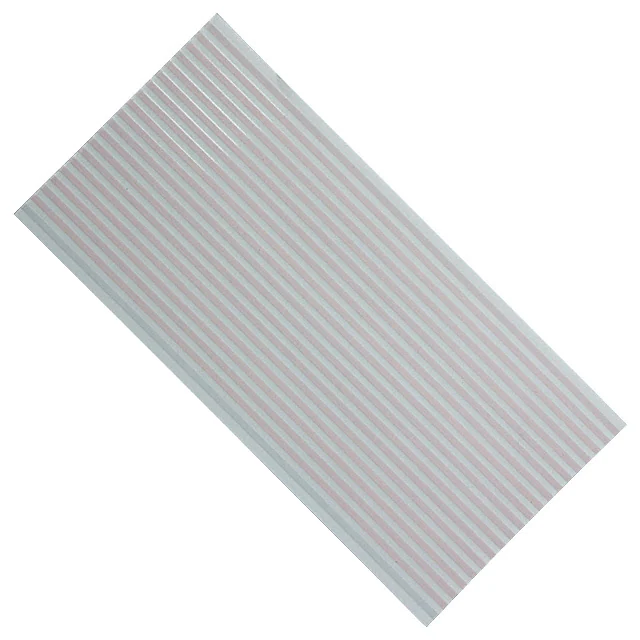

PSR1635-20CABLE FLAT FLEX 20COND 0.100" |
1,005 |
|
Datasheet |
PSR1635 | Spool | Active | 20 | 0.100" (2.54mm) | 500' (152.4m) | 2.10" (53.34mm) | Polyester | 0.002" (0.05mm) | Copper, Bare | - | UL Style 2643 | Conductor 1 Tinned |
|

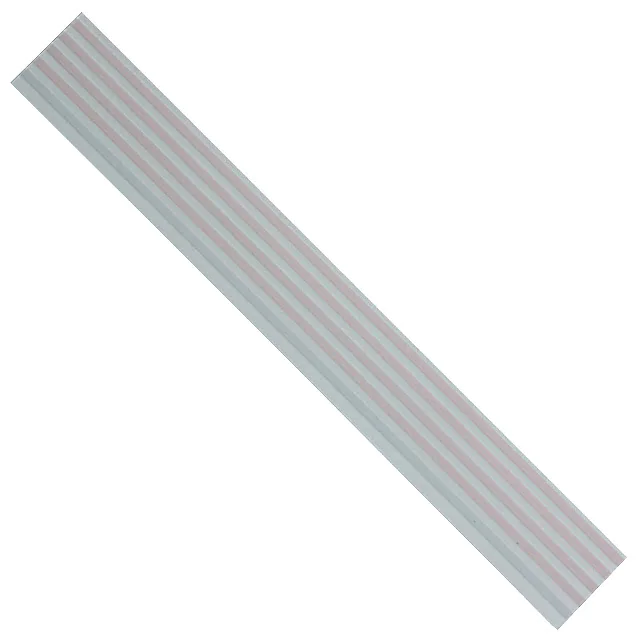

PSR1635-05CABLE FLAT FLEX 5COND 0.100" |
3,979 |
|
Datasheet |
PSR1635 | Spool | Active | 5 | 0.100" (2.54mm) | 500' (152.4m) | 0.60" (15.10mm) | Polyester | 0.002" (0.05mm) | Copper, Bare | - | UL Style 2643 | Conductor 1 Tinned |
|

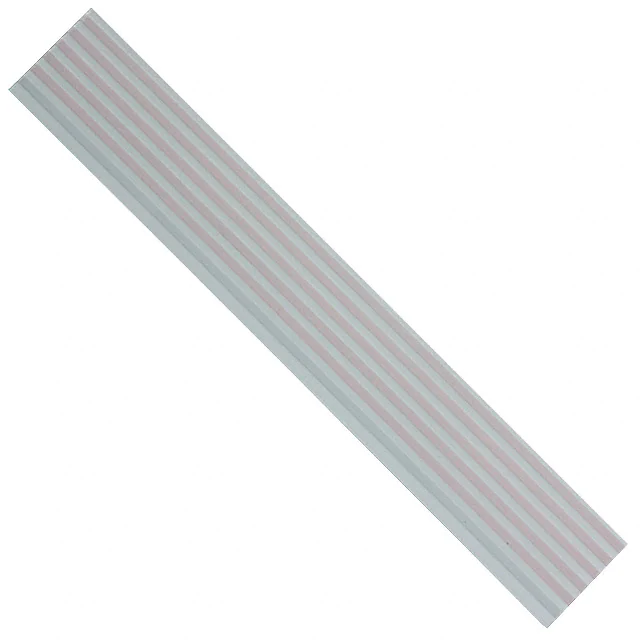

PSR1635-06CABLE FLAT FLEX 6COND 0.100" |
2,597 |
|
Datasheet |
PSR1635 | Spool | Active | 6 | 0.100" (2.54mm) | 500' (152.4m) | 0.70" (17.78mm) | Polyester | 0.002" (0.05mm) | Copper, Bare | - | UL Style 2643 | Conductor 1 Tinned |
|

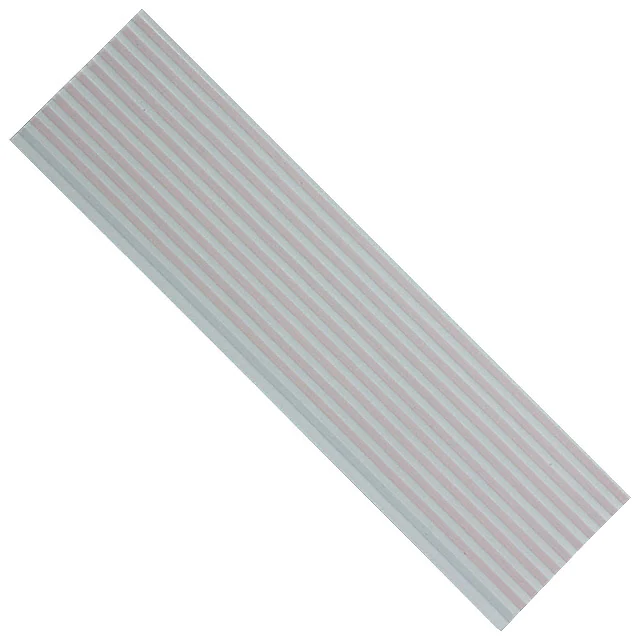

PSR1635-11CABLE FLAT FLEX 11COND 0.100" |
2,358 |
|
Datasheet |
PSR1635 | Spool | Active | 11 | 0.100" (2.54mm) | 500' (152.4m) | 1.20" (30.48mm) | Polyester | 0.002" (0.05mm) | Copper, Bare | - | UL Style 2643 | Conductor 1 Tinned |
|

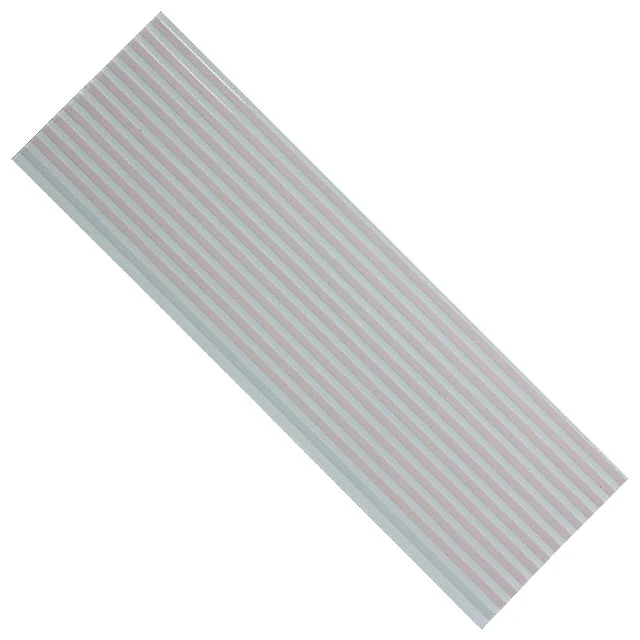

PSR1635-13CABLE FLAT FLEX 13COND 0.100" |
3,327 |
|
Datasheet |
PSR1635 | Spool | Active | 13 | 0.100" (2.54mm) | 500' (152.4m) | 1.40" (35.56mm) | Polyester | 0.002" (0.05mm) | Copper, Bare | - | UL Style 2643 | Conductor 1 Tinned |
|

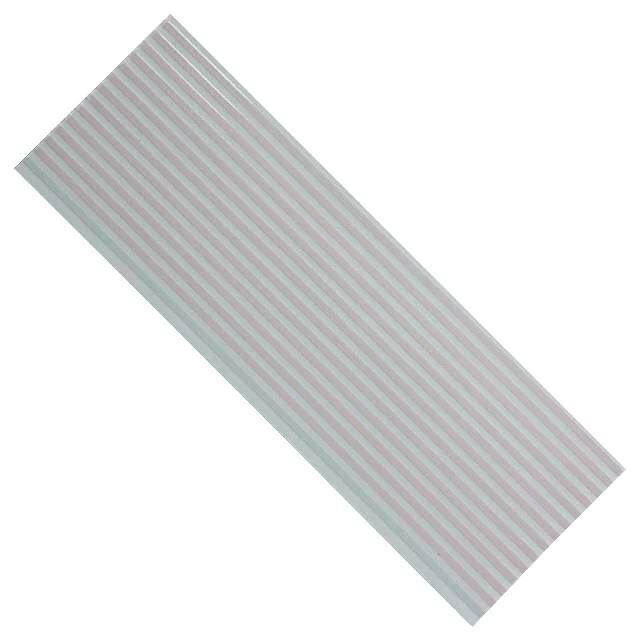

PSR1635-14CABLE FLAT FLEX 14COND 0.100" |
3,935 |
|
Datasheet |
PSR1635 | Spool | Active | 14 | 0.100" (2.54mm) | 500' (152.4m) | 1.50" (38.10mm) | Polyester | 0.002" (0.05mm) | Copper, Bare | - | UL Style 2643 | Conductor 1 Tinned |
|

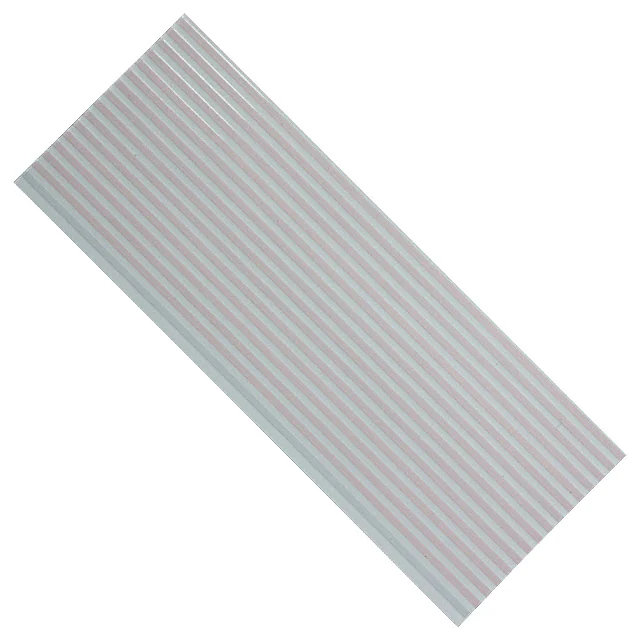

PSR1635-16CABLE FLAT FLEX 16COND 0.100" |
1,239 |
|
Datasheet |
PSR1635 | Spool | Active | 16 | 0.100" (2.54mm) | 500' (152.4m) | 1.70" (43.18mm) | Polyester | 0.002" (0.05mm) | Copper, Bare | - | UL Style 2643 | Conductor 1 Tinned |
