Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

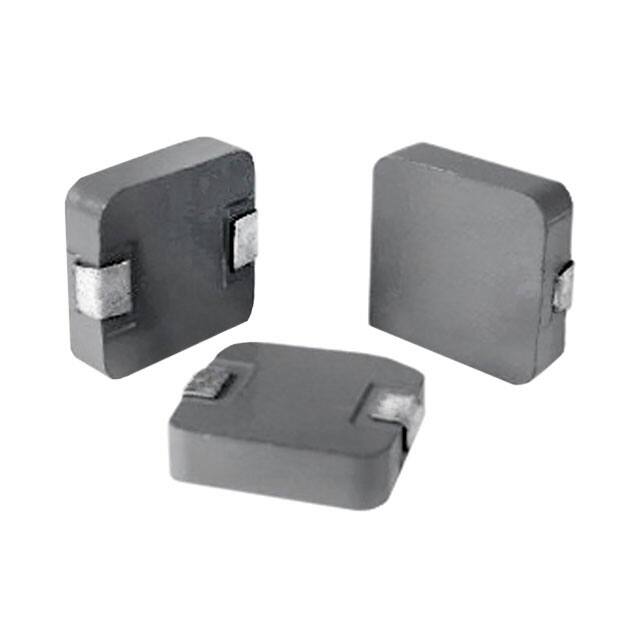

MGV12033R3M-10FIXED IND 3.3UH 12A 12 MOHM SMD Laird-Signal Integrity Products |
2,919 |
|
Datasheet |
MGV | Nonstandard | Tape & Reel (TR) | Obsolete | Molded | - | 3.3 µH | ±20% | 12 A | 27A | Shielded | 12mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 0404 (1010 Metric) | 0.531" L x 0.496" W (13.50mm x 12.60mm) | 0.150" (3.80mm) |
|
MGV12034R7M-10FIXED IND 4.7UH 10A 16 MOHM SMD Laird-Signal Integrity Products |
3,176 |
|
Datasheet |
MGV | Nonstandard, 2 Lead | Tape & Reel (TR) | Obsolete | Molded | - | 4.7 µH | ±20% | 10 A | 24A | Shielded | 16mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | SMD | 0.531" L x 0.496" W (13.50mm x 12.60mm) | 0.150" (3.80mm) |
|
1XC0236-1T0-10FIXED IND 4UH 8.5A 7 MOHM TH Laird-Signal Integrity Products |
4,533 |
|
Datasheet |
- | Radial, Horizontal Cylinder | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 4 µH | ±25% | 8.5 A | - | Unshielded | 7mOhm | - | - | - | -40°C ~ 150°C | 10 kHz | - | Through Hole | - | 0.382" Dia x 0.846" L (9.70mm x 21.50mm) | - |
|
|
MGV0602R10N-10FIXED IND 100NH 21A 2.4MOHM SMD Laird-Signal Integrity Products |
1,800 |
|
Datasheet |
MGV | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 100 nH | ±30% | 21 A | 40A | Shielded | 2.4mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.283" L x 0.264" W (7.20mm x 6.70mm) | 0.094" (2.40mm) |
|
|
MGV0602R22N-10FIXED IND 220NH 15A 4 MOHM SMD Laird-Signal Integrity Products |
2,507 |
|
Datasheet |
MGV | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 220 nH | ±30% | 15 A | 32A | Shielded | 4mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.283" L x 0.264" W (7.20mm x 6.70mm) | 0.094" (2.40mm) |
|
|
MGV0602R56M-10FIXED IND 560NH 11A 9.3MOHM SMD Laird-Signal Integrity Products |
2,138 |
|
Datasheet |
MGV | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 560 nH | ±20% | 11 A | 18A | Shielded | 9.3mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.283" L x 0.264" W (7.20mm x 6.70mm) | 0.094" (2.40mm) |
|
|
MGV06021R2M-10FIXED IND 1.2UH 7.5A 23MOHM SMD Laird-Signal Integrity Products |
2,168 |
|
Datasheet |
MGV | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 1.2 µH | ±20% | 7.5 A | 13A | Shielded | 23mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.283" L x 0.264" W (7.20mm x 6.70mm) | 0.094" (2.40mm) |
|
|
MGV06026R8M-10FIXED IND 6.8UH 4A 73 MOHM SMD Laird-Signal Integrity Products |
3,425 |
|
Datasheet |
MGV | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 6.8 µH | ±20% | 4 A | 5.5A | Shielded | 73mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.283" L x 0.264" W (7.20mm x 6.70mm) | 0.094" (2.40mm) |
|
|
MGV0602100M-10FIXED IND 10UH 2.8A 154MOHM SMD Laird-Signal Integrity Products |
1,624 |
|
Datasheet |
MGV | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 10 µH | ±20% | 2.8 A | 4A | Shielded | 154mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.283" L x 0.264" W (7.20mm x 6.70mm) | 0.094" (2.40mm) |
|
|
MGV0602150M-10FIXED IND 15UH 2.1A 210MOHM SMD Laird-Signal Integrity Products |
4,844 |
|
Datasheet |
MGV | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 15 µH | ±20% | 2.1 A | 3.3A | Shielded | 210mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.283" L x 0.264" W (7.20mm x 6.70mm) | 0.094" (2.40mm) |
