Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
TYS3015150M-10FIXED IND 15UH 650MA 380MOHM SMD Laird-Signal Integrity Products |
1,030 |
|
Datasheet |
TYS3015 | Nonstandard | Tape & Reel (TR) | Active | - | - | 15 µH | ±20% | 650 mA | 660mA | Shielded | 380mOhm Max | - | 30MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 0.067" (1.70mm) |
|
|
TYS3015330M-10FIXED IND 33UH 430MA 820MOHM SMD Laird-Signal Integrity Products |
2,586 |
|
Datasheet |
TYS3015 | Nonstandard | Tape & Reel (TR) | Active | - | - | 33 µH | ±20% | 430 mA | 440mA | Shielded | 820mOhm Max | - | 20MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 0.067" (1.70mm) |
|
MGV05024R7M-10FIXED IND 4.7UH 2.8A 116.6 MOHM Laird-Signal Integrity Products |
2,955 |
|
- |
MGV | Nonstandard | Tape & Reel (TR) | Obsolete | Molded | - | 4.7 µH | ±20% | 2.8 A | 5A | Shielded | 116.6mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.217" L x 0.201" W (5.50mm x 5.10mm) | 0.091" (2.30mm) |
|

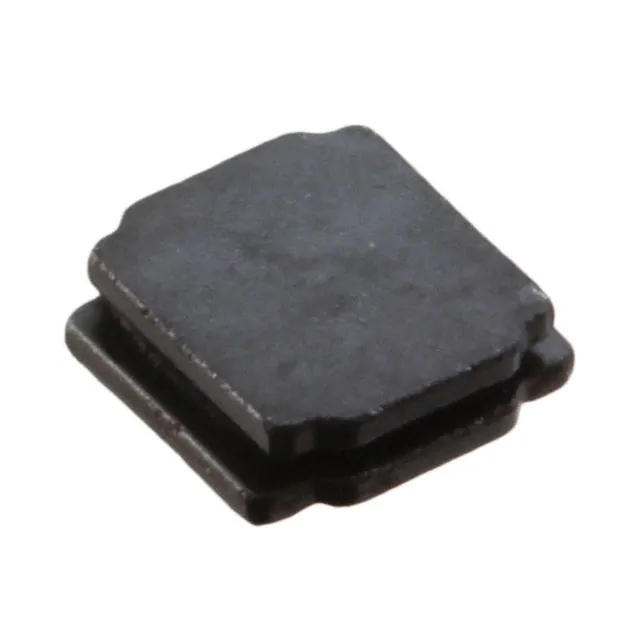

TYS3010100M-10FIXED IND 10UH 580MA 400MOHM SMD Laird-Signal Integrity Products |
4,297 |
|
Datasheet |
TYS3010 | Nonstandard | Tape & Reel (TR) | Active | - | - | 10 µH | ±20% | 580 mA | 550mA | Shielded | 400mOhm Max | - | 39MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 0.039" (1.00mm) |
|
|
TYS3010150M-10FIXED IND 15UH 470MA 610MOHM SMD Laird-Signal Integrity Products |
3,321 |
|
Datasheet |
TYS3010 | Nonstandard | Tape & Reel (TR) | Active | - | - | 15 µH | ±20% | 470 mA | 420mA | Shielded | 610mOhm Max | - | 30MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 0.039" (1.00mm) |
|
|
TYS30102R2N-10FIXED IND 2.2UH 1.09A 110MOHM SM Laird-Signal Integrity Products |
2,715 |
|
Datasheet |
TYS3010 | Nonstandard | Tape & Reel (TR) | Active | - | - | 2.2 µH | ±30% | 1.09 A | 1.15A | Shielded | 110mOhm Max | - | 100MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 0.039" (1.00mm) |
|
|
TYS3010330M-10FIXED IND 33UH 300MA 1.55OHM SMD Laird-Signal Integrity Products |
2,611 |
|
Datasheet |
TYS3010 | Nonstandard | Tape & Reel (TR) | Active | - | - | 33 µH | ±20% | 300 mA | 290mA | Shielded | 1.55Ohm Max | - | 18MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 0.039" (1.00mm) |
|
|
TYS3010470M-10FIXED IND 47UH 260MA 1.95OHM SMD Laird-Signal Integrity Products |
3,912 |
|
Datasheet |
TYS3010 | Nonstandard | Tape & Reel (TR) | Active | - | - | 47 µH | ±20% | 260 mA | 220mA | Shielded | 1.95Ohm Max | - | 18MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 0.039" (1.00mm) |
|
|
TYS30104R7M-10FIXED IND 4.7UH 770MA 225MOHM SM Laird-Signal Integrity Products |
2,727 |
|
Datasheet |
TYS3010 | Nonstandard | Tape & Reel (TR) | Active | - | - | 4.7 µH | ±20% | 770 mA | 750mA | Shielded | 225mOhm Max | - | 59MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 0.039" (1.00mm) |
|
|
TYS30106R8M-10FIXED IND 6.8UH 660MA 305MOHM SM Laird-Signal Integrity Products |
4,899 |
|
Datasheet |
TYS3010 | Nonstandard | Tape & Reel (TR) | Active | - | - | 6.8 µH | ±20% | 660 mA | 550mA | Shielded | 305mOhm Max | - | 42MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 0.039" (1.00mm) |
