Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
IHLP2020CZERR82M01FIXED IND 820NH 9.3A 11.9MOHM SM Vishay Dale |
719 |
|
Datasheet |
IHLP-2020CZ-01 | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 820 nH | ±20% | 9.3 A | 13A | Shielded | 11.9mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.216" L x 0.204" W (5.49mm x 5.18mm) | 0.118" (3.00mm) |
|
IHLP2525CZER8R2M1AIHLP-2525CZ-1A 8.2 20% ER E3 Vishay Dale |
696 |
|
Datasheet |
IHLP-2525CZ-1A | Nonstandard | Tape & Reel (TR) | Active | - | Iron Powder | 8.2 µH | ±20% | 5 A | 4A | Shielded | 54.9mOhm Max | - | - | AEC-Q200 | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.270" L x 0.255" W (6.86mm x 6.47mm) | 0.118" (3.00mm) |
|
IHLP4040DZER330M1AIHLP-4040DZ-1A 33 20% ER E3 Vishay Dale |
313 |
|
Datasheet |
IHLP-4040DZ-1A | Nonstandard | Tape & Reel (TR) | Active | - | Metal Composite | 33 µH | ±20% | 4.4 A | 4A | Shielded | 94.5mOhm Max | - | - | AEC-Q200 | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.425" L x 0.400" W (10.80mm x 10.16mm) | 0.157" (4.00mm) |
|

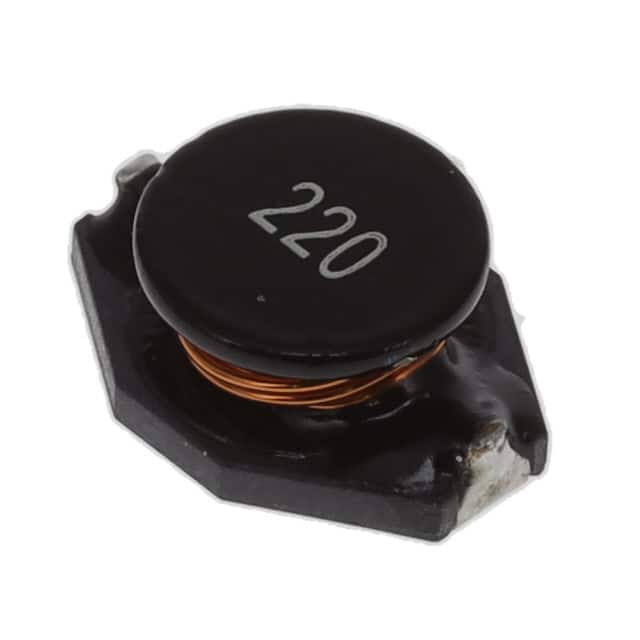

IDC5020ER220MFIXED IND 22UH 2.7A 85 MOHM SMD Vishay Dale |
217 |
|
Datasheet |
IDC-5020 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 22 µH | ±20% | 2.7 A | 2.6A | Unshielded | 85mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.510" L x 0.370" W (12.95mm x 9.40mm) | 0.205" (5.21mm) |
|
IHLP2525BDER1R0M01FIXED IND 1UH 9A 14.2 MOHM SMD Vishay Dale |
13,251 |
|
Datasheet |
IHLP-2525BD-01 | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 1 µH | ±20% | 9 A | 16A | Shielded | 14.2mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.270" L x 0.255" W (6.86mm x 6.47mm) | 0.094" (2.40mm) |
|
IHLP2020ABER3R3M01FIXED IND 3.3UH 2.8A 103MOHM SMD Vishay Dale |
4,649 |
|
Datasheet |
IHLP-2020AB-01 | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 3.3 µH | ±20% | 2.8 A | 5A | Shielded | 103mOhm Max | - | 33MHz | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.216" L x 0.204" W (5.49mm x 5.18mm) | 0.047" (1.20mm) |
|
|
IHLP2020CZERR10M11FIXED IND 100NH 21A 2.9 MOHM SMD Vishay Dale |
3,960 |
|
Datasheet |
IHLP-2020CZ-11 | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 100 nH | ±20% | 21 A | 25A | Shielded | 2.9mOhm Max | - | 333MHz | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.216" L x 0.204" W (5.49mm x 5.18mm) | 0.118" (3.00mm) |
|
|
IHLP2525CZERR33M07FIXED IND 330NH 20A 3.2 MOHM SMD Vishay Dale |
1,298 |
|
Datasheet |
IHLP-2525CZ-07 | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 330 nH | ±20% | 20 A | 30A | Shielded | 3.2mOhm | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.270" L x 0.255" W (6.86mm x 6.47mm) | 0.118" (3.00mm) |
|
|
IHLP2020ABER1R0M01FIXED IND 1UH 4.4A 46.5 MOHM SMD Vishay Dale |
3,101 |
|
Datasheet |
IHLP-2020AB-01 | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 1 µH | ±20% | 4.4 A | 10.2A | Shielded | 46.5mOhm Max | - | 64MHz | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.216" L x 0.204" W (5.49mm x 5.18mm) | 0.047" (1.20mm) |
|
|
IHLP2525CZER3R3M5AFIXED IND 3.3UH 6.8A 28.4MOHM SM Vishay Dale |
355 |
|
Datasheet |
IHLP-2525CZ-5A | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 3.3 µH | ±20% | 6.8 A | 8.3A | Shielded | 28.4mOhm Max | - | 28.6MHz | AEC-Q200 | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.270" L x 0.255" W (6.86mm x 6.47mm) | 0.118" (3.00mm) |
