Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
887FU-252M=P3FIXED IND 2.5MH 37MA 81 OHM SMD Toko America Inc. |
2,094 |
|
Datasheet |
D32FU | Nonstandard | Tape & Reel (TR) | Obsolete | Wirewound | - | 2.5 mH | ±20% | 37 mA | 42mA | Unshielded | 81Ohm Max | - | - | - | - | - | - | Surface Mount | - | 0.138" L x 0.138" W (3.50mm x 3.50mm) | 0.087" (2.20mm) |
|

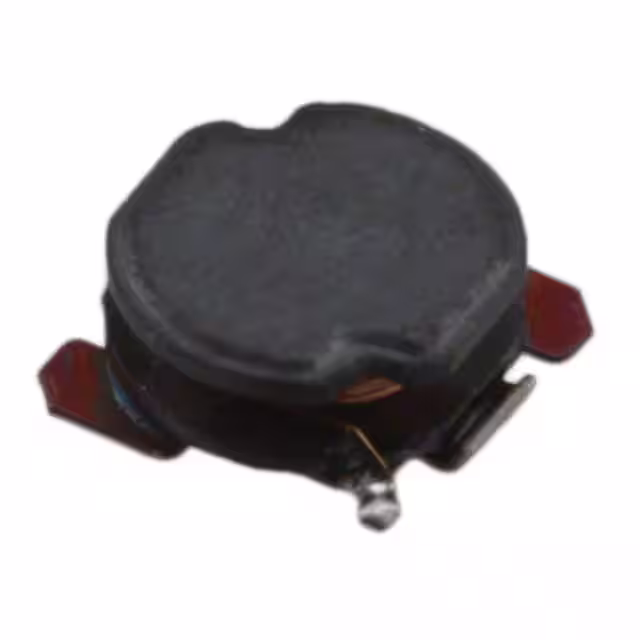

875FU-122M=P3CHOKE COIL 1200UH TYPE D52FU SMD Toko America Inc. |
2,045 |
|
Datasheet |
D52FU | Nonstandard | Cut Tape (CT) | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | Surface Mount | - | 0.205" L x 0.205" W (5.20mm x 5.20mm) | 0.087" (2.20mm) |
|
300HS-331J=P2FIXED IND 330UH 50MA 8.1 OHM SMD Toko America Inc. |
10,302 |
|
Datasheet |
43FS | 1812 (4532 Metric) | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 330 µH | ±5% | 50 mA | - | Unshielded | 8.1Ohm Max | 50 @ 796kHz | 4MHz | - | -10°C ~ 60°C | 796 kHz | - | Surface Mount | 1812 | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.126" (3.20mm) |
|

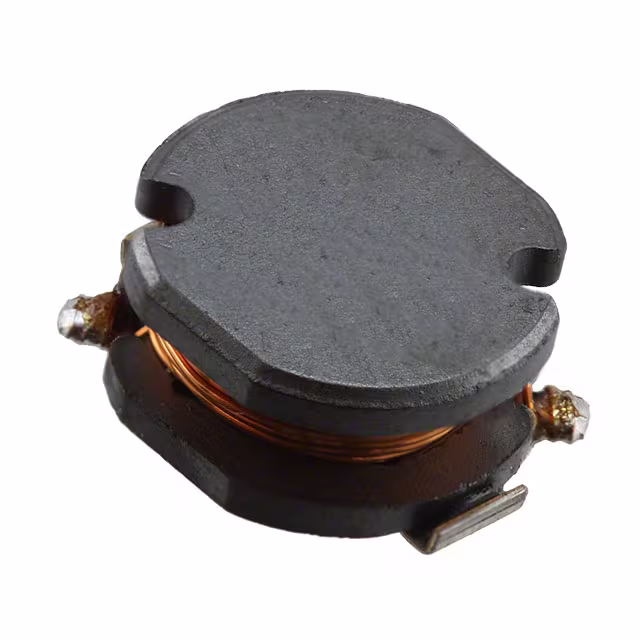

A814AY-391K=P3FIXED IND 390UH 490MA 1.09OHM SM Toko America Inc. |
1,101 |
|
Datasheet |
D10F | Nonstandard | Tape & Reel (TR) | Obsolete | Wirewound | - | 390 µH | ±10% | 490 mA | - | Unshielded | 1.09Ohm Max | - | - | - | - | 100 kHz | - | Surface Mount | - | 0.445" L x 0.382" W (11.30mm x 9.70mm) | 0.197" (5.00mm) |
|

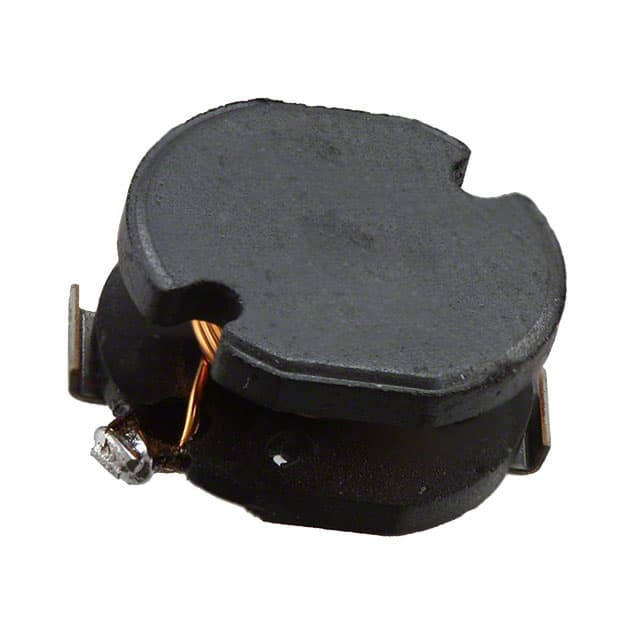

A814AY-120M=P3FIXED IND 12UH 2.48A 50 MOHM SMD Toko America Inc. |
415 |
|
Datasheet |
D10F | Nonstandard | Cut Tape (CT) | Obsolete | Wirewound | - | 12 µH | ±20% | 2.48 A | - | Unshielded | 50mOhm Max | - | - | - | - | 100 kHz | - | Surface Mount | - | 0.445" L x 0.382" W (11.30mm x 9.70mm) | 0.197" (5.00mm) |
|

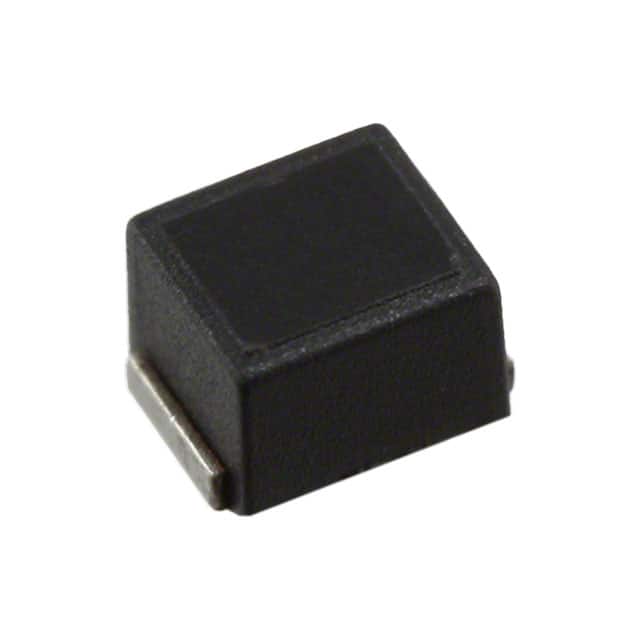

FSLM2520-R15J=P2FIXED IND 150NH 500MA 250 MOHM Toko America Inc. |
410 |
|
Datasheet |
LLM2520 | 1008 (2520 Metric) | Cut Tape (CT) | Obsolete | Wirewound | - | 150 nH | ±5% | 500 mA | - | Unshielded | 250mOhm Max | 30 @ 25.2MHz | 530MHz | - | -40°C ~ 85°C | 25.2 MHz | - | Surface Mount | 1008 (2520 Metric) | 0.106" L x 0.087" W (2.70mm x 2.20mm) | 0.067" (1.70mm) |
|
PTL2012-F2N2CINDUCTOR PHOTOLITHOGRAPHIC 2.2NH Toko America Inc. |
541 |
|
Datasheet |
PTL2012F | 0805 (2012 Metric) | Cut Tape (CT) | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | Surface Mount | 0805 (2012 Metric) | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.026" (0.65mm) |
|
FSLU2520-39NKP2INDUCTOR .039UH 10% TYP FSLU SMD Toko America Inc. |
774 |
|
Datasheet |
FSLU2520 | 1008 (2520 Metric) | Cut Tape (CT) | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | Surface Mount | 1008 (2520 Metric) | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.071" (1.80mm) |
|
|
FSLU2520-82NKP2INDUCTOR .082UH 10% TYP FSLU SMD Toko America Inc. |
318 |
|
Datasheet |
FSLU2520 | 1008 (2520 Metric) | Cut Tape (CT) | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | Surface Mount | 1008 (2520 Metric) | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.071" (1.80mm) |
|
|
FSLU2520-180JP2FIXED IND 18UH 135MA 3.3 OHM SMD Toko America Inc. |
557 |
|
Datasheet |
FSLU2520 | 1008 (2520 Metric) | Cut Tape (CT) | Obsolete | Wirewound | Ferrite | 18 µH | ±5% | 135 mA | - | Unshielded | 3.3Ohm Max | 25 @ 2.52MHz | 24MHz | - | -40°C ~ 85°C | 2.52 MHz | - | Surface Mount | 1008 (2520 Metric) | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.071" (1.80mm) |
