Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

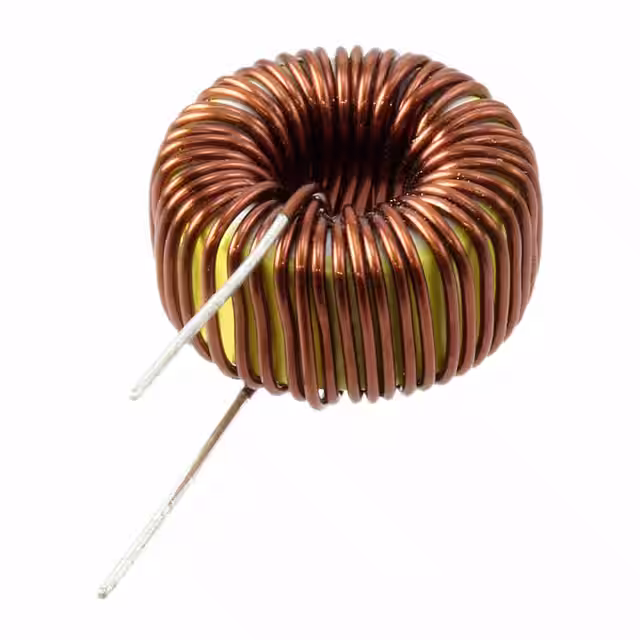

DPO-2.0-68FIXED IND 68UH 2A 89 MOHM TH Talema Group LLC |
2,321 |
|
Datasheet |
DP | Radial, Vertical (Open) | Tray | Active | Toroidal | - | 68 µH | - | 2 A | - | Unshielded | 89mOhm Max | - | - | - | -40°C ~ 125°C | 10 kHz | - | Through Hole | - | 0.591" Dia x 0.315" W (15.00mm x 8.00mm) | - |
|

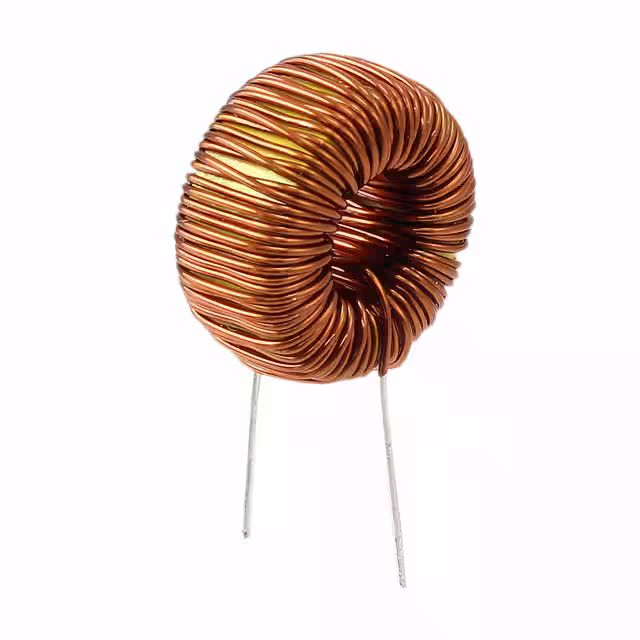

DPO-0.5-220FIXED IND 220UH 500MA 215MOHM TH Talema Group LLC |
3,263 |
|
Datasheet |
DP | Radial, Vertical (Open) | Tray | Active | Toroidal | - | 220 µH | - | 500 mA | - | Unshielded | 215mOhm Max | - | - | - | -40°C ~ 125°C | 10 kHz | - | Through Hole | - | 0.591" Dia x 0.354" W (15.00mm x 9.00mm) | - |
|

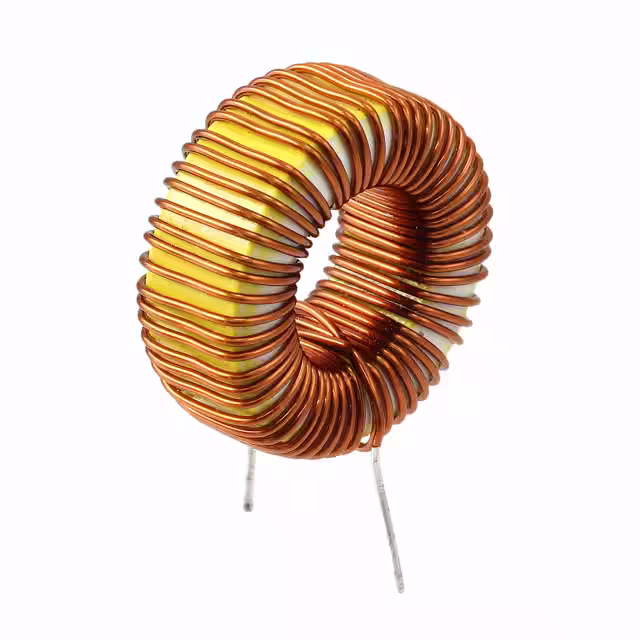

DPO-2.0-150FIXED IND 150UH 2A 106 MOHM TH Talema Group LLC |
2,847 |
|
Datasheet |
DP | Radial, Vertical (Open) | Tray | Active | Toroidal | - | 150 µH | - | 2 A | - | Unshielded | 106mOhm Max | - | - | - | -40°C ~ 125°C | 10 kHz | - | Through Hole | - | 0.984" Dia x 0.472" W (25.00mm x 12.00mm) | - |
|

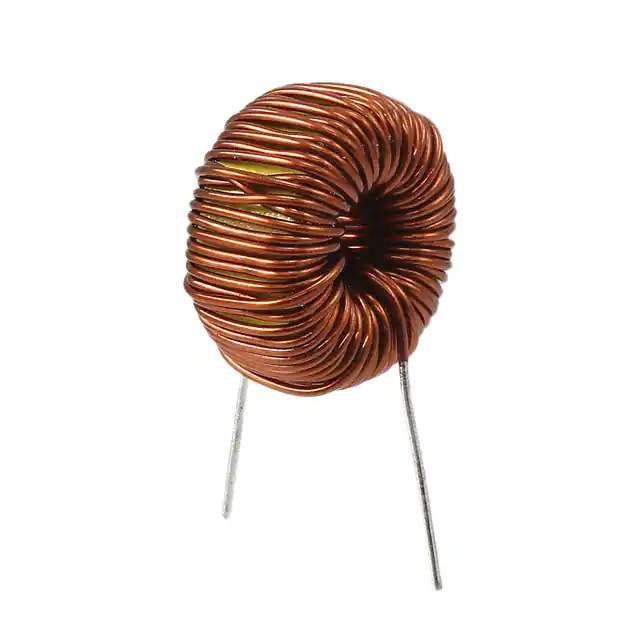

DPO-1.0-150FIXED IND 150UH 1A 123 MOHM TH Talema Group LLC |
2,933 |
|
Datasheet |
DP | Radial, Vertical (Open) | Tray | Active | Toroidal | - | 150 µH | - | 1 A | - | Unshielded | 123mOhm Max | - | - | - | -40°C ~ 125°C | 10 kHz | - | Through Hole | - | 0.591" Dia x 0.354" W (15.00mm x 9.00mm) | - |
|

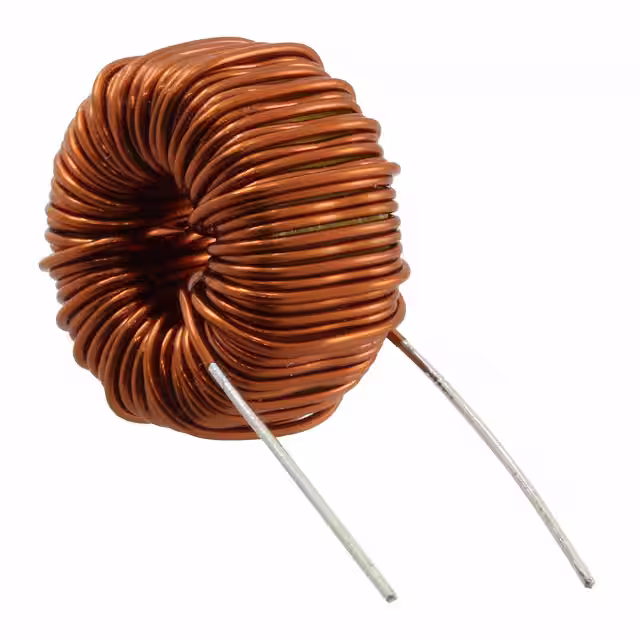

DPO-1.0-220FIXED IND 220UH 1A 196 MOHM TH Talema Group LLC |
4,092 |
|
Datasheet |
DP | Radial, Vertical (Open) | Tray | Active | Toroidal | - | 220 µH | - | 1 A | - | Unshielded | 196mOhm Max | - | - | - | -40°C ~ 125°C | 10 kHz | - | Through Hole | - | 0.591" Dia x 0.354" W (15.00mm x 9.00mm) | - |
|

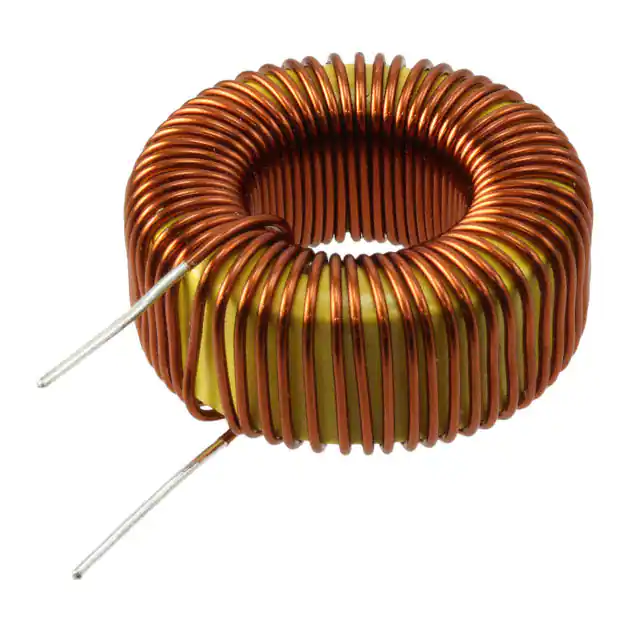

DPO-3.0-150FIXED IND 150UH 3A 107 MOHM TH Talema Group LLC |
2,095 |
|
Datasheet |
DP | Radial, Vertical (Open) | Tray | Active | Toroidal | - | 150 µH | - | 3 A | - | Unshielded | 107mOhm Max | - | - | - | -40°C ~ 125°C | 10 kHz | - | Through Hole | - | 0.984" Dia x 0.472" W (25.00mm x 12.00mm) | - |
|

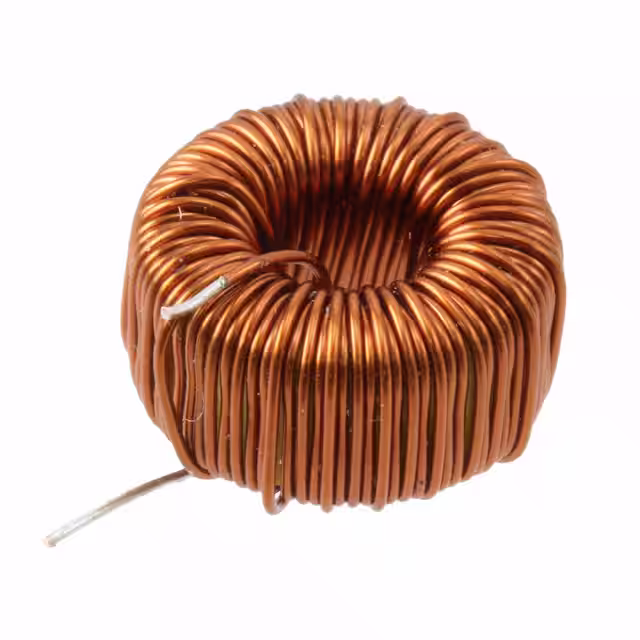

DPO-0.5-330FIXED IND 330UH 500MA 265MOHM TH Talema Group LLC |
4,531 |
|
Datasheet |
DP | Radial, Vertical (Open) | Tray | Active | Toroidal | - | 330 µH | - | 500 mA | - | Unshielded | 265mOhm Max | - | - | - | -40°C ~ 125°C | 10 kHz | - | Through Hole | - | 0.591" Dia x 0.354" W (15.00mm x 9.00mm) | - |
|
DPO-1.0-330FIXED IND 330UH 1A 193 MOHM TH Talema Group LLC |
2,566 |
|
Datasheet |
DP | Radial, Vertical (Open) | Tray | Active | Toroidal | - | 330 µH | - | 1 A | - | Unshielded | 193mOhm Max | - | - | - | -40°C ~ 125°C | 10 kHz | - | Through Hole | - | 0.787" Dia x 0.354" W (20.00mm x 9.00mm) | - |
|

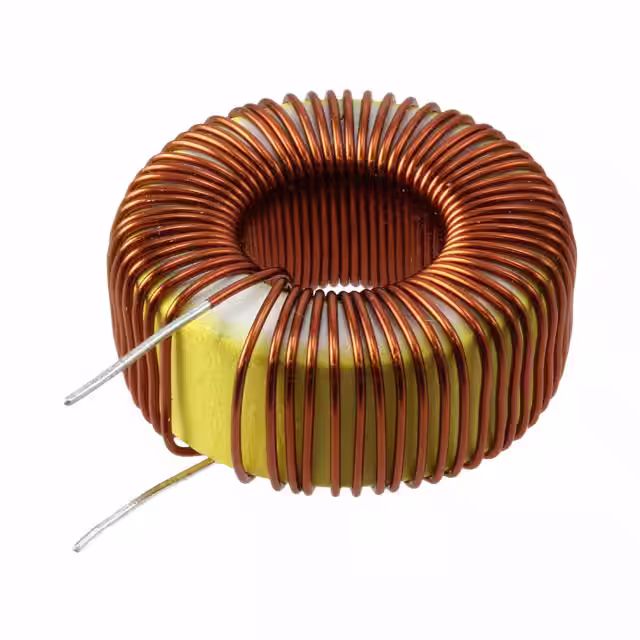

DPO-3.0-220FIXED IND 220UH 3A 134 MOHM TH Talema Group LLC |
2,599 |
|
Datasheet |
DP | Radial, Vertical (Open) | Tray | Active | Toroidal | - | 220 µH | - | 3 A | - | Unshielded | 134mOhm Max | - | - | - | -40°C ~ 125°C | 10 kHz | - | Through Hole | - | 1.142" Dia x 0.512" W (29.00mm x 13.00mm) | - |
|
DPO-3.0-330FIXED IND 330UH 3A 142 MOHM TH Talema Group LLC |
4,177 |
|
Datasheet |
DP | Radial, Vertical (Open) | Tray | Active | Toroidal | - | 330 µH | - | 3 A | - | Unshielded | 142mOhm Max | - | - | - | -40°C ~ 125°C | 10 kHz | - | Through Hole | - | 1.181" Dia x 0.551" W (30.00mm x 14.00mm) | - |
