Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
LBRNJ10145GL681MNFIXED IND 680 UH 0.42A 1.89 OHM Taiyo Yuden |
2,294 |
|
- |
LBRN | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Ferrite | 680 µH | ±20% | 420 mA | 500mA | Shielded | 1.89Ohm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.398" L x 0.398" W (10.10mm x 10.10mm) | 0.191" (4.85mm) |
|
|
LMRNJ10145GL681MNFIXED IND 680 UH 0.42A 1.89 OHM Taiyo Yuden |
4,175 |
|
- |
LMRN | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Ferrite | 680 µH | ±20% | 420 mA | 500mA | Shielded | 1.57Ohm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.398" L x 0.398" W (10.10mm x 10.10mm) | 0.191" (4.85mm) |
|
|
NS10145T681MNV8FIXED IND 680 UH 0.42A 1.89 OHM Taiyo Yuden |
4,994 |
|
- |
LBRN | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Ferrite | 680 µH | ±20% | 420 mA | 500mA | Shielded | 1.89Ohm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.398" L x 0.398" W (10.10mm x 10.10mm) | 0.191" (4.85mm) |
|
|
NS10145T681MNVVFIXED IND 680 UH 0.42A 1.89 OHM Taiyo Yuden |
3,445 |
|
- |
LCRN | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 680 µH | ±20% | 420 mA | 500mA | - | 1.57Ohm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.398" L x 0.398" W (10.10mm x 10.10mm) | 0.191" (4.85mm) |
|
|
LCRNJ10145GL681MNFIXED IND 680 UH 0.42A 1.89 OHM Taiyo Yuden |
1,242 |
|
- |
LCRN | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 680 µH | ±20% | 420 mA | 500mA | - | 1.57Ohm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.398" L x 0.398" W (10.10mm x 10.10mm) | 0.191" (4.85mm) |
|
NS12555T152MNVFIXED IND 1.5MH 440MA 1.73OHM SM Taiyo Yuden |
1,618 |
|
Datasheet |
NS | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 1.5 mH | ±20% | 440 mA | 400mA | Shielded | 1.73Ohm Max | - | 1.7MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 125125 | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.230" (5.85mm) |
|
LBRNJ10155GL220MNFIXED IND 22UH 2.8A 51.6MOHM SMD Taiyo Yuden |
2,225 |
|
- |
LBRN | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Ferrite | 22 µH | ±20% | 2.8 A | 3.37A | Shielded | 43mOhm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.398" L x 0.398" W (10.10mm x 10.10mm) | 0.230" (5.85mm) |
|

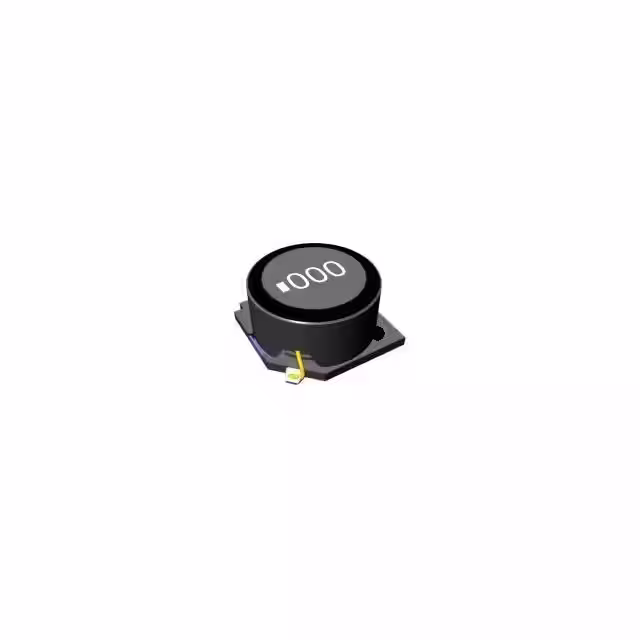

LBRNJ10155GL1R5NNFIXED IND 1.5UH 8.39A 7.2MOHM SM Taiyo Yuden |
3,913 |
|
- |
LBRN | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Ferrite | 1.5 µH | ±30% | 8.39 A | 11.9A | Shielded | 6mOhm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.398" L x 0.398" W (10.10mm x 10.10mm) | 0.230" (5.85mm) |
|
LBRNJ10155GL6R8NNFIXED IND 6.8UH 4.98A 19.1 MOHM Taiyo Yuden |
3,891 |
|
- |
LBRN | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Ferrite | 6.8 µH | ±30% | 4.98 A | 6A | Shielded | 15.9mOhm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.398" L x 0.398" W (10.10mm x 10.10mm) | 0.230" (5.85mm) |
|
LBRNJ10155GL150MNFIXED IND 15UH 3.4A 37.2MOHM SMD Taiyo Yuden |
2,714 |
|
- |
LBRN | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Ferrite | 15 µH | ±20% | 3.4 A | 4.03A | Shielded | 31mOhm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.398" L x 0.398" W (10.10mm x 10.10mm) | 0.230" (5.85mm) |
