Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
LLANB2016KKT2R2MFIXED IND 2.2UH 1.5A 160MOHM SMD Taiyo Yuden |
4,301 |
|
- |
LLAN | 0806 (2016 Metric) | Tape & Reel (TR) | Active | Wirewound | Metal | 2.2 µH | ±20% | 1.5 A | 1.5A | Unshielded | 160mOhm Max | - | - | - | -40°C ~ 105°C | 2 MHz | - | Surface Mount | 0806 | 0.079" L x 0.063" W (2.00mm x 1.60mm) | 0.039" (1.00mm) |
|
LLBHB2012KKTR24NFIXED IND 240NH 2.4A 41 MOHM SMD Taiyo Yuden |
2,604 |
|
- |
LLBH | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Wirewound | Metal | 240 nH | ±30% | 2.4 A | 3A | Unshielded | 41mOhm Max | - | - | - | -40°C ~ 105°C | 1 MHz | - | Surface Mount | 0805 | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.039" (1.00mm) |
|
LLBHB1608KKT3R3MFIXED IND 3.3UH 600MA 512MOHM SM Taiyo Yuden |
3,116 |
|
- |
LLBH | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Wirewound | Metal | 3.3 µH | ±20% | 600 mA | 450mA | Unshielded | 512mOhm Max | - | - | - | -40°C ~ 105°C | 1 MHz | - | Surface Mount | 0603 | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.039" (1.00mm) |
|
LLANB2016KKT1R5MFIXED IND 1.5UH 1.65A 130MOHM SM Taiyo Yuden |
2,768 |
|
- |
LLAN | 0806 (2016 Metric) | Tape & Reel (TR) | Active | Wirewound | Metal | 1.5 µH | ±20% | 1.65 A | 1.6A | Unshielded | 130mOhm Max | - | - | - | -40°C ~ 105°C | 2 MHz | - | Surface Mount | 0806 | 0.079" L x 0.063" W (2.00mm x 1.60mm) | 0.039" (1.00mm) |
|
LLBHB2520MKT1R0MFIXED IND 1UH 1.85A 72 MOHM SMD Taiyo Yuden |
3,493 |
|
- |
LLBH | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Wirewound | Metal | 1 µH | ±20% | 1.85 A | 2.35A | Unshielded | 72mOhm Max | - | - | - | -40°C ~ 105°C | 1 MHz | - | Surface Mount | 1008 | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.047" (1.20mm) |
|
LLBHB1608KKT1R0MFIXED IND 1UH 1.15A 150 MOHM SMD Taiyo Yuden |
4,163 |
|
- |
LLBH | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Wirewound | Metal | 1 µH | ±20% | 1.15 A | 800mA | Unshielded | 150mOhm Max | - | - | - | -40°C ~ 105°C | 1 MHz | - | Surface Mount | 0603 | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.039" (1.00mm) |
|
LLBHB2012KKT1R5MFIXED IND 1.5UH 1.1A 173MOHM SMD Taiyo Yuden |
1,338 |
|
- |
LLBH | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Wirewound | Metal | 1.5 µH | ±20% | 1.1 A | 1.2A | Unshielded | 173mOhm Max | - | - | - | -40°C ~ 105°C | 1 MHz | - | Surface Mount | 0805 | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.039" (1.00mm) |
|

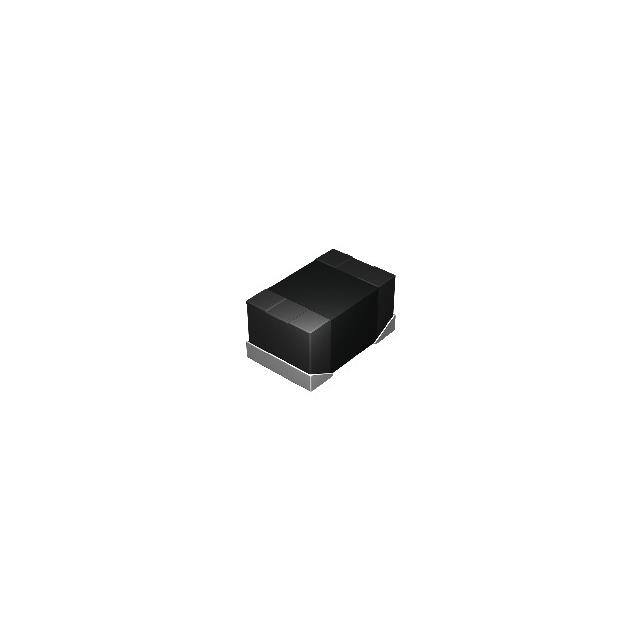

LLBHB2520MKTR24NFIXED IND 240NH 3.5A 26 MOHM SMD Taiyo Yuden |
1,198 |
|
- |
LLBH | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Wirewound | Metal | 240 nH | ±30% | 3.5 A | 4.75A | Unshielded | 26mOhm Max | - | - | - | -40°C ~ 105°C | 1 MHz | - | Surface Mount | 1008 | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.047" (1.20mm) |
|
LLANB2016KKTR33MFIXED IND 330NH 3.2A 40 MOHM SMD Taiyo Yuden |
4,977 |
|
- |
LLAN | 0806 (2016 Metric) | Tape & Reel (TR) | Active | Wirewound | Metal | 330 nH | ±20% | 3.2 A | 3.6A | Unshielded | 40mOhm Max | - | - | - | -40°C ~ 105°C | 2 MHz | - | Surface Mount | 0806 | 0.079" L x 0.063" W (2.00mm x 1.60mm) | 0.039" (1.00mm) |
|

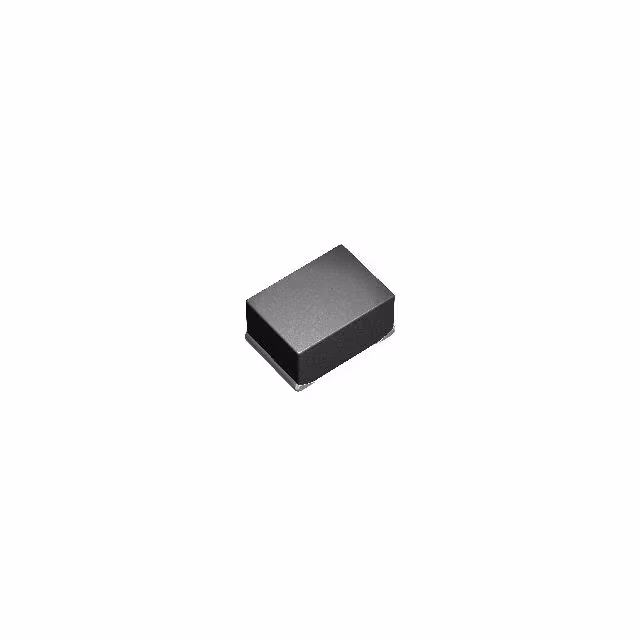

LLANB2016KKTR24MFIXED IND 240NH 3A 42 MOHM SMD Taiyo Yuden |
4,292 |
|
- |
LLAN | 0806 (2016 Metric) | Tape & Reel (TR) | Active | Wirewound | Metal | 240 nH | ±20% | 3 A | 4.2A | Unshielded | 37mOhm Max | - | - | - | -40°C ~ 105°C | 2 MHz | - | Surface Mount | 0806 | 0.079" L x 0.063" W (2.00mm x 1.60mm) | 0.039" (1.00mm) |
