Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

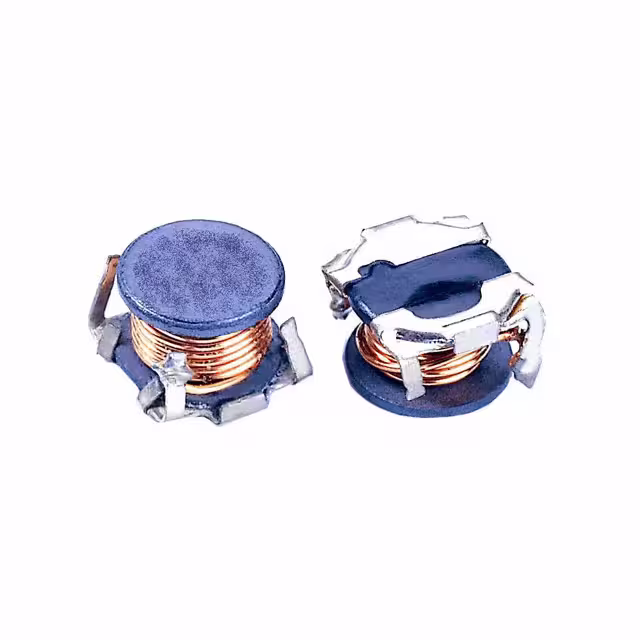

SCH74-151FIXED IND 150UH 760MA 720MOHM SM Signal Transformer |
2,836 |
|
Datasheet |
SCH74 | Nonstandard | Tape & Reel (TR) | Obsolete | Wirewound | - | 150 µH | ±10% | 760 mA | 710mA | Unshielded | 720mOhm Max | - | - | - | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.315" L x 0.287" W (8.00mm x 7.30mm) | 0.205" (5.20mm) |
|
|
SCH74-180FIXED IND 18UH 2.4A 94 MOHM SMD Signal Transformer |
4,226 |
|
Datasheet |
SCH74 | Nonstandard | Tape & Reel (TR) | Obsolete | Wirewound | - | 18 µH | ±15% | 2.4 A | 1.95A | Unshielded | 94mOhm Max | - | - | - | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.315" L x 0.287" W (8.00mm x 7.30mm) | 0.205" (5.20mm) |
|
|
SCH74-181FIXED IND 180UH 660MA 820MOHM SM Signal Transformer |
3,622 |
|
Datasheet |
SCH74 | Nonstandard | Tape & Reel (TR) | Obsolete | Wirewound | - | 180 µH | ±10% | 660 mA | 660mA | Unshielded | 820mOhm Max | - | - | - | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.315" L x 0.287" W (8.00mm x 7.30mm) | 0.205" (5.20mm) |
|
|
SCH74-220FIXED IND 22UH 2.2A 130 MOHM SMD Signal Transformer |
4,432 |
|
Datasheet |
SCH74 | Nonstandard | Tape & Reel (TR) | Obsolete | Wirewound | - | 22 µH | ±15% | 2.2 A | 1.7A | Unshielded | 130mOhm Max | - | - | - | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.315" L x 0.287" W (8.00mm x 7.30mm) | 0.205" (5.20mm) |
|
|
SCH74-221FIXED IND 220UH 560MA 1.08OHM SM Signal Transformer |
2,296 |
|
Datasheet |
SCH74 | Nonstandard | Tape & Reel (TR) | Obsolete | Wirewound | - | 220 µH | ±10% | 560 mA | 550mA | Unshielded | 1.08Ohm Max | - | - | - | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.315" L x 0.287" W (8.00mm x 7.30mm) | 0.205" (5.20mm) |
|
|
SCH74-270FIXED IND 27UH 2A 160 MOHM SMD Signal Transformer |
1,183 |
|
Datasheet |
SCH74 | Nonstandard | Tape & Reel (TR) | Obsolete | Wirewound | - | 27 µH | ±10% | 2 A | 1.55A | Unshielded | 160mOhm Max | - | - | - | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.315" L x 0.287" W (8.00mm x 7.30mm) | 0.205" (5.20mm) |
|
|
SCH74-271FIXED IND 270UH 500MA 1.38OHM SM Signal Transformer |
2,030 |
|
Datasheet |
SCH74 | Nonstandard | Tape & Reel (TR) | Obsolete | Wirewound | - | 270 µH | ±10% | 500 mA | 480mA | Unshielded | 1.38Ohm Max | - | - | - | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.315" L x 0.287" W (8.00mm x 7.30mm) | 0.205" (5.20mm) |
|
|
SCH74-330FIXED IND 33UH 1.8A 170 MOHM SMD Signal Transformer |
1,598 |
|
Datasheet |
SCH74 | Nonstandard | Tape & Reel (TR) | Obsolete | Wirewound | - | 33 µH | ±10% | 1.8 A | 1.45A | Unshielded | 170mOhm Max | - | - | - | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.315" L x 0.287" W (8.00mm x 7.30mm) | 0.205" (5.20mm) |
|
|
SCH74-331FIXED IND 330UH 470MA 1.55OHM SM Signal Transformer |
4,903 |
|
Datasheet |
SCH74 | Nonstandard | Tape & Reel (TR) | Obsolete | Wirewound | - | 330 µH | ±10% | 470 mA | 400mA | Unshielded | 1.55Ohm Max | - | - | - | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.315" L x 0.287" W (8.00mm x 7.30mm) | 0.205" (5.20mm) |
|
|
SCH74-390FIXED IND 39UH 1.68A 210MOHM SMD Signal Transformer |
2,721 |
|
Datasheet |
SCH74 | Nonstandard | Tape & Reel (TR) | Obsolete | Wirewound | - | 39 µH | ±10% | 1.68 A | 1.3A | Unshielded | 210mOhm Max | - | - | - | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.315" L x 0.287" W (8.00mm x 7.30mm) | 0.205" (5.20mm) |
