Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
F1C1-322512-R10MFIXED IND 0.10 UH 11.0A 7.0 MOHM Signal Transformer |
4,848 |
|
Datasheet |
F1C1-3225 | 1210 (3225 Metric) | Tape & Reel (TR) | Active | Molded | Metal | 100 nH | ±20% | 11 A | 16.5A | Shielded | 7mOhm Max | - | - | - | -55°C ~ 125°C | 1 MHz | - | Surface Mount | 1210 | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.047" (1.20mm) |
|
|
F1C1-322510-R33MFIXED IND 0.33 UH 7.8A 15 MOHM Signal Transformer |
4,578 |
|
Datasheet |
F1C1-3225 | 1210 (3225 Metric) | Tape & Reel (TR) | Active | Molded | Metal | 330 nH | ±20% | 7.8 A | 7.8A | Shielded | 15mOhm Max | - | - | - | -55°C ~ 125°C | 1 MHz | - | Surface Mount | 1210 | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.039" (1.00mm) |
|
|
F1C1-322512-R33MFIXED IND 0.33 UH 8.1A 14 MOHM Signal Transformer |
3,348 |
|
Datasheet |
F1C1-3225 | 1210 (3225 Metric) | Tape & Reel (TR) | Active | Molded | Metal | 330 nH | ±20% | 8.1 A | 9.5A | Shielded | 14mOhm Max | - | - | - | -55°C ~ 125°C | 1 MHz | - | Surface Mount | 1210 | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.047" (1.20mm) |
|
|
F1C1-201210-R22MFIXED IND 0.22UH 6.5A 22 MOHM Signal Transformer |
2,003 |
|
Datasheet |
F1C1-2012 | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Molded | Metal | 220 nH | ±20% | 6.5 A | 6.8A | Shielded | 22mOhm Max | - | - | - | -55°C ~ 125°C | 1 MHz | - | Surface Mount | 0805 | 0.079" L x 0.047" W (2.00mm x 1.20mm) | 0.039" (1.00mm) |
|
|
F1C1-201210-1R0MFIXED IND 1.0UH 3.5A 63 MOHM Signal Transformer |
2,971 |
|
Datasheet |
F1C1-2012 | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Molded | Metal | 1 µH | ±20% | 3.5 A | 3.5A | Shielded | 63mOhm Max | - | - | - | -55°C ~ 125°C | 1 MHz | - | Surface Mount | 0805 | 0.079" L x 0.047" W (2.00mm x 1.20mm) | 0.039" (1.00mm) |
|
|
F1C1-141208-R24MFIXED IND 0.24UH 3.7A 27 MOHM Signal Transformer |
2,544 |
|
Datasheet |
F1C1-1412 | 0505 (1412 Metric) | Tape & Reel (TR) | Active | Molded | Metal | 240 nH | ±20% | 3.7 A | 5.7A | Shielded | 27mOhm Max | - | - | - | -55°C ~ 125°C | 1 MHz | - | Surface Mount | - | 0.055" L x 0.047" W (1.40mm x 1.20mm) | 0.031" (0.80mm) |
|
|
F1C1-160808-R22MFIXED IND 0.22UH 3.0A 40 MOHM Signal Transformer |
4,600 |
|
Datasheet |
F1C1-1608 | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Molded | Metal | 220 nH | ±20% | 3 A | 5A | Shielded | 40mOhm Max | - | - | - | -55°C ~ 125°C | 1 MHz | - | Surface Mount | 0603 | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.031" (0.80mm) |
|
|
F1C1-160808-R68MFIXED IND 0.68UH 1.9A 130 MOHM Signal Transformer |
2,367 |
|
Datasheet |
F1C1-1608 | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Molded | Metal | 680 nH | ±20% | 1.9 A | 3A | Shielded | 130mOhm Max | - | - | - | -55°C ~ 125°C | 1 MHz | - | Surface Mount | 0603 | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.031" (0.80mm) |
|
|
F1C1-141208-R47MFIXED IND 0.47UH 3.3A 35 MOHM Signal Transformer |
1,037 |
|
Datasheet |
F1C1-1412 | 0505 (1412 Metric) | Tape & Reel (TR) | Active | - | - | 0.47 µF | ±20% | - | 4.2A | Shielded | 35mOhm | - | - | - | -55°C ~ 125°C | - | - | Surface Mount | - | 0.055" L x 0.047" W (1.40mm x 1.20mm) | 0.031" (0.80mm) |
|

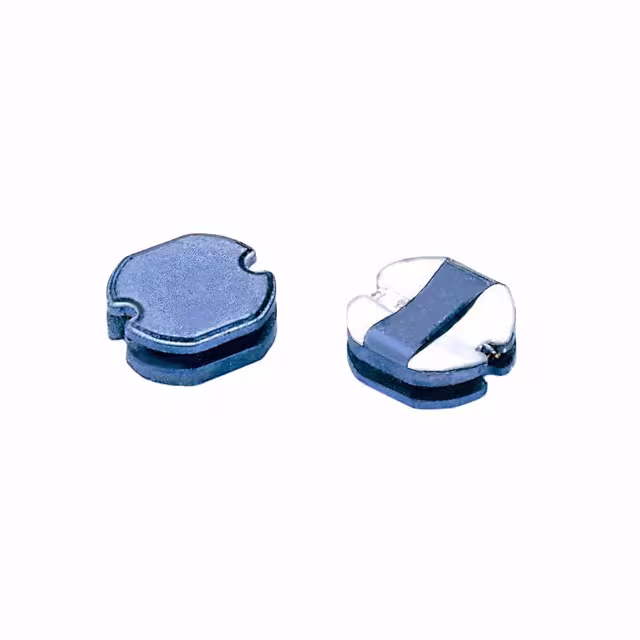

SC52-390FIXED IND 39UH 640MA 660MOHM SMD Signal Transformer |
4,947 |
|
Datasheet |
SC52 | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 39 µH | ±20% | 640 mA | 560mA | Unshielded | 660mOhm Max | - | - | - | -40°C ~ 125°C | 2.52 MHz | - | Surface Mount | - | 0.240" L x 0.217" W (6.10mm x 5.50mm) | 0.091" (2.30mm) |
