Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SC54-330FIXED IND 33UH 1.2A 230 MOHM SMD Signal Transformer |
2,237 |
|
Datasheet |
SC54 | Nonstandard | Tape & Reel (TR) | Obsolete | Wirewound | - | 33 µH | ±20% | 1.2 A | 880mA | Unshielded | 230mOhm Max | - | - | - | -40°C ~ 125°C | 2.52 MHz | - | Surface Mount | - | 0.240" L x 0.217" W (6.10mm x 5.50mm) | 0.189" (4.80mm) |
|

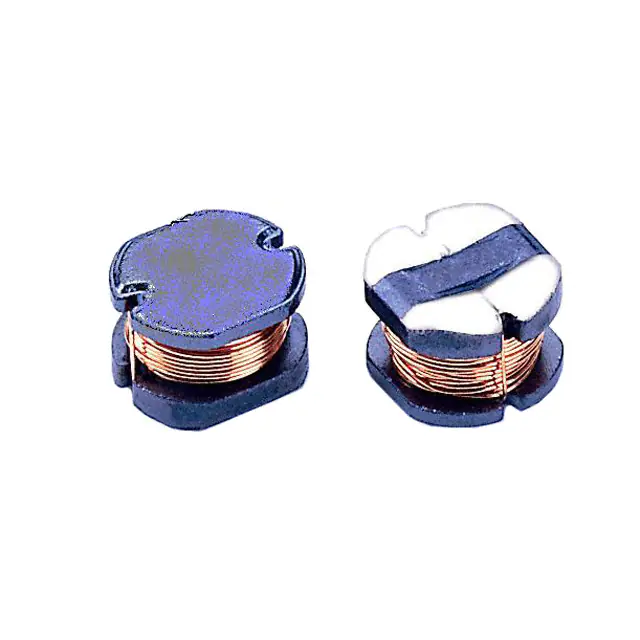

SC32-470FIXED IND 47UH 400MA 1.47OHM SMD Signal Transformer |
3,096 |
|
Datasheet |
SC32 | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 47 µH | ±20% | 400 mA | 330mA | Unshielded | 1.47Ohm Max | - | - | - | -40°C ~ 125°C | 2.52 MHz | - | Surface Mount | - | 0.150" L x 0.130" W (3.80mm x 3.30mm) | 0.094" (2.40mm) |
|
SC31-100FIXED IND 10UH 800MA 350MOHM SMD Signal Transformer |
1,545 |
|
Datasheet |
SC31 | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 10 µH | ±20% | 800 mA | 450mA | Unshielded | 350mOhm Max | - | - | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | - | 0.150" L x 0.130" W (3.80mm x 3.30mm) | 0.071" (1.80mm) |
|
|
SC31-101FIXED IND 100UH 250MA 3.4OHM SMD Signal Transformer |
1,099 |
|
Datasheet |
SC31 | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 100 µH | ±20% | 250 mA | 100mA | Unshielded | 3.4Ohm Max | - | - | - | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.150" L x 0.130" W (3.80mm x 3.30mm) | 0.071" (1.80mm) |
|
|
SC31-122FIXED IND 1.2MH 80MA 45.6OHM SMD Signal Transformer |
3,862 |
|
Datasheet |
SC31 | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 1.2 mH | ±20% | 80 mA | 50mA | Unshielded | 45.6Ohm Max | - | - | - | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.150" L x 0.130" W (3.80mm x 3.30mm) | 0.071" (1.80mm) |
|
|
SC31-150FIXED IND 15UH 640MA 650MOHM SMD Signal Transformer |
3,014 |
|
Datasheet |
SC31 | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 15 µH | ±20% | 640 mA | 300mA | Unshielded | 650mOhm Max | - | - | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | - | 0.150" L x 0.130" W (3.80mm x 3.30mm) | 0.071" (1.80mm) |
|
|
SC31-152FIXED IND 1.5MH 66MA 66 OHM SMD Signal Transformer |
2,483 |
|
Datasheet |
SC31 | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 1.5 mH | ±20% | 66 mA | 30mA | Unshielded | 66Ohm Max | - | - | - | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.150" L x 0.130" W (3.80mm x 3.30mm) | 0.071" (1.80mm) |
|
|
SC31-220FIXED IND 22UH 520MA 760MOHM SMD Signal Transformer |
2,374 |
|
Datasheet |
SC31 | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 22 µH | ±20% | 520 mA | 250mA | Unshielded | 760mOhm Max | - | - | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | - | 0.150" L x 0.130" W (3.80mm x 3.30mm) | 0.071" (1.80mm) |
|
|
SC31-2R2FIXED IND 2.2UH 1.6A 100MOHM SMD Signal Transformer |
3,424 |
|
Datasheet |
SC31 | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 2.2 µH | ±20% | 1.6 A | 790mA | Unshielded | 100mOhm Max | - | - | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | - | 0.150" L x 0.130" W (3.80mm x 3.30mm) | 0.071" (1.80mm) |
|
|
SC31-330FIXED IND 33UH 460MA 1.2 OHM SMD Signal Transformer |
4,995 |
|
Datasheet |
SC31 | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 33 µH | ±20% | 460 mA | 200mA | Unshielded | 1.2Ohm Max | - | - | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | - | 0.150" L x 0.130" W (3.80mm x 3.30mm) | 0.071" (1.80mm) |
