Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SCRH127B-820FIXED IND 82UH 2A 160 MOHM SMD Signal Transformer |
3,685 |
|
Datasheet |
SCRH127B | Nonstandard | Tape & Reel (TR) | Active | - | - | 82 µH | ±20% | 2 A | 1.95A | Shielded | 160mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.315" (8.00mm) |
|
|
SCRH127B-821FIXED IND 820UH 680MA 1.64OHM SM Signal Transformer |
4,580 |
|
Datasheet |
SCRH127B | Nonstandard | Tape & Reel (TR) | Active | - | - | 820 µH | ±20% | 680 mA | 600mA | Shielded | 1.64Ohm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.315" (8.00mm) |
|
SLPPI06-10-R68M-TRHI POWER IND 0.68UH 23.20 MOHM Signal Transformer |
4,734 |
|
Datasheet |
SLPPI06 | Nonstandard | Tape & Reel (TR) | Obsolete | Molded | - | 680 nH | ±20% | 5.5 A | 10.5A | Shielded | 27.8mOhm Max | - | - | - | -55°C ~ 125°C | 1 MHz | - | Surface Mount | - | 0.280" L x 0.260" W (7.10mm x 6.60mm) | 0.039" (1.00mm) |
|
|
SLPPI06-12-4R7M-TRHI POWER IND 4.70UH 76.2MOHM 9 Signal Transformer |
1,912 |
|
Datasheet |
SLPPI06 | Nonstandard | Tape & Reel (TR) | Obsolete | Molded | - | 4.7 µH | ±20% | 3 A | 4A | Shielded | 91mOhm Max | - | - | - | -55°C ~ 125°C | 1 MHz | - | Surface Mount | - | 0.280" L x 0.260" W (7.10mm x 6.60mm) | 0.047" (1.20mm) |
|
|
SLPPI06-10-1R5M-TRHI POWER IND 1.50UH 59.3 MOHM 7 Signal Transformer |
2,357 |
|
Datasheet |
SLPPI06 | Nonstandard | Tape & Reel (TR) | Obsolete | Molded | - | 1.5 µH | ±20% | 3.7 A | 6.3A | Shielded | 71mOhm Max | - | - | - | -55°C ~ 125°C | 1 MHz | - | Surface Mount | - | 0.280" L x 0.260" W (7.10mm x 6.60mm) | 0.039" (1.00mm) |
|
|
SLPPI06-10-1R0M-TRHI POWER IND 1.00UH 34.5 MOHM 1 Signal Transformer |
1,051 |
|
Datasheet |
SLPPI06 | Nonstandard | Tape & Reel (TR) | Obsolete | Molded | - | 1 µH | ±20% | 4.2 A | 9A | Shielded | 41.5mOhm Max | - | - | - | -55°C ~ 125°C | 1 MHz | - | Surface Mount | - | 0.280" L x 0.260" W (7.10mm x 6.60mm) | 0.039" (1.00mm) |
|
|
SLPPI06-12-2R2M-TRHI POWER IND 2.20UH 54.4 MOHM 6 Signal Transformer |
1,182 |
|
Datasheet |
SLPPI06 | Nonstandard | Tape & Reel (TR) | Obsolete | Molded | - | 2.2 µH | ±20% | 4 A | 5.8A | Shielded | 65mOhm Max | - | - | - | -55°C ~ 125°C | 1 MHz | - | Surface Mount | - | 0.280" L x 0.260" W (7.10mm x 6.60mm) | 0.047" (1.20mm) |
|
|
SLPPI06-12-1R0M-TRHI POWER IND 1.00UH 24.9 MOHM Signal Transformer |
1,759 |
|
Datasheet |
SLPPI06 | Nonstandard | Tape & Reel (TR) | Obsolete | Molded | - | 1 µH | ±20% | 5 A | 9.7A | Shielded | 28mOhm Max | - | - | - | -55°C ~ 125°C | 1 MHz | - | Surface Mount | - | 0.280" L x 0.260" W (7.10mm x 6.60mm) | 0.047" (1.20mm) |
|

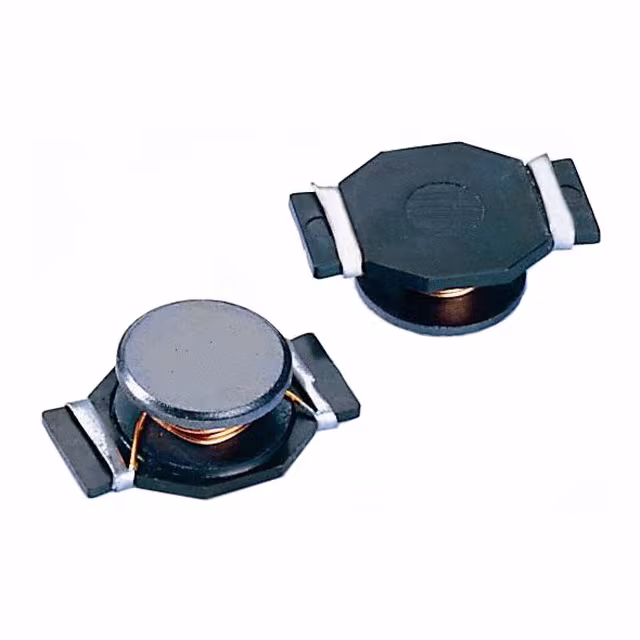

SC4020FH-100FIXED IND 10UH 5.2A 27 MOHM SMD Signal Transformer |
2,390 |
|
Datasheet |
SC4020FH | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 10 µH | ±20% | 5.2 A | 5.2A | Unshielded | 27mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.768" L x 0.524" W (19.50mm x 13.30mm) | 0.272" (6.90mm) |
|
|
SC4020FH-101FIXED IND 100UH 1.45A 265MOHM SM Signal Transformer |
2,667 |
|
Datasheet |
SC4020FH | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 100 µH | ±20% | 1.45 A | 1.8A | Unshielded | 265mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.768" L x 0.524" W (19.50mm x 13.30mm) | 0.272" (6.90mm) |
