Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
DRC-1010-103J-ULRADIAL INDUCTOR WITH LEADS, 1000 Signal Transformer |
2,198 |
|
Datasheet |
DRC-1010 | Radial, Vertical Cylinder | Bag | Active | Drum Core, Wirewound | Ferrite | 10 mH | ±5% | 140 mA | 170mA | Unshielded | 18Ohm Max | 30 @ 79.6kHz | 380kHz | - | -20°C ~ 85°C | 1 kHz | - | Through Hole | Radial, Vertical Cylinder | 0.472" Dia (12.00mm) | 0.512" (13.00mm) |
|
|
DRC-1010-100J-ULRADIAL INDUCTOR WITH LEADS, 10.0 Signal Transformer |
4,683 |
|
Datasheet |
DRC-1010 | Radial, Vertical Cylinder | Bag | Active | Drum Core, Wirewound | Ferrite | 10 µH | ±5% | 3.7 A | 5A | Unshielded | 25mOhm Max | 20 @ 2.52MHz | 16MHz | - | -20°C ~ 85°C | 1 kHz | - | Through Hole | Radial, Vertical Cylinder | 0.472" Dia (12.00mm) | 0.512" (13.00mm) |
|
SCIHP0420TB-R10FIXED INDUCTOR 100NH 12A SMD Signal Transformer |
4,165 |
|
Datasheet |
SCIHP0420TB | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 100 nH | ±20% | 12 A | 22A | Shielded | - | - | - | - | -55°C ~ 125°C | 200 kHz | - | Surface Mount | - | 0.189" L x 0.171" W (4.80mm x 4.35mm) | 0.079" (2.00mm) |
|
|
SCIHP0420TB-R22FIXED IND 220NH 9A SMD Signal Transformer |
3,623 |
|
Datasheet |
SCIHP0420TB | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 220 nH | ±20% | 9 A | 12.5A | Shielded | - | - | - | - | -55°C ~ 125°C | 200 kHz | - | Surface Mount | - | 0.189" L x 0.171" W (4.80mm x 4.35mm) | 0.079" (2.00mm) |
|
|
SCIHP0420TB-R33FIXED IND 330NH 8.5A SMD Signal Transformer |
4,622 |
|
Datasheet |
SCIHP0420TB | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 330 nH | ±20% | 8.5 A | 11A | Shielded | - | - | - | - | -55°C ~ 125°C | 200 kHz | - | Surface Mount | - | 0.189" L x 0.171" W (4.80mm x 4.35mm) | 0.079" (2.00mm) |
|
|
SCIHP0420TB-R47FIXED IND 470NH 7A SMD Signal Transformer |
3,241 |
|
Datasheet |
SCIHP0420TB | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 470 nH | ±20% | 7 A | 9.5A | Shielded | - | - | - | - | -55°C ~ 125°C | 200 kHz | - | Surface Mount | - | 0.189" L x 0.171" W (4.80mm x 4.35mm) | 0.079" (2.00mm) |
|
|
SCIHP0420TB-R56FIXED IND 560NH 6.5A SMD Signal Transformer |
1,340 |
|
Datasheet |
SCIHP0420TB | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 560 nH | ±20% | 6.5 A | 10A | Shielded | - | - | - | - | -55°C ~ 125°C | 200 kHz | - | Surface Mount | - | 0.189" L x 0.171" W (4.80mm x 4.35mm) | 0.079" (2.00mm) |
|

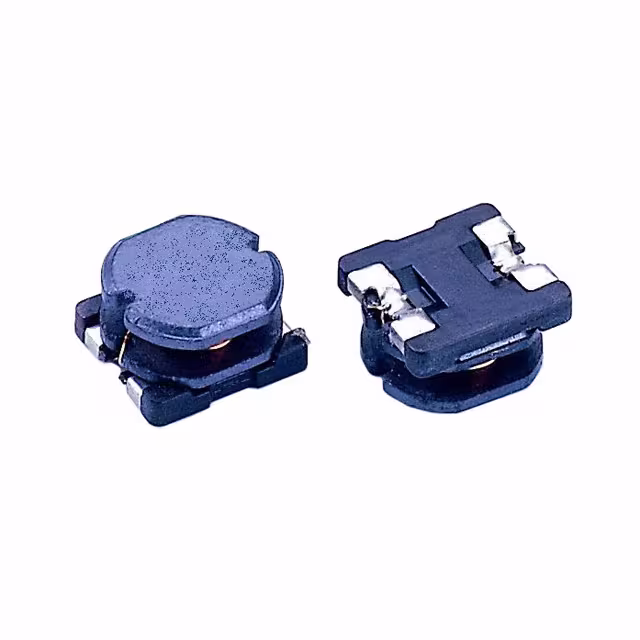

SC73B-100FIXED IND 10UH 2.4A 80 MOHM SMD Signal Transformer |
4,294 |
|
Datasheet |
SC73B | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 10 µH | ±20% | 2.4 A | 1.44A | Unshielded | 80mOhm Max | - | - | - | -40°C ~ 125°C | 2.52 MHz | - | Surface Mount | - | 0.319" L x 0.287" W (8.10mm x 7.30mm) | 0.177" (4.50mm) |
|
|
SC73B-101FIXED IND 100UH 880MA 500MOHM SM Signal Transformer |
2,622 |
|
Datasheet |
SC73B | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 100 µH | ±20% | 880 mA | 510mA | Unshielded | 500mOhm Max | - | - | - | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.319" L x 0.287" W (8.10mm x 7.30mm) | 0.177" (4.50mm) |
|
|
SC73B-120FIXED IND 12UH 2.2A 90 MOHM SMD Signal Transformer |
3,227 |
|
Datasheet |
SC73B | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 12 µH | ±20% | 2.2 A | 1.39A | Unshielded | 90mOhm Max | - | - | - | -40°C ~ 125°C | 2.52 MHz | - | Surface Mount | - | 0.319" L x 0.287" W (8.10mm x 7.30mm) | 0.177" (4.50mm) |
