Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SCRH105R-561FIXED IND 560UH 630MA 1.43OHM SM Signal Transformer |
1,236 |
|
Datasheet |
SCRH105R | Nonstandard | Tape & Reel (TR) | Active | - | - | 560 µH | ±30% | 630 mA | 470mA | Shielded | 1.43Ohm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.413" L x 0.406" W (10.50mm x 10.30mm) | 0.201" (5.10mm) |
|
|
SCRH105R-681FIXED IND 680UH 560MA 1.6OHM SMD Signal Transformer |
3,374 |
|
Datasheet |
SCRH105R | Nonstandard | Tape & Reel (TR) | Active | - | - | 680 µH | ±30% | 560 mA | 430mA | Shielded | 1.6Ohm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.413" L x 0.406" W (10.50mm x 10.30mm) | 0.201" (5.10mm) |
|
|
SCRH105R-820FIXED IND 82UH 1.5A 227 MOHM SMD Signal Transformer |
4,162 |
|
Datasheet |
SCRH105R | Nonstandard | Tape & Reel (TR) | Active | - | - | 82 µH | ±30% | 1.5 A | 1.2A | Shielded | 227mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.413" L x 0.406" W (10.50mm x 10.30mm) | 0.201" (5.10mm) |
|
|
SCRH105R-821FIXED IND 820UH 500MA 1.75OHM SM Signal Transformer |
1,689 |
|
Datasheet |
SCRH105R | Nonstandard | Tape & Reel (TR) | Active | - | - | 820 µH | ±30% | 500 mA | 390mA | Shielded | 1.75Ohm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.413" L x 0.406" W (10.50mm x 10.30mm) | 0.201" (5.10mm) |
|

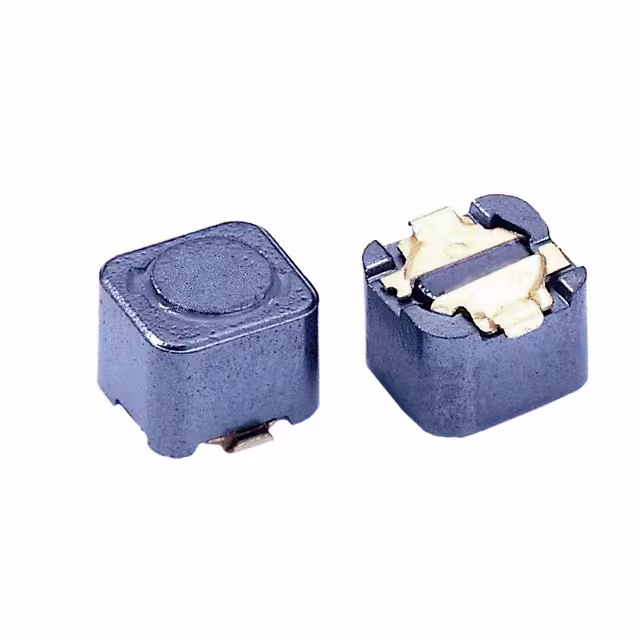

SCRH64-100FIXED IND 10UH 2A 120 MOHM SMD Signal Transformer |
2,959 |
|
Datasheet |
SCRH64 | Nonstandard | Tape & Reel (TR) | Active | - | - | 10 µH | ±20% | 2 A | 1.35A | Shielded | 120mOhm Max | - | - | - | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.280" L x 0.256" W (7.10mm x 6.50mm) | 0.197" (5.00mm) |
|
|
SCRH64-101FIXED IND 100UH 640MA 1.03OHM SM Signal Transformer |
4,730 |
|
Datasheet |
SCRH64 | Nonstandard | Tape & Reel (TR) | Active | - | - | 100 µH | ±20% | 640 mA | 420mA | Shielded | 1.03Ohm Max | - | - | - | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.280" L x 0.256" W (7.10mm x 6.50mm) | 0.197" (5.00mm) |
|
|
SCRH64-102FIXED IND 1MH 210MA 9.26 OHM SMD Signal Transformer |
1,773 |
|
Datasheet |
SCRH64 | Nonstandard | Tape & Reel (TR) | Active | - | - | 1 mH | ±20% | 210 mA | 140mA | Shielded | 9.26Ohm Max | - | - | - | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.280" L x 0.256" W (7.10mm x 6.50mm) | 0.197" (5.00mm) |
|
|
SCRH64-120FIXED IND 12UH 1.8A 130 MOHM SMD Signal Transformer |
1,676 |
|
Datasheet |
SCRH64 | Nonstandard | Tape & Reel (TR) | Active | - | - | 12 µH | ±20% | 1.8 A | 1.22A | Shielded | 130mOhm Max | - | - | - | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.280" L x 0.256" W (7.10mm x 6.50mm) | 0.197" (5.00mm) |
|
|
SCRH64-150FIXED IND 15UH 1.62A 180MOHM SMD Signal Transformer |
2,059 |
|
Datasheet |
SCRH64 | Nonstandard | Tape & Reel (TR) | Active | - | - | 15 µH | ±20% | 1.62 A | 1.11A | Shielded | 180mOhm Max | - | - | - | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.280" L x 0.256" W (7.10mm x 6.50mm) | 0.197" (5.00mm) |
|
|
SCRH64-151FIXED IND 150UH 510MA 1.68OHM SM Signal Transformer |
4,269 |
|
Datasheet |
SCRH64 | Nonstandard | Tape & Reel (TR) | Active | - | - | 150 µH | ±20% | 510 mA | 350mA | Shielded | 1.68Ohm Max | - | - | - | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.280" L x 0.256" W (7.10mm x 6.50mm) | 0.197" (5.00mm) |
