Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
L08054R7BEWTRFIXED IND 4.7NH 750MA 100MOHM SM KYOCERA AVX |
1,434 |
|
Datasheet |
Accu-L® | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Thin Film | Non-Magnetic | 4.7 nH | ±0.1nH | 750 mA | - | Unshielded | 100mOhm Max | 43 @ 450MHz | 5.5GHz | - | -55°C ~ 125°C | 450 MHz | - | Surface Mount | 0805 (2012 Metric) | 0.083" L x 0.059" W (2.11mm x 1.50mm) | 0.041" (1.04mm) |
|
|
L08055R6BEWTRFIXED IND 5.6NH 750MA 100MOHM SM KYOCERA AVX |
3,139 |
|
Datasheet |
Accu-L® | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Thin Film | Non-Magnetic | 5.6 nH | ±0.1nH | 750 mA | - | Unshielded | 100mOhm Max | 50 @ 450MHz | 4.6GHz | - | -55°C ~ 125°C | 450 MHz | - | Surface Mount | 0805 (2012 Metric) | 0.083" L x 0.059" W (2.11mm x 1.50mm) | 0.041" (1.04mm) |
|

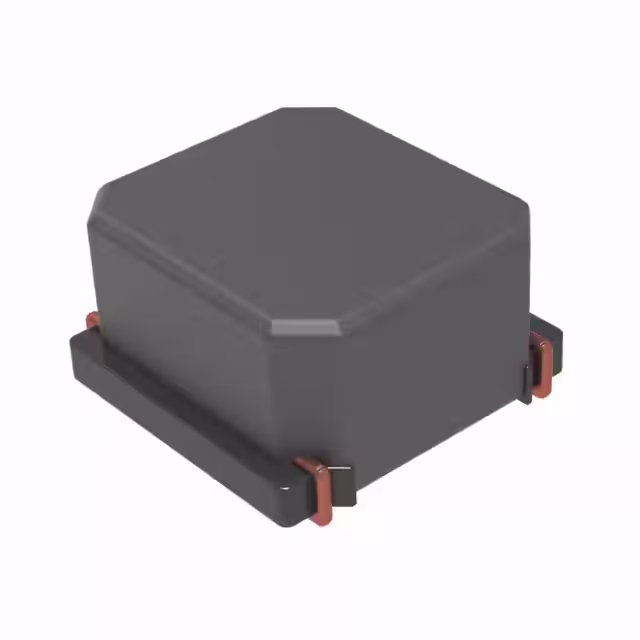

LMLP0808M150CTASFIXED IND 15UH 2.4A 50 MOHM SMD KYOCERA AVX |
3,980 |
|
Datasheet |
LMLP | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 15 µH | ±20% | 2.4 A | 2.7A | Shielded | 50mOhm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.315" L x 0.315" W (8.00mm x 8.00mm) | 0.165" (4.20mm) |
|
|
LMLP0808N6R8CTASFIXED IND 6.8UH 3.7A 25MOHM SMD KYOCERA AVX |
2,366 |
|
Datasheet |
LMLP | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 6.8 µH | ±30% | 3.7 A | 4A | Shielded | 25mOhm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.315" L x 0.315" W (8.00mm x 8.00mm) | 0.165" (4.20mm) |
|
|
LMLP0808N4R7CTASFIXED IND 4.7UH 4.1A 18MOHM SMD KYOCERA AVX |
2,893 |
|
Datasheet |
LMLP | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 4.7 µH | ±30% | 4.1 A | 4.7A | Shielded | 18mOhm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.315" L x 0.315" W (8.00mm x 8.00mm) | 0.165" (4.20mm) |
|
L0805150JESTR\500ACCU-L KYOCERA AVX |
3,519 |
|
Datasheet |
Accu-L® | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Thin Film | - | 15 nH | ±5% | 750 mA | - | Unshielded | 200mOhm Max | 36 @ 450MHz | 2.2GHz | - | -55°C ~ 125°C | 450 MHz | - | Surface Mount | 0805 | 0.083" L x 0.059" W (2.11mm x 1.50mm) | 0.041" (1.04mm) |
|
|
L08058R2DESTR\500ACCU-L KYOCERA AVX |
2,723 |
|
Datasheet |
Accu-L® | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Thin Film | - | 8.2 nH | ±0.5nH | 750 mA | - | Unshielded | 120mOhm Max | 43 @ 450MHz | 3.5GHz | - | -55°C ~ 125°C | 450 MHz | - | Surface Mount | 0805 | 0.083" L x 0.059" W (2.11mm x 1.50mm) | 0.041" (1.04mm) |
|
|
L08055R6DESTR\500ACCU-L KYOCERA AVX |
2,059 |
|
Datasheet |
Accu-L® | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Thin Film | - | 5.6 µH | ±0.5nH | 1.5 A | - | Unshielded | 100mOhm Max | 50 @ 450MHz | 4.6GHz | - | -55°C ~ 125°C | 450 MHz | - | Surface Mount | 0805 | 0.083" L x 0.059" W (2.11mm x 1.50mm) | 0.041" (1.04mm) |
|
HL02180GTTRFIXED IND 18NH 190MA 1.213OHM SM KYOCERA AVX |
4,371 |
|
Datasheet |
MLO™ | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Multilayer | Non-Magnetic | 18 nH | ±2% | 190 mA | - | Unshielded | 1.213Ohm Max | 28 @ 450MHz | 2.38GHz | - | -55°C ~ 125°C | 450 MHz | - | Surface Mount | 0402 (1005 Metric) | 0.039" L x 0.023" W (1.00mm x 0.58mm) | 0.018" (0.45mm) |
|
|
HL02320GTTRFIXED IND 32NH 150MA 1.935OHM SM KYOCERA AVX |
2,174 |
|
Datasheet |
MLO™ | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Multilayer | Non-Magnetic | 32 nH | ±2% | 150 mA | - | Unshielded | 1.935Ohm Max | 28 @ 450MHz | 1.73GHz | - | -55°C ~ 125°C | 450 MHz | - | Surface Mount | 0402 (1005 Metric) | 0.039" L x 0.023" W (1.00mm x 0.58mm) | 0.018" (0.45mm) |
