Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

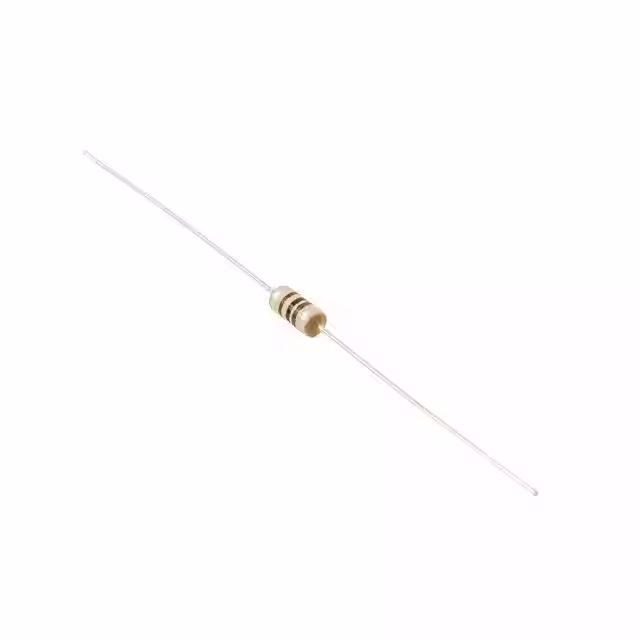

AS20-6R8K-RC6.8UH 10% AXIAL SHIELDED IND. Allied Components International |
1,801 |
|
Datasheet |
AS20 | Axial | Bag | Active | - | - | 6.8 µH | ±10% | - | 320mA | Shielded | 1.73Ohm Max | 46 @ 7.9MHz | 65MHz | - | -55°C ~ 125°C | 7.9 MHz | - | Through Hole | Axial | 0.100" Dia x 0.250" L (2.54mm x 6.35mm) | - |
|
|
AS20-2R2K-RC2.2UH 10% AXIAL SHIELDED IND. Allied Components International |
1,369 |
|
Datasheet |
AS20 | Axial | Bag | Active | - | - | 2.2 µH | ±10% | - | 664mA | Shielded | 410mOhm Max | 28 @ 7.9MHz | 110MHz | - | -55°C ~ 125°C | 7.9 MHz | - | Through Hole | Axial | 0.100" Dia x 0.250" L (2.54mm x 6.35mm) | - |
|

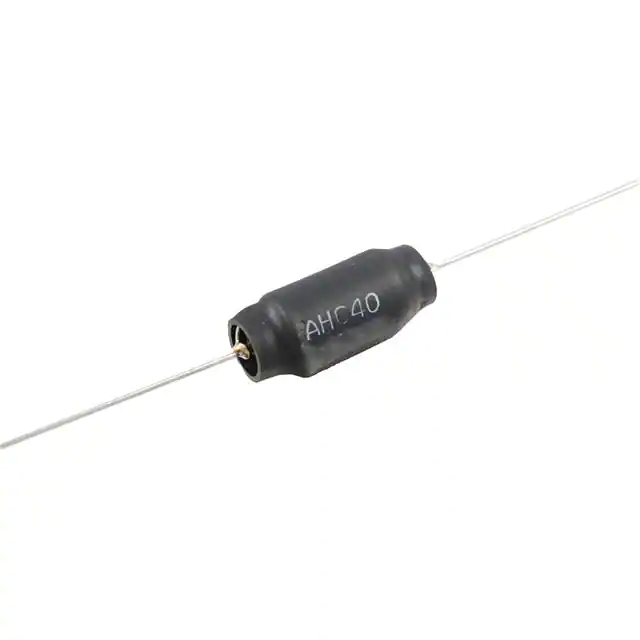

AHC40-3-101K-RC100UH 10% AXIAL HIGH CURRENT Allied Components International |
4,441 |
|
Datasheet |
- | Axial | Tray | Active | - | - | 100 µH | ±10% | 3 A | - | Unshielded | 75mOhm Max | - | 2MHz | - | -55°C ~ 105°C | 1 kHz | - | Through Hole | Axial | 0.500" Dia x 1.170" L (12.70mm x 29.72mm) | - |
|
|
AHC40-3-500K-RC50UH 10% AXIAL HIGH CURRENT Allied Components International |
1,099 |
|
Datasheet |
- | Axial | Tray | Active | - | - | 50 µH | ±10% | 3 A | - | Unshielded | 65mOhm Max | - | 4MHz | - | -55°C ~ 105°C | 1 kHz | - | Through Hole | Axial | 0.500" Dia x 0.920" L (12.70mm x 23.37mm) | - |
|
|
AHC40-5-500K-RC50UH 10% 5 AMP AXIAL HI CURRENT Allied Components International |
3,173 |
|
Datasheet |
- | Axial | Tray | Active | - | - | 50 µH | ±10% | 5 A | - | Unshielded | 50mOhm Max | - | 2MHz | - | -55°C ~ 105°C | 1 kHz | - | Through Hole | Axial | 0.700" Dia x 1.050" L (17.78mm x 26.67mm) | - |
|
|
AHC40-1-501K-RC50UH 10% 1 AMP AXIAL HI CURRENT Allied Components International |
3,568 |
|
Datasheet |
- | Axial | Tray | Active | - | - | 500 µH | ±10% | 1 A | - | Unshielded | 500mOhm Max | - | 800kHz | - | -55°C ~ 105°C | 1 kHz | - | Through Hole | Axial | 0.550" Dia x 1.050" L (13.97mm x 26.67mm) | - |
|
AHC30-1R2K-RC1.2UH 10% AXIAL HICURRENT CHOKE Allied Components International |
3,321 |
|
Datasheet |
- | Axial | Bag | Active | - | - | 1.2 µH | ±10% | 1.58 A | - | Unshielded | 63mOhm Max | 55 @ 7.96MHz | 150MHz | - | - | 7.96 MHz | - | Through Hole | Axial | 0.180" Dia x 0.500" L (4.57mm x 12.70mm) | - |
|
|
AHC30-560K-RC56UH 10% AXIAL HI CURRENT CHOKE Allied Components International |
4,901 |
|
Datasheet |
- | Axial | Tape & Reel (TR) | Active | - | - | 56 µH | ±10% | 300 mA | - | Unshielded | 1.95Ohm Max | 55 @ 2.52MHz | 20MHz | - | - | 2.52 MHz | - | Through Hole | Axial | 0.180" Dia x 0.500" L (4.57mm x 12.70mm) | - |
|
APC20-820K-RC82UH 10% AXIAL POWER CHOKE Allied Components International |
4,037 |
|
Datasheet |
APC20 | Axial | Bulk | Active | - | - | 82 µH | ±10% | 804 mA | 1.4A | Unshielded | 152mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | Axial | 0.290" Dia x 0.600" L (7.36mm x 15.24mm) | - |
|
|
APC20-220K-RC22UH 10% AXIAL POWER CHOKE Allied Components International |
3,787 |
|
Datasheet |
APC20 | Axial | Bulk | Active | - | - | 22 µH | ±10% | 1.28 A | 2.7A | Unshielded | 50mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | Axial | 0.290" Dia x 0.600" L (7.36mm x 15.24mm) | - |
