FETs, MOSFETs
| 制造商 | Series | Package/Case | Packaging | Product Status | FET Type | Technology | Drain to Source Voltage (Vdss) | Current - Continuous Drain (Id) @ 25°C | Drive Voltage (Max Rds On, Min Rds On) | Rds On (Max) @ Id, Vgs | Vgs(th) (Max) @ Id | Gate Charge (Qg) (Max) @ Vgs | Vgs (Max) | Input Capacitance (Ciss) (Max) @ Vds | FET Feature | Power Dissipation (Max) | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
全部重置
应用所有
结果:
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | FET Type | Technology | Drain to Source Voltage (Vdss) | Current - Continuous Drain (Id) @ 25°C | Drive Voltage (Max Rds On, Min Rds On) | Rds On (Max) @ Id, Vgs | Vgs(th) (Max) @ Id | Gate Charge (Qg) (Max) @ Vgs | Vgs (Max) | Input Capacitance (Ciss) (Max) @ Vds | FET Feature | Power Dissipation (Max) | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PJQ2422_R1_00001DFN2020B-6L, MOSFET Panjit International Inc. |
3,998 | - |
|
Datasheet |
- | 6-WDFN Exposed Pad | Tape & Reel (TR) | Discontinued at Digi-Key | N-Channel | MOSFET (Metal Oxide) | 30 V | 8A (Ta) | 4.5V, 10V | 18mOhm @ 8A, 10V | 2.5V @ 250µA | 4.3 nC @ 4.5 V | ±20V | 392 pF @ 25 V | - | 2W (Ta) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | DFN2020B-6 |
|
PJF2NA1K_T0_000011000V N-CHANNEL MOSFET Panjit International Inc. |
9,727 | - |
|
- |
- | TO-220-3 Full Pack | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 1000 V | 2A (Ta) | 10V | 9Ohm @ 1A, 10V | 4V @ 250µA | 14 nC @ 10 V | ±30V | 385 pF @ 25 V | - | 39W (Tc) | -55°C ~ 150°C (TJ) | - | - | Through Hole | ITO-220AB |
|
PJW5P03_R2_0000130V P-CHANNEL ENHANCEMENT MODE M Panjit International Inc. |
6,555 | - |
|
Datasheet |
- | TO-261-4, TO-261AA | Tape & Reel (TR) | Active | P-Channel | MOSFET (Metal Oxide) | 30 V | 4.6A (Ta) | 4.5V, 10V | 50mOhm @ 3A, 10V | 2.5V @ 250µA | 4.8 nC @ 4.5 V | ±20V | 516 pF @ 15 V | - | 1.6W (Ta) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | SOT-223 |
|
PJD60R980E_L2_00001600V N-CHANNEL SUPER JUNCTION MO Panjit International Inc. |
8,567 | - |
|
Datasheet |
- | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Tape & Reel (TR) | Not For New Designs | N-Channel | MOSFET (Metal Oxide) | 600 V | 4A (Tc) | 10V | 980mOhm @ 1.5A, 10V | 4V @ 250µA | 14.4 nC @ 10 V | ±20V | 300 pF @ 25 V | - | 58W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | TO-252AA |
|
PJP2NA1K_T0_000011000V N-CHANNEL MOSFET Panjit International Inc. |
8,439 | - |
|
- |
- | TO-220-3 | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 1000 V | 2A (Ta) | 10V | 9Ohm @ 1A, 10V | 4V @ 250µA | 14 nC @ 10 V | ±30V | 385 pF @ 25 V | - | 80W (Tc) | -55°C ~ 150°C (TJ) | - | - | Through Hole | TO-220AB |
|
|
PJP8NA65A_T0_00001650V N-CHANNEL MOSFET Panjit International Inc. |
9,956 | - |
|
Datasheet |
- | TO-220-3 | Tube | Not For New Designs | N-Channel | MOSFET (Metal Oxide) | 650 V | 7.5A (Ta) | 10V | 1.2Ohm @ 3.75A, 10V | 4V @ 250µA | 29 nC @ 10 V | ±30V | 1245 pF @ 25 V | - | 145W (Tc) | -55°C ~ 150°C (TJ) | - | - | Through Hole | TO-220AB |
|
PJA3456E_R1_00001SOT-23, MOSFET Panjit International Inc. |
3,932 | - |
|
Datasheet |
- | TO-236-3, SC-59, SOT-23-3 | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 20 V | 7.3A (Ta) | 1.8V, 4.5V | 15.5mOhm @ 5A, 4.5V | 1V @ 250µA | 16 nC @ 4.5 V | ±10V | 1177 pF @ 10 V | - | 1.25W (Ta) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | SOT-23 |
|

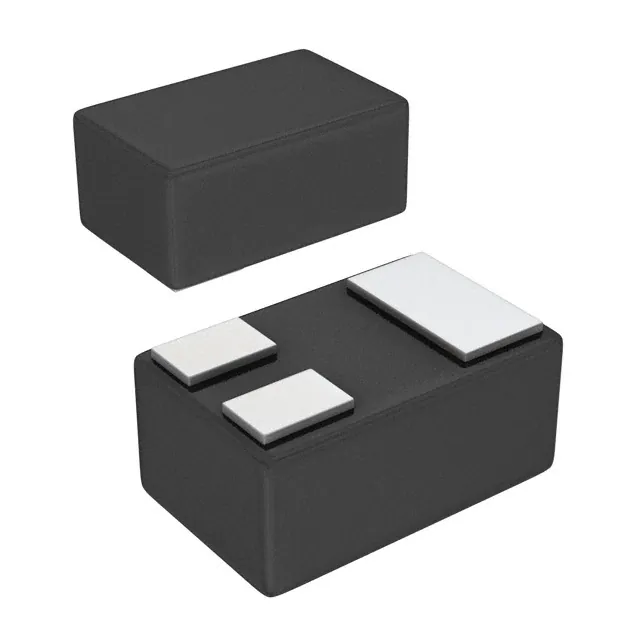

PJQ1916_R1_0000120V N-CHANNEL ENHANCEMENT MODE M Panjit International Inc. |
8,829 | - |
|
- |
- | 3-UFDFN | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 20 V | 950mA (Ta) | 1.2V, 4.5V | 300mOhm @ 500mA, 4.5V | 1V @ 250µA | 1.1 nC @ 4.5 V | ±8V | 46 pF @ 10 V | - | 500mW (Ta) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | DFN1006-3 |
|
|
PJP3NA50_T0_00001500V N-CHANNEL MOSFET Panjit International Inc. |
2,372 | - |
|
- |
- | TO-220-3 | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 500 V | 3A (Ta) | 10V | 3.2Ohm @ 1.5A, 10V | 4V @ 250µA | 6.5 nC @ 10 V | ±30V | 260 pF @ 25 V | - | 44W (Tc) | -55°C ~ 150°C (TJ) | - | - | Through Hole | TO-220AB |
|
PJE8400_R1_0000120V N-CHANNEL ENHANCEMENT MODE M Panjit International Inc. |
2,534 | - |
|
Datasheet |
- | SOT-523 | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 20 V | 1.1A (Ta) | 1.8V, 4.5V | 88mOhm @ 1.1A, 4.5V | 1.2V @ 250µA | 4.6 nC @ 4.5 V | ±12V | 350 pF @ 10 V | - | 300mW (Ta) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | SOT-523 |
