DC Brushless Fans (BLDC)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Voltage - Rated | Size / Dimension | Width | Air Flow | Static Pressure | Bearing Type | Fan Type | Features | Noise | Power (Watts) | RPM | Termination | Ingress Protection | Operating Temperature | Approval Agency | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
W3G300-BV12-41FAN AXIAL 340X76.5MM 13VDC RECT ebm-papst Inc. |
3,735 |
|
Datasheet |
W2G300 | Bulk | Active | 13VDC | Round - 340mm Dia | 76.50mm | 942.4 CFM (26.39m³/min) | - | Ball | Tubeaxial | - | 75.0dB(A) | 220 W | 3200 RPM | 6 Position Rectangular Connector | - | -40 ~ 185°F (-40 ~ 85°C) | EAC | - |
|
K3G097-AP46-01FAN BLOWER CF 139.5X351MM 26VDC ebm-papst Inc. |
4,100 |
|
Datasheet |
K3G097AP | Bulk | Active | 26VDC | Rectangular/Rounded - 139.5mm L x 170.5mm H | 351.0mm | 294.5 CFM (8.25m³/min) | 2.377 in H2O (592.0 Pa) | Ball | Blower, Centrifugal (Dual) | Locked Rotor Protection, PWM Control, Thermal Overload Protector (TOP) | 70.0dB(A) | 320 W | 3500 RPM | 4 Position Rectangular Connector | - | - | EAC | - |
|
8452/2H4PFAN AXIAL 80X25.4MM 12VDC WIRE ebm-papst Inc. |
3,263 |
|
Datasheet |
8450 | Bulk | Active | 12VDC | Square - 80mm L x 80mm H | 25.40mm | 68.8 CFM (1.93m³/min) | - | Ball | Tubeaxial | PWM Control, Speed Sensor (Tach) | 50.0dB(A) | 6.8 W | 6200 RPM | 4 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | - | 0.231 lb (104.78 g) |
|
4314TFAN AXIAL 119X32MM 24VDC WIRE ebm-papst Inc. |
2,905 |
|
Datasheet |
4300 | Bulk | Active | 24VDC | Square - 119mm L x 119mm H | 32.00mm | 100.1 CFM (2.80m³/min) | - | Ball | Tubeaxial | - | 30.0dB(A) | 4.8 W | 2800 RPM | 3 Wire Leads | - | -4 ~ 149°F (-20 ~ 65°C) | - | 0.485 lb (220.00 g) |
|
|
8315100157FAN AXIAL 171.5X50.8MM 24VDC ebm-papst Inc. |
4,842 |
|
Datasheet |
AxiForce | Bulk | Active | 24VDC | Rectangular/Rounded - 171.5mm L x 150mm H | 50.80mm | 311.0 CFM (8.71m³/min) | - | Ball | Tubeaxial | PWM Control, Speed Sensor (Tach) | 71.0dB(A) | 58 W | 6800 RPM | 4 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | - | - |
|

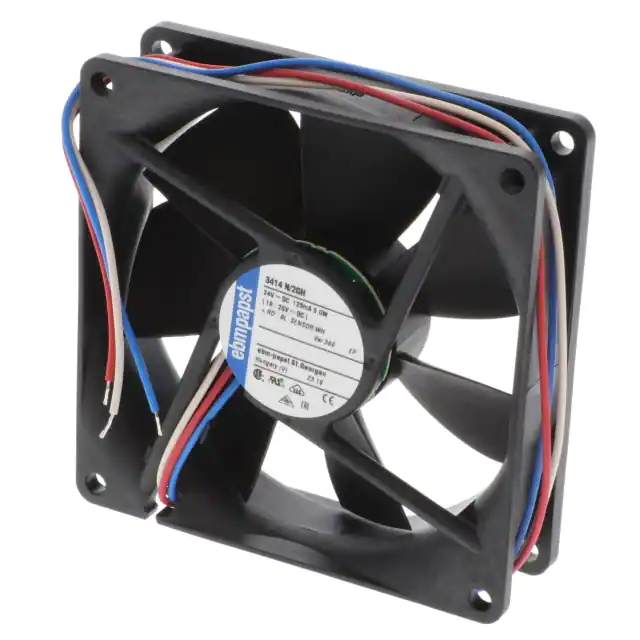

3414N/2GHFAN AXIAL 92X25.4MM 24VDC WIRE ebm-papst Inc. |
2,704 |
|
Datasheet |
3400N | Bulk | Active | 24VDC | Square - 92mm L x 92mm H | 25.40mm | 55.4 CFM (1.55m³/min) | - | Sintec | Tubeaxial | Speed Sensor (Tach) | 39.0dB(A) | 3 W | 3000 RPM | 3 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | - | - |
|
4312NMFAN AXIAL 119X32MM 12VDC WIRE ebm-papst Inc. |
2,021 |
|
Datasheet |
4300N | Bulk | Active | 12VDC | Square - 119mm L x 119mm H | 32.00mm | 88.2 CFM (2.47m³/min) | - | Ball | Tubeaxial | - | 36.0dB(A) | 2.2 W | 2100 RPM | 2 Wire Leads | - | -4 ~ 167°F (-20 ~ 75°C) | CE, CSA, UL, VDE | 0.553 lb (250.84 g) |
|
|
4314/12FAN AXIAL 119X32MM 24VDC WIRE ebm-papst Inc. |
2,882 |
|
Datasheet |
4300 | Bulk | Active | 24VDC | Square - 119mm L x 119mm H | 32.00mm | 100.0 CFM (2.80m³/min) | - | Ball | Tubeaxial | - | 45.0dB(A) | 5 W | - | 2 Wire Leads | - | - | CE, CSA, UL, VDE | 0.5 lb (226.8 g) |
|
412JHHUFAN AXIAL 40X25.4MM 12VDC WIRE ebm-papst Inc. |
2,540 |
|
Datasheet |
400JU | Bulk | Active | 12VDC | Square - 40mm L x 40mm H | 25.40mm | 14.1 CFM (0.395m³/min) | - | Ball | Tubeaxial | - | 44.0dB(A) | 3.2 W | 13000 RPM | 2 Wire Leads | IP54 - Dust Protected, Water Resistant | -4 ~ 140°F (-20 ~ 60°C) | CE, CSA, UL, VDE | 0.111 lb (50.35 g) |
|

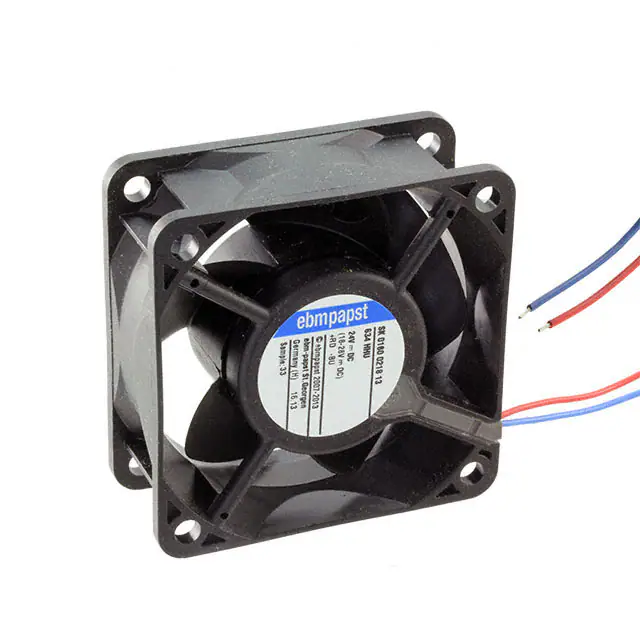

634HHUFAN AXIAL 60X25.4MM 24VDC WIRE ebm-papst Inc. |
2,242 |
|
Datasheet |
630U | Bulk | Active | 24VDC | Square - 60mm L x 60mm H | 25.40mm | 34.1 CFM (0.955m³/min) | - | Ball | Tubeaxial | - | 44.0dB(A) | 3.2 W | 8500 RPM | 2 Wire Leads | IP68 - Dust Tight, Waterproof | -4 ~ 158°F (-20 ~ 70°C) | UL | 0.154 lb (69.85 g) |
