DC Brushless Fans (BLDC)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Voltage - Rated | Size / Dimension | Width | Air Flow | Static Pressure | Bearing Type | Fan Type | Features | Noise | Power (Watts) | RPM | Termination | Ingress Protection | Operating Temperature | Approval Agency | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
5318/2TDH4PFAN AXIAL 140X50.8MM 48VDC WIRE ebm-papst Inc. |
197 |
|
Datasheet |
5300TD | Box | Active | 48VDC | Square - 140mm L x 140mm H | 50.80mm | 394.3 CFM (11.04m³/min) | - | Ball | Tubeaxial | PWM Control, Speed Sensor (Tach) | 79.0dB(A) | 144 W | 9200 RPM | 4 Wire Leads | - | -4 ~ 149°F (-20 ~ 65°C) | - | 2 lbs (907.2 g) |
|

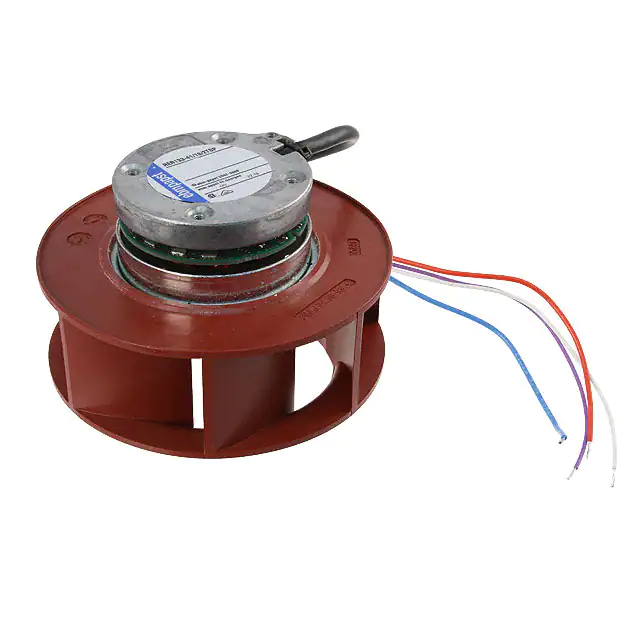

RER133-41/18/2TDPFAN IMP MTRZD 133X91MM 48VDC ebm-papst Inc. |
278 |
|
Datasheet |
RER133TD | Box | Active | 48VDC | Round - 133mm Dia | 91.00mm | 332.4 CFM (9.31m³/min) | - | Ball | Motorized Impellers | PWM Control, Speed Sensor (Tach) | - | 87 W | 6000 RPM | 4 Wire Leads | - | -4 ~ 149°F (-20 ~ 65°C) | - | 2 lbs (907.2 g) |
|
6314/2TDHHP-015FAN AXIAL 171.5X50.8MM 24VDC ebm-papst Inc. |
4,077 |
|
Datasheet |
- | Bulk | Active | 24VDC | Rectangular/Rounded - 171.5mm L x 160mm H | 50.80mm | 418.2 CFM (11.71m³/min) | - | Ball | Tubeaxial | - | 69.0dB(A) | 67 W | 7000 RPM | 2 Wire Leads | - | -4 ~ 167°F (-20 ~ 75°C) | - | 2.1 lbs (952.5 g) |
|
2218F/2TDHHOFAN AXIAL 220X50.8MM 48VDC WIRE ebm-papst Inc. |
1,461 |
|
Datasheet |
2200FTD | Box | Active | 48VDC | Round - 220mm Dia | 50.80mm | 553.0 CFM (15.48m³/min) | - | Ball | Tubeaxial | PWM Control, Speed Sensor (Tach) | 66.0dB(A) | 48 W | 5000 RPM | 4 Wire Leads | - | -13 ~ 158°F (-25 ~ 70°C) | UL | 2.3 lbs (1 kg) |
|
R1G175-AB41-02FAN IMP MTRZD 175X69MM 48VDC ebm-papst Inc. |
4,839 |
|
Datasheet |
R1G175 | Bulk | Active | 48VDC | Round - 175mm Dia | 69.00mm | 330.0 CFM (9.24m³/min) | - | Ball | Motorized Impellers | PWM Control, Speed Sensor (Tach) | 65.0dB(A) | 34 W | 3100 RPM | 4 Wire Leads | - | -13 ~ 140°F (-25 ~ 60°C) | CCC, CSA, UL, VDE | 1.6 lbs (725.7 g) |
|

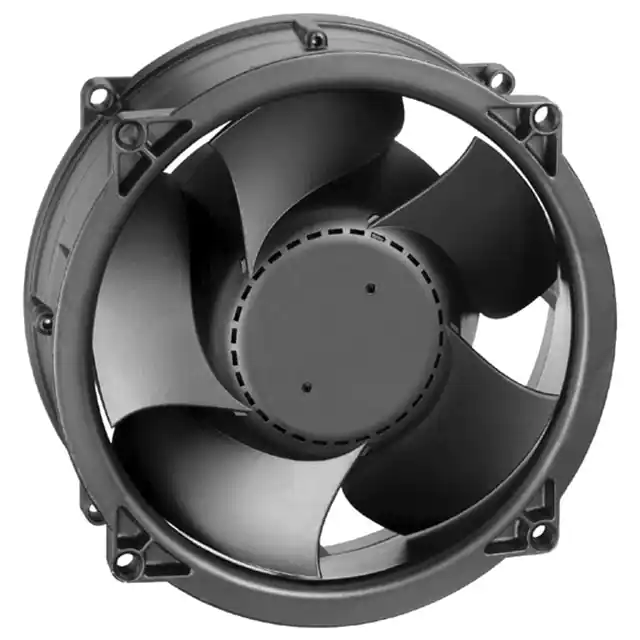

W1G180-AB47-01FAN AXIAL 200X70MM 48VDC WIRE ebm-papst Inc. |
168 |
|
Datasheet |
W1G180 | Bulk | Active | 48VDC | Round - 200mm Dia | 70.00mm | 544.4 CFM (15.24m³/min) | - | Ball | Tubeaxial | - | 69.0dB(A) | 100 W | 4600 RPM | 2 Wire Leads | - | -13 ~ 140°F (-25 ~ 60°C) | CE, CSA, UL, VDE | 4 lbs (1.8 kg) |
|

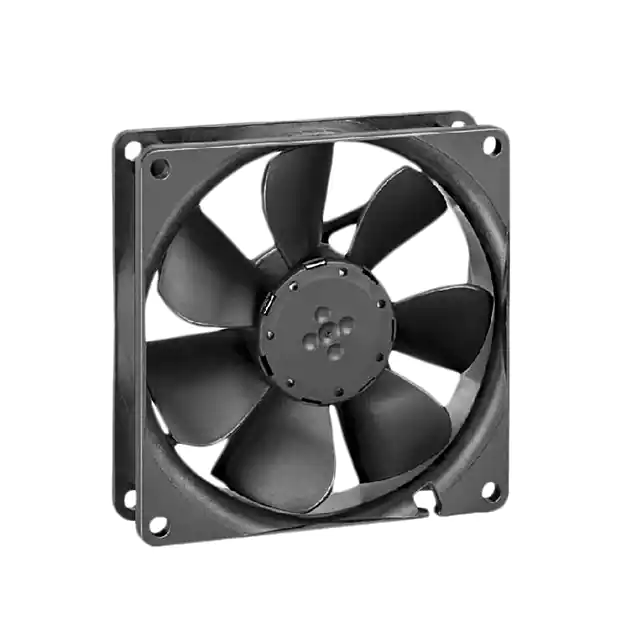

3412NGLEFAN AXIAL 92X25MM 12VDC WIRE ebm-papst Inc. |
143 |
|
Datasheet |
3400N | Bulk | Active | 12VDC | Square - 92mm L x 92mm H | 25.00mm | 35.9 CFM (1.01m³/min) | - | Sintec | Tubeaxial | Locked Rotor Protection | 23.0dB(A) | 1.1 W | 1950 RPM | 2 Wire Leads | - | -4 ~ 176°F (-20 ~ 80°C) | CSA, UL, VDE | 0.222 lb (100.7 g) |
|
4412FMLFAN AXIAL 119X25.4MM 12VDC WIRE ebm-papst Inc. |
1,715 |
|
Datasheet |
4400F | Bulk | Active | 12VDC | Square - 119mm L x 119mm H | 25.40mm | 67.1 CFM (1.88m³/min) | - | Ball | Tubeaxial | Locked Rotor Protection | 43.0dB(A) | 2 W | 1950 RPM | 2 Wire Leads | - | -4 ~ 167°F (-20 ~ 75°C) | CE, CSA, UL, VDE | 0.386 lb (175.09 g) |
|
614N/39HH-110FAN AXIAL 60X25.4MM BALL 24VDC ebm-papst Inc. |
476 |
|
Datasheet |
600N | Bulk | Active | 24VDC | Square - 60mm L x 60mm H | 25.40mm | 33.0 CFM (0.924m³/min) | - | Ball | Tubeaxial | Alarm Sensor | 38.0dB(A) | 2.9 W | 6850 RPM | - | - | -4 ~ 158°F (-20 ~ 70°C) | - | 0.145 lb (65.77 g) |
|
8318/2FAN AXIAL 80X32MM 48VDC WIRE ebm-papst Inc. |
130 |
|
Datasheet |
8300 | Bulk | Active | 48VDC | Square - 80mm L x 80mm H | 32.00mm | 32.0 CFM (0.896m³/min) | - | Ball | Tubeaxial | Speed Sensor (Tach) | 36.0dB(A) | 2.6 W | - | 3 Wire Leads | - | - | - | 0.38 lb (172.37 g) |
